6. ESEMPI DI INSTALLAZIONE

Leonardo Doffo

4 aprile 2023 15:17 Aggiornato

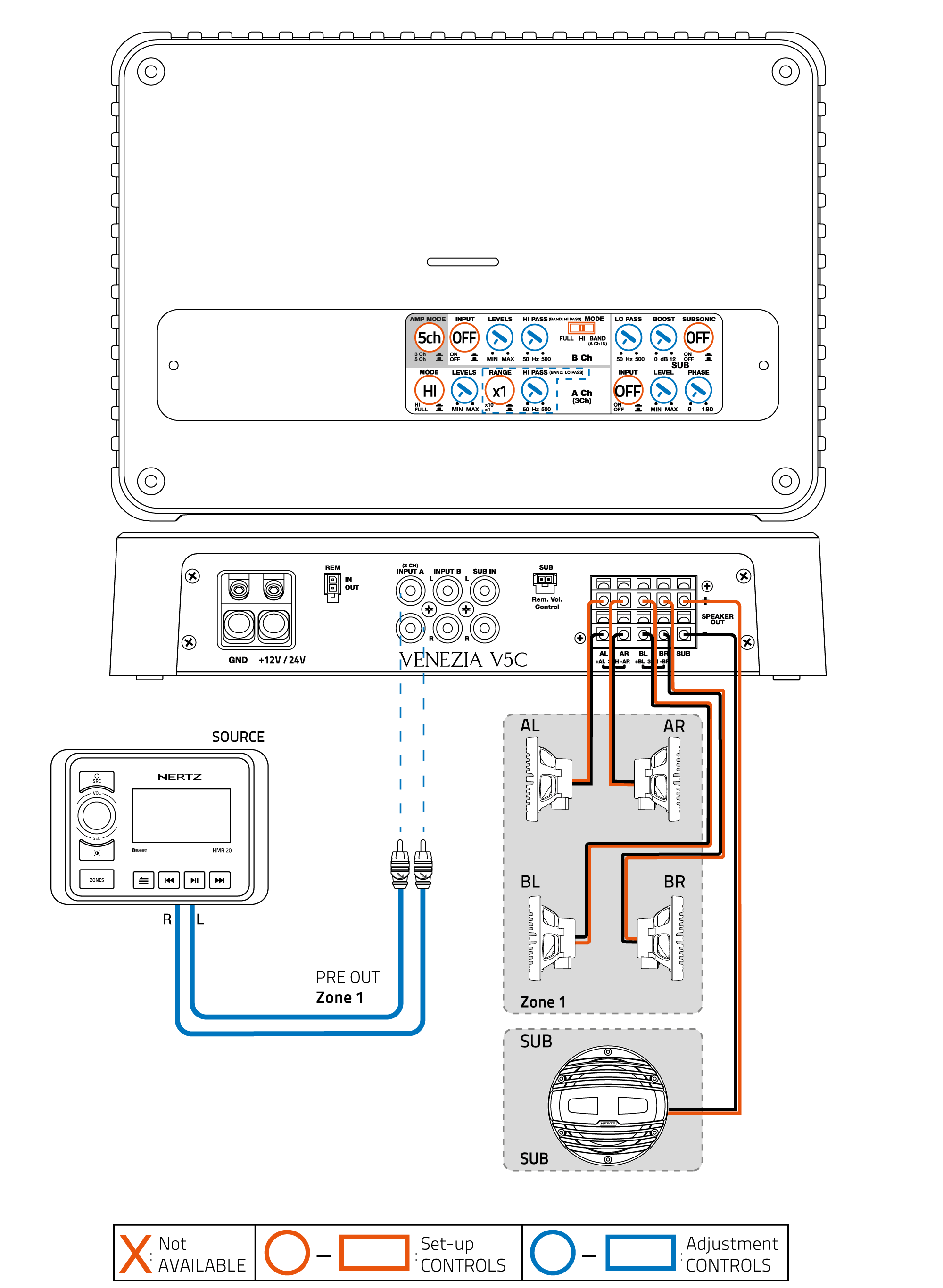

1. 5Ch OUT (2Ch IN): 4 COAXIALS + SUB

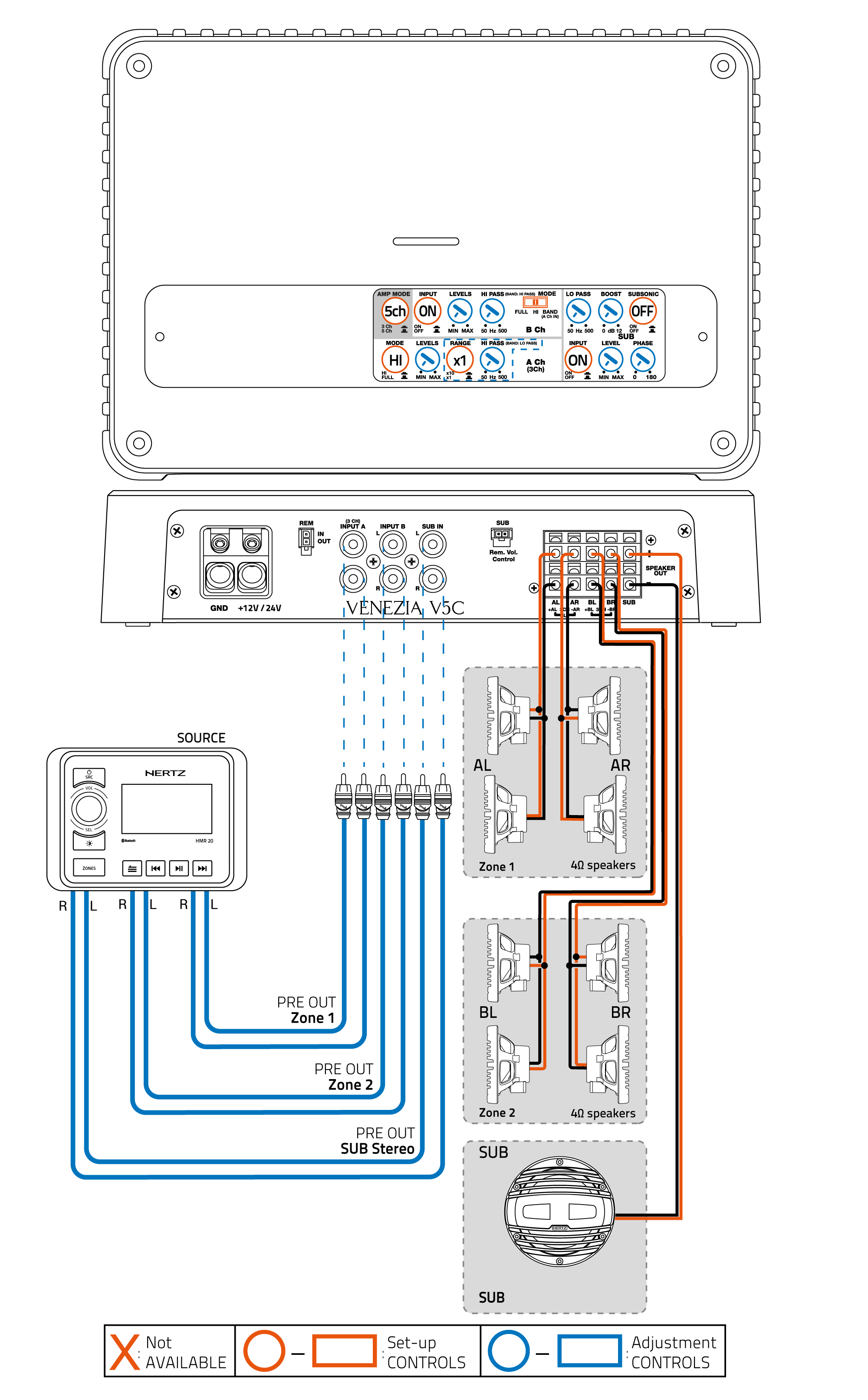

2. 5Ch OUT (6Ch IN): 8 COAXIALS + SUB

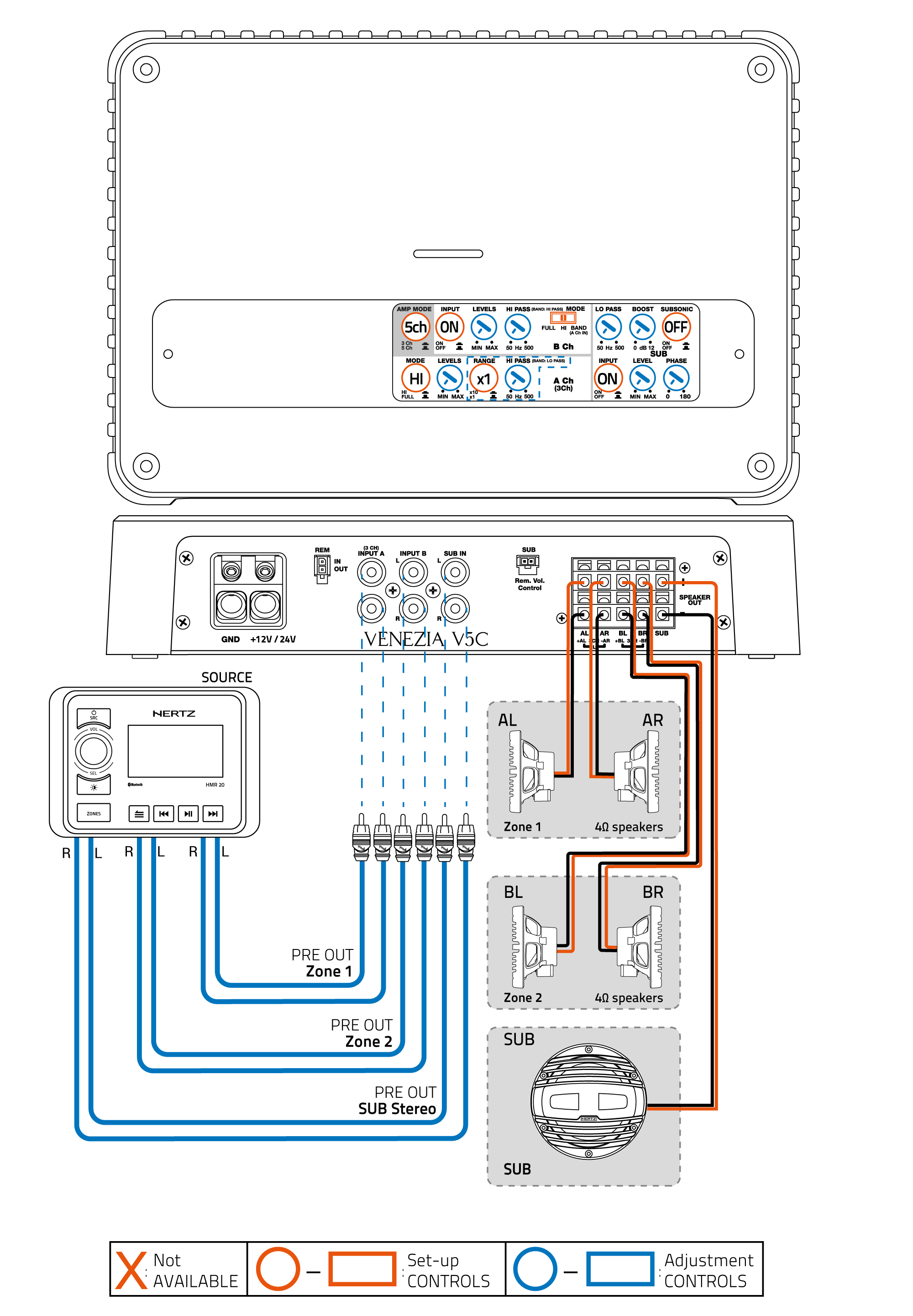

3. 5Ch OUT (6Ch IN): 4 COAXIALS + SUB

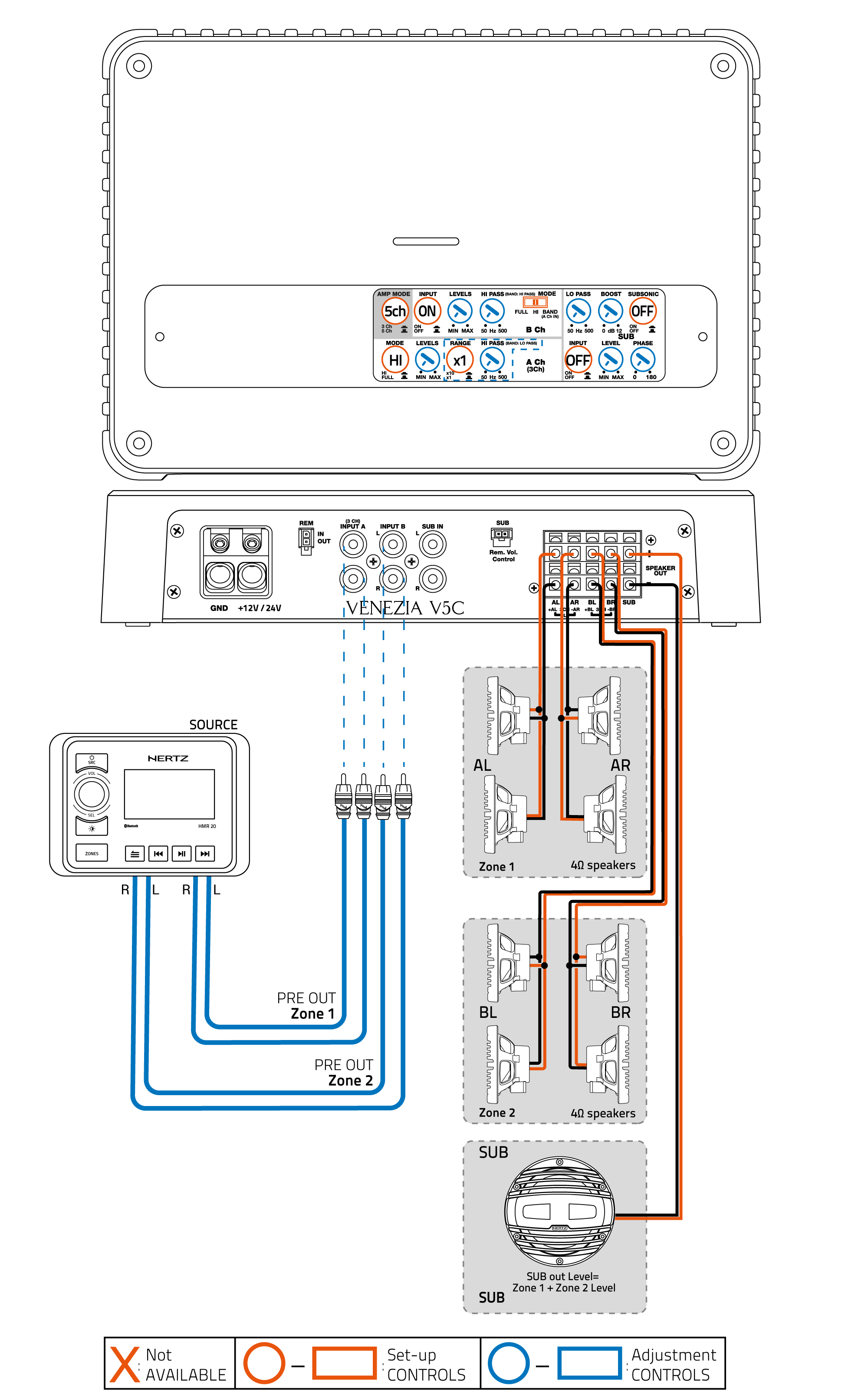

4. 5Ch OUT (4Ch IN): 8 COAXIALS + SUB

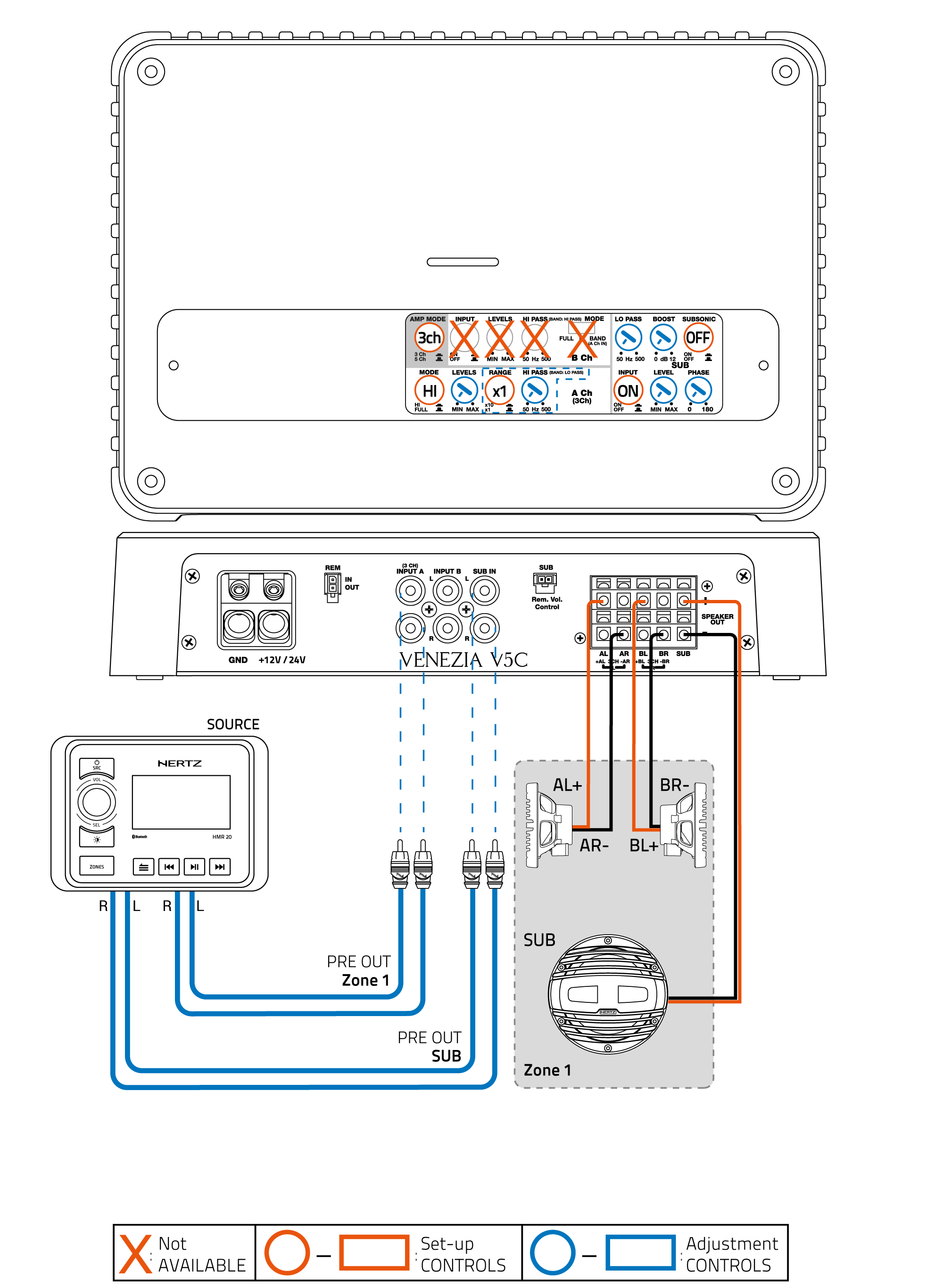

5. 3Ch OUT (4Ch IN): 2 COAXIALS + SUB
