1. PRECAUTIONS
| WARNING: for your safety, while boating, keep the volume to a level at which external sounds can be heard. |
1. This unit uses precision parts and components for its operation.
In the event of any operating issues, never open the case or disassemble the unit. Contact your Hertz dealer or service center.
2.FCC STATEMENT
2.1 This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1)This device may not cause harmful interference.
(2)This device must accept any interference received, including interference that may cause
undesired operation.
2.2 Changes or modifications not expressly approved by the party responsible for compliance couldvoid the user’s authority to operate the equipment.
FCC ID: 2AYOQ-CAPRI H100
Remark: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
FCC Radiation Exposure Statement. This equipment complied with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20 cm between the unit & your body.
3. IC warning
This device complies with Industry Canada’s license-exempt RSS standard(s).
Operation is subject to the following two conditions:
(1)This device may not cause interference
(2)This device must accept any interference, including interference that may cause undesired operation of the device.
This Class B digital apparatus complies with CanadianICES-0003.
Le présent appareil est conforme aux CNRd’Industrie Canada applicables aux appareils radio exempts de licence.L’exploitation est autorisée aux deux conditions suivantes:
(1)l’appareil ne doit pas produire de brouillage
(2)l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.
This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. The antenna should be installed and operated with minimum distance of 20 cm between the radiator and your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
Cet appareil est conforme aux limites d’exposition aux rayonnements de la IC pour un environnement non contrôlé. L’antenne doit être installé de façon à garder une distance minimale de 20 centimètres entre la source de rayonnements et votre corps. L’émetteur ne doit pas être colocalisé ni fonctionner conjointement avec à autre antenne ou autre émetteur.
WARNING: changes or modifications to this unit not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
IC ID: 24882-CAPRI H100
4. The Bluetooth word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc.
and any use of such marks by Elettromedia s.p.a. is under license. Other trademarks and trade names belong to their respective owners.
5. USB Port
- The USB memory sticks must be recognized as “USB” to work properly.
Some models may not operate correctly. In the event data is lost or damaged under any condition, Elettromedia s.p.a. shall not be liable for any damage. When using the USB memory stick, we recommend that you backup your data (music) to a personal computer before using.
- Data (music) files may be damaged when USB memory sticks are removed while the device is
reading data, or by static electricity and/or an electrical surge.
- Connect/disconnect the USB memory stick when it is not accessed.
- Disconnect the USB memory device when not in use.
6. Cleaning the Body
- Use a soft, dry cloth and gently wipe off any dirt or dust.
- For persistent dirt, apply some neutral detergent diluted in water on a soft cloth, wipe off the dirt
gently, then wipe again with a dry cloth.
- Do not use benzene, thinner, boat cleaner, etc., as these substances may damage the body or cause the paint to peel. Also, leaving rubber or plastic products in contact with the body for long periods of time may cause stains.
NMEA 2000® Connection
NMEA 2000® is a marine standard for data communication on vessels.NMEA 2000® Connection permits the CAPRI H100 control from a compatible multi-function displays (MDF).
Remark: Refer to your MFD’s manufacturer for device compatibility info
CAUTIONS ON HANDLING
Protect from high temperatures. Exposure to direct sunlight for an extended period of time can produce very high temperature inside the unit. It is recommended to protect the unit with the special cover when not in use.
| WARNING: This head unit is designed to be water and spray resistant, but it is not designed to be sub merged or to withstand high-pressure water spray. Please exercise care when washing your boat to avoid damaging the head unit. Do not install on submersibles, personal watercraft or any other vessel likely to be under water for even a short time. |

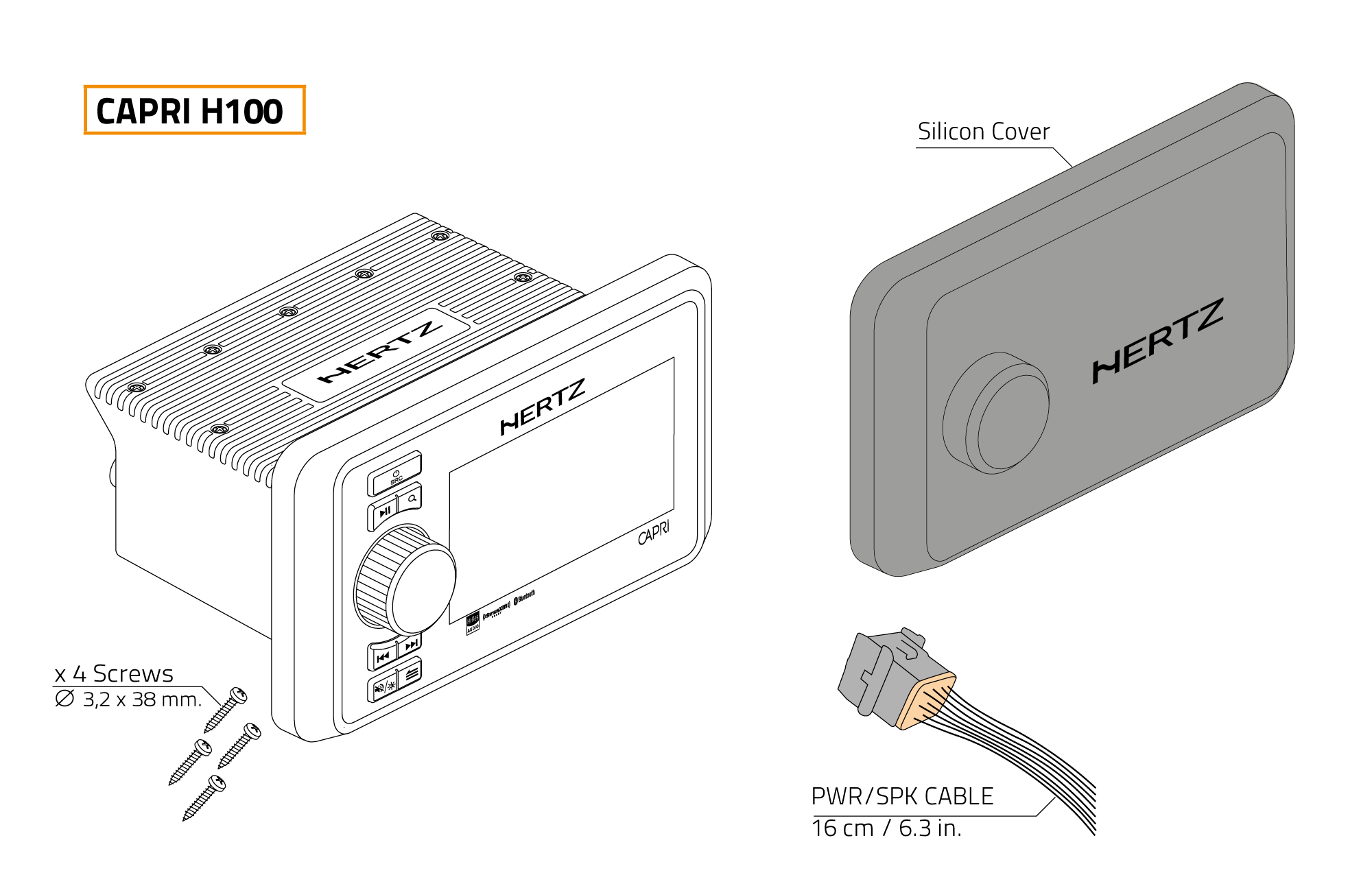

2. PACKAGING CONTENTS
3. DIMENSIONS

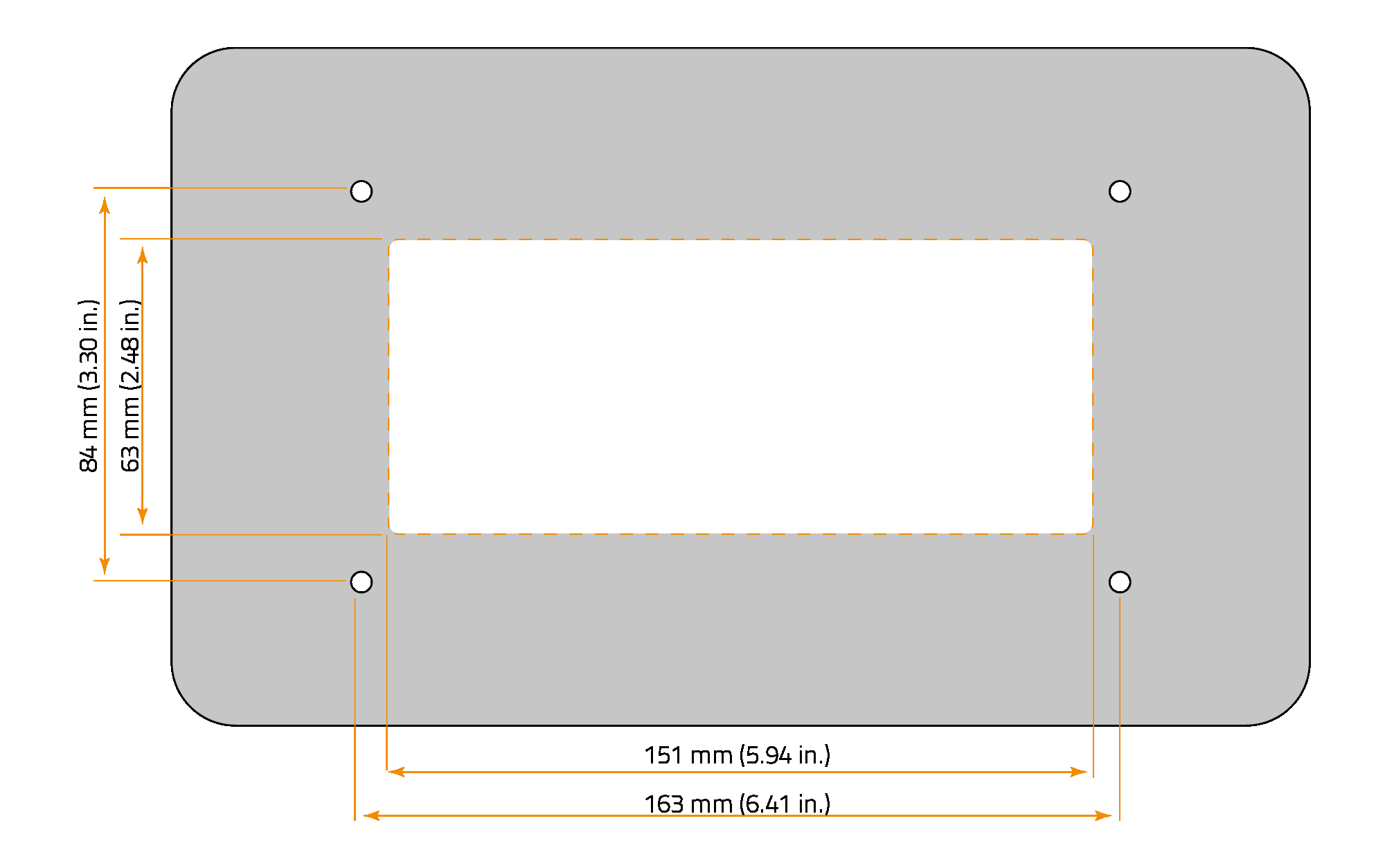

3.1 MOUNTING HOLE
4. INSTALLATION

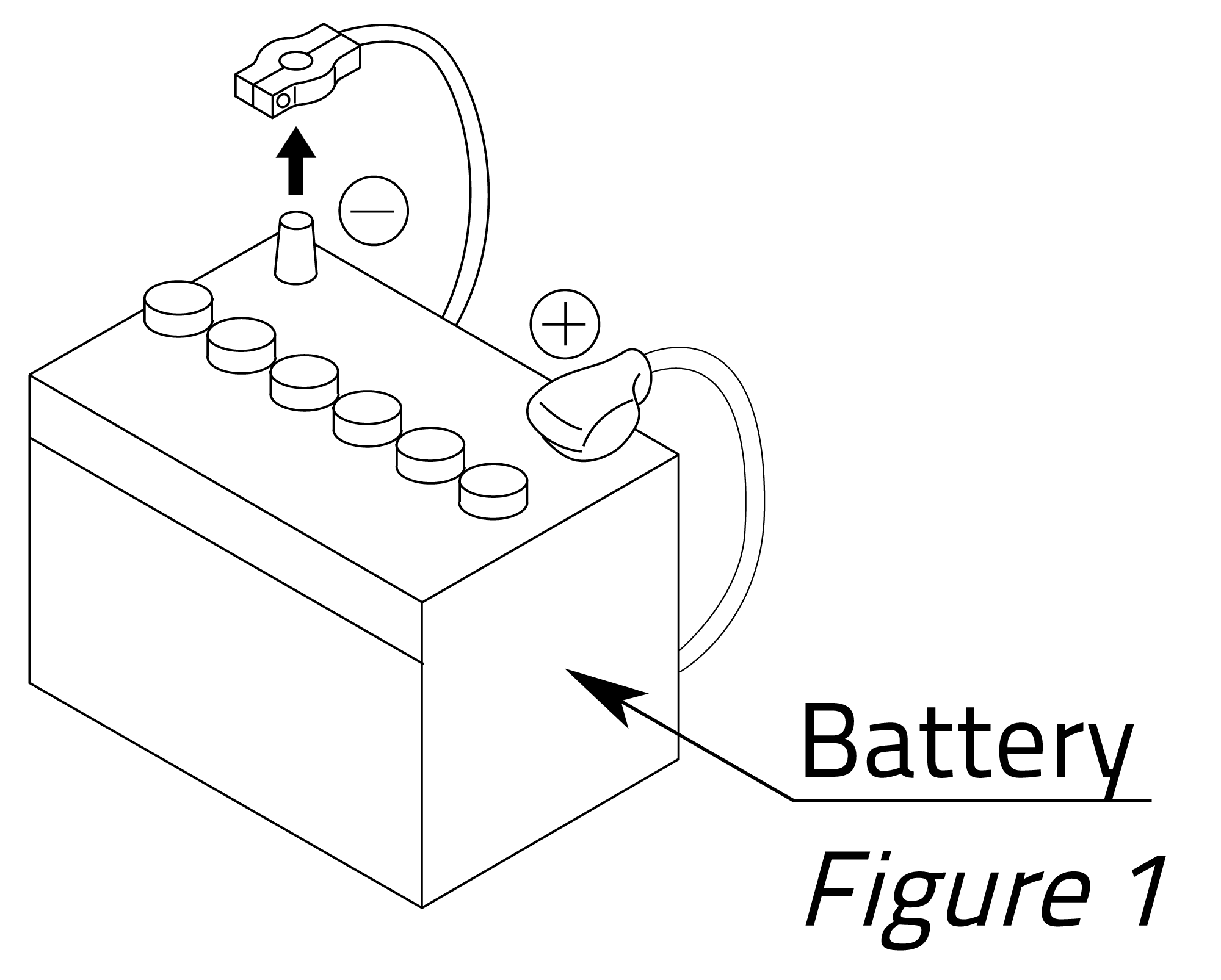

4.1 BEFORE STARTING
|
4.2 INSTALLATION CAUTIONS
- In order to avoid any interference, do not install the tuner module or control unit in the proximity of the engine compartment.
- The use of unauthorized parts can cause permanent damage to the unit.
- Always check your wire connections to ensure proper installation before turning on the unit.
- Consult with your nearest dealer for proper installation or if other accessories are needed to complete the installation.
- Seek assistance if modifications or drilling holes to your vessel is needed.
- Do not install the unit where it will be subjected to excessive moisture, dust, dirt, foreign particles or vibration. Areas of high temperature from the engine, direct sunlight, or heat sources should also be avoided.
- Do not install the unit in a location where it will interfere with the vessel operation, or it will injure the passengers if there is a sudden or emergency stop.

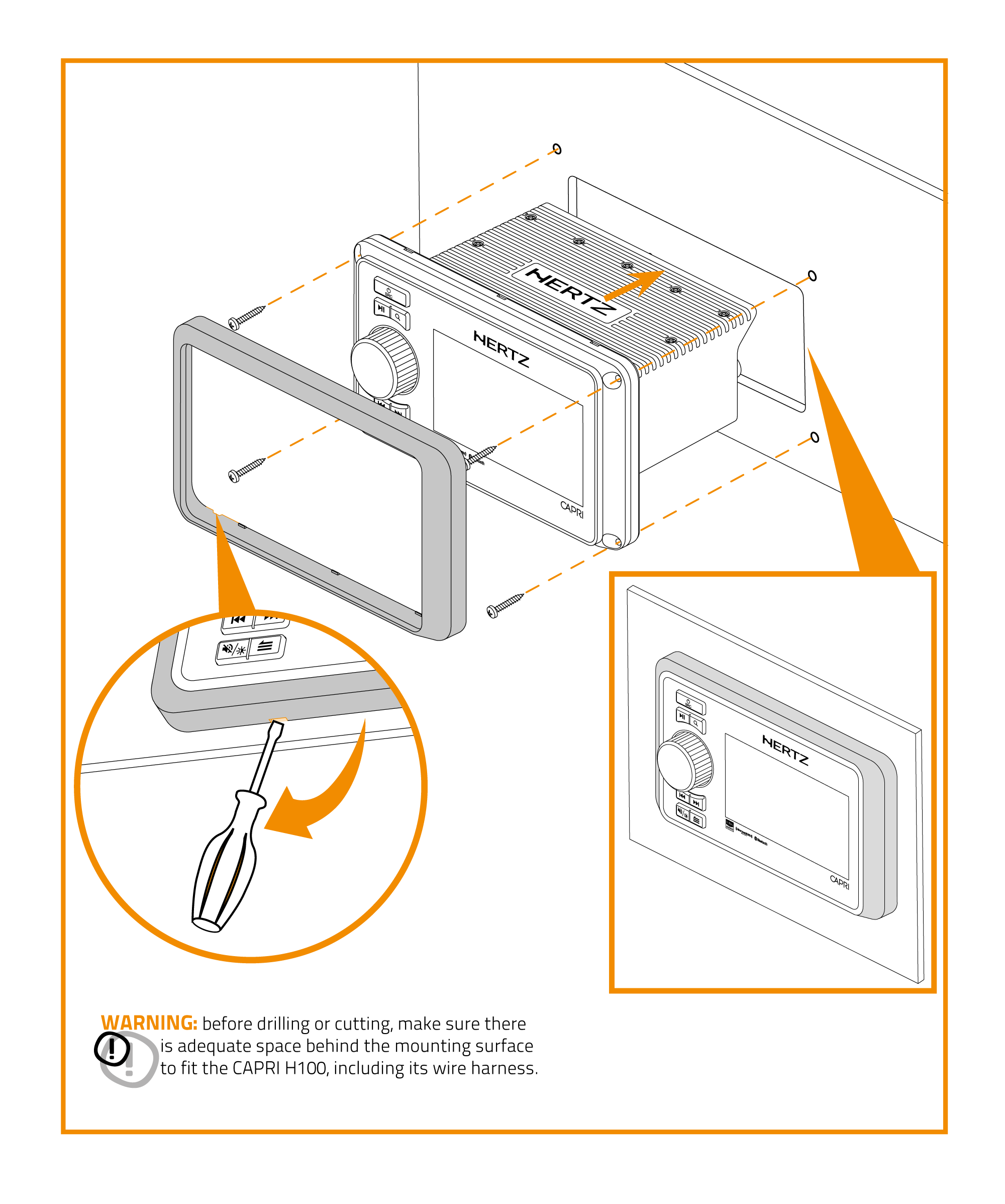

5. MOUNTING

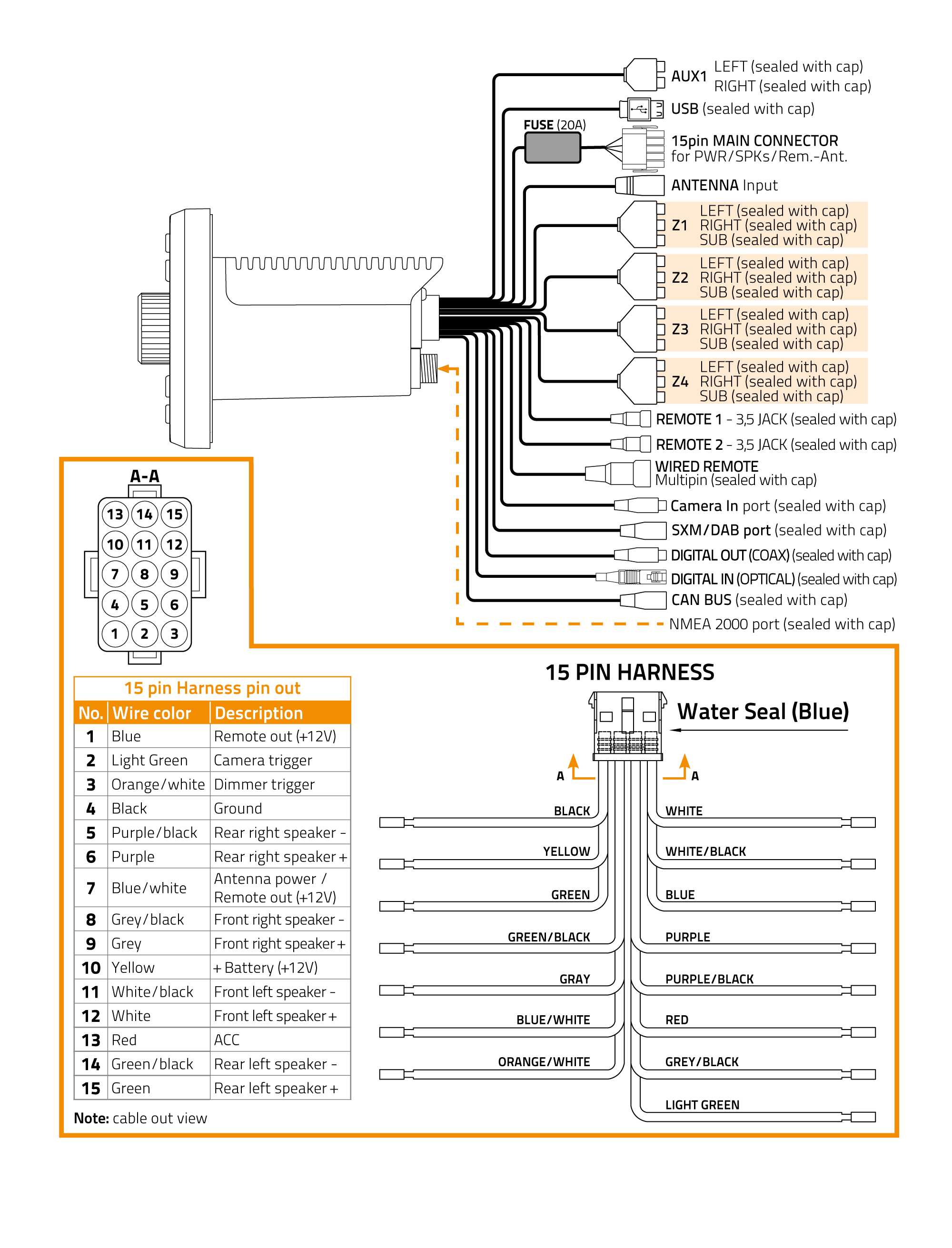

6. CONNECTION

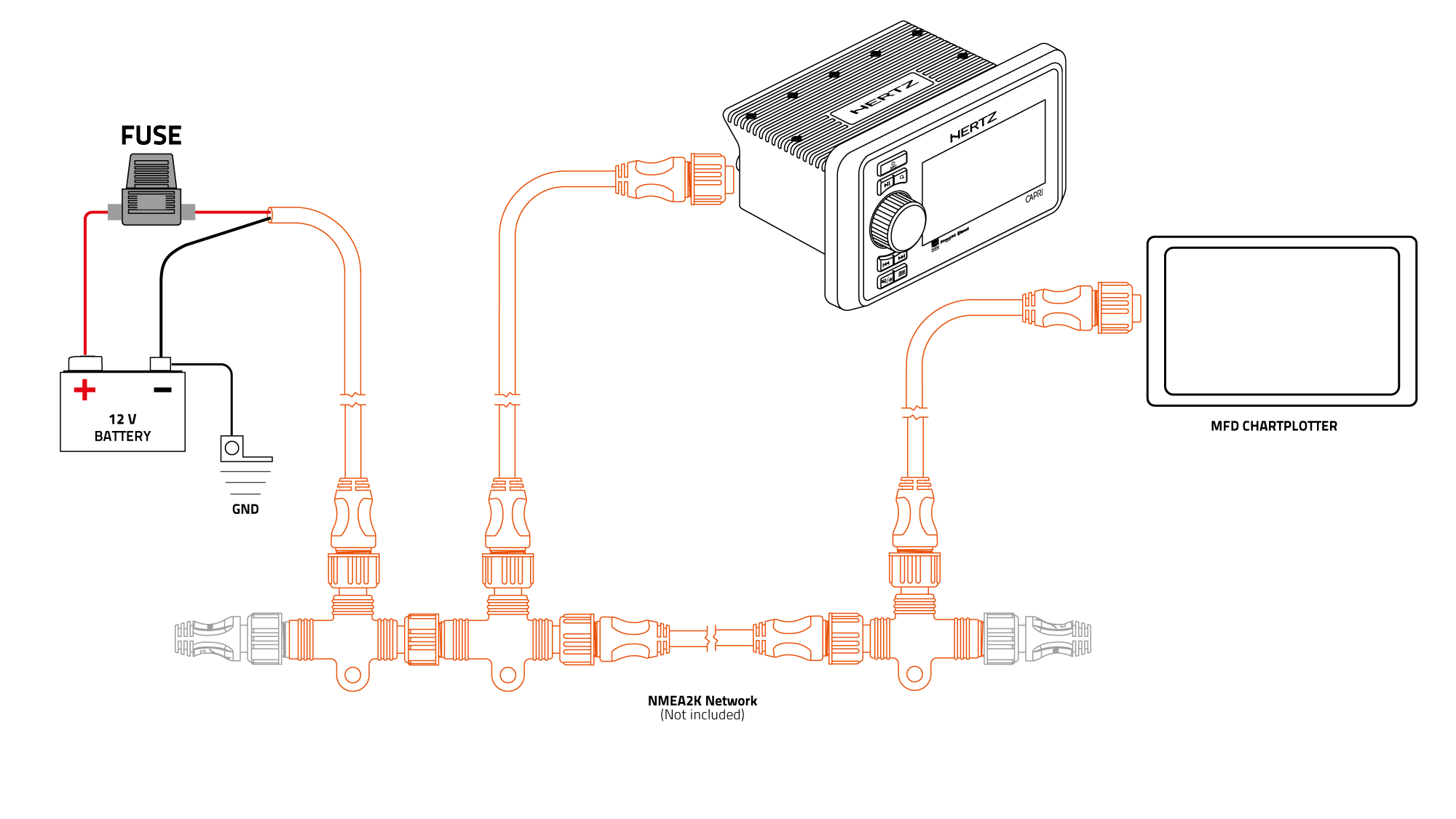

Example of NMEA 2000 network connection.
7. CONTROLS
7.1 FRONT PANEL CONTROL
7.2 NAME OF BUTTONS AND THEIR FUNCTIONS
8. OPERATIONS
8.1 BASIC OPERATION
| WARNING: when the unit is turned on, starting and stopping the engine with its volume raised to the maximum level may cause hearing damage. Make sure you adjust the volume in advance. |
■ 8.1.1 Power On/Off
Note:
- Start the engine before using this unit.
- Be careful about using this unit for a long time without running the engine. If you drain the vessel battery, you may not be able to start the engine and this can reduce the service life of the battery.
1. Start the engine.
| Engine ON position |
2. Press / SCR to turn the unit ON.
3. Press / SCR to access the SOURCE SELECTION menu.
4. Rotate KNOB to highlight the desired source, press to select.

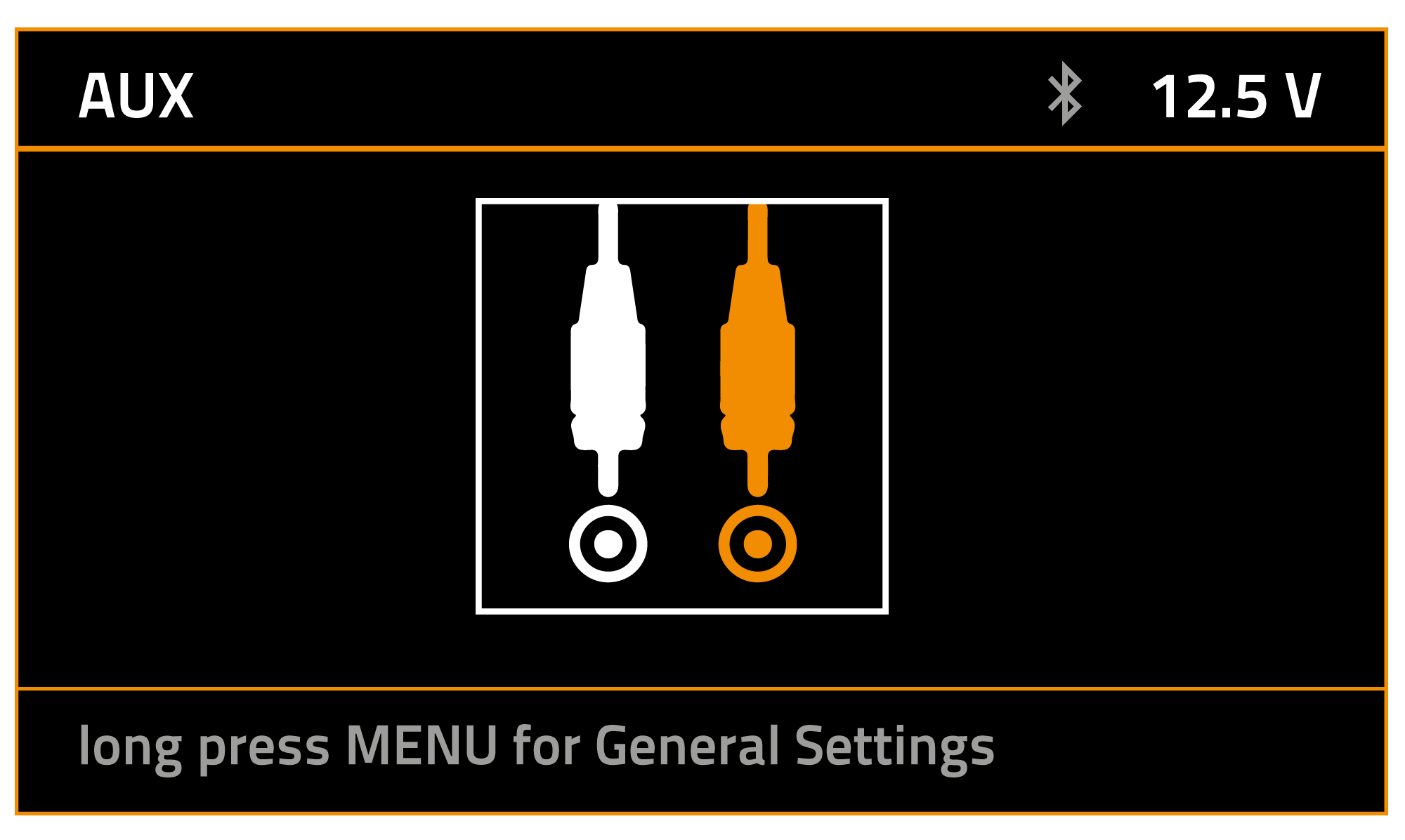

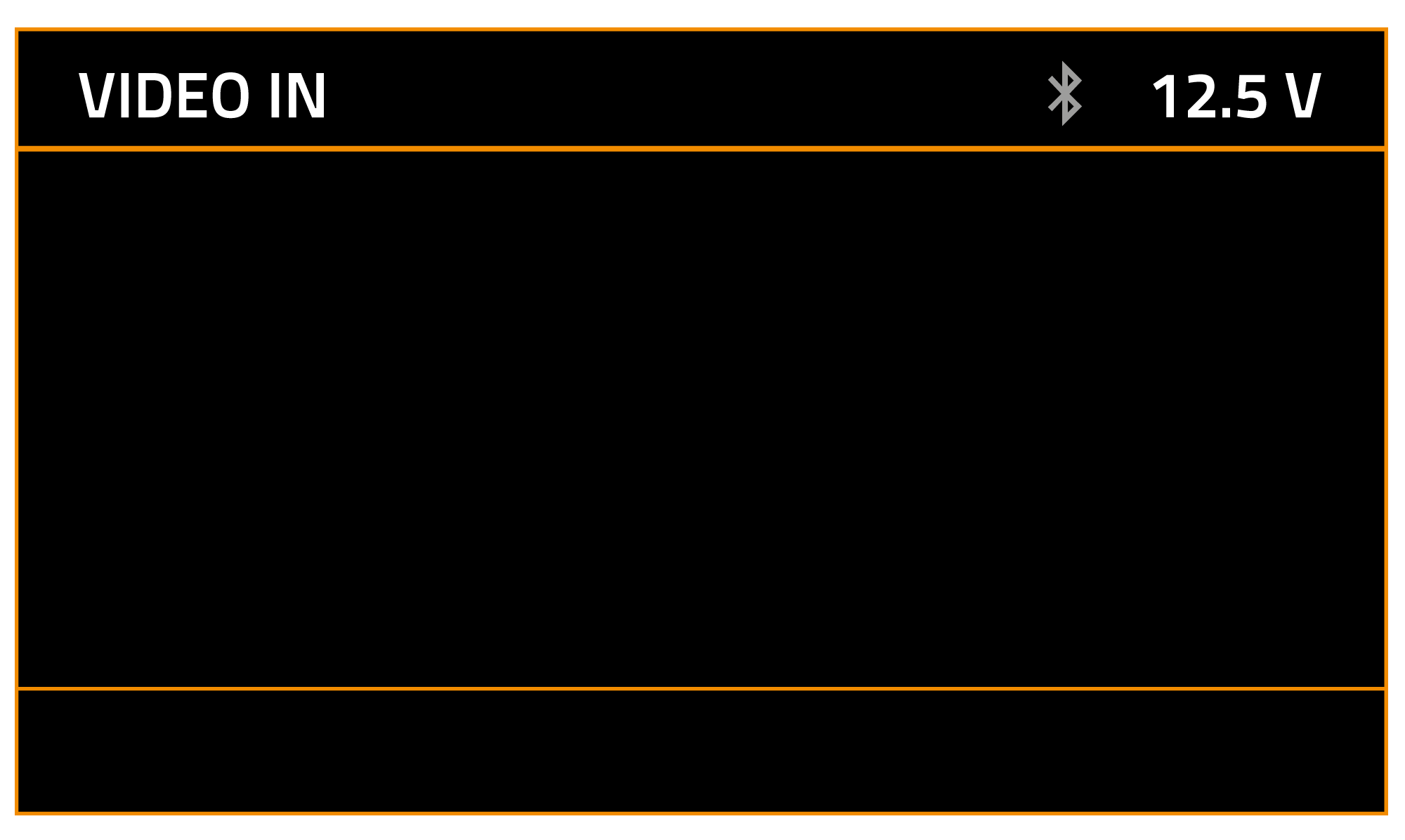

(FM>AM>WB>USB>BT>SXM/DAB+>AUX IN>VIDEO IN>DIGITAL IN).

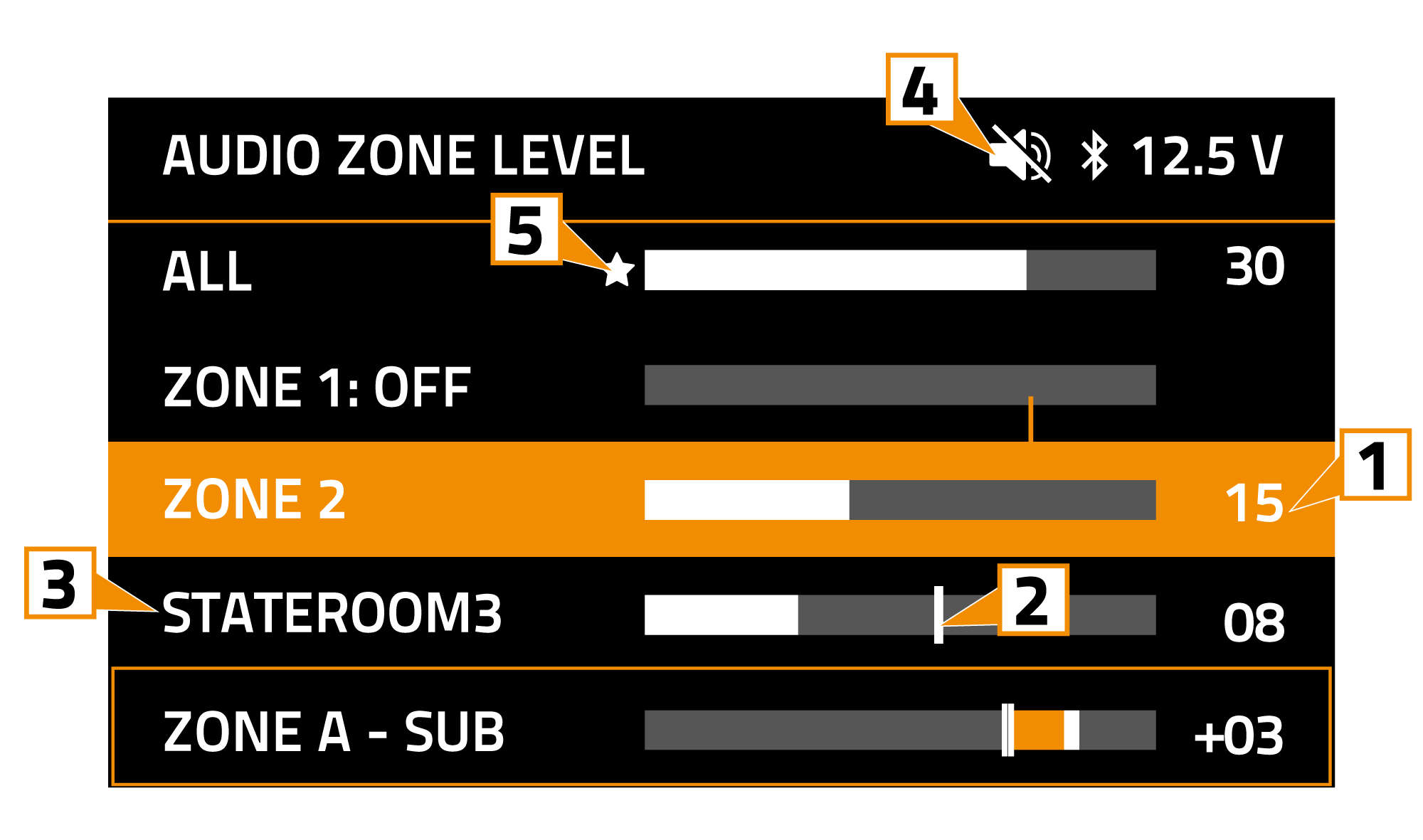

■ 8.1.2 Adjusting the volume
Rotate KNOB to increase or decrease the volume.
The adjustable range of volume is from 0 to 40.
- The volume of each Zone and Zone Sub relative level are adjustable separately in AUDIO ZONE LEVEL menu.
- Sub volume is adjustable relative level range is from -30 to +10
|
WARNING: while boating, keep the volume at a level at which external sounds can still be heard. Please be aware of the volume levels in residential, public areas and local volume level ordinances. |
8.2 SETTINGS
■ 8.2.1 System Setting Menu
- Long press to access the general settings menu.
- Rotate KNOB to highlight one of the available options, press to select.
BLUETOOTH DEVICE> DISPLAY> AUDIO> TUNER REGION>SOURCES> POWER MANAGEMENT> HMC U1 MANAGEMENT> HMC NMEA2K MANAGMENT*> SYSTEM).
* Remark: this function is selectable only when HMC NMEA2K remote control is connected.
- Press to go back to the previous screen menu.
- Long press to exit from general settings menu.
■ 8.2.2 Bluetooth Device
- Rotate KNOB to highlight one of the available options, press to select
(DEVICE NAME > SELECT DEVICE > REMOVE DEVICE).
DEVICE NAME (to create a desired name to display on connected Bluetooth device).
Use KNOB to enter a desired name for this device (max 10 characters).
SELECT DEVICE (to connect or disconnect a Bluetooth device from the list of paired device).
1. Rotate KNOB to select a Bluetooth device to connect or disconnect.
2. Press KNOB to connect or disconnect a Bluetooth device selected.
Remark: will appear next to the name of the connected Bluetooth device.
REMOVE DEVICE (to remove a Bluetooth device from the list of paired device)
1. Rotate KNOB to select the Bluetooth device to remove.
2. Press KNOB to remove the Bluetooth device selected.
■ 8.2.3 Display
- Rotate KNOB to highlight one available option, press to selector to enable or disable
this function.
(DIMMER > DIMMER BRIGHTNESS > TEXT SCROLLING).
DIMMER
Press KNOB to enable or disable
this function.
Remark: CAPRI H100 is equipped with a specific function that allows to enable/disable DIMMER function via an external command provided by the user, through the “DIMMER TRIGGER” wire (orange/white) on the back of the head unit.
When + 12Vdc voltage is applied to the “DIMMER TRIGGER” wire, the head unit enable dimmer function. When + 12Vdc voltage is removed from this control wire, the head unit disable dimmer function .
DIMMER BRIGHTNESS
- Rotate KNOB to highlight one of the available options, press to select.
(DIMMER SCREEN>DIMMER BUTTONS)
SCREEN BRIGHTNESS
Press KNOB to switch between the options:
DIMMER ON: rotate KNOB to adjust the screen brightness level from 1 to 10 when dimmer is enabled.
DIMMER OFF: rotate KNOB to adjust the screen brightness level from 11 to 20 when dimmer is disabled.
BUTTONS BRIGHTNESS
Press KNOB to switch between the options:
DIMMER ON: rotate KNOB to adjust the buttons brightness level from 1 to 10 when dimmer is enabled.
DIMMER OFF:rotate KNOB to adjust the buttons brightness level from 11 to 20 when dimmer is disabled.
TEXT SCROLLING (to enable continuous text scrolling where available)
Press KNOB to enable or disable
this function.
■ 8.2.4 Audio
- Rotate KNOB to highlight one available option, press to selector to enable or disable
this function.
(GENERAL AUDIO SETTINGS > ZONE AUDIO SETTINGS).
GENERAL AUDIO SETTINGS
- Rotate KNOB to highlight one available option, press to select or to enable disable a function.
(INTERNAL AMP ON > PHONE VOLUME SYNC > KEEP VOLUME RATIOS > BEEP).
INTERNAL AMP ON (to enable or disable speaker output amplifier stage)
Press KNOB to enable or disable
this function.
PHONE VOLUME SYNC (to synchronize the volume level on specific zone or all with the Bluetooth device connected)
Press KNOB and rotate to highlight one of the available options, press to select.
(ALL > ZONE 1 > ZONE 2 > ZONE 3 > ZONE 4).
KEEP VOLUME RATIOS (to maintain the volume difference between zones when you adjust the main volume to 00)
Press KNOB to enable or disable
this function.
BEEP
Press KNOB to enable or disable
this function.
ZONE AUDIO
- Rotate KNOB to highlight one available option, press to select.
(ZONE 1 > ZONE 2 > ZONE 3 > ZONE 4 > AUDIO ZONE GROUPS > ASSIGN FAVORITE ZONE)
ZONE 1 (ZONE 1 and DIGITAL COAXIAL settings).
- Rotate KNOB to highlight one available option, press to selector to enable or disable
this function.
(ZONE RENAME > EQUALIZER > BALANCE > LOUDNESS > CROSSOVER (HPF) > SUBWOOFER > MAX VOLUME LIMIT > POWER ON VOLUME LIMIT > LEVEL CONTROL MODE)
ZONE RENAME (to create a desired name for this audio zone, to facilitate identification).
Use KNOB to enter a desired name for this audio zone (max 10 characters).
EQUALIZER (Equalizer Setting)
- Rotate KNOB to select one of the available options.
(FLAT > CLASSIC > JAZZ > POP > ELECTRONIC > HIP-HOP > ROCK > USER)
The “USER” equalization can be customizable by the user
- Rotate KNOB to select “USER” equalization.
- Press KNOB to select the desired frequency.
- Rotate KNOB to adjust the level (from +12 to -12) of the selected frequency
- Press the KNOB again to move to the next frequency.
BALANCE (to adjust the right and left output balance of this zone)
- Rotate KNOB to adjust the balance between the right and left audio output from R12 (full right) to L12 (full left)
LOUDNESS (to compensate for deficiencies in the low/high frequencies at low volume level)
- Press KNOB to enable or disable
this function.
CROSSOVER (HPF) (to set the high pass cutoff filter frequency for ZONE 1 L/R and DIGITAL COAXIAL).
- Rotate the KNOB to highlight the desirer value (60Hz > 80Hz > 100Hz > FULL), press to select.
SUBWOOFER (ZONE 1 SUB settings)
- Rotate KNOB to highlight one of the available options, press to select
(SUBW VOLUME LEVEL > SUBW CROSSOVER (LPF) > SUBW POLARITY)
SUBW VOLUME LEVEL
- Rotate KNOB to adjust the level from -30 to +10.
SUBW CROSSOVER (LPF) (to set SUB the low pass filter)
- Rotate KNOB to highlight one available option, press to select:
(FREQUENCY>SLOPE).
FREQUENCY (to set the SUB low pass cutoff filter frequency)
Rotate the KNOB to highlight the desired value (60Hz>80Hz>100Hz>FULL), press to select.
SLOPE (to set the SUB low pass filter slope)
Rotate the KNOB to highlight the desired value (-12dB/oct>-24dB/oct), press to select.
SUBW POLARITY (to set the SUB phase)
- Rotate the KNOB to highlight ( 0° or 180°), press to select.
MAX VOLUME LIMIT (to limit the maximum volume output of this zone).
- Rotate KNOB to adjust the desired Volume level limit from 0 to 40.
POWER ON VOLUME LIMIT (to limit the maximum volume level of this zone when the head unit is turned ON).
- Rotate KNOB to adjust the desired Volume level upon turn on from 0 a 40.
LEVEL CONTROL MODE
- Rotate KNOB to highlight one of the available options, press to select:
- VARIABLE (default): the volume level of the signal output from this audio zone is variable and can be controlled via the volume mixer (AUDIO ZONE LEVEL).
- FIXED @4Vrms: the level of the output signal from this audio zone is fixed at 4Vrms. It will no longer be possible to change the volume level for this zone until the “Variable” mode is selected.
Remark: in this mode, the DIGITAL COAXIAL RCA output is set to 0dBFS
- FIXED @2Vrms: the level of the output signal from this audio zone is fixed at 2Vrms.
It will no longer be possible to change the volume level for this zone until the “Variable” mode is selected.
Remark: in this mode, the DIGITAL COAXIAL RCA output is set to -6dBFS
- FIXED @1Vrms: the level of the output signal from this audio zone is fixed at 1Vrms.
It will no longer be possible to change the volume level for this zone until the “Variable” mode is selected.
Remark: in this mode, the DIGITAL COAXIAL RCA output is set to -12dB
- OFF: this audio zone is off. This zone will no longer play any sound until “Variable” or “Fixed” mode is selected
ZONE 2 (Impostazioni ZONA 2).
- Rotate KNOB to highlight one available option, press to selector to enable or disable
this function.
(ZONE RENAME > EQUALIZER > BALANCE > LOUDNESS > CROSSOVER (HPF) > SUBWOOFER > MAX VOLUME LIMIT > POWER ON VOLUME LIMIT > LEVEL CONTROL MODE)
ZONE RENAME (to create a desired name for this audio zone, to facilitate identification).
Use KNOB to enter a desired name for this audio zone (max 10 characters).
EQUALIZER (Equalizer Setting)
- Rotate KNOB to select one of the available options.
(FLAT > CLASSIC > JAZZ > POP > ELECTRONIC > HIP-HOP > ROCK > USER)
The “USER” equalization can be customizable by the user
- Rotate KNOB to select “USER” equalization.
- Press KNOB to select the desired frequency.
- Rotate KNOB to adjust the level (from +12 to -12) of the selected frequency
- Press the KNOB again to move to the next frequency.
BALANCE (to adjust the right and left output balance of this zone)
- Rotate KNOB to adjust the balance between the right and left audio output from R12 (full right) to L12 (full left)
LOUDNESS (to compensate for deficiencies in the low/high frequencies at low volume level)
- Press KNOB to enable or disable
this function.
CROSSOVER (HPF) (to set the high pass cutoff filter frequency for ZONE 2 L/R).
- Rotate the KNOB to highlight the desirer value (60Hz > 80Hz > 100Hz > FULL), press to select.
SUBWOOFER (ZONE 2 SUB settings)
- Rotate KNOB to highlight one of the available options, press to select
(SUBW VOLUME LEVEL > SUBW CROSSOVER (LPF) > SUBW POLARITY)
SUBW VOLUME LEVEL
- Rotate KNOB to adjust the level from -30 to +10.
SUBW CROSSOVER (LPF) (to set SUB the low pass filter)
- Rotate KNOB to highlight one available option, press to select: (FREQUENCY>SLOPE).
FREQUENCY (to set the SUB low pass cutoff filter frequency)
Rotate the KNOB to highlight the desired value (60Hz>80Hz>100Hz>FULL), press to select.
SLOPE (to set the SUB low pass filter slope)
Rotate the KNOB to highlight the desired value (-12dB/oct>-24dB/oct), press to select.
SUBW POLARITY (to set the SUB phase)
- Rotate the KNOB to highlight ( 0° or 180°), press to select.
MAX VOLUME LIMIT (to limit the maximum volume output of this zone).
- Rotate KNOB to adjust the desired Volume level limit from 0 to 40.
POWER ON VOLUME LIMIT (to limit the maximum volume level of this zone when the head unit is turned ON).
- Rotate KNOB to adjust the desired Volume level upon turn on from 0 a 40.
LEVEL CONTROL MODE
Rotate KNOB to highlight one of the available options, press to select:
- VARIABLE (default): the volume level of the signal output from this audio zone is variable and can be controlled via the volume mixer (AUDIO ZONE LEVEL).
- FIXED @4Vrms: the level of the output signal from this audio zone is fixed at 4Vrms. It will no longer be possible to change the volume level for this zone until the “Variable” mode is selected.
- FIXED @2Vrms: the level of the output signal from this audio zone is fixed at 2Vrms.
It will no longer be possible to change the volume level for this zone until the “Variable” mode is selected.
- FIXED @1Vrms: the level of the output signal from this audio zone is fixed at 1Vrms.
It will no longer be possible to change the volume level for this zone until the “Variable” mode is selected.
- OFF: this audio zone is off. This zone will no longer play any sound until “Variable” or “Fixed” mode is selected
ZONE 3 (ZONE 3 settings).
- Rotate KNOB to highlight one available option, press to selector to enable or disable
this function.
(ZONE RENAME > EQUALIZER > BALANCE > LOUDNESS > CROSSOVER (HPF) > SUBWOOFER > MAX VOLUME LIMIT > POWER ON VOLUME LIMIT > LEVEL CONTROL MODE)
ZONE RENAME (to create a desired name for this audio zone, to facilitate identification).
Use KNOB to enter a desired name for this audio zone (max 10 characters).
EQUALIZER (Equalizer Setting)
- Rotate KNOB to select one of the available options.
(FLAT > CLASSIC > JAZZ > POP > ELECTRONIC > HIP-HOP > ROCK > USER)
The “USER” equalization can be customizable by the user
- Rotate KNOB to select “USER” equalization.
- Press KNOB to select the desired frequency.
- Rotate KNOB to adjust the level (from +12 to -12) of the selected frequency
- Press the KNOB again to move to the next frequency.
BALANCE (to adjust the right and left output balance of this zone)
- Rotate KNOB to adjust the balance between the right and left audio output from R12 (full right) to L12 (full left)
LOUDNESS (to compensate for deficiencies in the low/high frequencies at low volume level)
- Press KNOB to enable or disable
this function.
CROSSOVER (HPF) (to set the high pass cutoff filter frequency for ZONE 3 L/R).
- Rotate the KNOB to highlight the desirer value (60Hz > 80Hz > 100Hz > FULL), press to select.
SUBWOOFER (ZONE 3 SUB settings)
- Rotate KNOB to highlight one of the available options, press to select
(SUBW VOLUME LEVEL > SUBW CROSSOVER (LPF) > SUBW POLARITY)
SUBW VOLUME LEVEL
- Rotate KNOB to adjust the level from -30 to +10.
SUBW CROSSOVER (LPF) (to set SUB the low pass filter)
- Rotate KNOB to highlight one available option, press to select:
(FREQUENCY>SLOPE).
FREQUENCY (to set the SUB low pass cutoff filter frequency)
Rotate the KNOB to highlight the desired value (60Hz>80Hz>100Hz>FULL), press to select.
SLOPE (to set the SUB low pass filter slope)
Rotate the KNOB to highlight the desired value (-12dB/oct>-24dB/oct), press to select.
SUBW POLARITY (to set the SUB phase)
- Rotate the KNOB to highlight ( 0° or 180°), press to select.
MAX VOLUME LIMIT (to limit the maximum volume output of this zone).
- Rotate KNOB to adjust the desired Volume level limit from 0 to 40.
POWER ON VOLUME LIMIT (to limit the maximum volume level of this zone when the head unit is turned ON).
- Rotate KNOB to adjust the desired Volume level upon turn on from 0 a 40.
LEVEL CONTROL MODE
Rotate KNOB to highlight one of the available options, press to select:
- VARIABLE (default): the volume level of the signal output from this audio zone is variable and can be controlled via the volume mixer (AUDIO ZONE LEVEL).
- FIXED @4Vrms: the level of the output signal from this audio zone is fixed at 4Vrms. It will no longer be possible to change the volume level for this zone until the “Variable” mode is selected.
- FIXED @2Vrms: the level of the output signal from this audio zone is fixed at 2Vrms.
It will no longer be possible to change the volume level for this zone until the “Variable” mode is selected.
- FIXED @1Vrms: the level of the output signal from this audio zone is fixed at 1Vrms.
It will no longer be possible to change the volume level for this zone until the “Variable” mode is selected.
- OFF: this audio zone is off. This zone will no longer play any sound until “Variable” or “Fixed” mode is selected
ZONE 4 (ZONE 4 and SPEAKER OUT settings).
- Rotate KNOB to highlight one available option, press to selector to enable or disable
this function.
(ZONE RENAME > EQUALIZER > BALANCE > LOUDNESS > CROSSOVER (HPF) > SUBWOOFER > MAX VOLUME LIMIT > POWER ON VOLUME LIMIT > LEVEL CONTROL MODE)
ZONE RENAME (to create a desired name for this audio zone, to facilitate identification).
Use KNOB to enter a desired name for this audio zone (max 10 characters).
EQUALIZER (Equalizer Setting)
- Rotate KNOB to select one of the available options.
(FLAT > CLASSIC > JAZZ > POP > ELECTRONIC > HIP-HOP > ROCK > USER)
The “USER” equalization can be customizable by the user
- Rotate KNOB to select “USER” equalization.
- Press KNOB to select the desired frequency.
- Rotate KNOB to adjust the level (from +12 to -12) of the selected frequency
- Press the KNOB again to move to the next frequency.
BALANCE/FADER (to adjust the right and left output balance of this zone and speaker out fader)
Press KNOB to switch between the options:
BALANCE: Rotate KNOB to adjust the balance between the right and left audio output from R12 (full right) to L12 (full left)
FADER: Rotate KNOB to adjust the level from F12 (full front) to R12 (full rear).
LOUDNESS (to compensate for deficiencies in the low/high frequencies at low volume level)
- Press KNOB to enable or disable
this function.
CROSSOVER (HPF) (to set the high pass cutoff filter frequency for ZONE 4 L/R and SPEAKER OUT).
- Rotate the KNOB to highlight the desirer value (60Hz > 80Hz > 100Hz > FULL), press to select.
SUBWOOFER (ZONE 4 SUB settings)
- Rotate KNOB to highlight one of the available options, press to select
(SUBW VOLUME LEVEL > SUBW CROSSOVER (LPF) > SUBW POLARITY)
SUBW VOLUME LEVEL
- Rotate KNOB to adjust the level from -30 to +10.
SUBW CROSSOVER (LPF) (to set SUB the low pass filter)
- Rotate KNOB to highlight one available option, press to select: (FREQUENCY>SLOPE).
FREQUENCY (to set the SUB low pass cutoff filter frequency)
Rotate the KNOB to highlight the desired value (60Hz>80Hz>100Hz>FULL), press to select.
SLOPE (to set the SUB low pass filter slope)
Rotate the KNOB to highlight the desired value (-12dB/oct>-24dB/oct), press to select.
SUBW POLARITY (to set the SUB phase)
- Rotate the KNOB to highlight ( 0° or 180°), press to select.
MAX VOLUME LIMIT (to limit the maximum volume output of this zone).
- Rotate KNOB to adjust the desired Volume level limit from 0 to 40.
POWER ON VOLUME LIMIT (to limit the maximum volume level of this zone when the head unit is turned ON).
- Rotate KNOB to adjust the desired Volume level upon turn on from 0 a 40.
LEVEL CONTROL MODE
Rotate KNOB to highlight one of the available options, press to select:
- VARIABLE (default): the volume level of the signal output from this audio zone is variable and can be controlled via the volume mixer (AUDIO ZONE LEVEL).
- FIXED @4Vrms: the level of the output signal from this audio zone is fixed at 4Vrms. It will no longer be possible to change the volume level for this zone until the “Variable” mode is selected.
Remark: in this mode, SPEAKER OUT is disabled.
- FIXED @2Vrms: the level of the output signal from this audio zone is fixed at 2Vrms.
It will no longer be possible to change the volume level for this zone until the “Variable” mode is selected.
Remark: in this mode, SPEAKER OUT is disabled.
- FIXED @1Vrms: the level of the output signal from this audio zone is fixed at 1Vrms.
It will no longer be possible to change the volume level for this zone until the “Variable” mode is selected.
Remark: in this mode, SPEAKER OUT is disabled.
- OFF: this audio zone is off. This zone will no longer play any sound until “Variable” or “Fixed” mode is selected.
ZONE AUDIO GROUPS (to create up to two groups composed of multiple zones, so as to adjust their volume at the same time)
- Rotate KNOB to highlight one of the available options, press to select.
(GROUPS A > GROUPS B)
GROUPS A
- Rotate KNOB to highlight one of the available options, press to select.
(GROUP RENAME > GROUP SETUP)
GROUPS RENAME (to create the desired name of a group of audio zones, to facilitate identification)
- Use KNOB to enter a desired name for this audio zone group (max 10 characters).
GROUPS SETUP (to select the zones that composed this group)
- Rotate KNOB to highlight the available zones, press to add or remove the desired zones at this group.
(ZONE 1 > ZONE 2 > ZONE 3 > ZONE 4)
GROUPS B
- Rotate KNOB to highlight one of the available options, press to select.
(GROUP RENAME > GROUP SETUP)
GROUPS RENAME (to create the desired name of a group of audio zones, to facilitate identification)
- Use KNOB to enter a desired name for this audio zone group (max 10 characters).
GROUPS SETUP (to select the zones that composed this group)
- Rotate KNOB to highlight the available zones, press to add or remove the desired zones at this group.
(ZONE 1 > ZONE 2 > ZONE 3 > ZONE 4)
ASSIGN FAVORITE ZONE (to set the zone or zones group that you adjust the volume level when you rotate the KNOB, default is set to ALL).
- Rotate KNOB to highlight one of the available options, press to select.
(ALL > ZONE 1 > ZONE 2 > ZONE 3 > ZONE 4 > GROUP A > GROUP B ).
■ 8.2.5 Tuner Region
- Rotate KNOB to highlight one of the available radio region, press to select.
(USA>EUROPE >JAPAN>AUSTRALASIA)
■ 8.2.6 Sources (to enables or disables the sources, to create a desired name displayed for AUX,VIDEO IN,DIGITAL IN).
Remark: The disabled sources will not appear on the SOURCE SELECTION screen.
- Rotate KNOB to highlight one of the available options, press to enable or disable
this source.

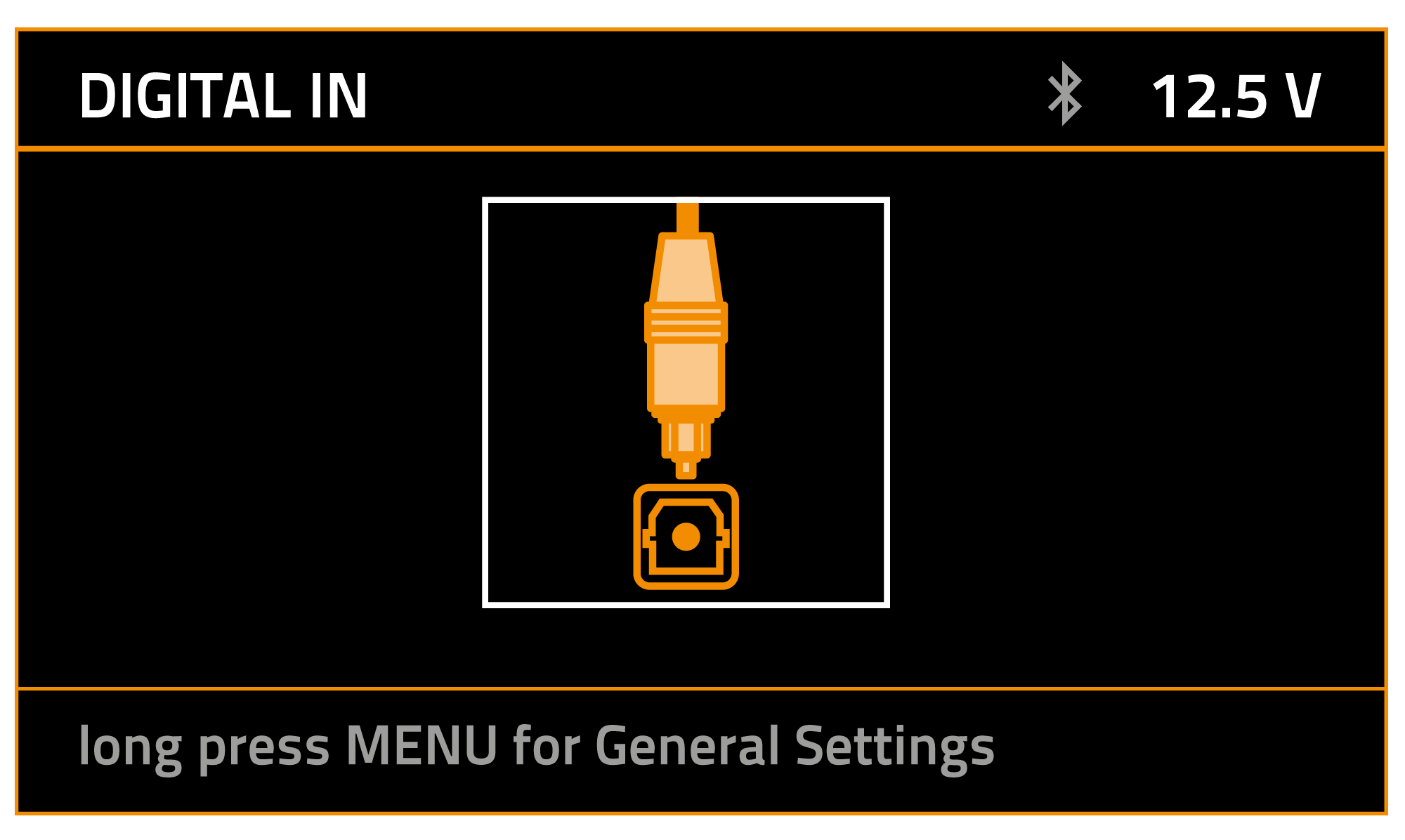

(FM > AM > WB > USB > BLUETOOTH > DAB > SIRIUSXM > AUX > VIDEO IN > DIGITAL IN)
- Rotate KNOB to highlight one of the available options press to select.
(AUX SOURCE NAME > VIDEO IN SOURCE NAME > DIGITAL IN SOURCE NAME).
AUX SOURCE NAME (to create a desired name of this source, to facilitate identification)
- Use KNOB to enter a desired name for this source (max 10 characters).
VIDEO IN SOURCE NAME (to create a desired name of this source, to facilitate identification).
- Use KNOB to enter a desired name for this source (max 10 characters).
DIGITAL IN SOURCE NAME (to create a desired name of this source, to facilitate identification).
- Use KNOB to enter a desired name for this source (max 10 characters).
■ 8.2.7 Power Management
- Rotate KNOB to highlight one of the available options, press to enable or disable
this function.
(LOW BATTERY ALERT > SCREEN OFF > RC SCREEN OFF*)
LOW BATTERY ALERT (Notifies of low battery voltage condition).
- Press KNOB to enable or disable
this function.
Remark: this notification alerts you when the 12 VDC supply voltage drops below 10 volts. If enabled, the device will enter safe mode and disable the audio output. A warning will also be displayed on the screen with instructions to shut down the device until normal operating voltage is restored. In the contrary if the power supply voltage drops below 9 volts, the unit will automatically turn off.
SCREEN OFF (to disables the LCD backlight after two minutes of inactivity).
- Press KNOB to enable or disable
this function.
RC SCREEN OFF* (to disables the CAPRI HD1 remote control LCD backlight after two minutes of inactivity).
- Press KNOB to enable or disable
this function.
* this function is selectable only on CAPRI HD1 remote control.
■ 8.2.8 HMC U1 Management
- Rotate KNOB to highlight one of the available options press to select
(REMOTE 1 SETTING > REMOTE 2 SETTING)
REMOTE 1 SETTING (to set the zone or zones group to adjust the volume level when using the HMC U1 remote control connected to the REMOTE 1 Input port, the default setting is ALL)
- Rotate KNOB to highlight one of the available options, press to select.
(ALL > ZONE 1 > ZONE 2 > ZONE 3 > ZONE 4 > GROUP A > GROUP B)
REMOTE 2 SETTING (to set the zone or zones group to adjust the volume level when using the HMC U1 remote control connected to the REMOTE 2 Input port, the default setting is ALL).
- Rotate KNOB to highlight one of the available options, press to select.
(ALL > ZONE 1 > ZONE 2 > ZONE 3 > ZONE 4 > GROUP A > GROUP B)
■ 8.2.9 HMC NMEA2K Management (to set the zone or zones group where adjust the volume level when using the HMC NMEA2K remote control).
Remark: it’s possible to manage up to 6 remote controls connected on the NMEA2000 network)
- Rotate KNOB to highlight one of the available options, press to select
(HMC NMEA2K #1>………>HMC NMEA2K #6)
- Rotate KNOB to highlight one of the available options, press to select.
(ALL > ZONE 1 > ZONE 2 > ZONE 3 > ZONE 4 > GROUP A > GROUP B)
Remark: this function is selectable only when HMC NMEA2K remote control is connected.
■ 8.2.10 System
- Rotate KNOB to highlight one of the available options, press to select
(SYSTEM INFO > CAPRI H100 UPDATE > CAPRI HD1 UPDATE* > FACTORY DEFAULT)
SYSTEM INFO (to show the software version information)
- Press the knob to display information about the software version of the CAPRI H100/HD1 and the optional modules (see section 11).
CAPRI H100 UPDATE
- Select after connecting the USB flash drive containing the update files,then highlight [YES] and press. (see section 11)
CAPRI HD1 UPDATE
- Select after connecting the USB flash drive containing the update files, then select highlight [YES] and press.
Remark: this function is selectable only when CAPRI HD1 remote control is connected.
CAPRI HMB DAB+ UPDATE
- Select after connecting the USB flash drive containing the update files, then highlight [YES] and press.
Remark: this function is selectable only when CAPRI HMB DAB+ module is connected.
HMC NMEA2K
- Rotate KNOB to highlight one of the available options, press to select.
(HMC NMEA2K SW VERSION > HMC NMEA2K UPDATE)
Remark: this function is selectable only when HMC NMEA2K remote control is connected.
HMC NMEA2K SW VERSION
- Press KNOB to show the software version information.
HMC NMEA2K UPDATE
- Select after connecting the USB flash drive containing the update files, then highlight [YES] and press.
FACTORY DEFAULT
- Rotate KNOB to select [YES] then press to restore all settings to the factory default values.
8.3 TUNER OPERATION (AM/FM)
■ 8.3.1 Select tuner as Playing Source.
1. Press / SCR to access the SOURCE SELECTION menu.
2. Rotate KNOB to highlight (AM>FM) as desired tuner mode, press to select.
■ 8.3.2 Settings menu (AM/FM)
- Press to access the settings menu. (AM/FM).
- Press KNOB to highlight one available option, press to select, or to enable or disable
this function.
(PRESETS LIST > AUTO STORE > LOCAL > RDS/RBDS* >AF).
*USA region.
- Press to go back to the previous screen or exit the menu.
PRESETS LIST
- Rotate KNOB to select the desired preset then press to select.
Remark: you can also long press KNOB or press to quickly access in PRESETS LIST.
AUTO STORE (to automatically store in the memory the stations with sufficient signal strength)
- Press KNOB to automatically find the available stations and store them into presets.
Remark: the new stations replaces any stations already stored.
LOCAL (to tune only the FM stations with the strongest signal)
- Press KNOB to enable or disable
this function.
RDS/RBDS (FM Radio Data System)
- Press VOL/SEL to enable or disable
this function.
AF (FM Alternative Frequencies)
- Press VOL/SEL to enable or disable
this function.
■ 8.3.3 Preset Stations tuning mode
- Press repeatedly to switch the tuning modes to PRESET SEEK
- Press to move to the previous preset.
- Press to move to the next preset.
■ 8.3.4 Auto Seek Tuning mode
- Press repeatedly to switch the tuning modes to AUTO SEEK
- Long press to tune the previous strongest station.
- Long press to tune the next strongest station.
■ 8.3.5 Manual Tune (AM/FM)
- Press repeatedly to switch the tuning modes to MANUAL SEEK
- Press or
to manually tune to the desired frequency.
Remark: you can press and hold or
to quickly advance through the frequencies.
■ 8.3.6 Save a preset (You can save up to 18 of your favorite stations when in FM, or up to 12 when in AM, as presets for a quick access).
1. Tune the desired station / frequency.
2. Long press KNOB or press to access the PRESETS LIST.
3. Rotate KNOB to select the desired preset number.
4. Long press KNOB to store it.
■ 8.3.7 Select a preset from PRESETS LIST
1. Long press KNOB or press to access the PRESETS LIST.
2. Rotate KNOB to highlight the desired preset, press to select.
8.4 WEATHER BAND TUNER OPERATION
■ 8.4.1 Select WB tuner as Playing Source.
1. Press / SCR per accedere al menù SOURCE SELECTION.
2. Rotate KNOB to highlight (WB) as desired tuner mode, press to select .
■ 8.4.2 Station Tuning
- Press to move to the previous preset.
- Press to move to the next preset.
■ 8.4.3 Select a preset from PRESETS LIST
(You can select from 7 system preset stations)
1. Press to access the PRESETS LIST.
2. Rotate KNOB to highlight the desired preset, press to select.
8.5 USB MODE OPERATION (available only when a USB mass storage is connected)
■ 8.5.1 Select USB as Playing Source.
1. Press / SCR to access the SOURCE SELECTION.
2. Rotate KNOB to highlight USB as source, press to select.
■ 8.5.2 Connecting a USB device
- Insert a USB device into the USB port (please check the technical specification for compatibility details).
- To remove the USB device, you should select another source or turn off the power, in order to avoid damaging the USB device.
■ 8.5.3 Select a Track
- Press to move to the next track/song.
- Press to go back to the previous track/song.
■ 8.5.4 Fast Forward/Fast Rewind
- Press and hold to fast forward through the track/song.
- Press and hold to fast rewind through the track/song.
- Press to return to playback.
■ 8.5.5 Play / Pausa
- Press the to pause the track/song that is currently playing,
lights up.
- Press the to resume playing the track/song that has been paused,
lights up.
■ 8.5.6 USB Settings Menu
1. Press to enter the USB settings menu.
2. Rotate KNOB to highlight the desired option, press to select or to change function.
(BROWSER>REPEAT>SHUFFLE).
3. Press to go back to previous screen or exit from the menu.
BROWSER (to view and select the tracks contained in the USB)
Use KNOB to browse the USB device content.
- Rotate KNOB to highlight the desired song or folder.
- Press KNOB to play the song or access the folder.
- Press to exit from the current folder.
- Press to exit the USB browsing (if you are in the USB root).
Remark: you can also press to access in BROWSER.
Remark:the system exits from the USB browsing after a few seconds if no button is pressed.
REPEAT
Press KNOB to switch the REPEAT options:
(REPEAT ALL > ONE > FOLDER):
REPEAT ALL: to repeat playback of the tracks contained in the USB device. The logo is displayed on the screen.
REPEAT ONE: to repeat playback of the current track. The logo is displayed on the screen.
REPEAT FOLDER: to repeat playback of the tracks contained in the current folder.
The logo is displayed on the screen
SHUFFLE
Press KNOB to switch the SHUFFLE options:
(OFF > ALL > FOLDER)
SHUFFLE OFF: this function is disabled.
SHUFFLE ALL: to randomly play the tracks contained in the device.
SHUFFLE FOLDER: to randomly play the tracks contained in the current folder.
When enabled the logo is displayed on the screen.

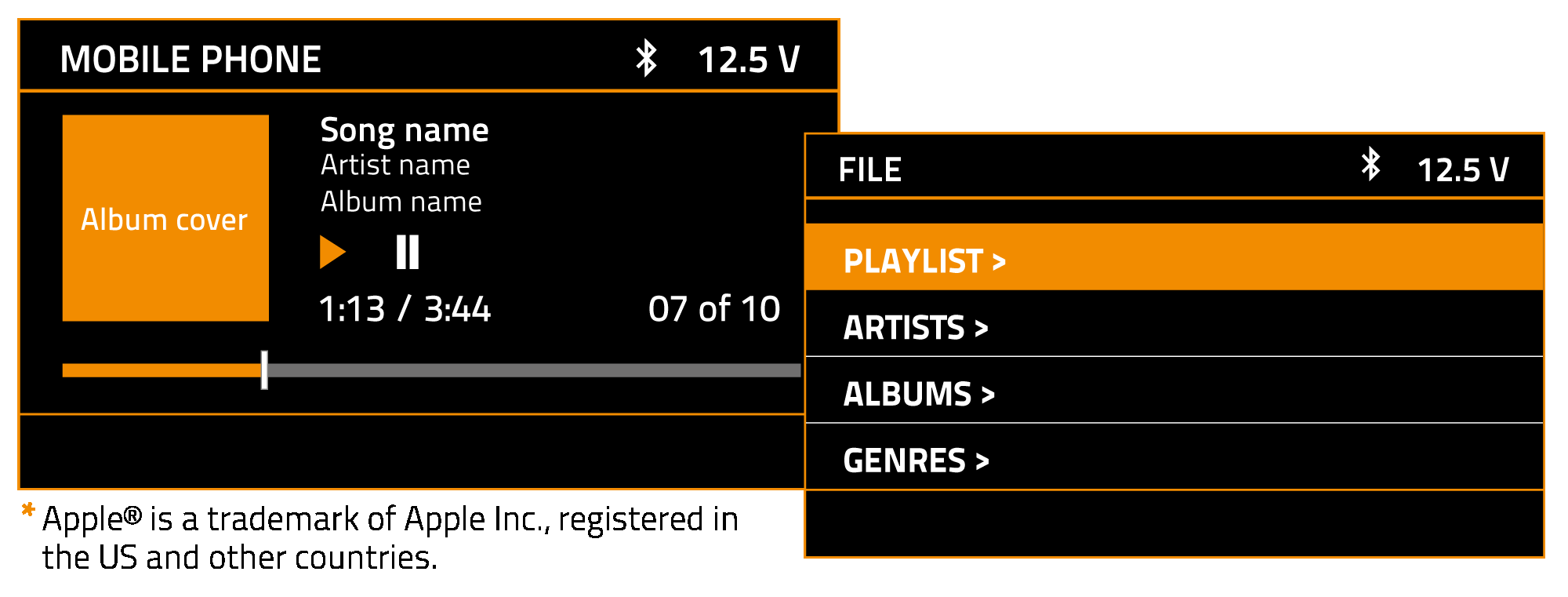

8.6 MUSIC PLAYBACK ON AN APPLE DEVICE
1. Connect a compatible Apple smartphone or media player to the head unit via USB.
2. You can use the music application on the *Apple® device or the head unit controls to browse the music library and to select, play, pause and skip tracks.
■ 8.6.1 Select the desired song
The songs contained in the * Apple® device are grouped as it happens in the device itself, through playlists, such as: “Playlists”, “Artists”, “Albums”, “Genres”, “Songs”, “Composers” and “Audiobooks”.
- Press to view the contents of the Apple® device.
- Rotate KNOB to highlight the desired playlist. Press KNOB to confirm selection.
- Rotate KNOB to highlight the desired track. Press KNOB to play the track.
- Press to go back.
Remark: the system exits USB navigation after a few seconds if no button is pressed.
■ 8.6.2 Settings Menu
1. Press to enter the USB settings menu.
2. Rotate KNOB to highlight the desired option, press to select press to select or to change function.
(BROWSER > REPEAT > SHUFFLE).
3. Press to go back to previous screen or exit from the menu.
BROWSER
The songs contained in the *Apple® device are grouped as it happens in the device itself, through playlists, such as: “Playlists”, “Artists”, “Albums”, “Genres”, “Songs”, ”Popcasts” , “Composers”, ”Radios” and “Audiobooks”
- Use KNOB and to browse the *Apple® device content.
- Rotate KNOB to highlight the desired playlist, press to confirm selection.
- Press KNOB to play the song or access the folder.
- Rotate KNOB to highlight the desired track.
- Press KNOB to play the track.
- Press to go back.
Remark: you can also press to access in BROWSER.
Remark:the system exits from the *Apple® device browsing after a few seconds if no button is pressed.
REPEAT
Press KNOB to switch the REPEAT options:
(REPEAT OFF> ALL>ONE):
REPEAT OFF: this function is disabled.
REPEAT ALL: to repeat playback of the tracks contained in the USB device. The logo is displayed on the screen.
REPEAT ONE: to repeat playback of the current track. The logo is displayed on the screen.
SHUFFLE
Press KNOB to switch the SHUFFLE options:
(OFF>ALL>)
SHUFFLE OFF: this function is disabled.
SHUFFLE ALL: to randomly play the tracks contained in the folder, album, or playlist.
When enabled the logo is displayed on the screen.

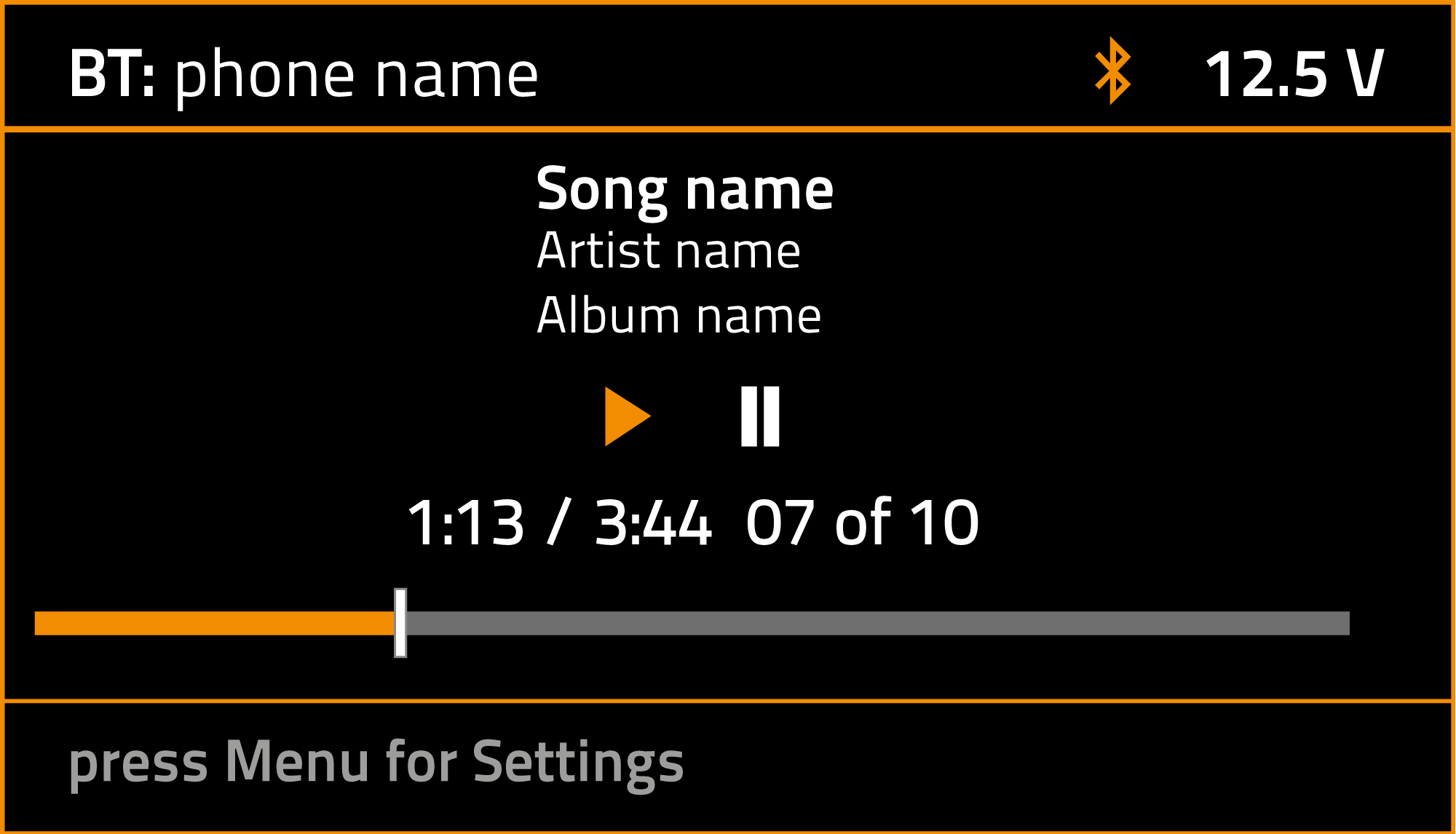

8.7 BLUETOOTH OPERATION
■ 8.7.1 Select Bluetooth as Playing Source.
1. Press / SCR to access the SOURCE SELECTION.
2. Rotate KNOB to highlight BT, press to select.
■ 8.7.2 Pair Bluetooth Device.
Enable Bluetooth in your streaming device and scan for nearby devices, select CAPRI H100 from your list of available devices to connect.
■ 8.7.3 Managements Bluetooth Device
- Long press to access the system settings menu.
- Rotate KNOB to highlight BLUETOOTH DEVICE, press to select.
■ 8.7.4 Settings Menu
1. Press to enter the BT settings menu.
2. Rotate KNOB to highlight the desired option, press to select press to select or to change function.
(BROWSER>REPEAT>SHUFFLE).
3. Press to go back to previous screen or exit from the menu.
BROWSER (Apple® device only)
The songs contained in the *Apple® device are grouped as it happens in the device itself, through playlists, such as: “Playlists”, “Artists”, “Albums”, “Genres”, “Songs, ”Popcasts”, “Composers”, ”Radios” and “Audiobooks”
- Use KNOB and to browse the *Apple® device content.
- Rotate KNOB to highlight the desired playlist, press to confirm selection.
- Press KNOB to play the song or access the folder.
- Rotate KNOB to highlight the desired track.
- Press KNOB to play the track.
- Press to go back.
Remark: you can also press to access in BROWSER.
Remark: the system exits from the *Apple® device browsing after a few seconds if no button is pressed.
REPEAT (Apple® device only)
Press KNOB to switch the REPEAT options:
(OFF > ALL > ONE):
REPEAT OFF: this function is disabled.
REPEAT ALL: to repeat playback of the tracks contained in the USB device. The logo is displayed on the screen.
REPEAT ONE: to repeat playback of the current track. The is displayed on the screen.
SHUFFLE (Apple® device only)
Press KNOB to switch the SHUFFLE options:
(OFF > ALL)
SHUFFLE OFF: this function is disabled.
SHUFFLE ALL: to randomly play the tracks contained in the folder, album, or playlist.
When enabled the logo is displayed on the screen.
| WARNING: please avoid operating your mobile phone while audio streaming, as this may cause noise or stuttering on the song playback. Audio streaming may or may not resume after telephone interruption as this depends on the mobile phone used. |
■ 8.7.5 Play / Pausa
- Press to pause the track/song that is currently playing. The icon
is displayed on the screen.
- Press to resume playing the track that has been paused.
is displayed on the screen.
■ 8.7.6 Select a Track
- Press to move on to the previous track/song.
- Press to go back to the next track/song.
Remark: playing order will depend on Bluetooth audio player. When is pressed some A2DP devices will restart the current track depending on the duration of the playback. Some Bluetooth audio players may not allow play/pause synchronization with this unit. Please make sure both the device and the main unit are in the same play/pause status in BT Music mode.

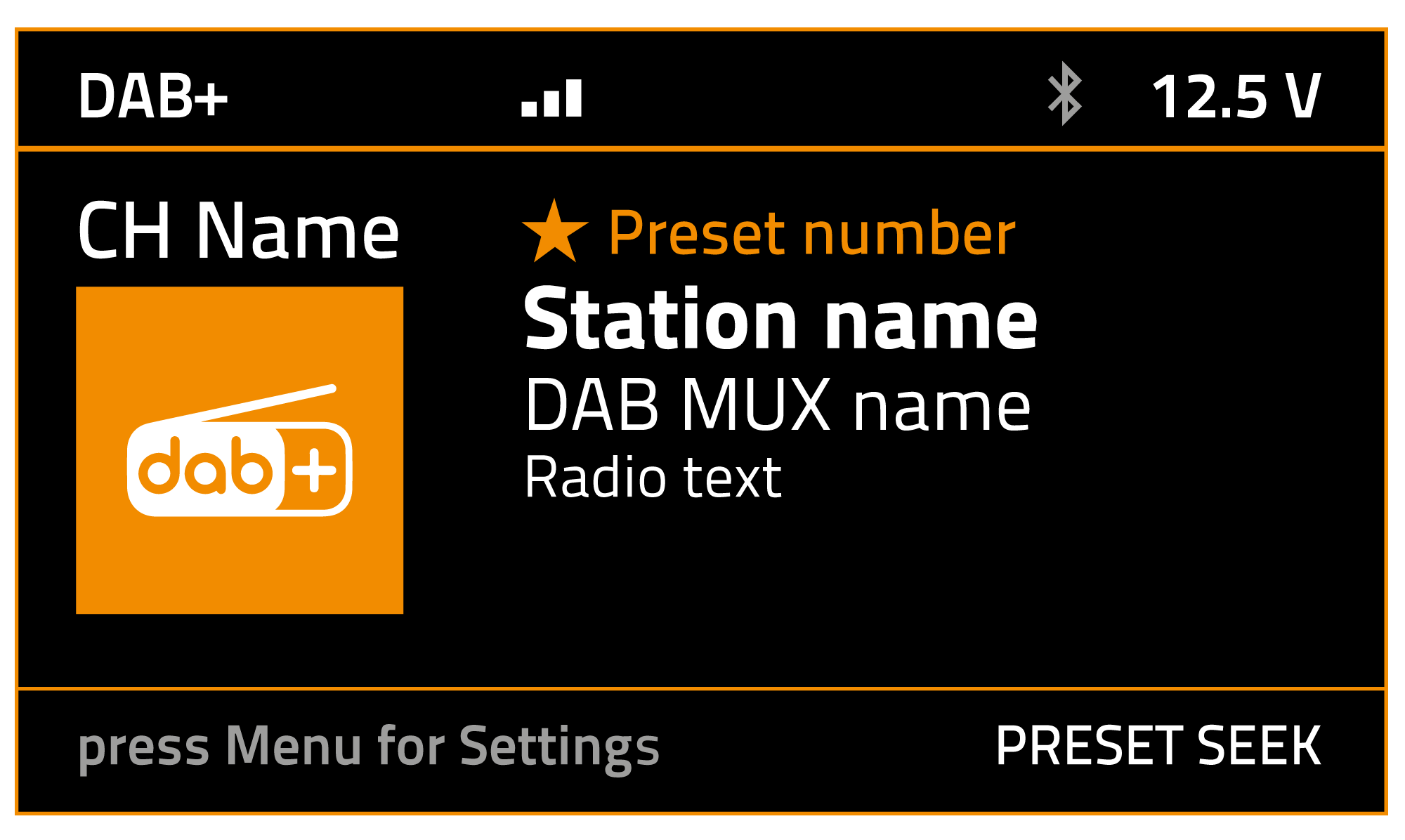

8.8 DAB+ OPERATION (CAPRI HMB DAB+ optional)
■ 8.8.1 Select DAB+ as Playing Source.
1. Press / SCR to access the SOURCE SELECTION.
2. Rotate KNOB to highlight as desired tuner mode, press to select.
Remark: The DAB+ source is available only if you select EUROPE/JAPAN/AUSTRALASIA as tuner region.
■ 8.8.2 DAB+ Settings menu.
1. Press to enter the DAB+ settings menu.
2. Rotate KNOB to highlight the desired option, press to select or to enable or disable
this function.
(BROWSE STATIONS>PRESETS LIST >SCAN STATIONS>ZOOM DLS>ANT.POWER>RESET).
3. Press to go back to previous screen or exit from the menu.
BROWSE STATIONS (contains the list of DAB+ station found after scanning)
- Rotate KNOB to highlight a desired station, press to select.
Remark: you can also long press to access in BROWSE STATION.

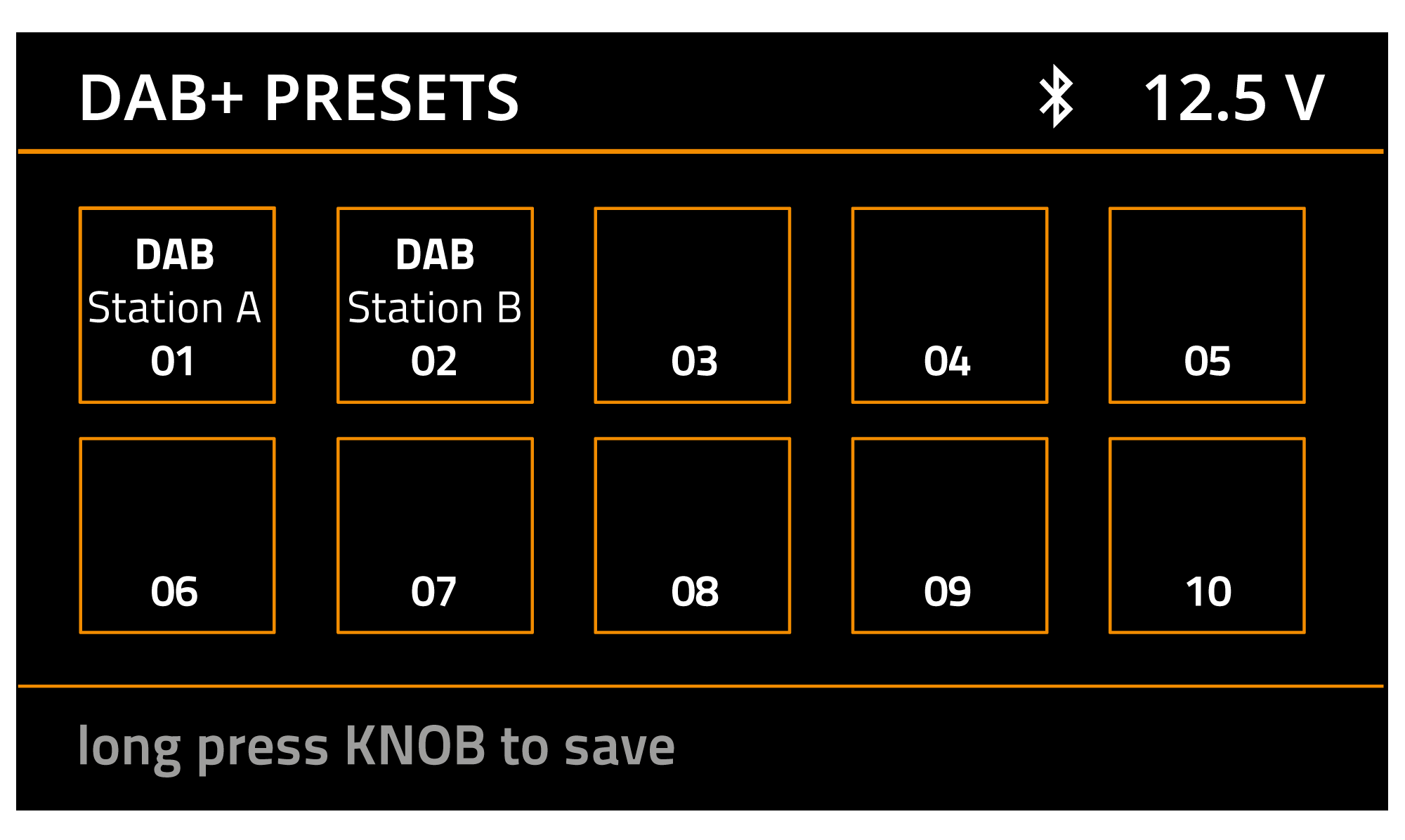

PRESETS LIST
- Rotate KNOB to highlight the desired preset, press to select.
Remark: you can also press to access in PRESET LIST.
SCAN STATIONS (to perfom a full scan of the available DAB+ stations)
- Press KNOB to to start scanning.
ZOOM DLS (to zoom in on information and content)
Remark: Press to disable this function.
ANT POWER (to supply “12Vdc Phantom” to the connected DAB+ antenna).
- Press KNOB to enable or disable
this function.
RESET
- Rotate KNOB to select [YES], then press to restore all DAB+ settings to the factory default values.
Remarks: At the end of the reset, a scanning for available DAB+ stations will be performed automatically.
■ 8.8.3 SAVE A PRESET (You can save up to 18 of your favorite stations when in FM, or up to 12 when in AM, as presets for a quick access).
1. Tune the desired station / frequency.
2. Long press KNOB or press to access the PRESETS LIST .
3. Rotate KNOB to select the desired preset number.
4. Long press KNOB to store it.
■ 8.8.4 SELECT A PRESET FROM PRESETS LIST.
1. Long press KNOB or press to access the PRESETS LIST .
2. Rotate KNOB to select the desired preset number.
8.9 SiriusXM®
SiriusXM is where moments happen. The widest, deepest variety of music, ad-free. More games, more sports, more coverage than anywhere. The most extensive entertainment, complete news coverage and every kind of comedy. Listen in your car, on your phone, online and at home. A SiriusXM Connect Tuner and subscription are required. For more information, visit www.siriusxm.com.
■ 8.9.1 SiriusXM as Playing Source.
1. Press / SCR to access the SOURCE SELECTION.
2. Rotate KNOB to highlight SXM press to select.
Remark: The SiriusXM source is available only if you select USA as region.
■ 8.9.2 SiriusXM ACTIVATION PROCESS.
1. Activating your SiriusXM Subscription
After installing your SiriusXM Connect Tuner and antenna, power on your CAPRI H100 and select SiriusXM mode. You should be able to hear the SiriusXM preview channel on Channel 1. If you cannot hear the preview channel, please check the installation instructions to make sure your SiriusXM. Connect tuner is properly installed.
After you can hear the preview channel, tune to Channel 0 to find the Radio ID of your tuner.
In addition, the Radio ID is located on the bottom of the SiriusXM Connect Tuner and its packaging. You will need this number to activate your subscription. Write the number down for reference.
Note: the SiriusXM Radio ID does not include the letters I, O, S or F.
In the USA, you can activate online or by calling SiriusXM Listener care:
a: Visit www.siriusxm.com/activate now.
b: Call SiriusXM Listener Care at 1-866-635-2349.
For Canadian Subscriptions, please contact:
c: Visit www.siriusxm.ca/activate.
d: Call SiriusXM Customer Care at 1-888-539-7474.
As part of the activation process, the SiriusXM satellites will send an activation message to your tuner. When your radio detects that the tuner has received the activation message, your radio will display:
SUBSCRIPTION UPDATED.
Once subscribed, you can tune to channels in your subscription plan. Note, the activation process usually takes 10 to 15 minutes, but may take up to an hour. Your radio will need to be
powered on and receiving the SiriusXM signal to receive the activation message.
2. IDENTIFYING THE SiriusXM Connect Tuner RADIO ID NUMBER
The SiriusXM Radio ID is required for activation and can be found by tuning to Channel 0 as well as by looking on the label found on the SiriusXM Connect Tuner and its packaging. The Radio ID does not include the letters I, O, S or F.
■ 8.9.3 SiriusXM INTERFACES.
| CH xx | CHANNEL NUMBER |
| P1 | PRESET NUMBER |
LOCKED CHANNEL ICON |
|
CHANNEL NAME |
|
CATEGORY NAME |
|
ARTIST NAME / CONTENT INFO |
|
SONG TITLE |
|
ALBUM ART |
1. TUNING MODE (Preset/Category/Manual)
Preset Tuning Mode
- Press repeatedly to switch the tuning modes to PRESET
- Press to move to the previous preset.
- Press to move to the next preset.
Category Tuning Mode
- Press repeatedly to switch the tuning modes to CATEGORY
- Press to move the previous channel in the current category.
- Press to move the next channel in the current category.
Manual Tune
- Press repeatedly to switch the tuning modes to MANUAL.
- Press to move the previous channel.
- Press to move the next channel.
Remark: you can press and hold or
to quickly advance through the channels.
2. REPLAY MODE
You can use Replay Mode to control playback of a SiriusXM broadcast
- Press and holdto enable REPLAY MODE (currently tuning mode changes to REPLAY MODE, and a progress bar appears.
- Press to pause or resume the playback.
- Press to move backward in increments.
- Press to move forward in increments.
Remark: you can press and hold or
to rewind or fast forward the track.
Remark: If you fast forward or skip forward to the end of the progress bar, the unit exits Replay Mode automatically.
- Press and holdto exit REPLAY MODE (tuning mode switches back to previous mode, and the progress ba disappears).
Remark: you can also exit from REPLAY MODE:
- Press to access SiriusXM Settings.
- Rotate KNOB scrolling to highlighting NOW PLAYNG.
- Press KNOB to return to NOW PLAYNG
3. DIRECT TUNING
Selecting a channel using the Direct Tuning feature.
1. From the primary SiriusXM Interface, long press KNOB
2. Enter the 3-digit Channel Number in the pop-up window by turning the KNOB to scroll to the first digit.
3. Press KNOB to confirm the first digit, proceeding to the second digit.
4. Rotate KNOB, scrolling to the second digit.
5. Press KNOB to confirm the second digit, proceeding to the third digit.
6. Rotate KNOB, scrolling to the third digit.
7. Press KNOB to confirm the third digit and tune the entered channel.
■ 8.9.4 SiriusXM SETTINGS
To access SiriusXM settings, press the MENU button to view the list of settings options.
Turn the KNOB, scrolling to highlight the desired setting, then press the KNOB to view the available options for the setting.
1. NOW PLAYNG (Only available for REPLAY MODE) To exit from REPLAY MODE).
You can use Replay Mode to control playback of a SiriusXM broadcast
- Press to access SiriusXM Settings.
- Rotate KNOB scrolling to highlighting NOW PLAYNG.
- Press the KNOB to return in NOW PLAYNG.
2. PRESETS LIST
To browse stored presets:
- Press to access SiriusXM Settings.
- Rotate KNOB scrolling to highlighting PRESETS LIST.
- Press KNOB to access the preset list.
- Rotate KNOB to scroll the preset list & highlight the desired preset channel.
- Press KNOB to tune the desired channel.
Remark: you can also pres V to access in PRESET LIST.
3. MANAGE PRESETS
To save a preset:
- Press to access SiriusXM Settings.
- Rotate KNOB scrolling to and highlight MANAGE PRESETS.
- Press KNOB to access the MANAGE PRESETS.
- Rotate KNOB scrolling to and highlight ADD PRESETS.
- Press KNOB to access the ADD PRESETS.
- Rotate KNOB to scroll the preset list and highlight the desired preset location (1-18).
- Press KNOB to confirm and save the channel in the desired preset location.
Remark: Saving a new channel in a preset location will replace a previously saved channel.
4. BROWSE BY CHANNEL
Select BROWSE BY CHANNEL to view all available channels:
- Press to access SiriusXM Settings.
- Rotate KNOB scrolling to & highlighting BROWSE BY CHANNEL.
- Press KNOB to access the BROWSE BY CHANNEL.
- Rotate KNOB to scroll the channel list & highlight the desired channel.
- Press KNOB to tune the desired channel.
Remark: by pressing you can show the list by CHANNEL NAME /ARTIST/SONG/INFO/CATEGORY.
5. BROWSE BY CATEGORY
Select BROWSE BY CATEGORY to browse all the available category. By selecting one category you can see the list of channels available in that category:
- Press to access SiriusXM Settings.
- Rotate KNOB scrolling to & highlighting BROWSE BY CATEGORY.
- Press KNOB to access the category list.
- Rotate KNOB to scroll the category list & highlight the desired content category.
- Press KNOB to view the channels broadcast content relative to the category.
- Rotate KNOB to scroll the channel list & highlight the desired channel.
- Press KNOB to tune the desired channel.
Remark: by pressing you can show the list by CHANNEL NAME /ARTIST/SONG/INFO.
Visit www.siriusxm.com for more information about the SiriusXM Connect Tuner Channel lineup.
6. PARENTAL CONTROL
The Parental Control feature allows you to limit access to SiriusXM channels with mature content. When LOCK MATURE CHANNEL is enabled, the Parental Control feature requires you to enter a passcode to tune to the locked channels. Information on setting up the passcode and locking channels can be found below.
LOCK MATURE CHANNEL
- Press to access SiriusXM Settings.
- Rotate KNOB scrolling to and highlight PARENTAL CONTROL.
- Press KNOB to access the PARENTAL CONTROL.
- Rotate KNOB scrolling to and highlight LOCK MATURE CHANNEL.
- Press KNOB to access the ability to activateor deactivate
the Parental Control feature.
How to Lock (restrict) or Unlock (unrestricted) the Parental Control Mature Channels.
The default Lock Code is: 1111
- Enter the 4-digit default Lock Code in the pop-up window by turning the KNOB to scroll to the first digit.
- Press the KNOB to confirm the first digit, and proceed to the second digit.
- Rotate the KNOB, and scroll to the second digit.
- Press the KNOB to confirm the second digit, and proceed to the third digit.
- Rotate the KNOB, and scroll to the third digit.
- Press the KNOB to confirm the third digit, and proceed to the fourth digit.
- Rotate the KNOB, and scroll to the fourth digit.
- Press the KNOB to confirm the fourth digit.
- Press the KNOB, to either or
, selecting
or
to unlock Parental Control Mature Channels.
EDIT LOCK CODE
Select EDIT LOCK CODE to change the default or current Parental Control Lock code.
- Press to access SiriusXM Settings.
- Rotate KNOB, scrolling to and highlight PARENTAL CONTROL.
- Press KNOB to access the PARENTAL CONTROL.
- Rotate KNOB, scrolling to and highlight MANAGE LOCK CODE.
- Press the KNOB to access the ability to change the default or current Parental Control Lock code.
- Entering a new Parental Control Lock code:
- The default Lock Code is: 111
- Enter the 4-digit default or current Lock Code in the pop-up window by turning the KNOB to scroll to the first digit.
- Press KNOB to confirm the first digit, and proceed to the second digit.
- Rotate KNOB and scroll to the second digit.
- Press KNOB to confirm the second digit, and proceed to the third digit.
- Rotate KNOB and scroll to the third digit.
- Press KNOB to confirm the third digit, and proceed to the fourth digit.
- Rotate KNOB and scroll to the fourth digit.
- Press KNOB to confirm the fourth digit.
- Enter the new 4-digit Lock Code in the pop-up window by following steps 1-8 above.
7. MY ACCOUNT
Select MY ACCOUNT to view your SiriusXM account status and Radio ID:
- Press to access SiriusXM Settings.
- Rotate KNOB scrolling to and highlightMY ACCOUNT.
- Press KNOB to access the MY ACCOUNT.
8. SXM FACTORY DEFAULT
Select SiriusXM FACTORY DEFAULT to reset all SiriusXM Connect Tuner setting to default. Defaulted settings include Presets, Parental Lockout Code, Locked Channels, etc.
- Press to access SiriusXM Settings.
- Rotate KNOB scrolling to and highlight SXM FACTORY DEFAULT.
- Press KNOB to access the ability to reset all SiriusXM settings to factory default.
- Rotate KNOB to highlight YES.
- Press KNOB to perform a factory.
8.10 AUX MODE
■ 8.10.1 Select AUX as Playing Source
The AUX input is provided to allow playback of sounds and music from external devices.
1. Press / SCR to access the SOURCE SELECTION.
2. Rotate KNOB to highlight AUX press to select.
Remark: is possible create a desired name of this source, to facilitate identification.
8.11 VIDEO IN MODE
The CAMERA input ,allows you to view images from an external camera (optional).
1. Press / SCR to access the SOURCE SELECTION.
2. Rotate KNOB to highlight VIDEO IN press to select.
Remark: is possible create a desired name of this source, to facilitate identification.
■ 8.11.1 Automatic switching to VIDEO IN mode
CAPRI H100 is equipped with a specific function that allows you to activate/deactivate the VIDEO IN mode via an external command provided by the user through the “CAMERA TRIGGER” wire (light green/white) on the back of the head unit.
When + 12Vdc voltage is applied to the “CAMERA TRIGGER” wire, the head unit switches to VIDEO IN mode.
When + 12Vdc voltage is removed from the above control wire, the head unit return to the previously played source.
8.12 DIGITAL IN MODE OPERATION
■ 8.12.1 Select DIGITAL IN as Playing Source
The S/PDIF optical input in this system , is provided to allow playback of sounds and music from external device with an optical audio output connected to this unit using an optical audio cable.
1. Press / SCR to access the SOURCE SELECTION.
2. Rotate KNOB to highlight DIGITAL IN press to select.
Remark: this system supports PCM audio up to 24bit/96kHz.
Remark: is possible create a desired name of this source, to facilitate identification.
9. TROUBLESHOOTING
9.1 GENERAL
Problem |
Cause |
Remedy |
Unit cannot power on. |
Unit fuse blown. |
Replace with new fuse of correct value. |
Vessel battery fuse blown. |
Replace with new fuse of correct value. |
|
No/low audio output. |
Incorrect audio output connection. |
Check wiring and correct. |
Volume set too low. |
Increase volume level. |
|
Speakers damaged. |
Replace speakers. |
|
Heavily biased volume balance. |
Adjust the channel balance to center position. |
|
Speaker wiring is in contact with metal part of vessel. |
Insulate all speaker wiring connections. |
|
Poor sound quality or distortion. |
Speaker power rating does not match unit. |
Replace speakers. |
Wrong connections. |
Check wiring and correct. |
|
Speaker is shorted. |
Check wiring and correct. |
|
Unit resets itself when engine is off. |
Incorrect connection between ACC and Battery. |
Check wiring and correct. |
Auto seek function can not find any stations. |
The antenna cable is not connected. |
Insert the antenna cable securely. |
The signals are too weak. |
Select a station manually. |
9.2 USB
Problem |
Cause |
Remedy |
USB device cannot be inserted. |
The USB device has been inserted incorrectly. |
Reverse the connection direction of the USB device and try again. |
The USB connector is broken. |
Replace with a new USB device. |
|
USB device is not recognized or USB SOURCE not accessible. |
The USB device is damaged. |
Disconnect the USB device and reconnect. If the device is still not recognized, try replacing it with a different USB device. |
Connectors are loose. | ||
No sound heard with the display showing “No File”. |
No MP3 / WMA / WAVE / FLAC / AAC-LC file is stored in the USB device. |
Store these files properly in the USB device. |
Sound skips or is noisy. |
MP3 / WMA / WAV / FLAC / AAC-LC files are not encoded properly. |
Use properly encoded MP3 / WMA / WAV / FLAC / AAC-LC files. |
9.3 BLUETOOTH
Problem |
Cause |
Remedy |
Cannot pair the Bluetooth enabled device with the audio system. |
The device does not support the profiles required for the system. |
The external BT device is not compatible. |
The Bluetooth function of the device is not enabled. |
Refer to the user manual of the device for how to enable the function. |
|
Audio quality is poor after connection with a Bluetooth enabled device. |
The Bluetooth reception is poor. |
Move the device closer to the audio system or remove any obstacle between the device and the system. |
9.4 DAB+
Problem |
Cause |
Remedy |
There are no DAB station |
Scan Stations not performed |
Perform a full scan stations |
The antenna cable is not connected. |
Connect the antenna cable securely. |
9.5 SiriusXM Connect Tuner TROUBLESHOOTING
Problem |
Cause |
Remedy |
Check Antenna. |
The radio has detected a fault with the SiriusXM antenna. The antenna cable may be either disconnected or damaged. |
Verify that the antenna cable is connected to the SiriusXM Connect Vehicle Tuner. Inspect the antenna cable for damage and kinks. Replace the antenna if the cable is damaged. SiriusXM products are available at your local car audio retailer or online at https://shop.siriusxm.com/all-parts/ |
Check Tuner. |
The radio is having difficulty communicating with the SiriusXM Connect Vehicle Tuner. The tuner may be disconnected or damaged. |
Verify that the SiriusXM Connect Vehicle Tuner cable is securely connected to the radio. |
No Signal. |
The SiriusXM Connect Tuner is having difficulty receiving the SiriusXM satellite signal. |
Verify that your vessel is outdoors with a clear view of the sky. Cable is damaged. Verify that the SiriusXM magnetic mount antenna is mounted on a metal surface on the outside of the vessel. Move the SiriusXM antenna away from any obstructions. Inspect the antenna cable for damage and kinks. Consult the SiriusXM Connect Tuner installation manual for more information on antenna installation. Replace the antenna if the SiriusXM products are available at your local car audio retailer or online at https://shop.siriusxm.com/all-parts/. |
Subscription Updated. |
The radio has detected a change in your SiriusXM subscription status. |
Press [BACK] to clear the message. In the U.S.A., visit www.siriusxm.com or call 1-866-635-2349 if you have questions about your subscription. In Canada, visit www.siriusxm.ca/activate or call Customer Care at 1-888-539-7474 if you have questions about your subscription. |
Channel Unavailable. |
The channel that you have requested is not a valid SiriusXM channel or the channel that you were listening to is no longer available. You may also see this message briefly when first connecting a new SiriusXM Connect Tuner. |
Visit www.siriusxm.com for more information about the SiriusXM channel lineup. |
Channel Unsubscribed. |
The channel that you have requested is not included in your SiriusXM subscription package or the channel that you were listening to is no longer included in your SiriusXM subscription package. |
In the U.S.A., visit www.siriusxm.com or call 1-866-635-2349 if you have questions about your subscription package or would like to subscribe to this channel. In Canada, visit www.siriusxm.ca/activate or call Customer Care at 1-888-539-7474 |
Channel Locked. |
The channel that you have requested is Locked by the radio Parental Control feature. |
See (the section on Parental Control, page 24) for more information on the Parental Control feature and how to access locked channels |
10. TECHNICAL SPECIFICATION

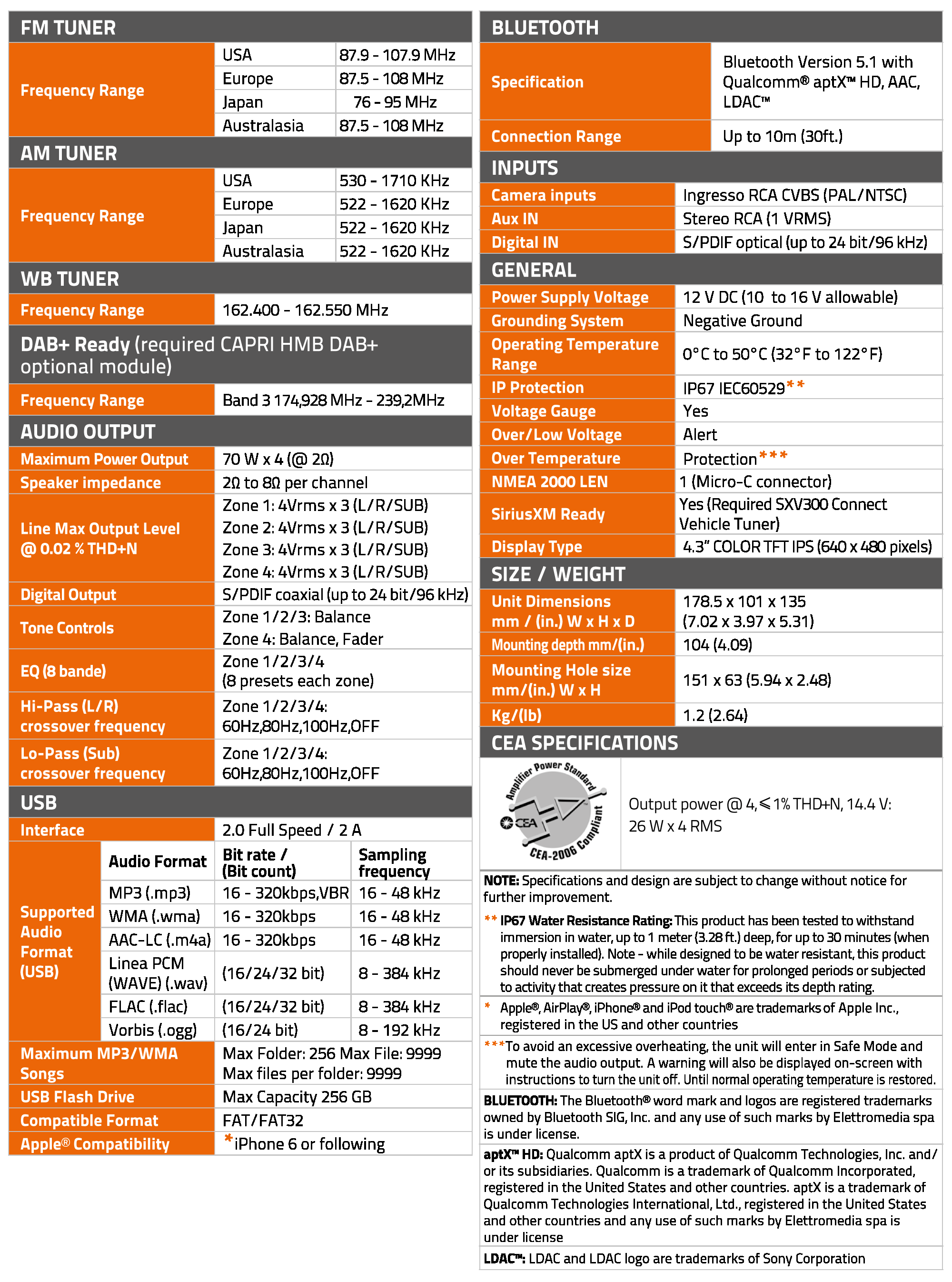

11. SOFTWARE UPDATE PROCEDURE
◼︎ Preparation
You need a blank USB flash drive that has a capacity between 256MB and 64GB. Ensure the USB Flash Drive is formatted to FAT32.
▪ Download the update file from the DOWNLOAD area of the CAPRI product web page:
https://hertz-audio.com/product/capri/
▪ Unzip in your PC/laptop the update file folder and copy the decompressed files into a USB flash drive.
◼︎ Install Process for USB update:
|
WARNING: before starting the USB update please take care of the following precautions ▪ Check that the power supply voltage is over 12Vdc and make sure that it stays over this level for the whole time the procedure is in progress. |
◼︎ Upgrade procedure
1. Turn on the CAPRI H100.
2. Connect the USB flash drive.
3. Long press “MENU/BACK” button -> then select “SYSTEM” -> then select “CAPRI H100 UPDATE”.
4. The system will request you to confirm before starting the upgrade procedure. Please confirm “YES” by pressing the knob.
5. The unit may restart a few times while updating the software. When the upgrade procedure is complete the unit turns on in the source screen.
6. Remove the USB flash drive.
