6. INSTALLATION EXAMPLES

Matteo Kalogris
Updated

◼︎Venezia V6
◼︎Venezia V6 24V

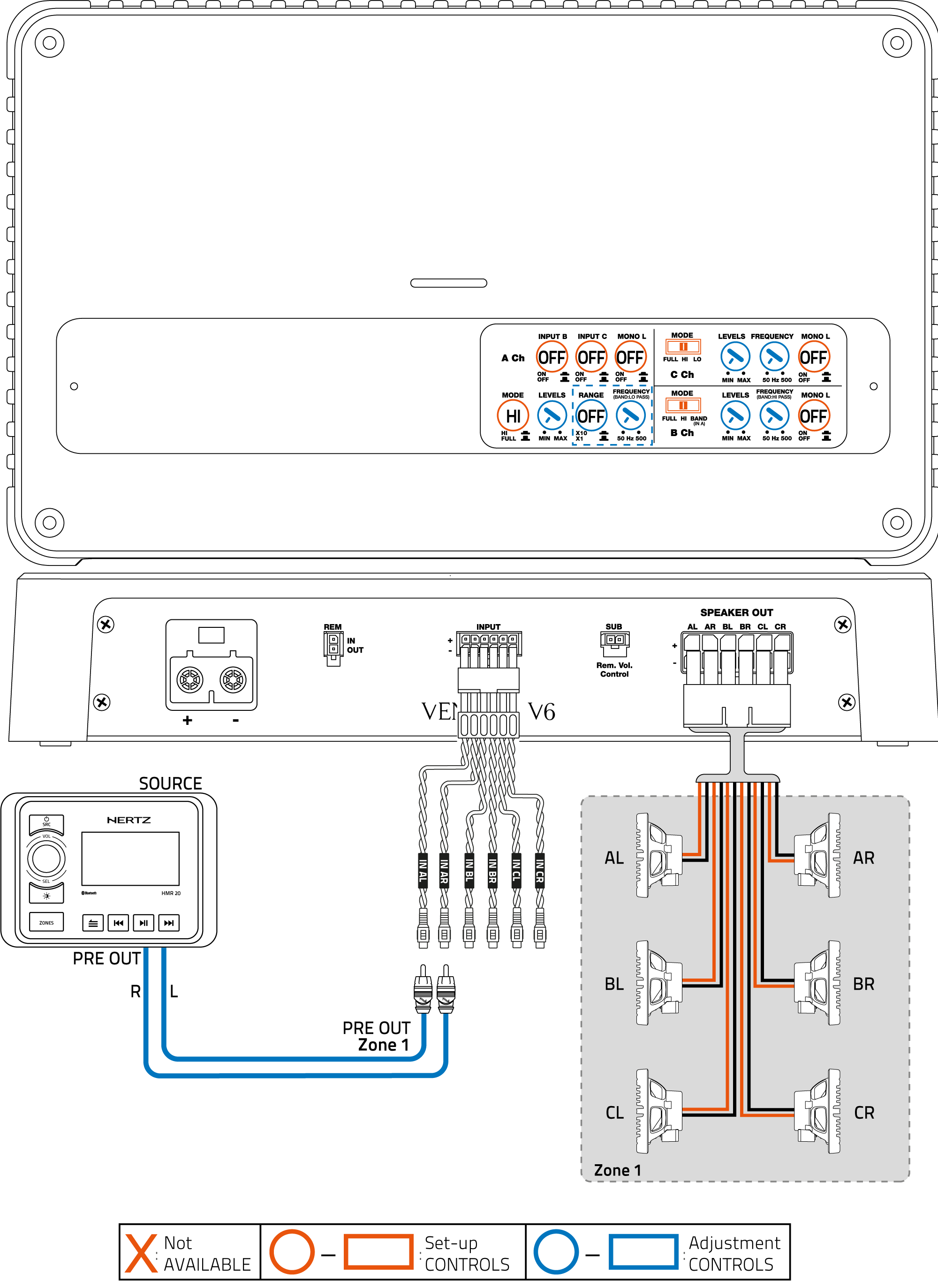

1. 6Ch OUT (2Ch IN): COAXIALS






2. 6Ch OUT (6Ch IN): COAXIALS

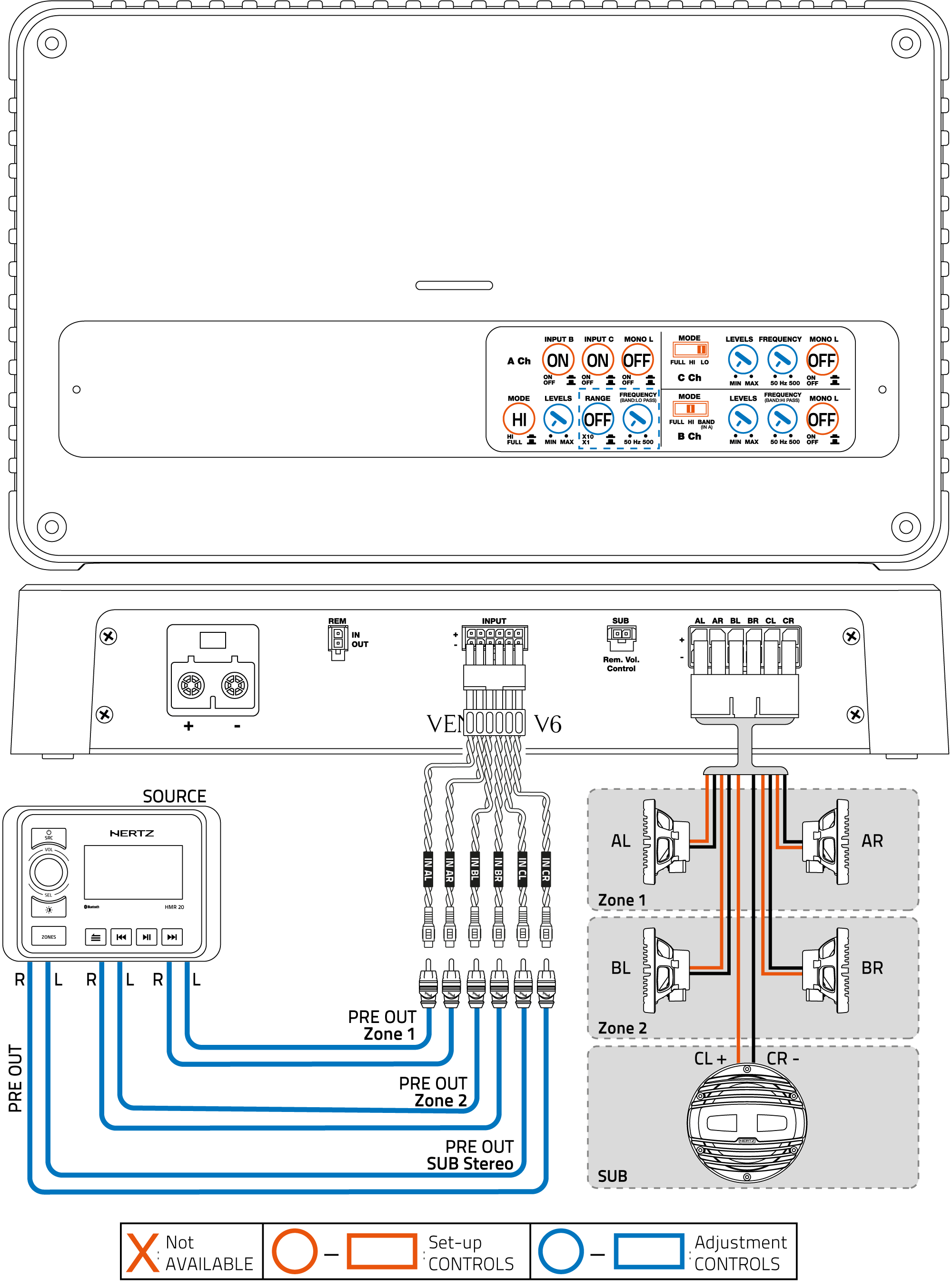

3. 5Ch OUT (6Ch IN): COAXIALS + SUB (Stereo IN)

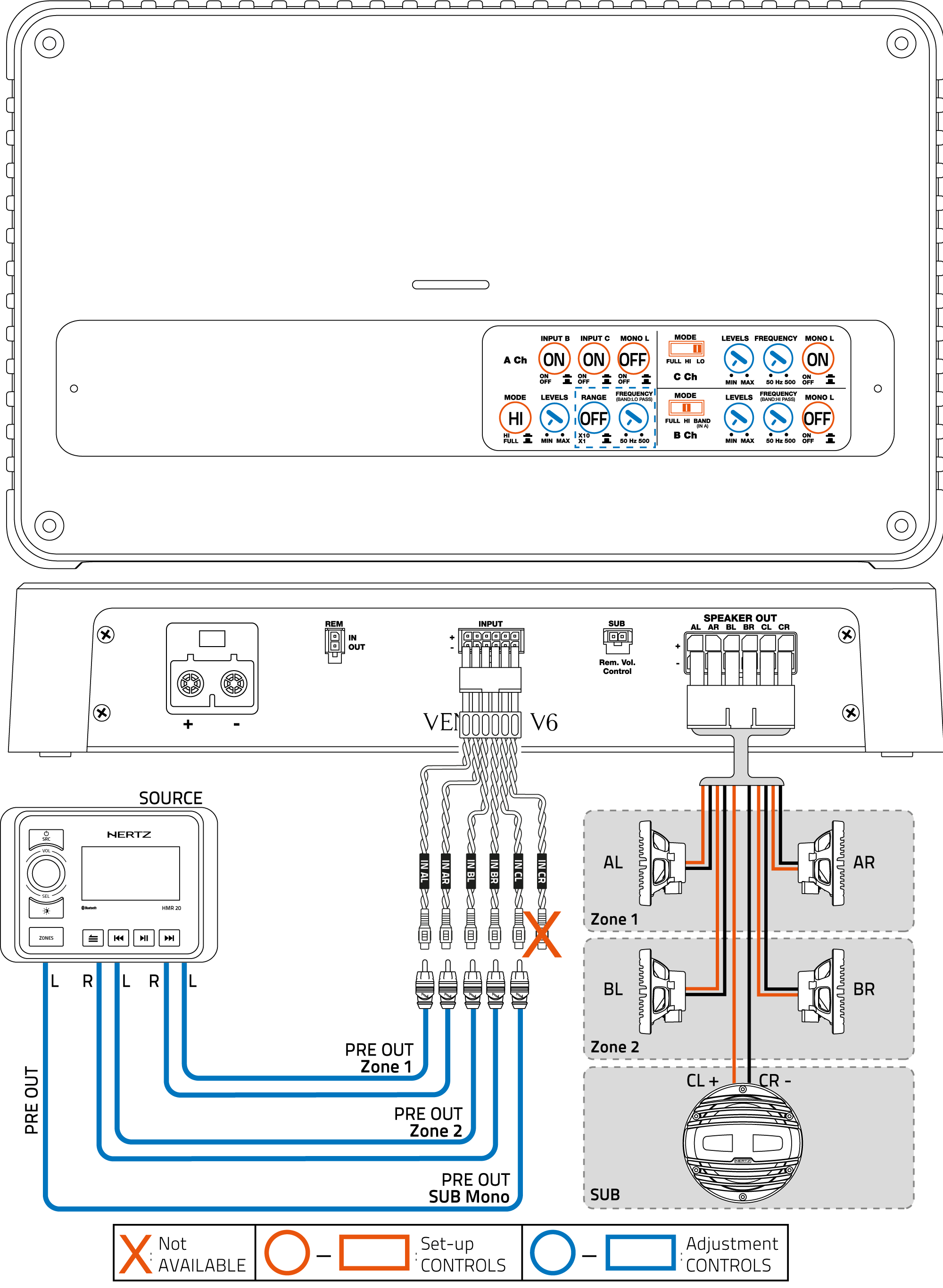

4. 5Ch OUT (5Ch IN): COAXIALS + SUB (Mono L IN)
