Indice

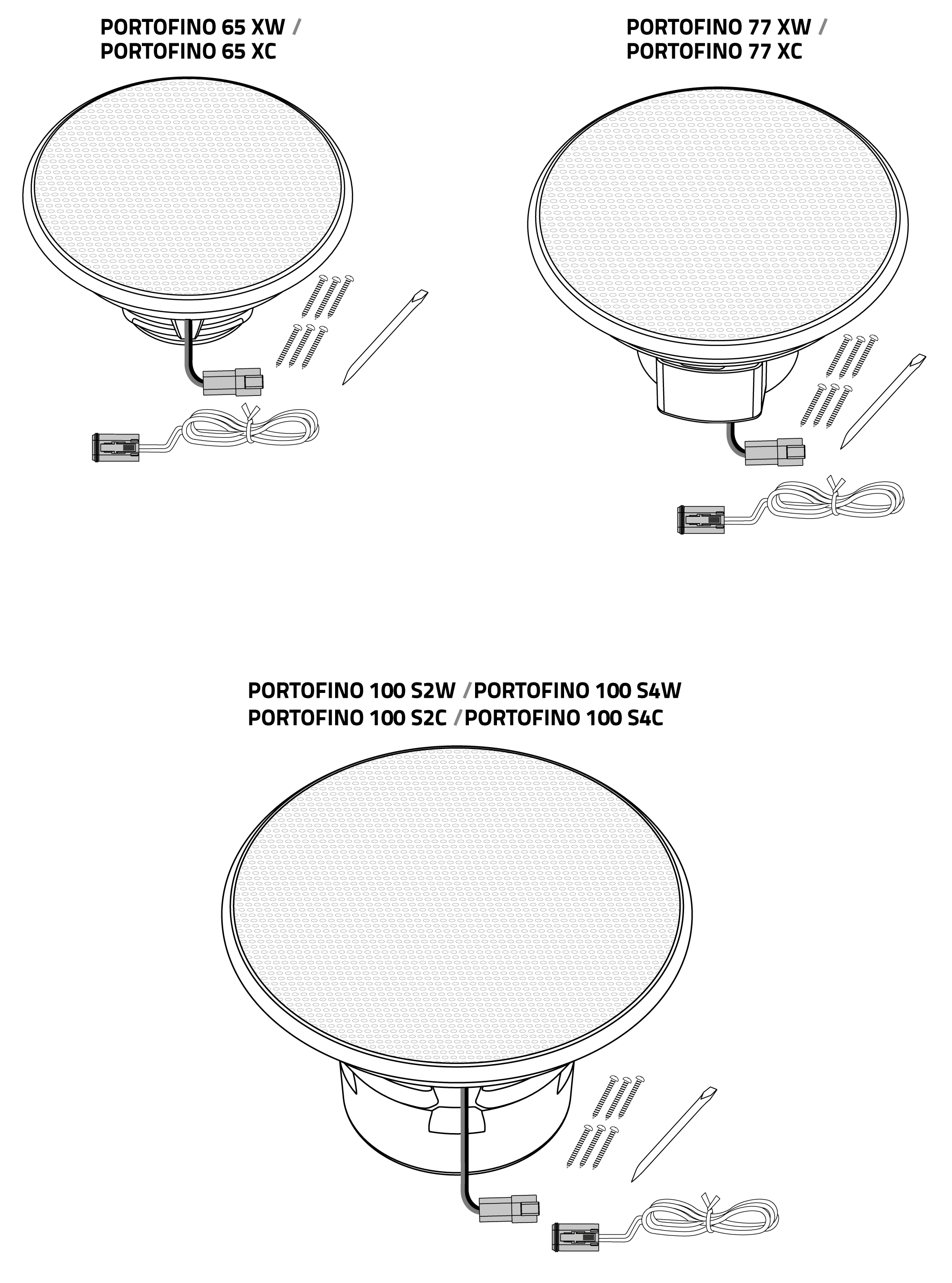

1. CONTENUTO DELL'IMBALLO

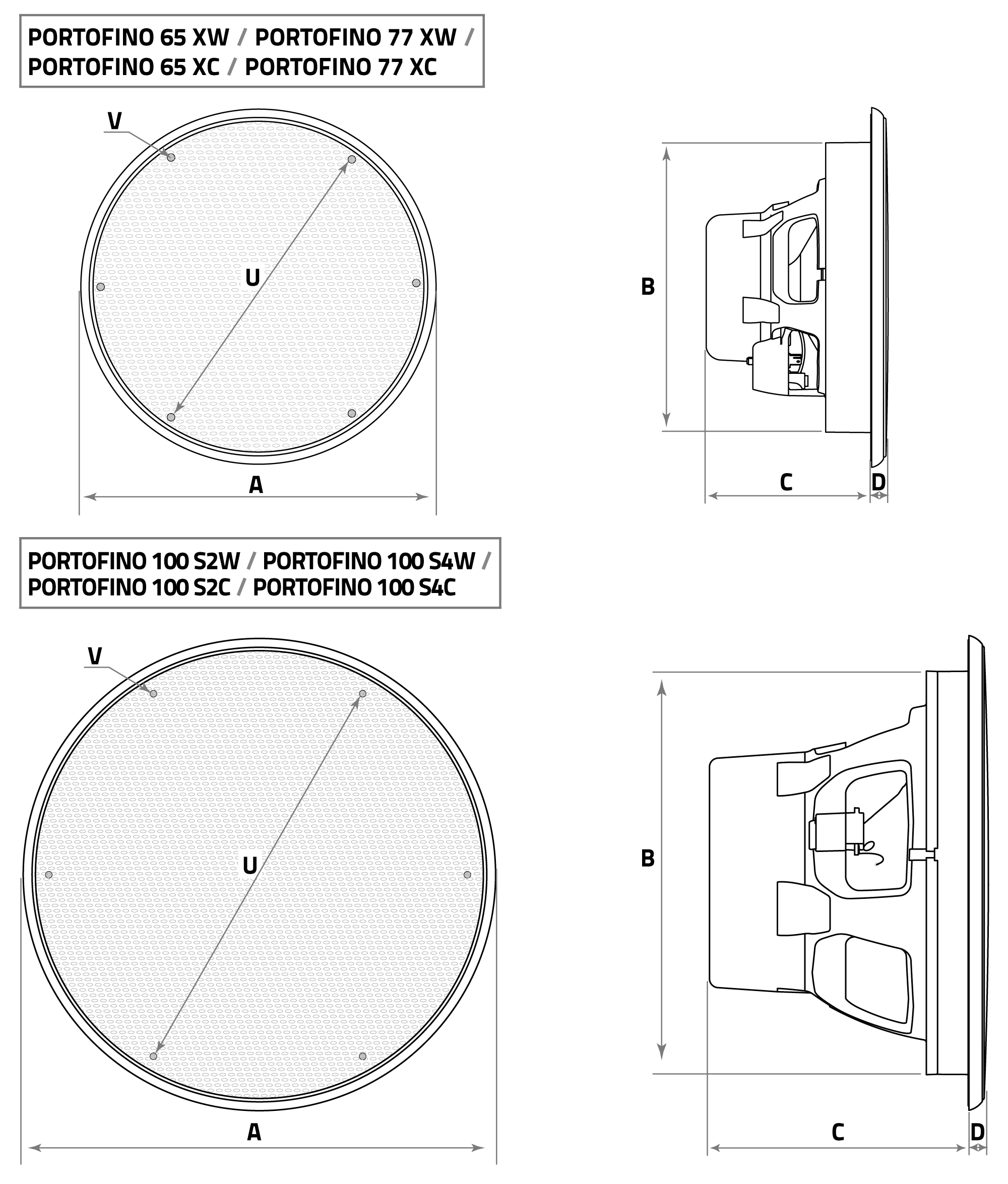

2. DIMENSIONI
| A | B | C | D | U | V | ||
|
PORTOFINO 65 XW PORTOFINO 65 XC |
212 | 171 | 97.3 | 9 | 188 | 4.5 | mm |
| 8.35 | 6.73 | 3.83 | 0.35 | 7.40 | 0.18 | in. | |
|
PORTOFINO 77 XW PORTOFINO 77 XC |
232 | 190.5 | 108 | 9 | 208 | 4.5 | mm |
| 9.13 | 7.5 | 4.25 | 0.35 | 8.19 | 0.18 | in. | |
|
PORTOFINO 100 S2 XW PORTOFINO 100 S2 XC |
319 | 271.3 | 174 | 11.6 | 291 | 5.5 | mm |
| 12.56 | 10.68 | 6.85 | 0.46 | 0.11 | 0.22 | in. | |
|
PORTOFINO 100 S4 XW PORTOFINO 100 S4 XC |
319 | 271.3 | 174 | 11.6 | 291 | 5.5 | mm |
| 12.56 | 10.68 | 6.85 | 0.46 | 0.11 | 0.22 | in. |

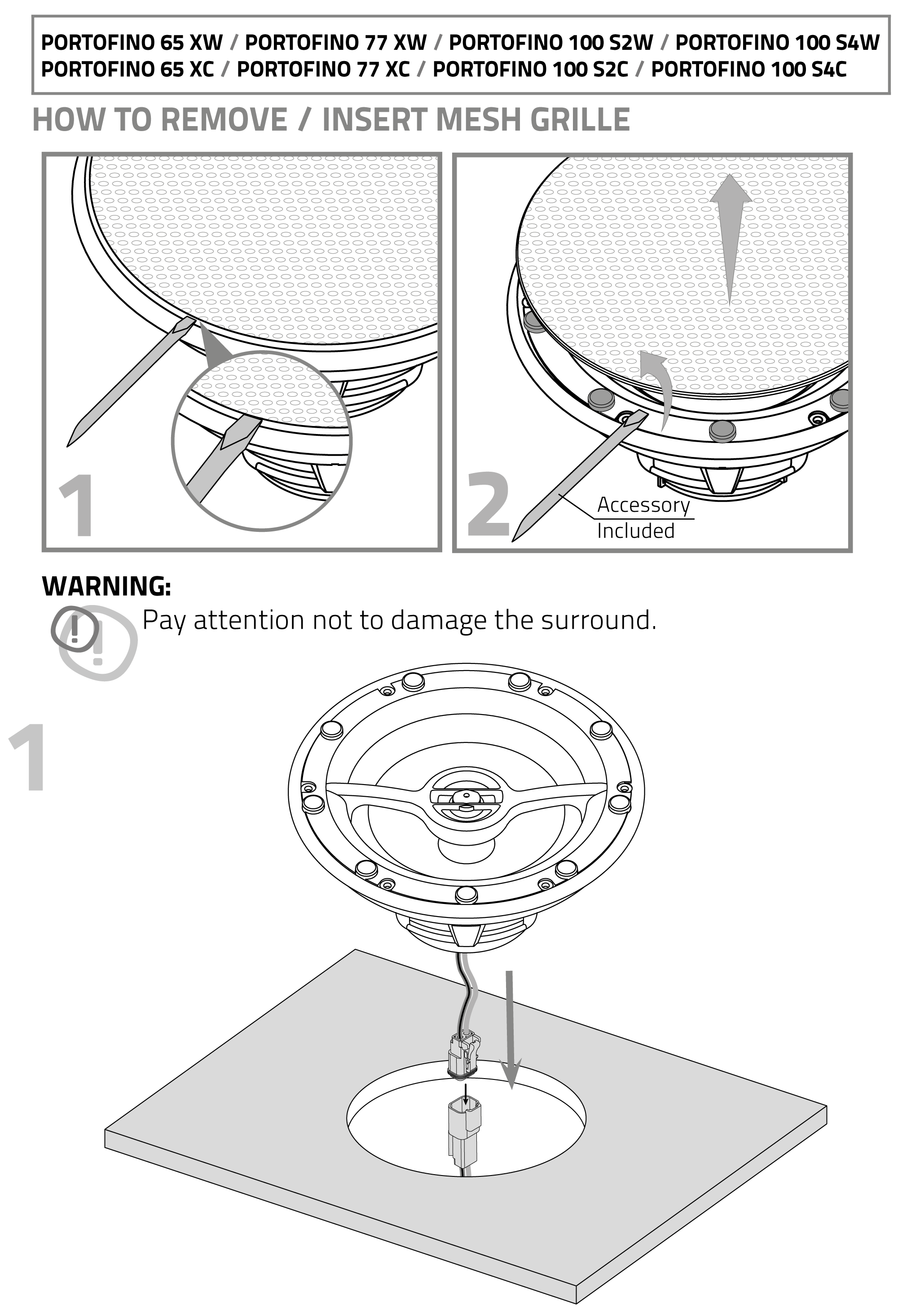

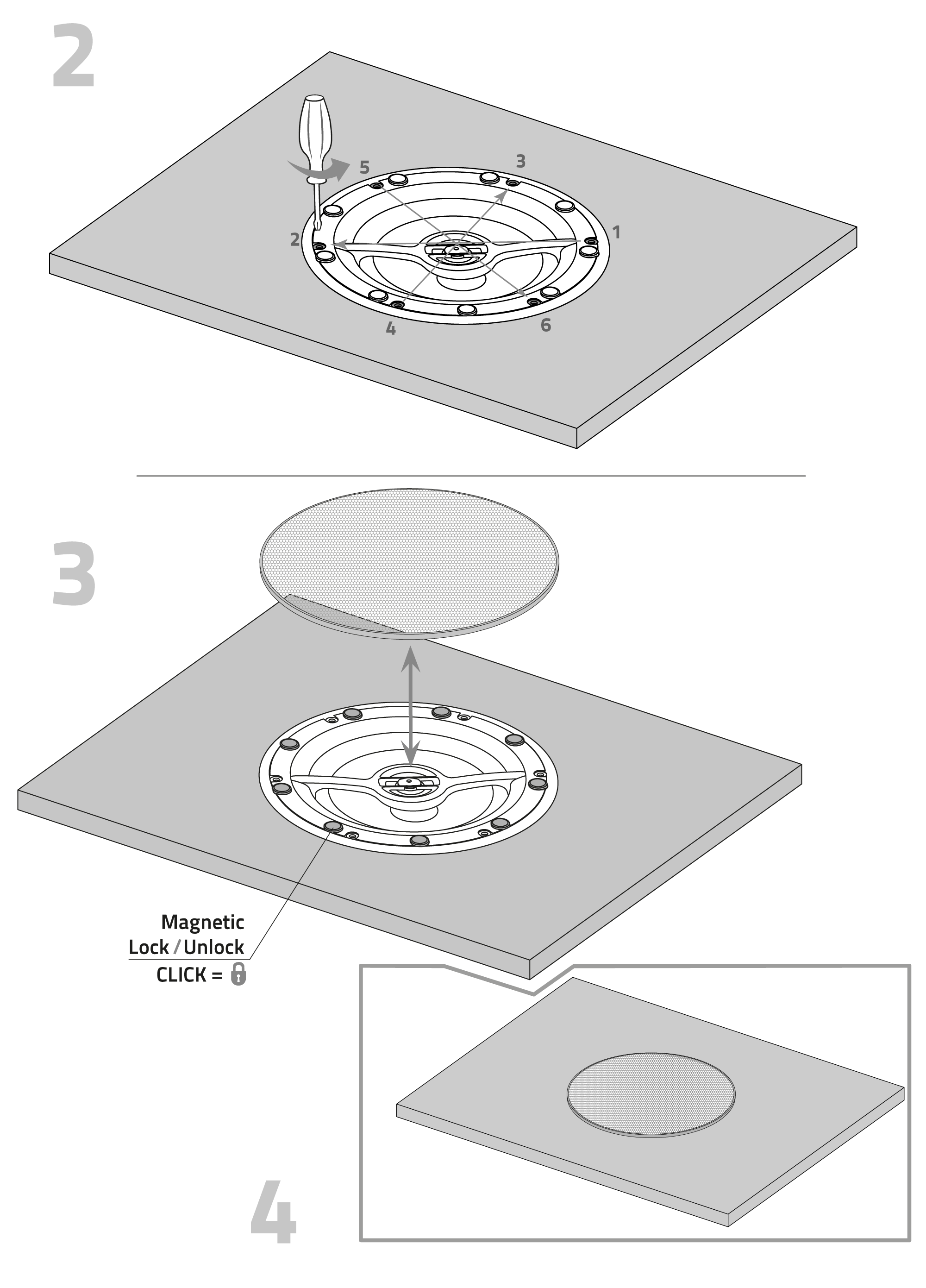

3. MONTAGGIO

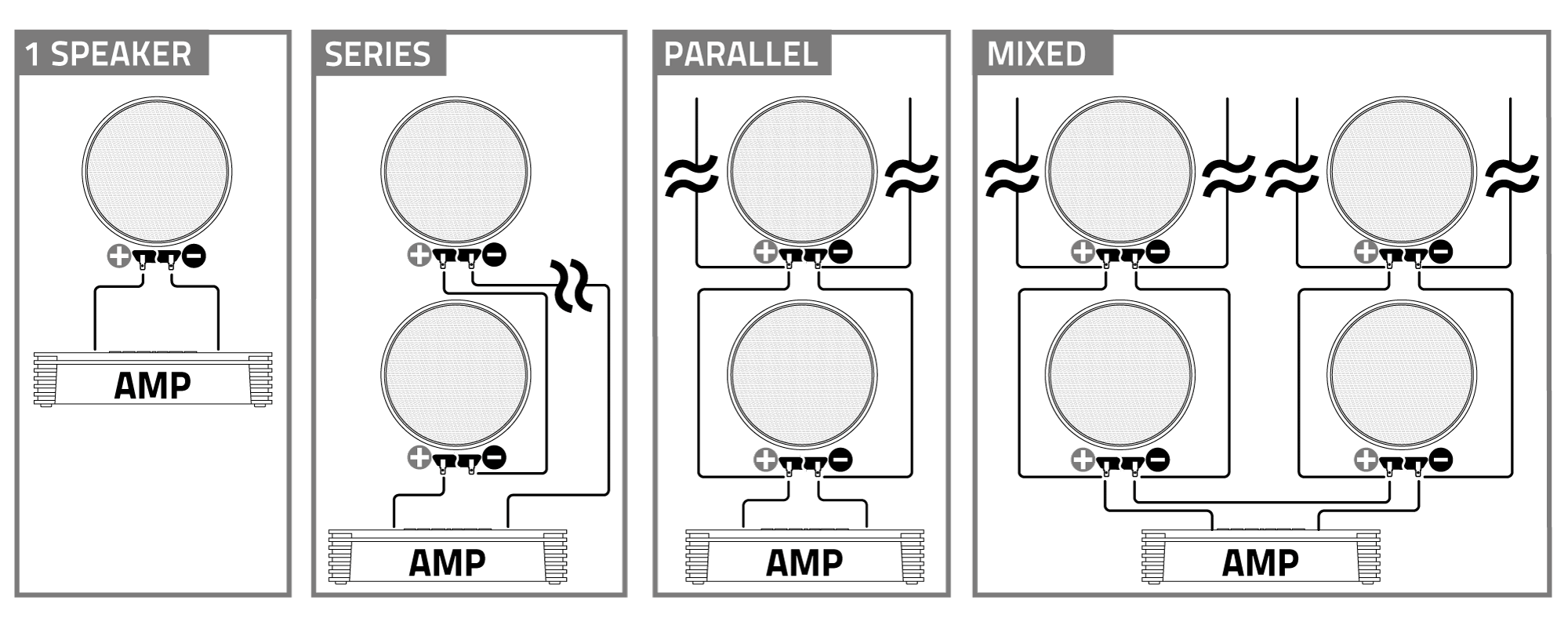

4. CONNESSIONI
FREE AIR DC RESISTANCE |
PORTOFINO 65 XW | PORTOFINO 77 XW | PORTOFINO 100 S2 XW | PORTOFINO 100 S4 XW | ||
| PORTOFINO 65 XC | PORTOFINO 77 XC | PORTOFINO 100 S2 XC | PORTOFINO 100 S4 XC | |||
Speaker |
||||||
1 |
3.5 | 3.3 | 2.2 | 4.4 | Ω |
|
SERIES |
2 |
7 | 6.6 | 4.4 | 8.8 | Ω |
3 |
10.5 | 9.9 | 6.6 | 13.2 | Ω |
|
4 |
14 | 13.2 | 8.8 | 17.6 | Ω |
|
PARALLEL |
2 |
1.8 | 1.7 | 1.1 | 2.2 | Ω |
3 |
1.2 | 1.1 | 0.7 | 1.47 | Ω |
|
4 |
0.9 | 0.8 | 0.55 | 1.1 | Ω |
|
MIXED |
4 |
3.5 | 3.3 | 2.2 | 4.4 | Ω |
6 |
2.3 | 2.2 | 3.3 | 6.6 | Ω |
|
8 |
1.8 | 1.6 | 4.4 | 8.8 | Ω |
|
