6. ESEMPI DI INSTALLAZIONE

Leonardo Doffo

13 novembre 2024 15:21 Aggiornato

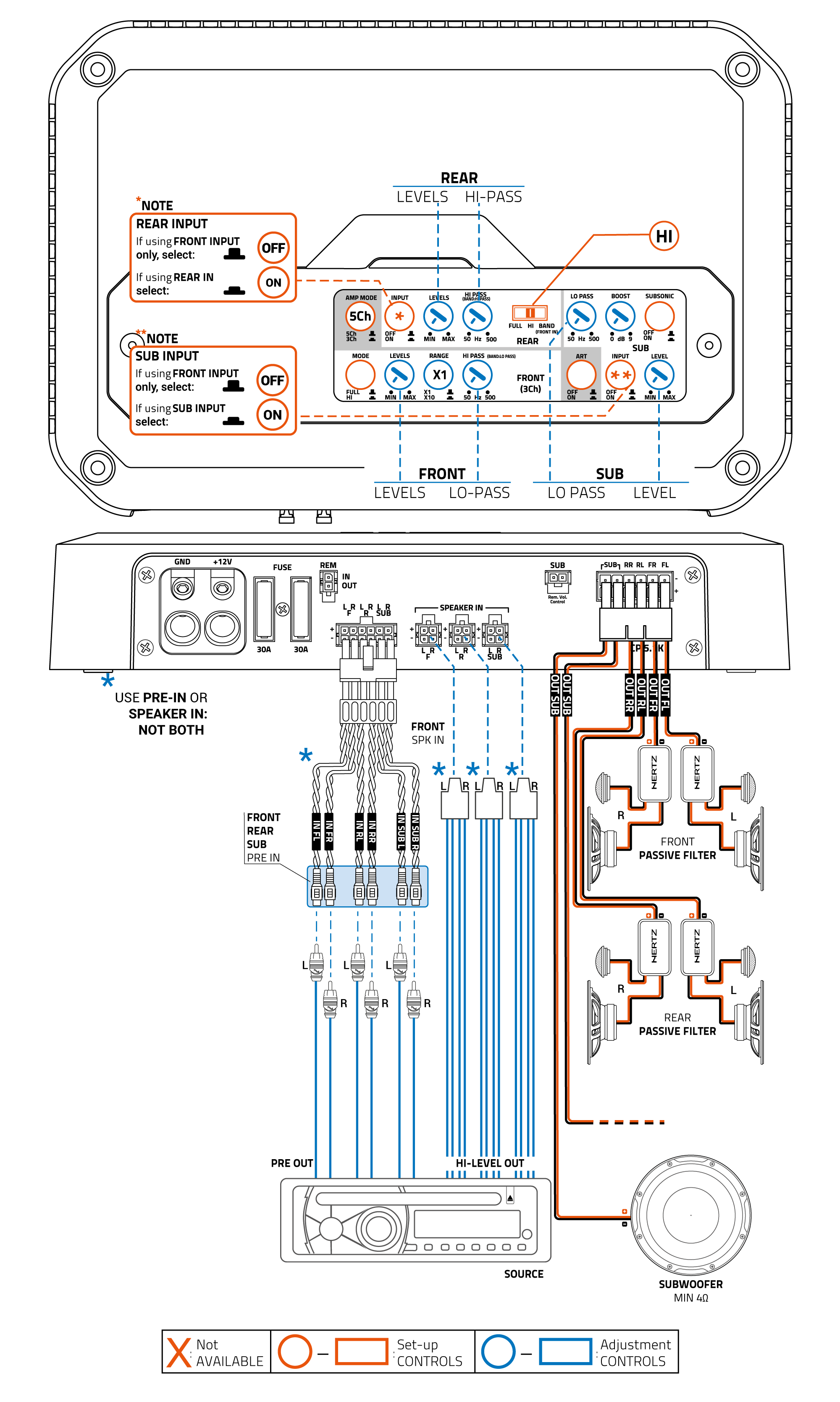

5Ch - FRONT + REAR + SUB 4 Ω

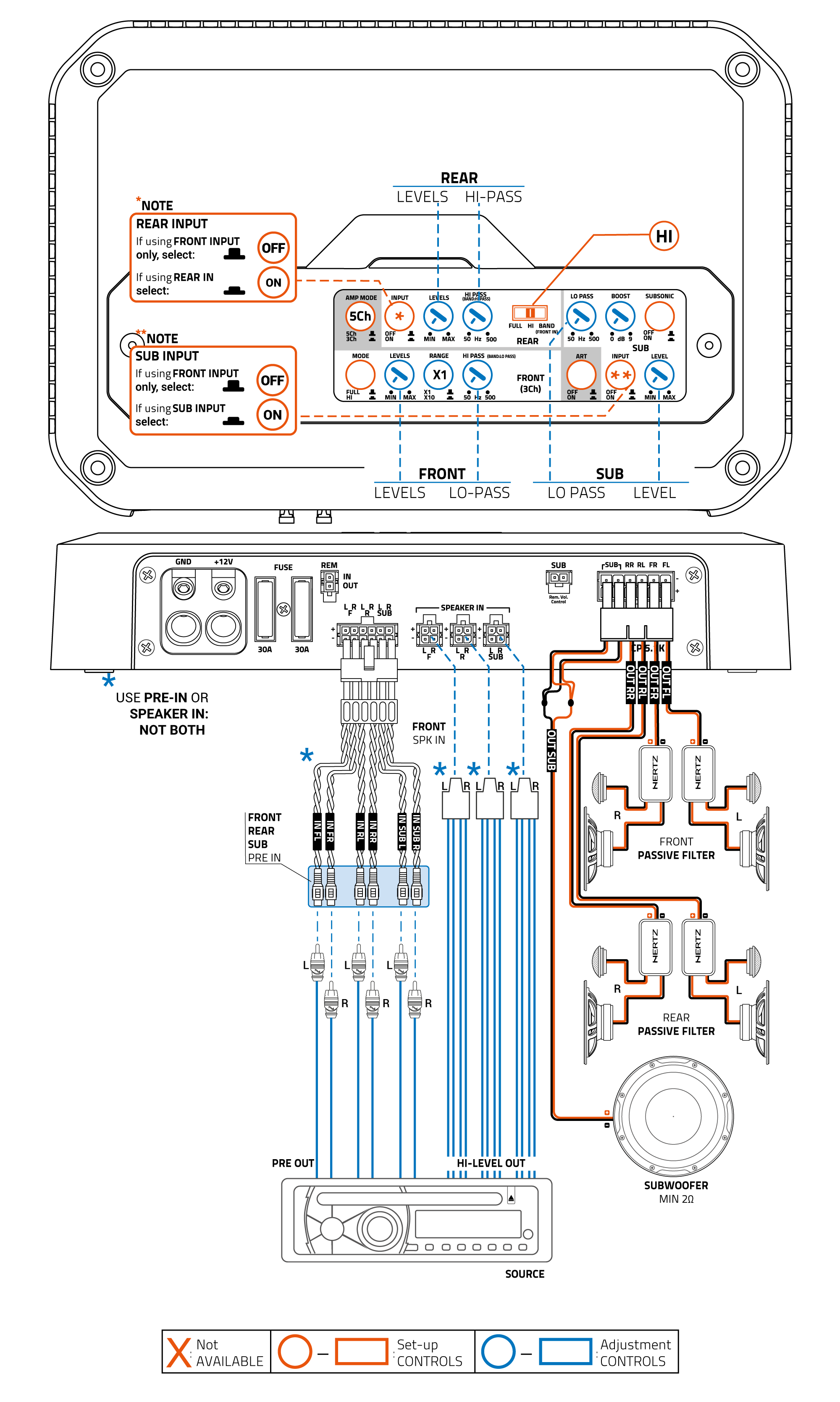

5Ch - FRONT + REAR + SUB 2 Ω

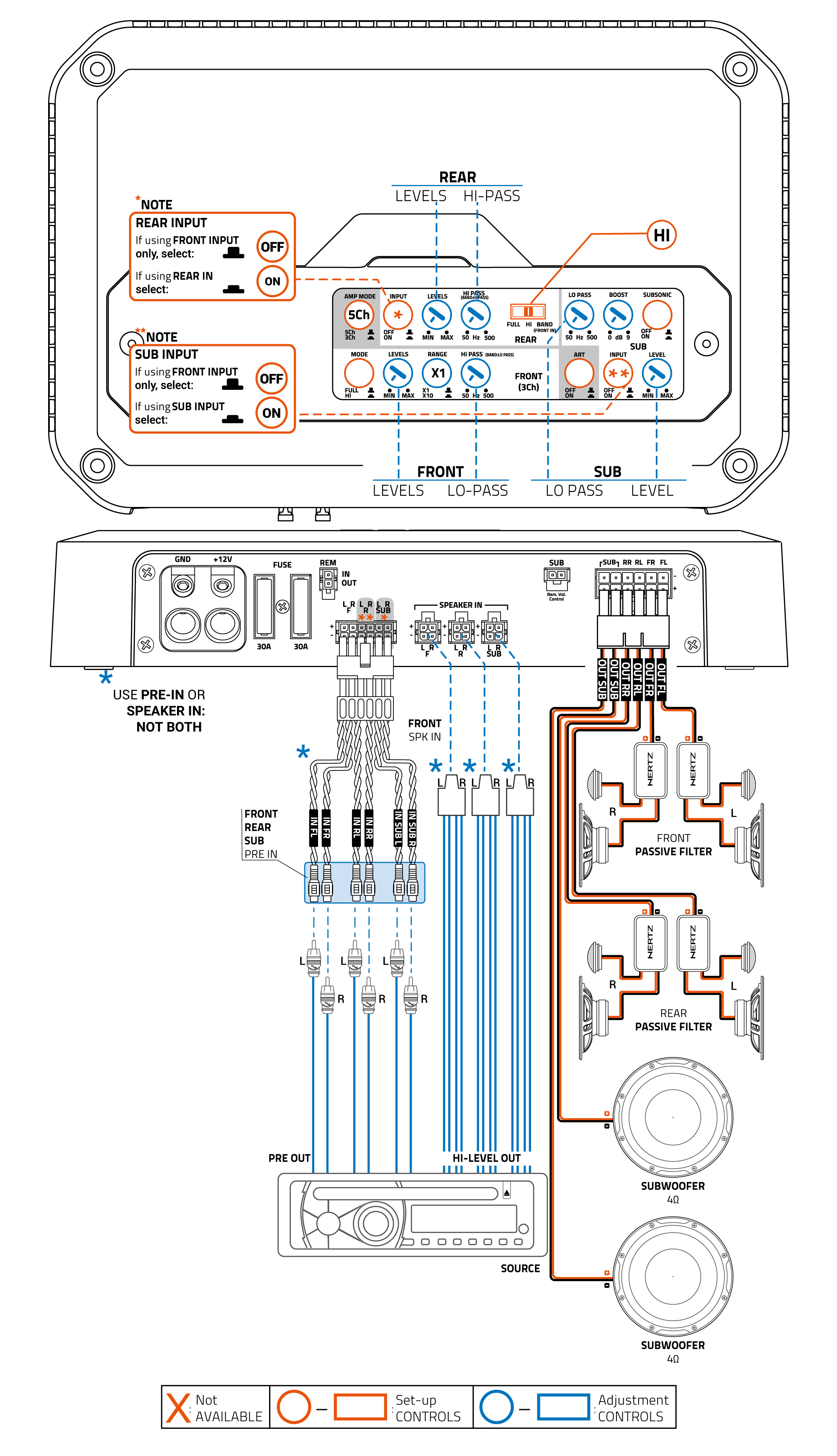

5Ch - FRONT + REAR + 2 SUB

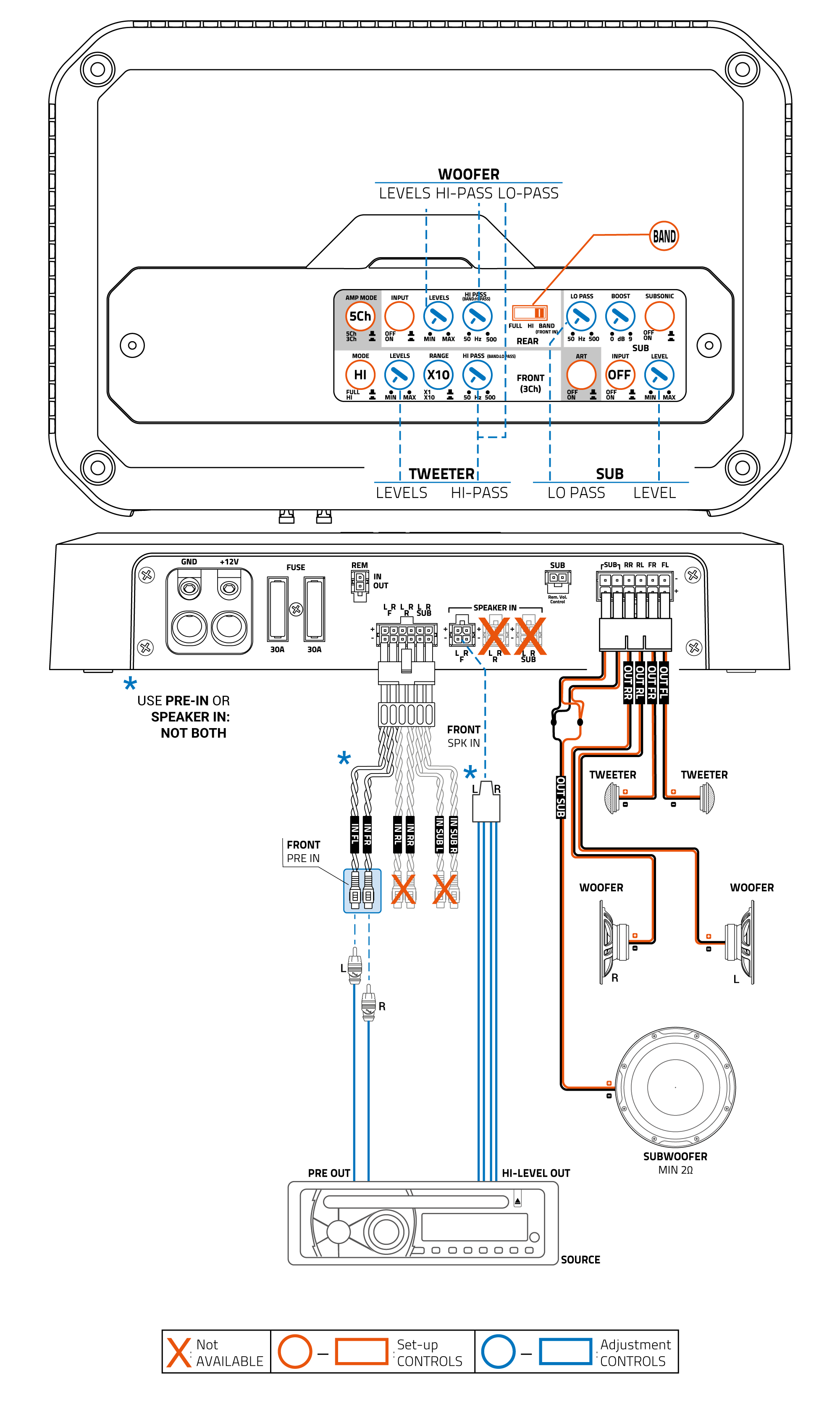

5Ch - 2 WAY FRONT + SUB

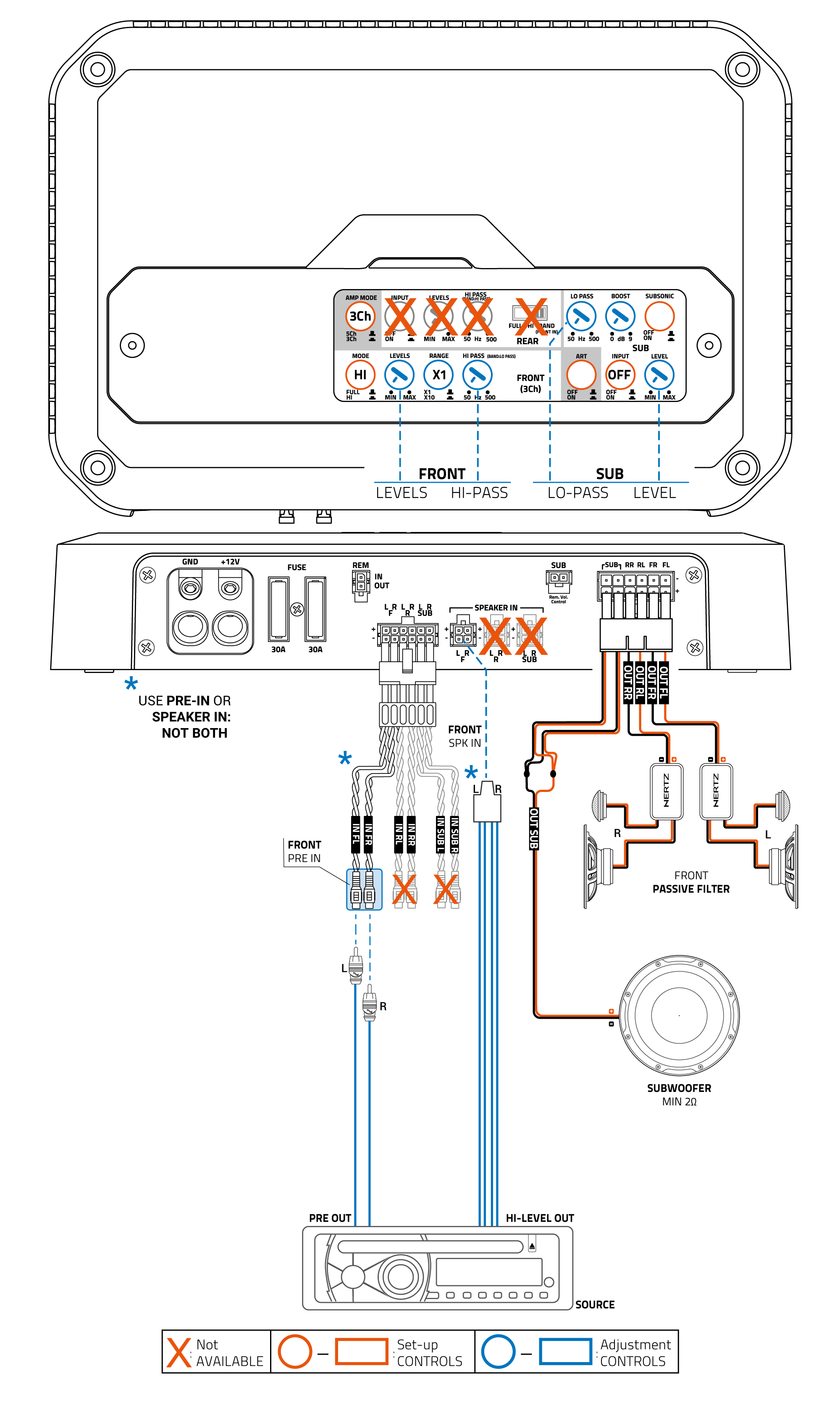

3Ch - FRONT + SUB
