6. ESEMPI DI INSTALLAZIONE

Matteo Kalogris

28 marzo 2023 15:53 Aggiornato

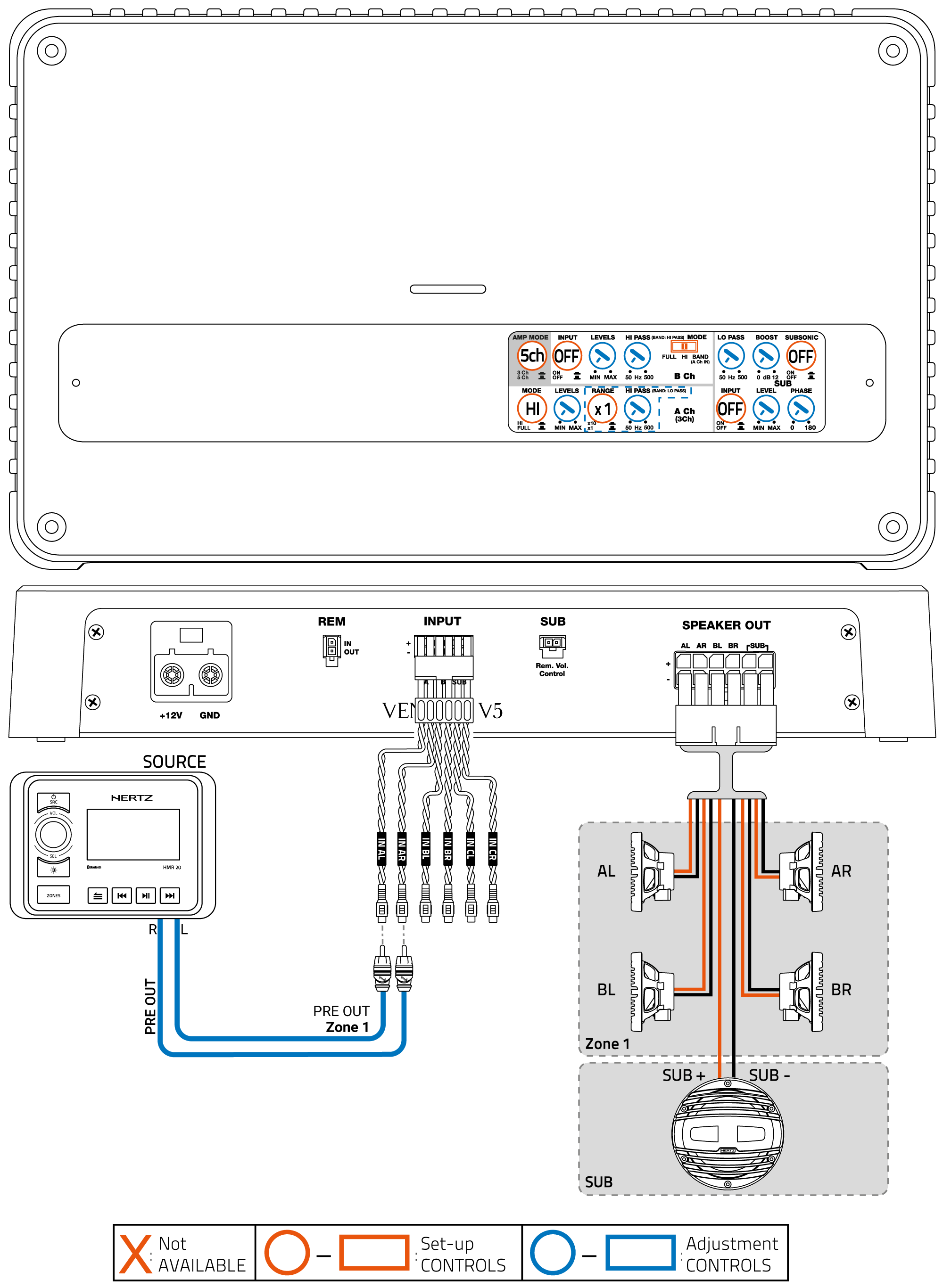

1. 5Ch OUT (2Ch IN): 4 COAXIALS + SUB

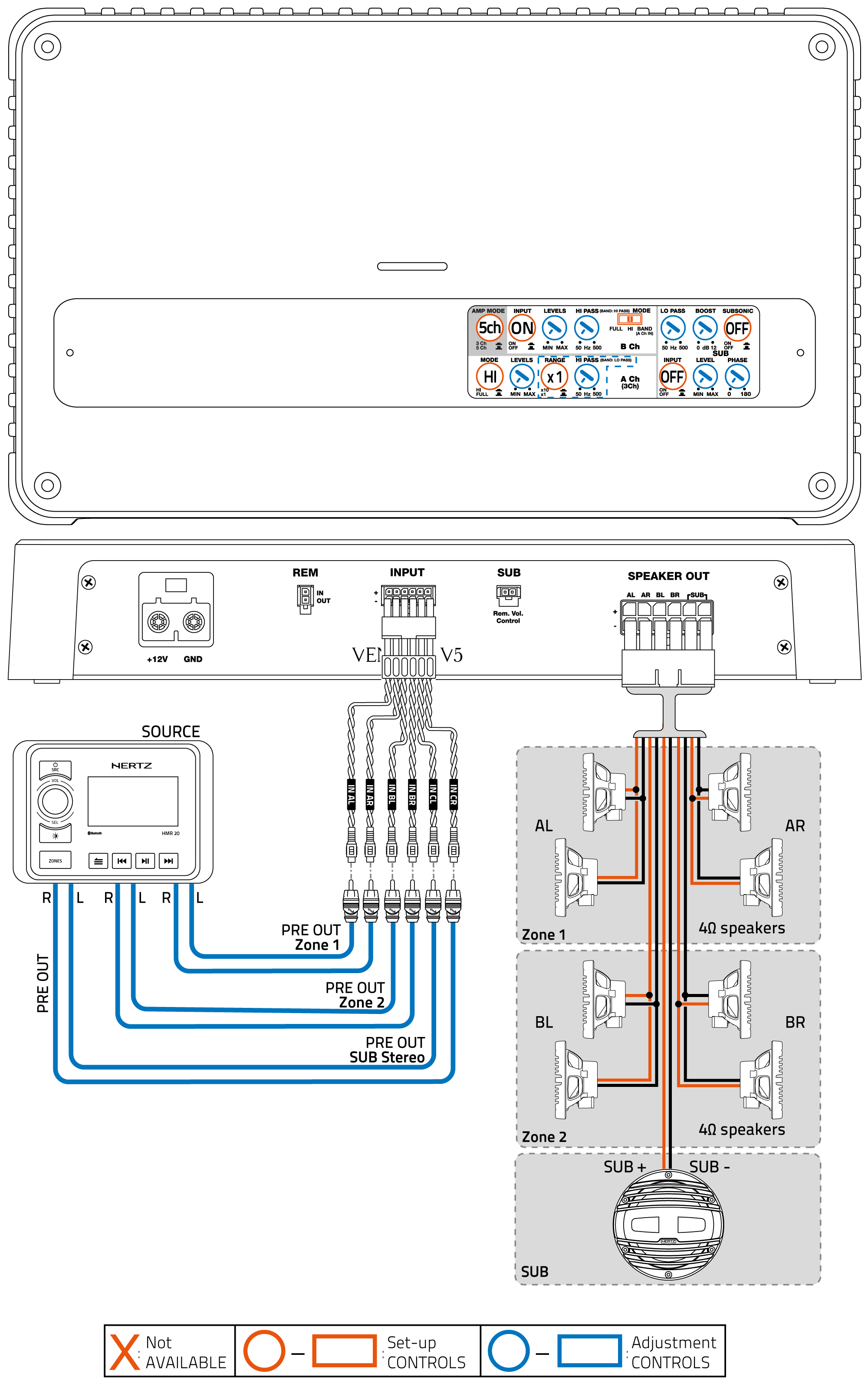

2. 5Ch OUT (6Ch IN): 8 COAXIALS + SUB

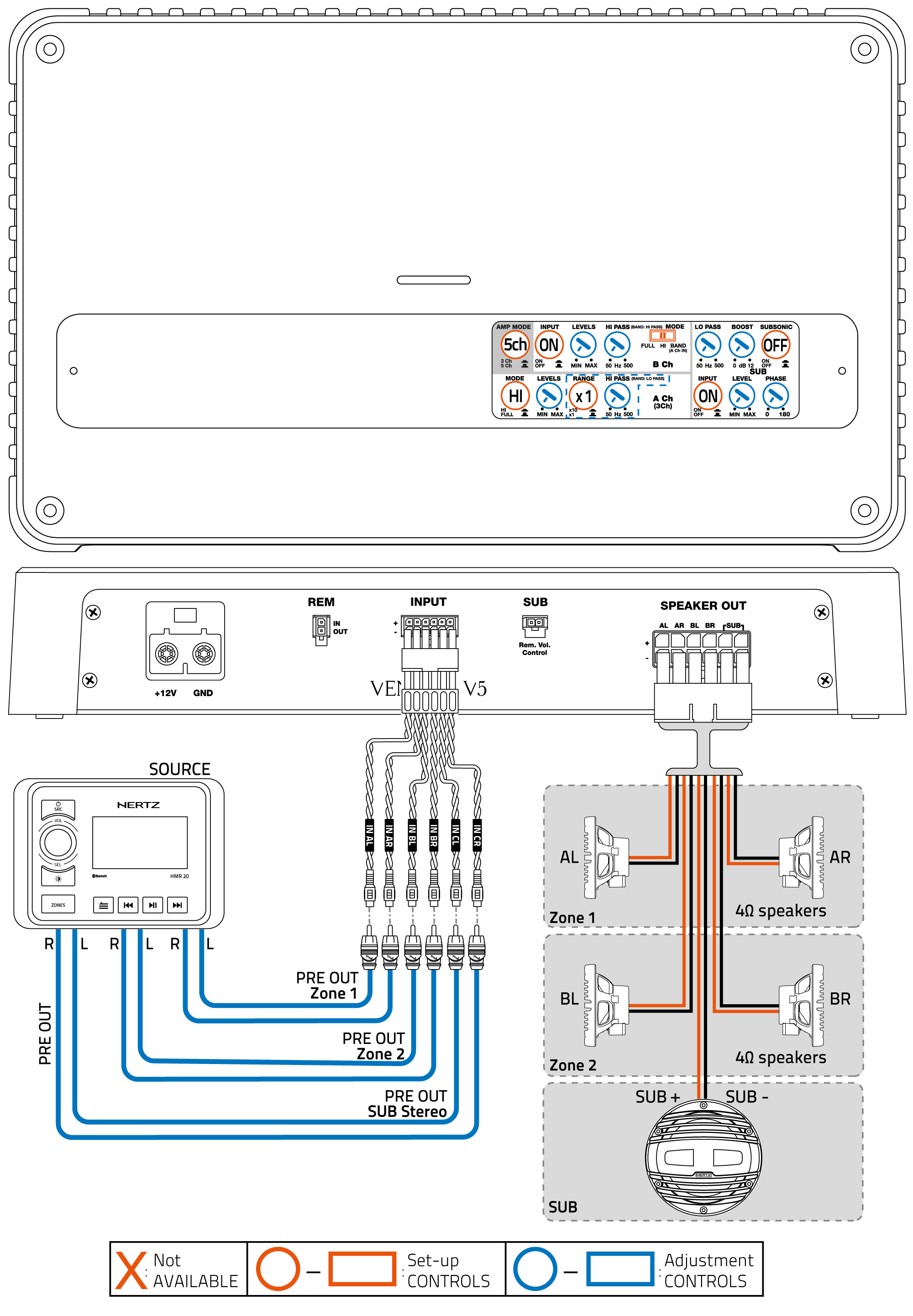

3. 5Ch OUT (6Ch IN): 4 COAXIALS + SUB


4. 5Ch OUT (4Ch IN): 8 COAXIALS + SUB
