6. ESEMPI DI INSTALLAZIONE

Matteo Kalogris
Aggiornato

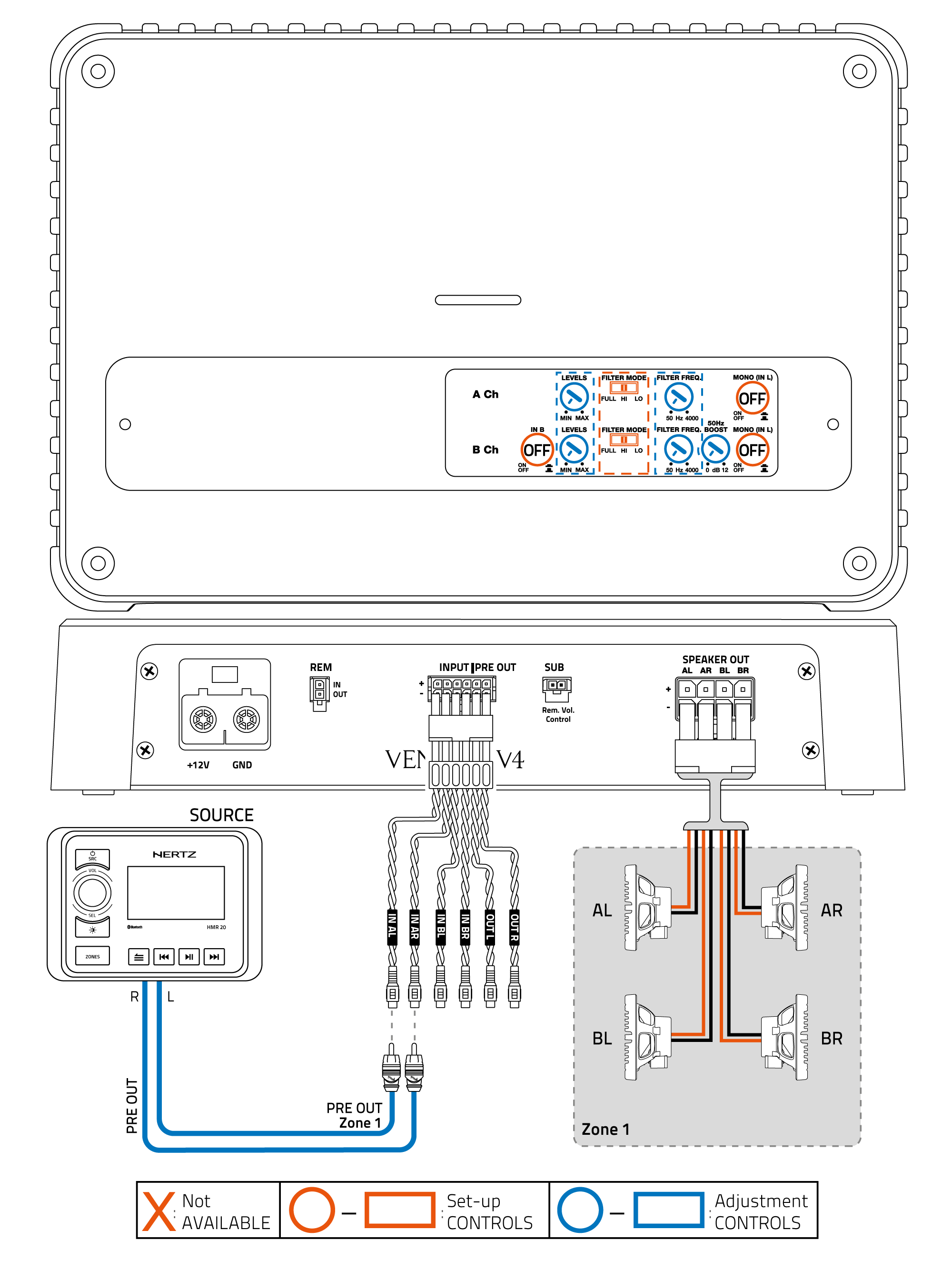

1. 4Ch OUT (2Ch IN): 4 COAXIALS

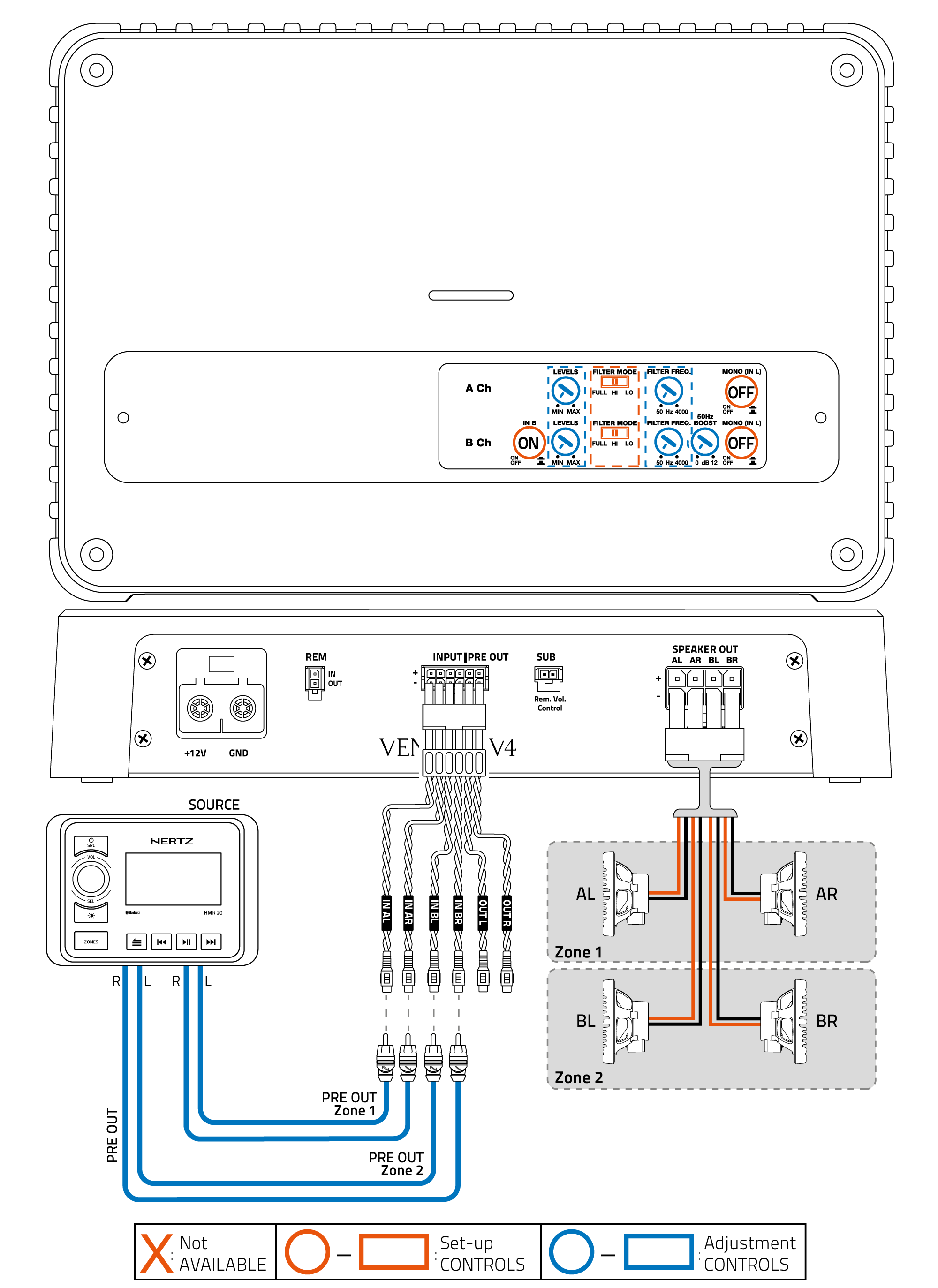

2. 4Ch OUT (4Ch IN): 4 COAXIALS

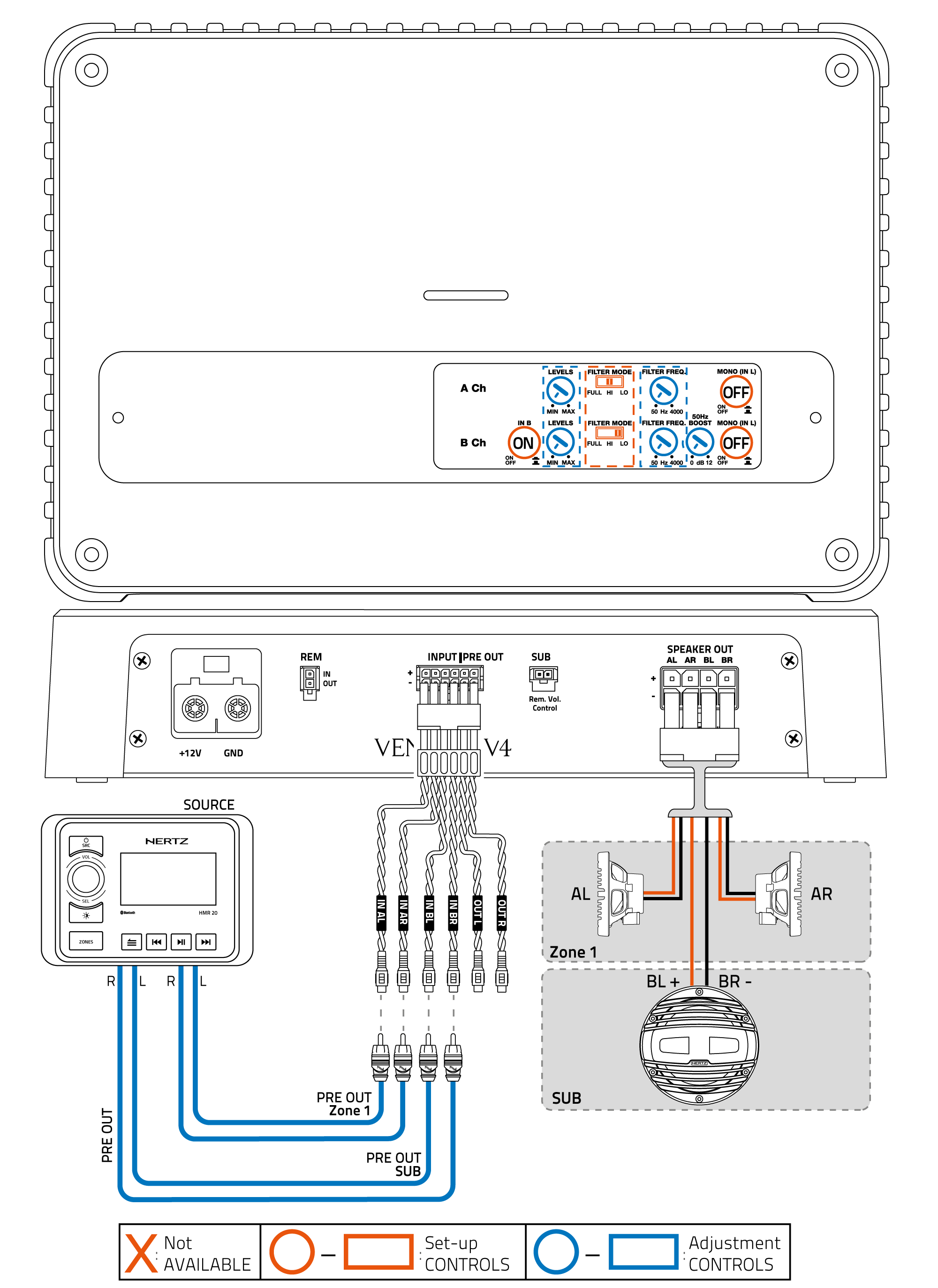

3. 3Ch OUT (4Ch IN): 2 COAXIALS + SUB (STEREO IN)

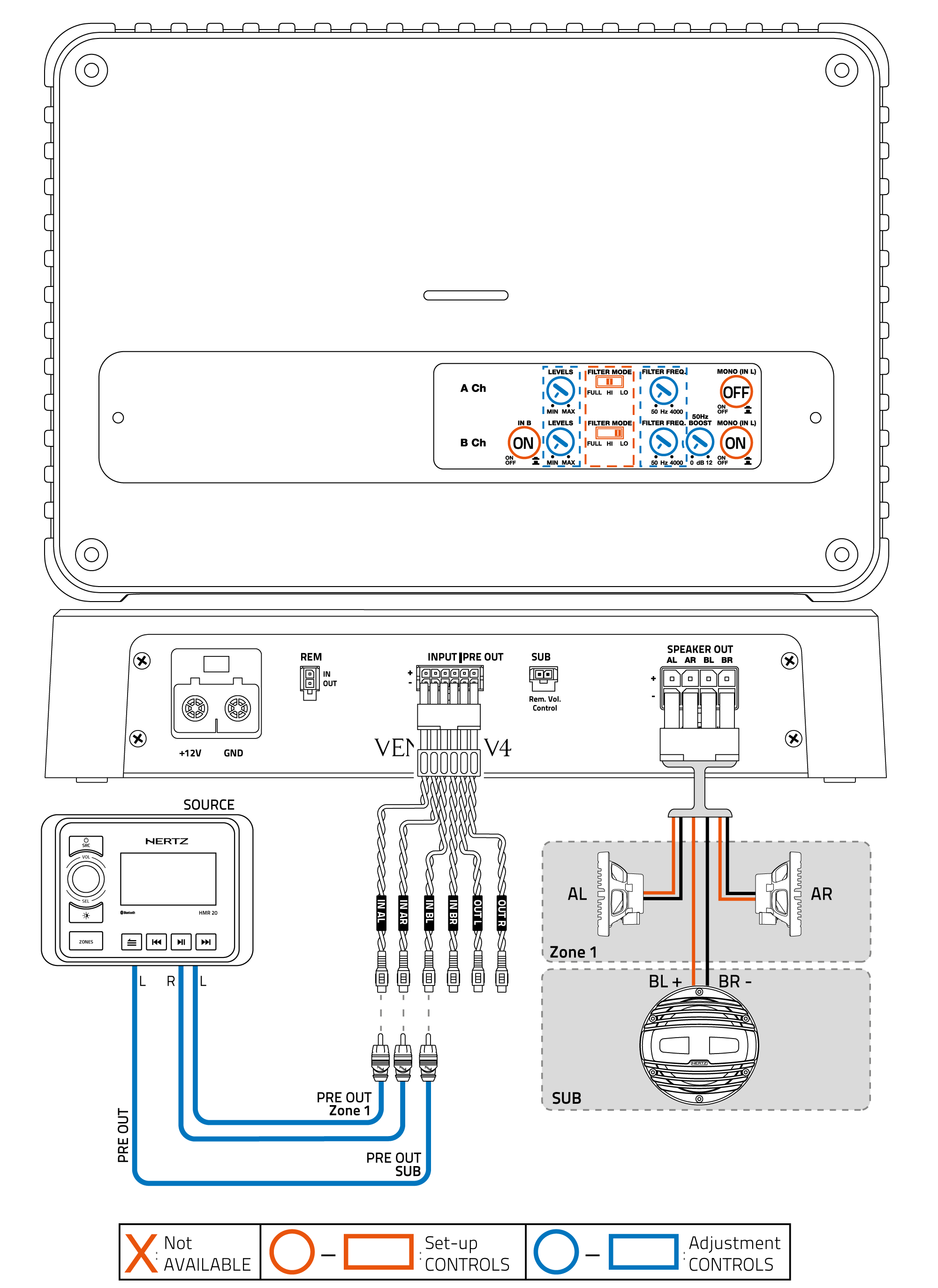

4. 3Ch OUT (3Ch IN): 2 COAXIALS + SUB (MONO L IN)

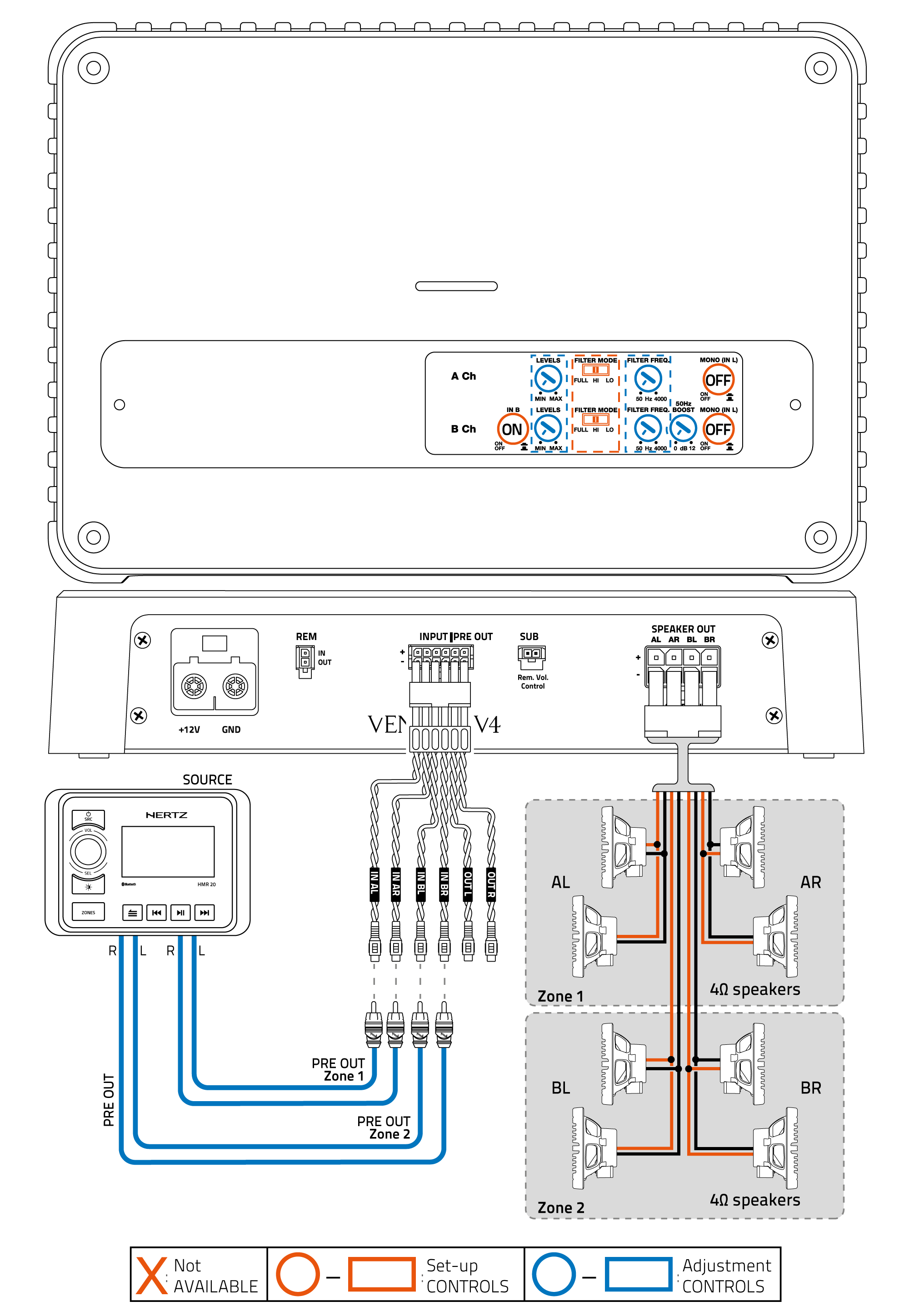

5. 4Ch OUT (4Ch IN): 8 COAXIALS
