6. ESEMPI DI INSTALLAZIONE

Matteo Kalogris
Aggiornato

◼︎Venezia V1
◼︎Venezia V1 24V

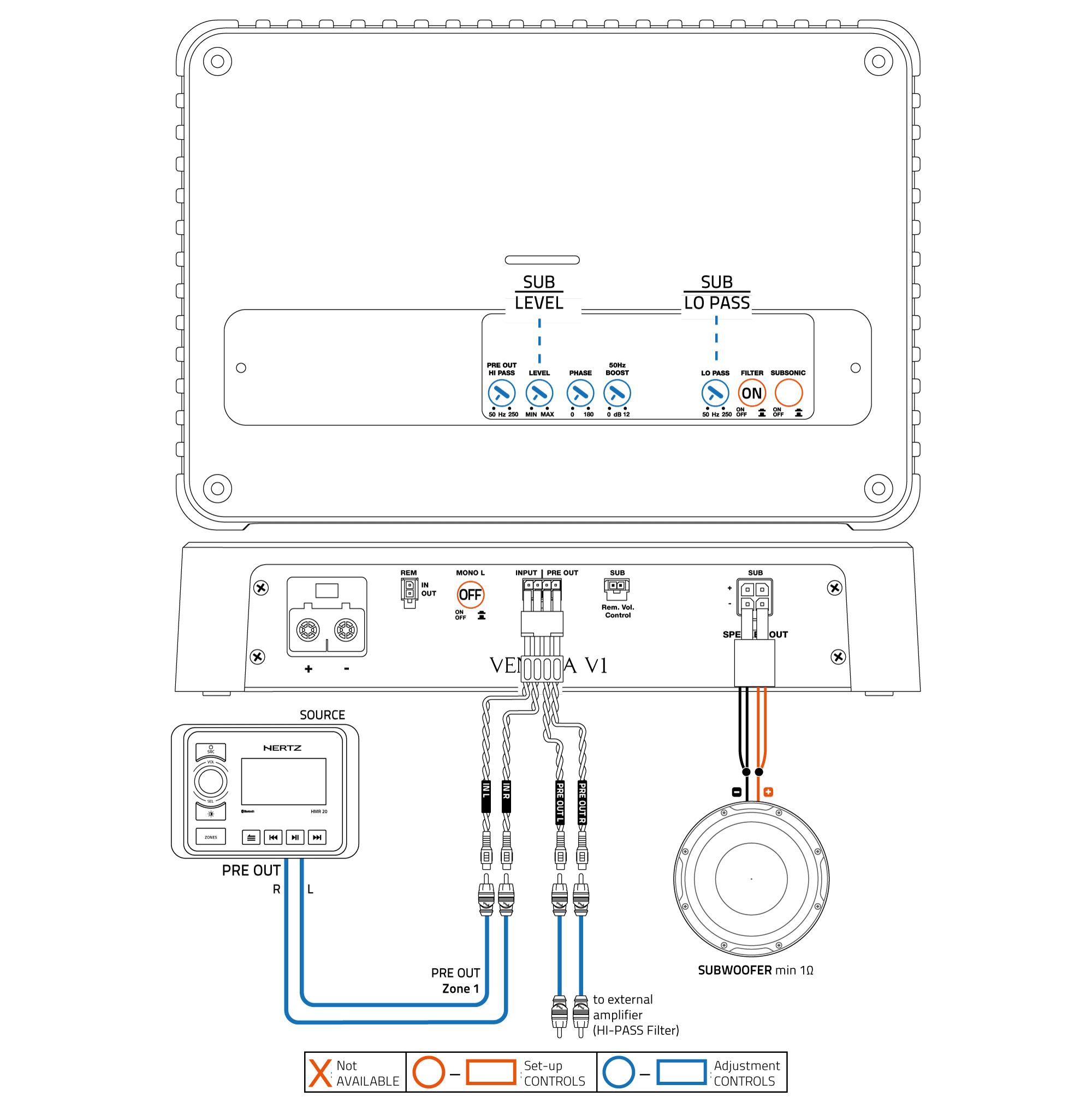

1. 1Ch OUT (2Ch IN): FILTERED SUBWOOFER

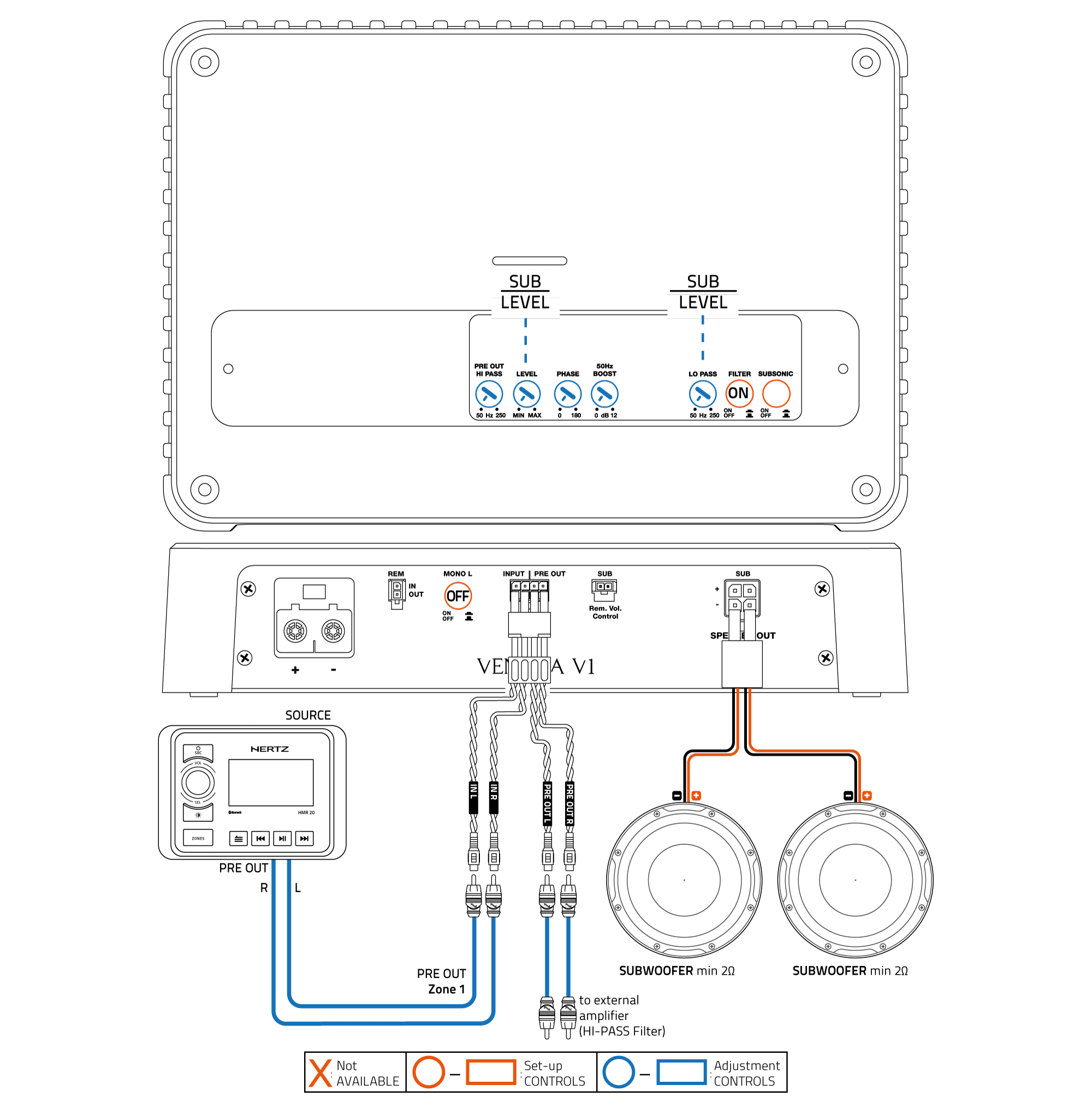

2. 1Ch OUT (2Ch IN): FILTERED 2 X 2Ω SUBWOOFER

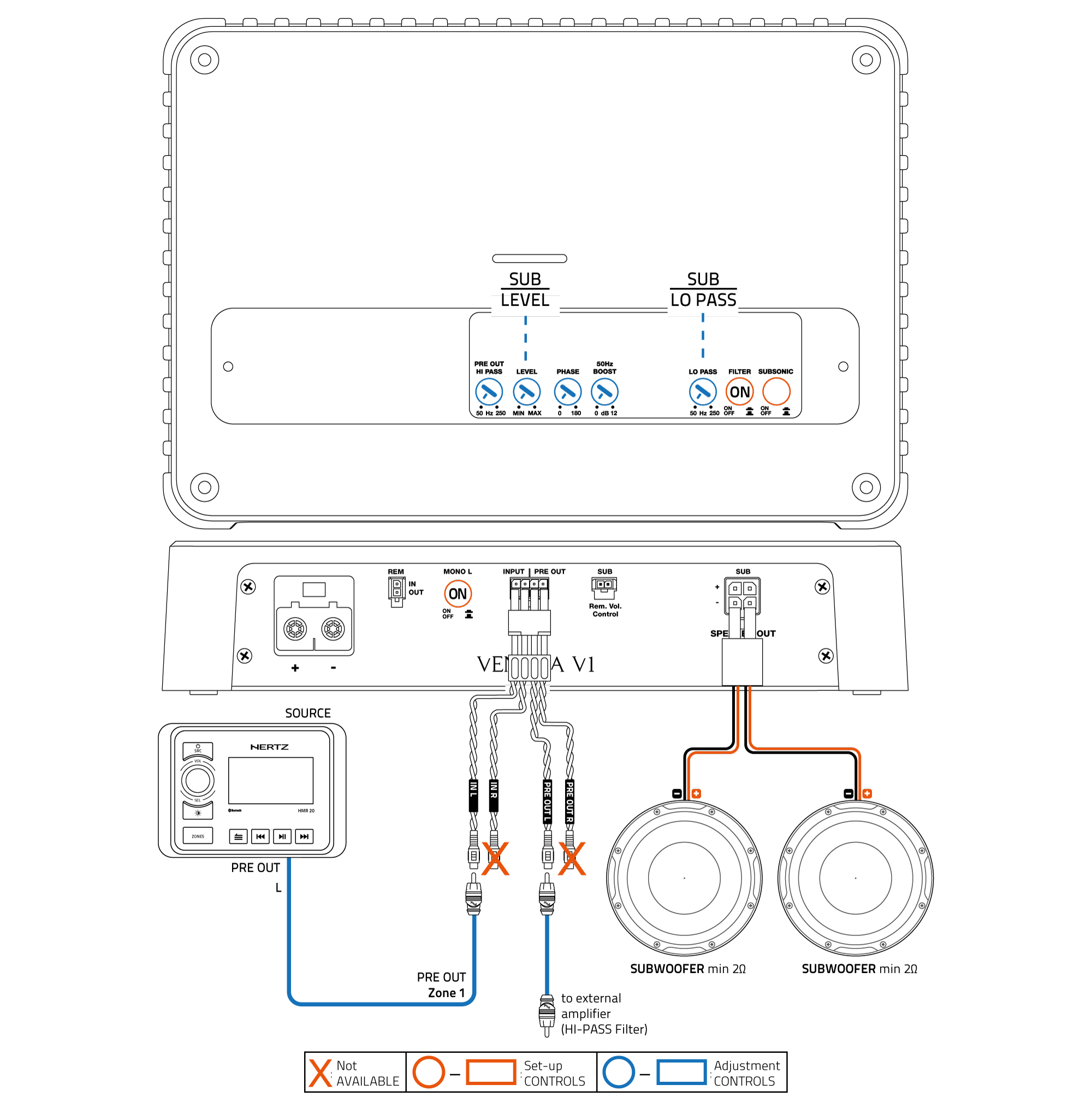

3. 1Ch OUT (1Ch IN): FILTERED 2 X 2Ω SUBWOOFER (MONO L IN)
