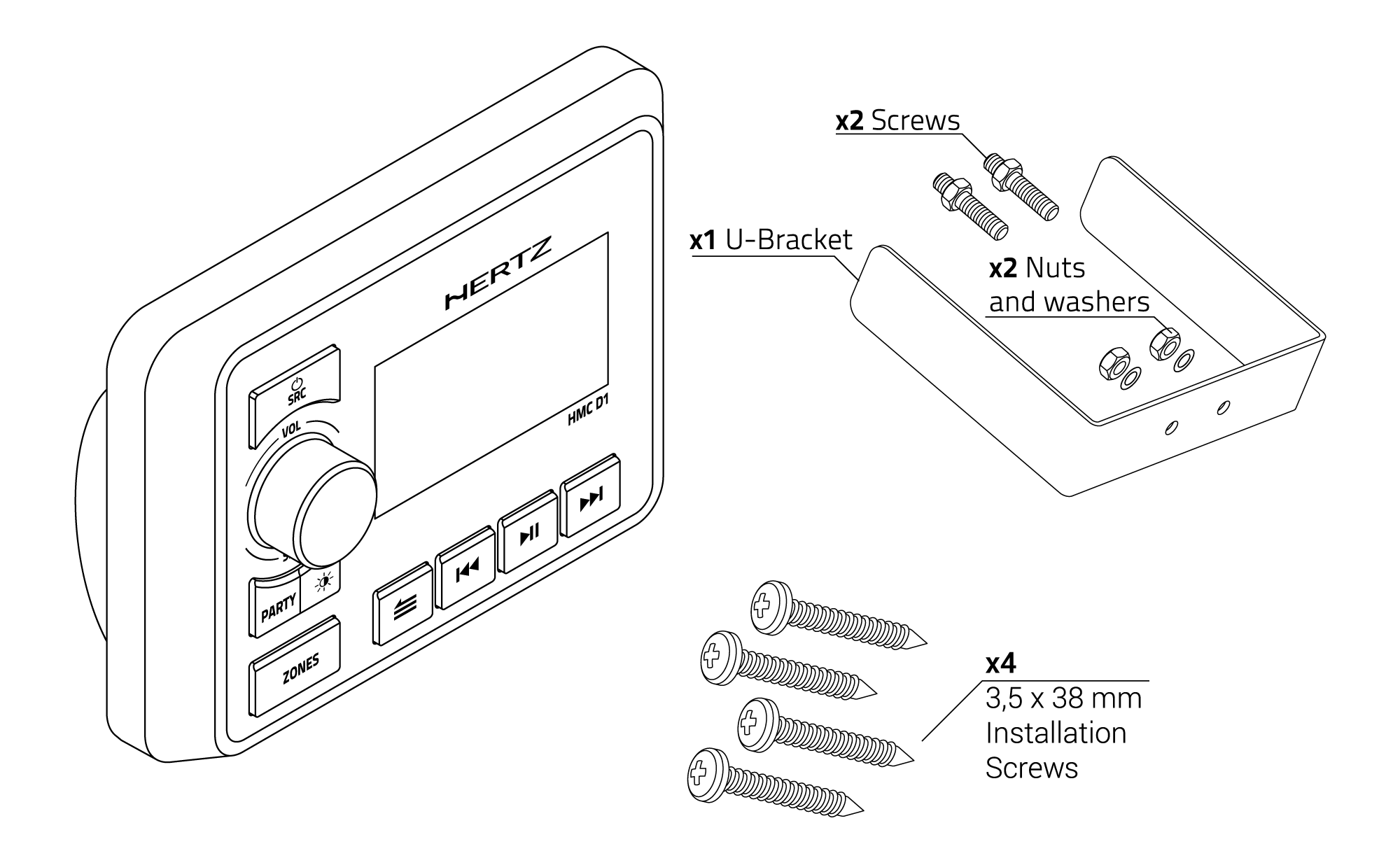

1. PACKAGING CONTENTS

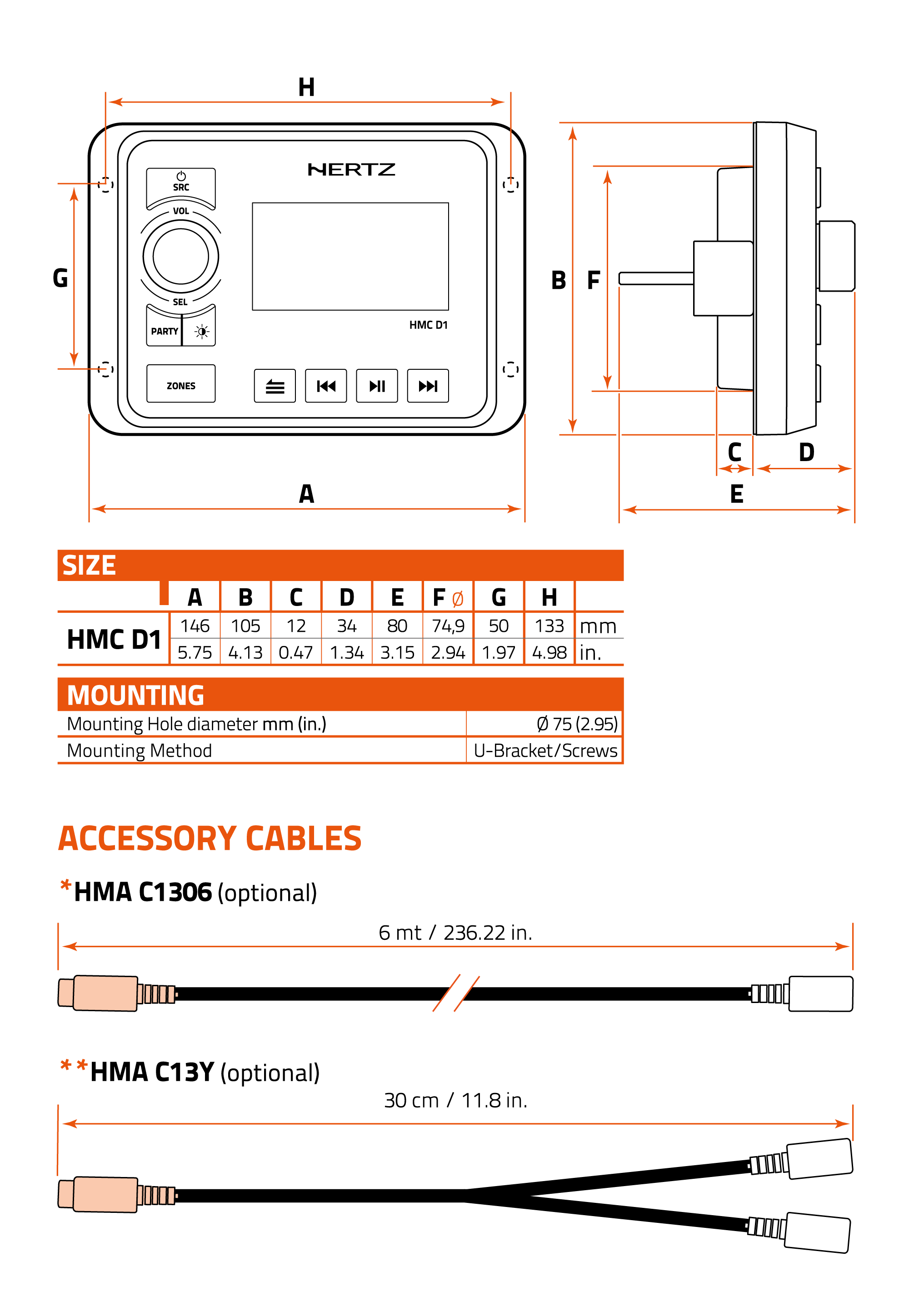

2. DIMENSIONS

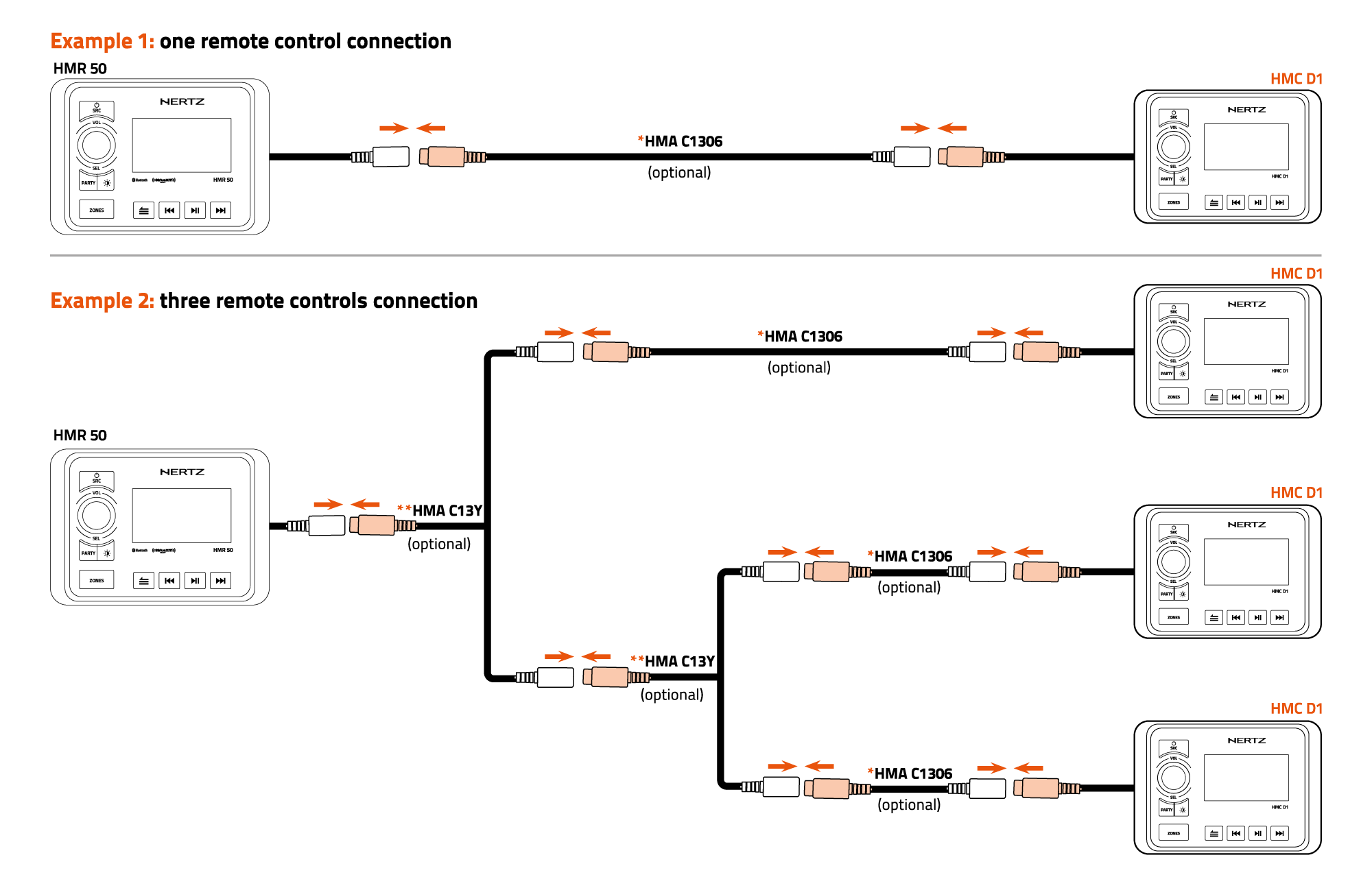

3. CONNECTION EXAMPLES
4. CONTROLS
SRC Button
- Power ON (short press).
- Power OFF (long press).
- Enter to SOURCE SELECTION (short press).
VOL / SEL Knob
- Adjust volume level (rotate).
- Menu navigation and setting adjustments(rotate/press).
- Mute ON/OFF (short press).
- AM/FM: FAVORITES menu (long press).
PARTY Button (long press)
- Brings the volume of all audio zones to level “15”.
DIMMER Button
- Switch between two different brightness values for the display (short press).
/
- AM/FM mode:
previous/next preset station(short press).
Seek the previous/next strongest station(long press).
- USB mode:
previous/next track (short press).
fast forward/rewind (press and hold).
- BT mode:
previous/next track (short press).
- SiriusXM mode:
seek the next / previous channel (short press).
quick search for the next / previous channel (long press).
PLAY / PAUSE Button
- AM/FM mode:
access to manual tuning (short press).
- USB mode:
pause or resume playback (Short press).
- BT mode:
pause or resume playback (Short press).
- SirusXM mode:
Direct Tuning function.
MENU / BACK Button
- Access system settings (long press).
- Exit from system settings (long press).
- Access active source settings (short press).
- To go back/return to the previous screen (long press).
ZONES Button
- Access AUDIO ZONE LEVEL menu (short press).
- When into AUDIO ZONE LEVEL to switch between Zone1, Zone2, Zone3, SUB (short press).
