This chapter covers the power connections, input signals, output signals and connection to the PC.

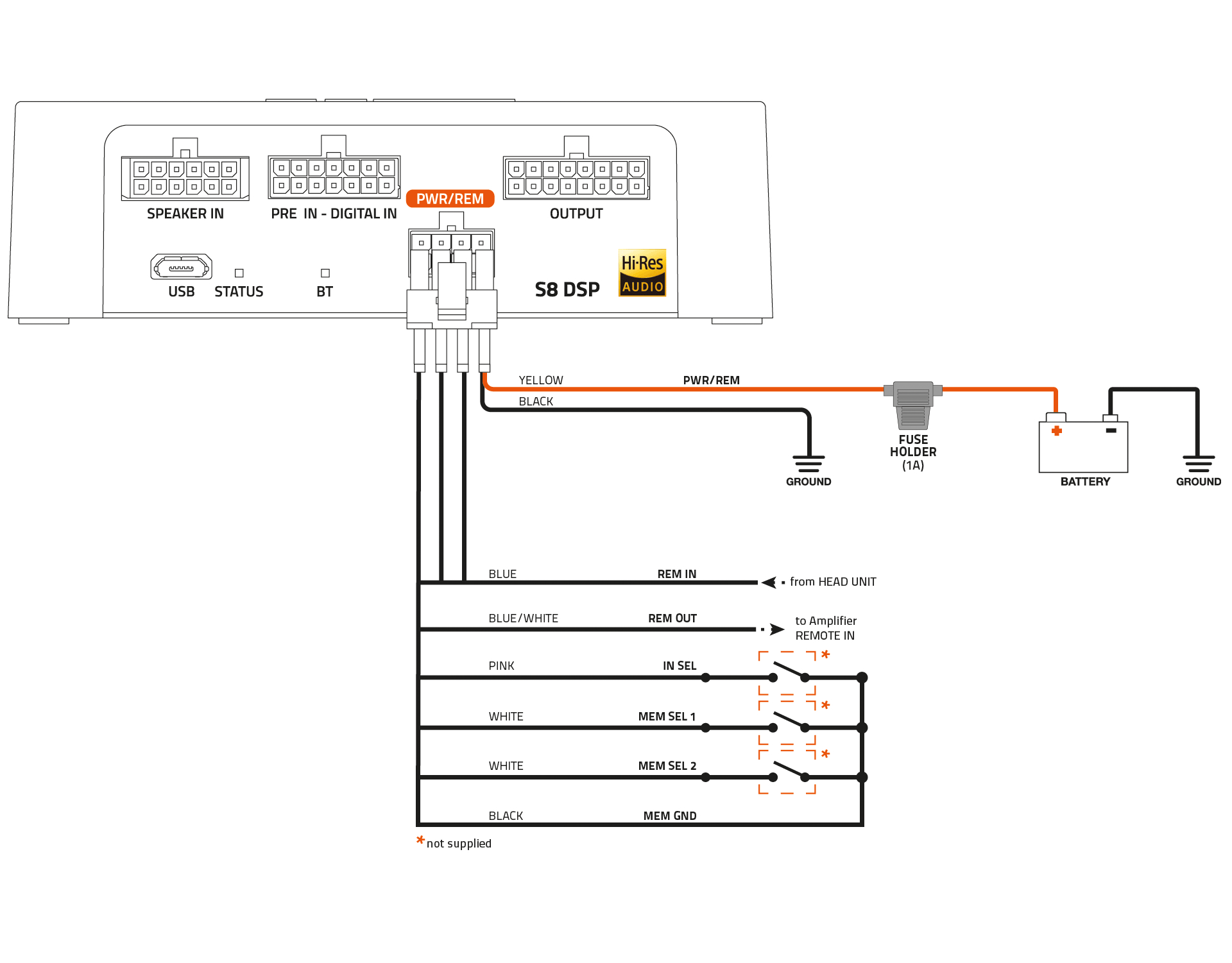

5.1 POWER SUPPLY AND REMOTE TURN ON
How to turn the S8 DSP on and off
The S8 DSP is on when the logo is lit green. It can be turned on/off using the following methods:
1. By connecting the REMOTE IN terminal with a Remote Out signal coming from an after market audio source.
2. Through the Speaker IN (IN 1 - IN 2) input. The ART™, (auto remote TURN-ON) function is activated by connecting the output (BTL) of an amplified source to the SPEAKER IN 1 - IN 2 input channel. This function can be enabled/ disabled using the S8 DSP software, (see sec. 8.2.7.2.1).
5.2 INPUT SIGNALS

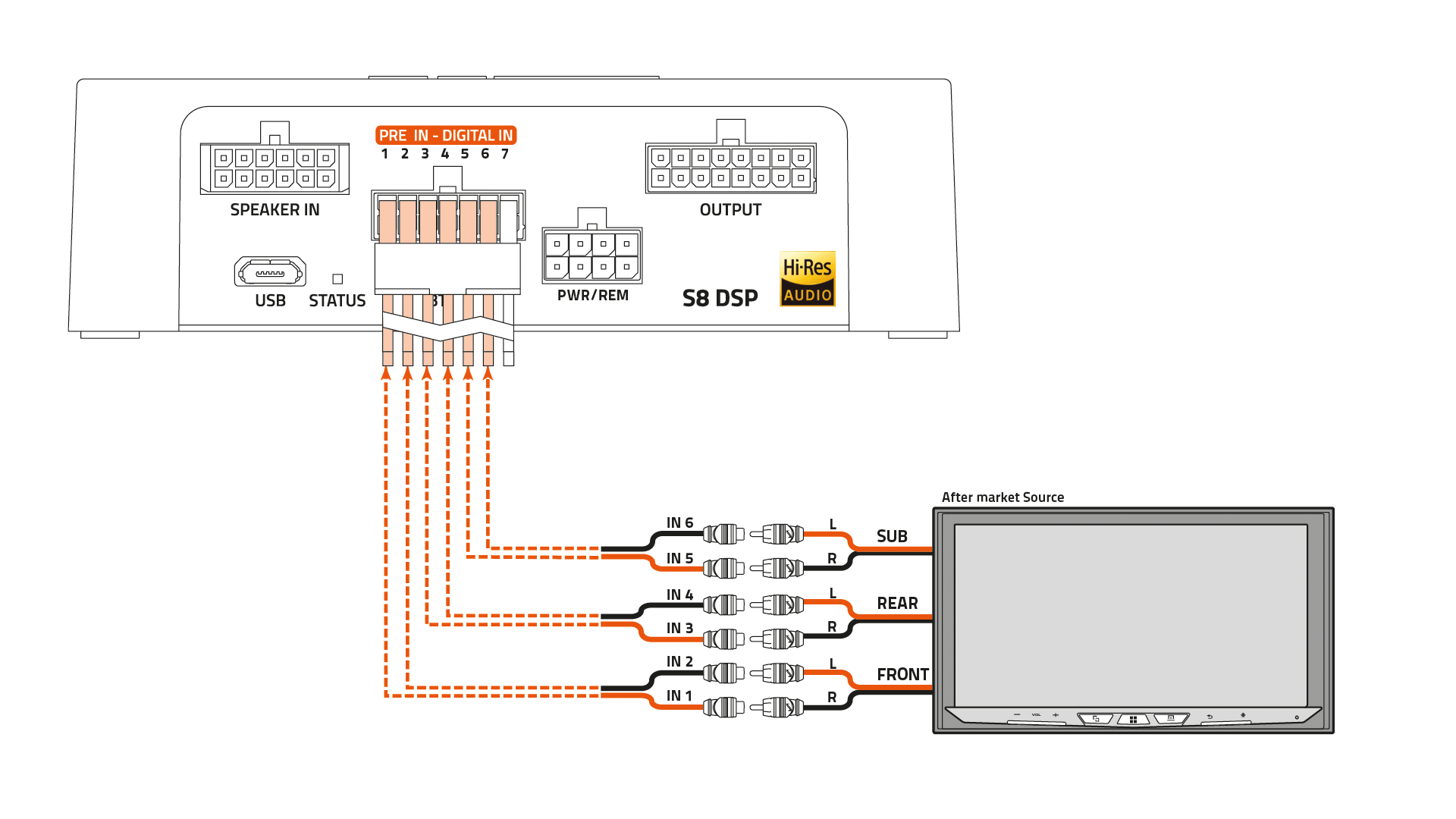

5.2.1 PRE IN - CH1/CH6 STEREO ANALOG SIGNAL
How to select the PRE IN input
1. By selecting the ANALOG input (see sec. 8.9) previously set up on (RCA) using the S8 DSP software (see sec. 8.2.2).
2. By usung the IN SEL terminal (see sec. 4.4).

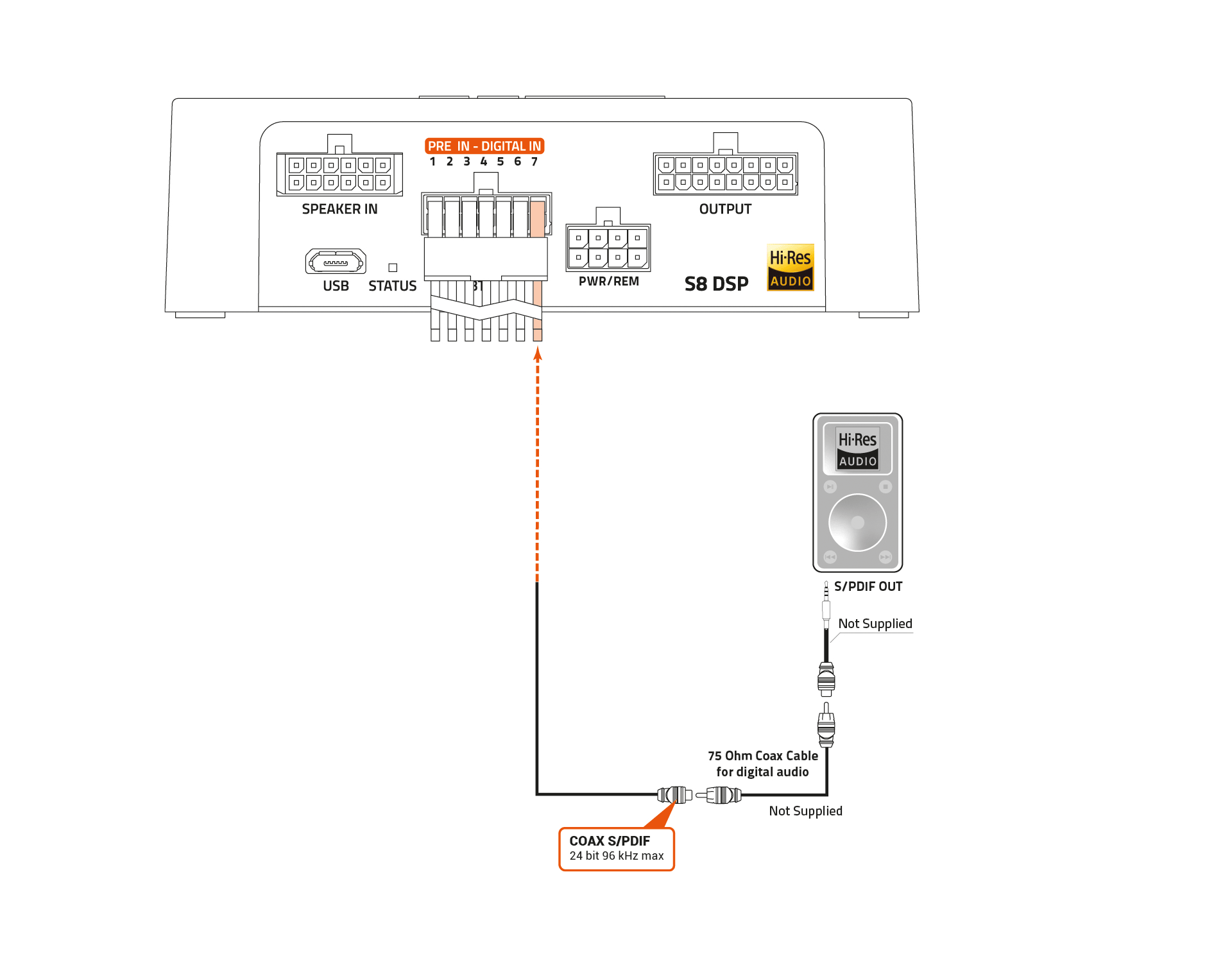

5.2.2 DIGITAL IN - S/PDIF DIGITAL INPUT
How to select the DIGITAL IN input
1. By selecting the DIGITAL input using the S8 DSP software (see sec. 8.9).
2. By usung the IN SEL terminal (see sec. 4.4).
3. With the function Automatic switch to digital input, to be enabled using the S8 DSP software (see sec. 8.2.4).

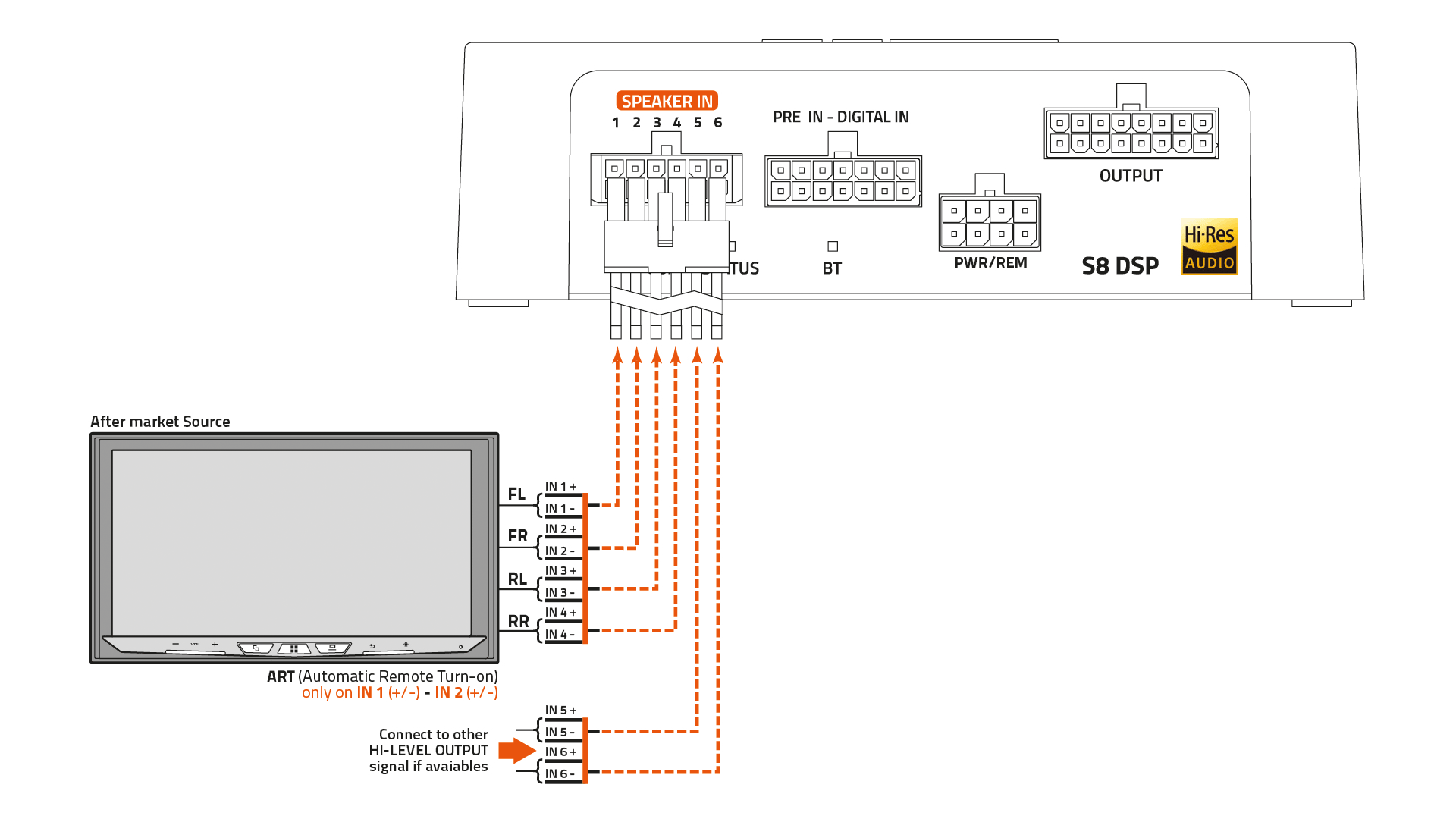

5.2.3 SPEAKER IN - CH1/CH6 (HIGH LEVEL)
How to select the SPEAKER IN Input
1. By selecting the ANALOG input (see sec. 8.9) previously set on HIGH LEVEL via the S8 DSP software (see sec. 8.2.2).
2. By using the IN SEL terminal (see sec. 4.4).
Remark: the CH1 CH2 channels feature the ARTTM, (auto remote TURN-ON) function, automatic on/off, through connection with the source speaker outputs (BTL). This function can be activated via software (see sec. 8.2.7.2.1).
Remark: the Speaker IN input features USS technology that allows the processor to work with sources equipped with the “loudspeaker load sensing” circuit.

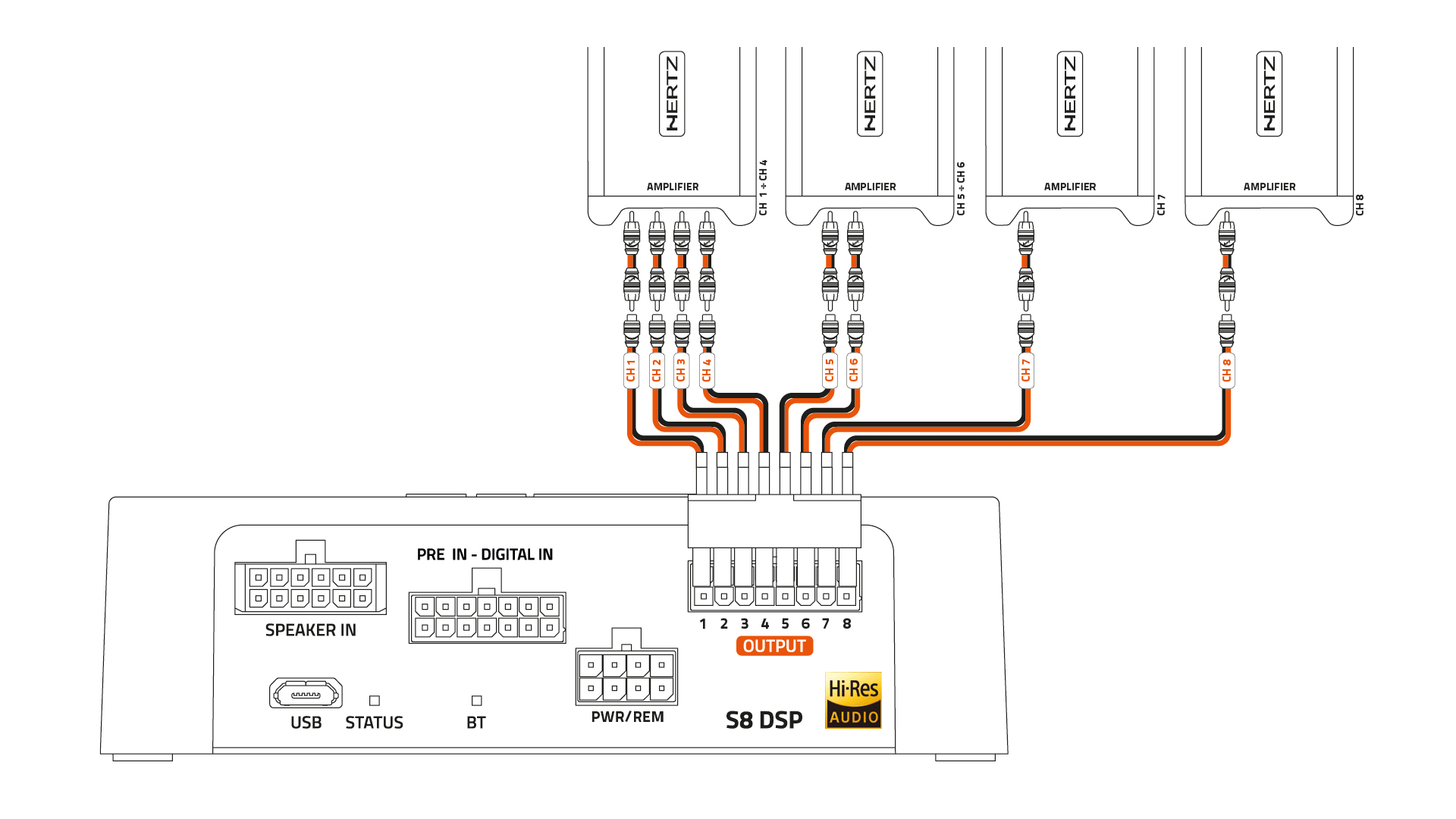

5.3 SEGNALI D’USCITA
| DEFAULT OUTPUT CONFIGURATION | ||||
| OUTPUT | CH NAME | FILTER | FILTER TYPE | FILTER FREQUENCY/SLOPE |
| CH 1 | Front TW Left | HI PASS | BUTTERWOORTH | 3412 Hz @ 12dB |
| CH 2 | Front TW Right | HI PASS | BUTTERWOORTH | 3412 Hz @ 12dB |
| CH 3 | Front WF Left | BAND PASS | BUTTERWOORTH | 80 Hz @ 12dB / 3412 Hz @ 12dB |
| CH 4 | Front WF Right | BAND PASS | BUTTERWOORTH | 80 Hz @ 12dB / 3412 Hz @ 12dB |
| CH 5 | Rear Left | HI PASS | BUTTERWOORTH | 80 Hz @ 12dB |
| CH 6 | Rear Right | HI PASS | BUTTERWOORTH | 80 Hz @ 12dB |
| CH 7 | Center | HI PASS | BUTTERWOORTH | 80 Hz @ 12dB |
| CH 8 | Subwoofer | BAND PASS | BUTTERWOORTH | 20 Hz @ 12dB / 80 Hz @ 12dB |

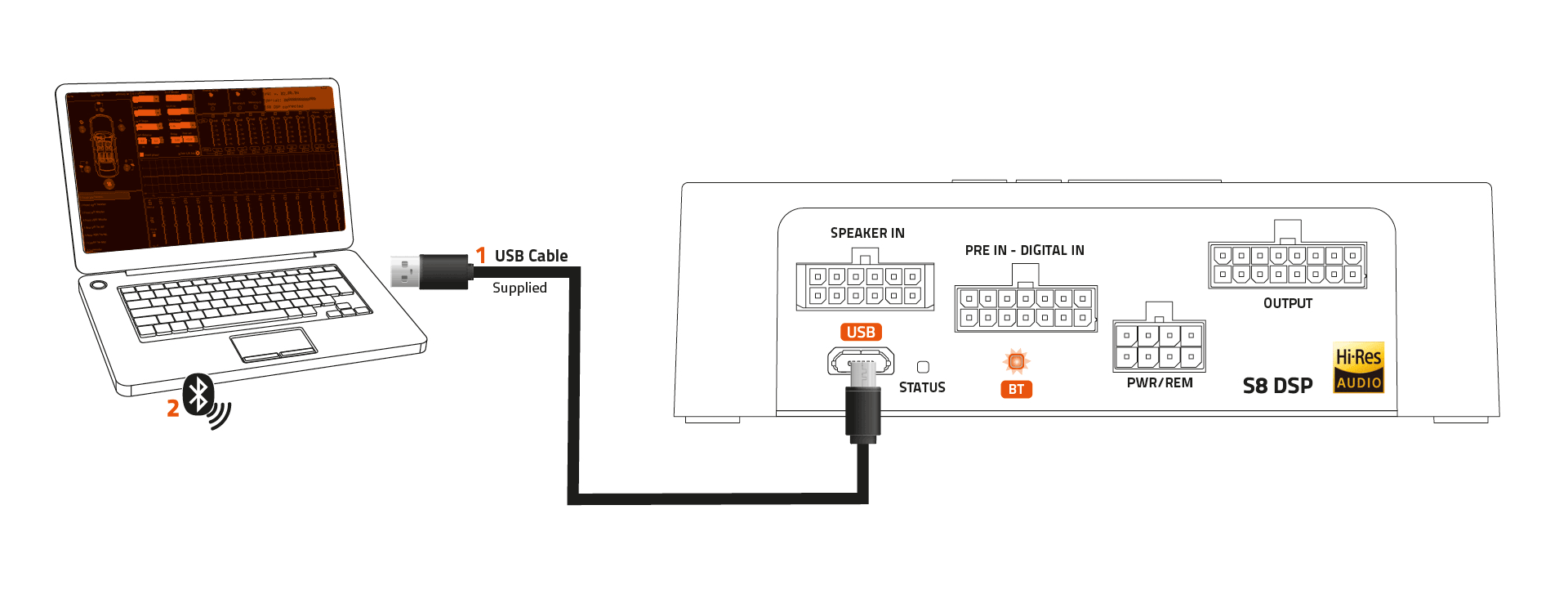

5.4 COLLEGARE S8 DSP AL NOTEBOOK (PC/MAC)
E’ possibile collegare l’S8 DSP al PC/MAC:
1. Utilizzando il cavo USB
2. Utilizzando una connessione Bluetooth.
