VENEZIA AMPLIFIER

Index

1. PACKAGING CONTENT

2. INSTALLATION AND SIZE

3. ALIMENTAZIONE E PROTEZIONE

3.1 POWER SUPPLY AND REMOTE IN CONNECTION
3.2 MULTIPLE POWER SUPPLY CONNECTION
3.3 PROTECTION

4. INPUT / OUTPUT CONNECTION AND SUBWOOFER REMOTE VOLUME CONTROL

4.1 VENEZIA V1 / VENEZIA V1 24V
4.2 VENEZIA V4
4.3 VENEZIA V4C
4.4 VENEZIA V5
4.5 VENEZIA V5C / VENEZIA V5C 24V
4.6 VENEZIA V6 / VENEZIA V6 24V

5. CONTROLS

5.1 VENEZIA V1 / VENEZIA V1 24V
5.2 VENEZIA V4
5.3 VENEZIA V4C
5.4 VENEZIA V5
5.5 VENEZIA V5C / VENEZIA V5C 24V
5.6 VENEZIA V6 / VENEZIA V6 24V

6. INSTALLATION EXAMPLES

6.1 VENEZIA V1 / VENEZIA V1 24V
6.2 VENEZIA V4
6.3 VENEZIA V4C
6.4 VENEZIA V5
6.5 VENEZIA V5C / VENEZIA V5C 24V
6.6 VENEZIA V6 / VENEZIA V6 24V

7. BLOCK DIAGRAMS

7.1 VENEZIA V1 / VENEZIA V1 24V
7.2 VENEZIA V4
7.3 VENEZIA V4C
7.4 VENEZIA V5
7.5 VENEZIA V5C / VENEZIA V5C 24V
7.6 VENEZIA V6 / VENEZIA V6 24V

1. PACKAGING CONTENT

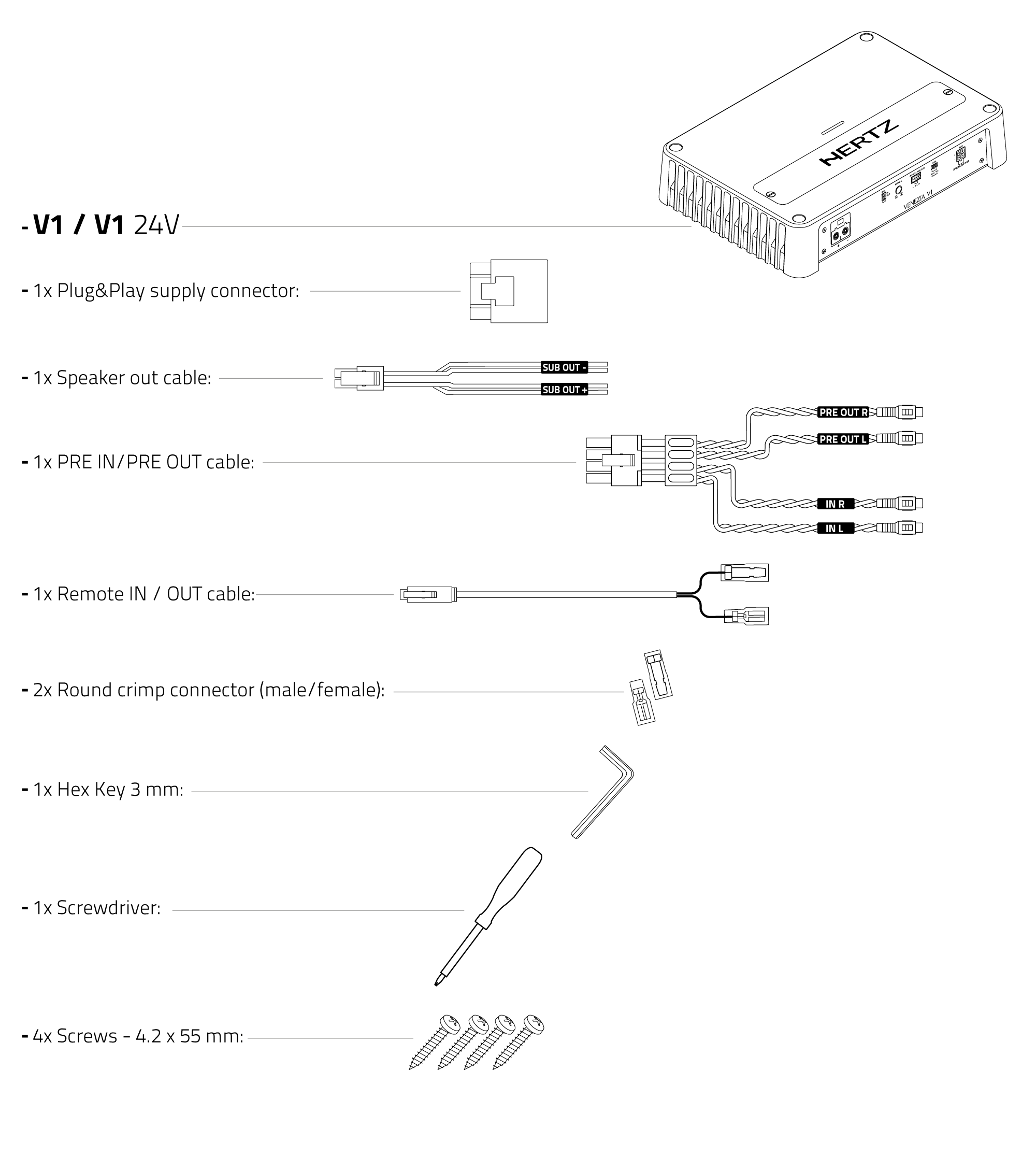

1.1 VENEZIA V1 / VENEZIA V1 24V

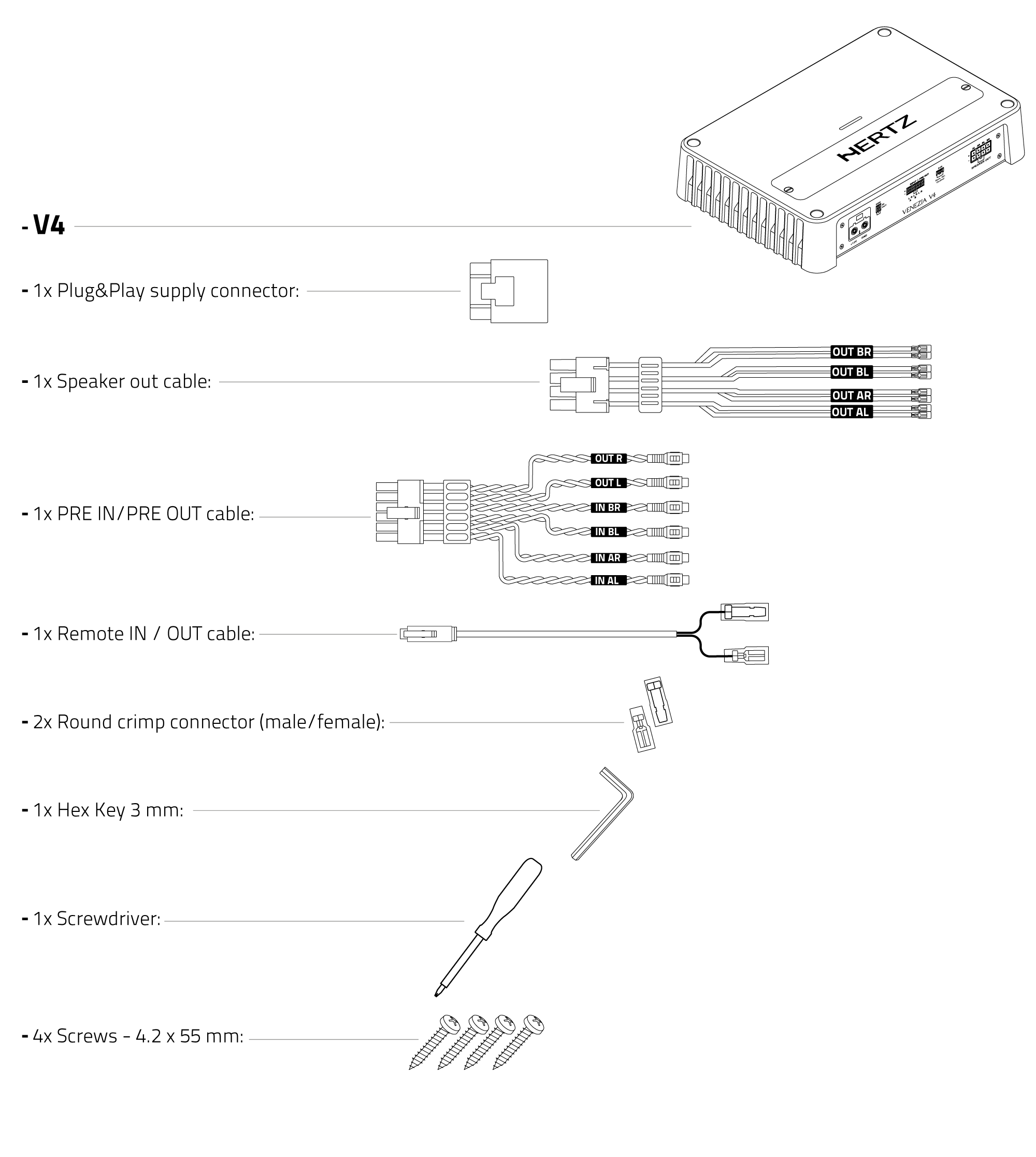

1.2 VENEZIA V4

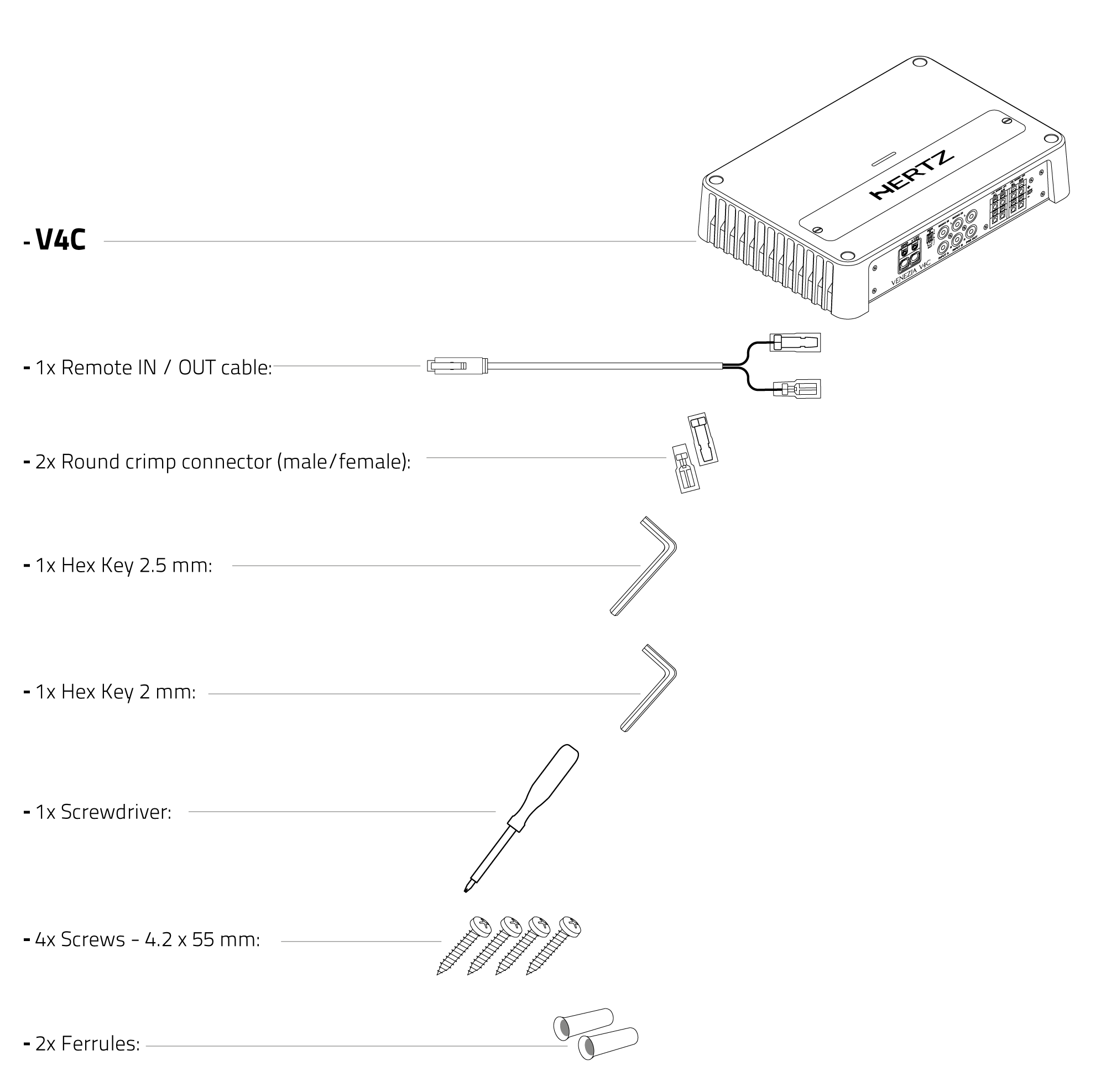

1.3 VENEZIA V4C

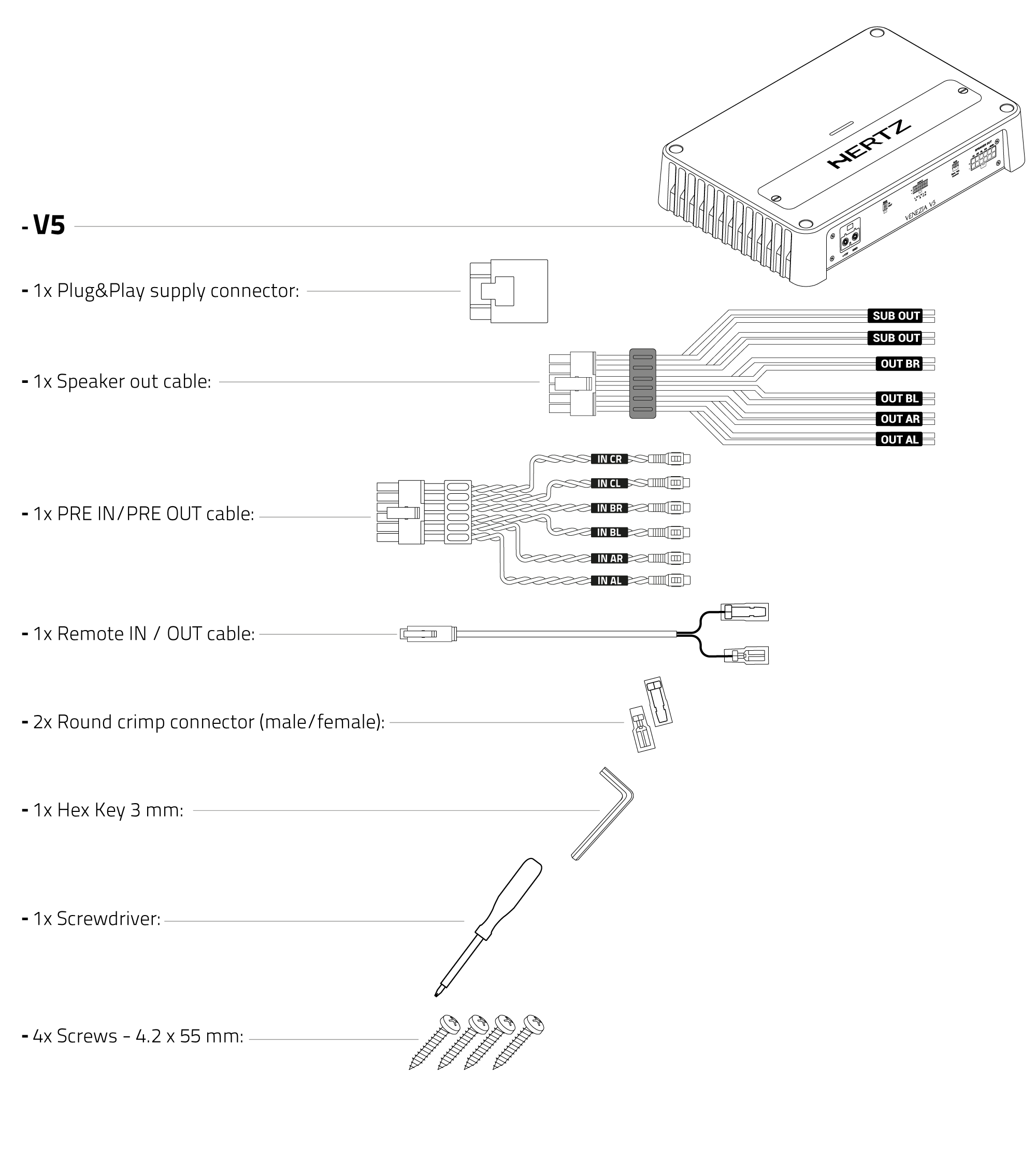

1.4 VENEZIA V5

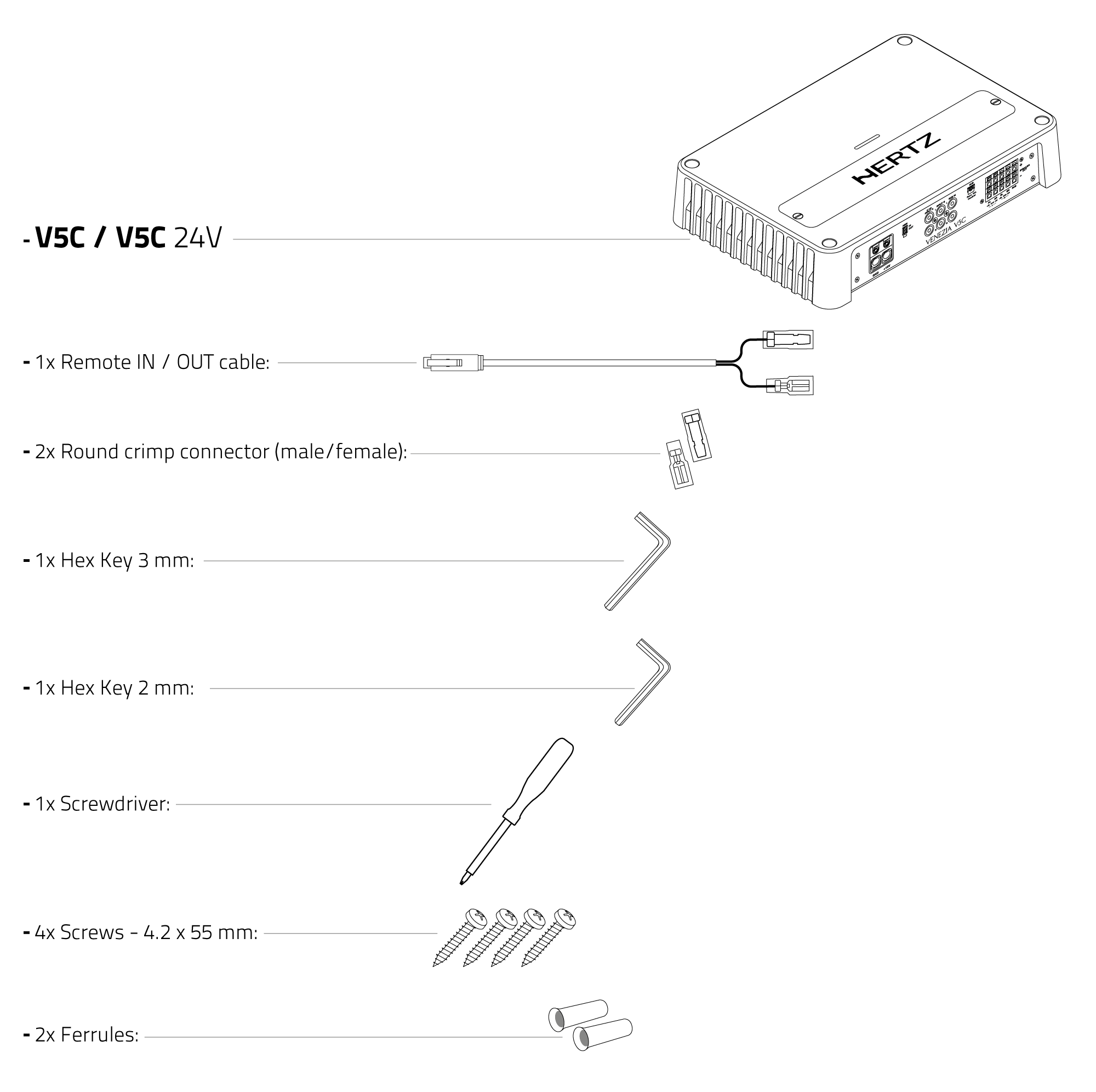

1.5 VENEZIA V5C / VENEZIA V5C 24V

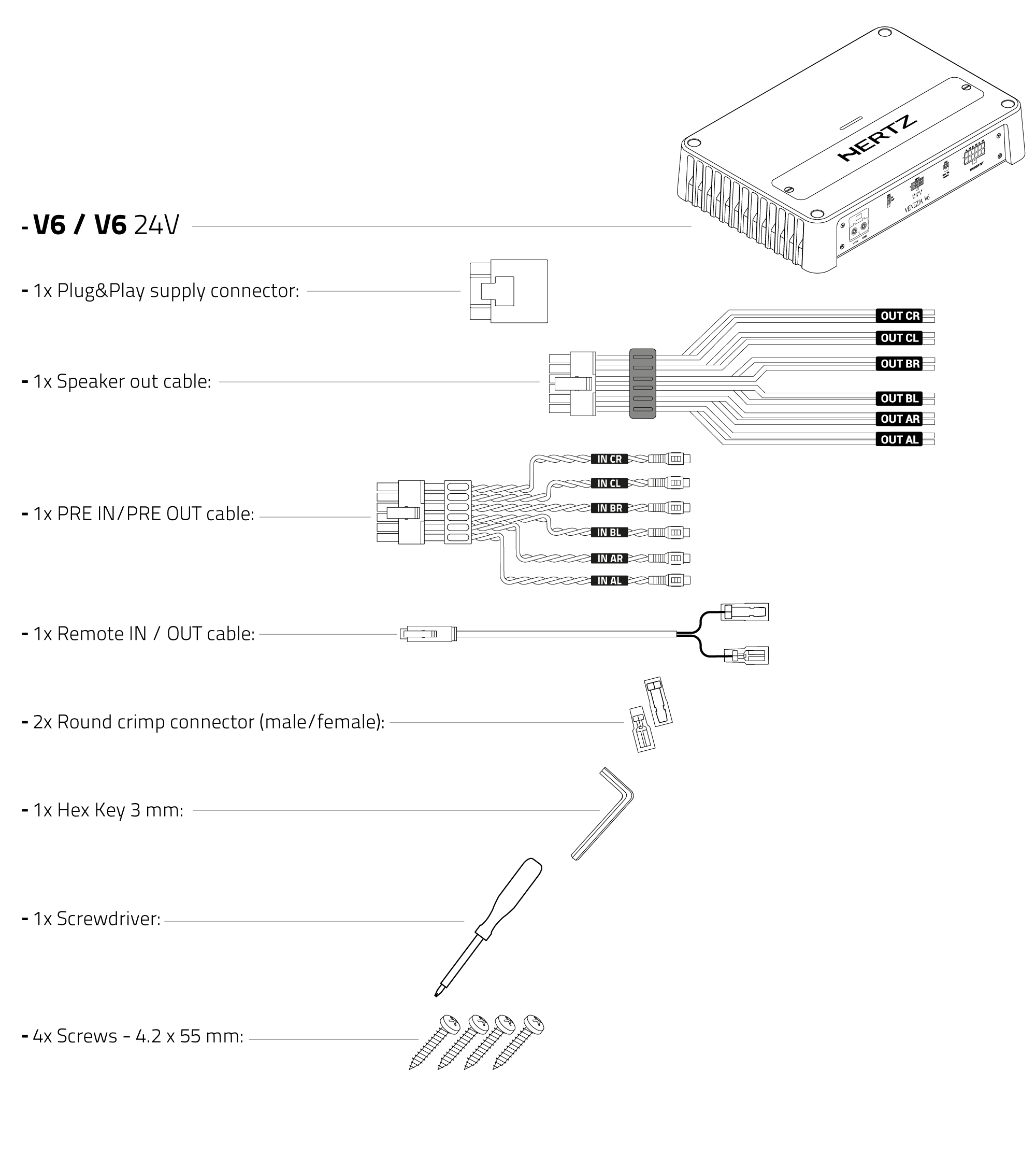

1.6 VENEZIA V6 / VENEZIA V6 24V

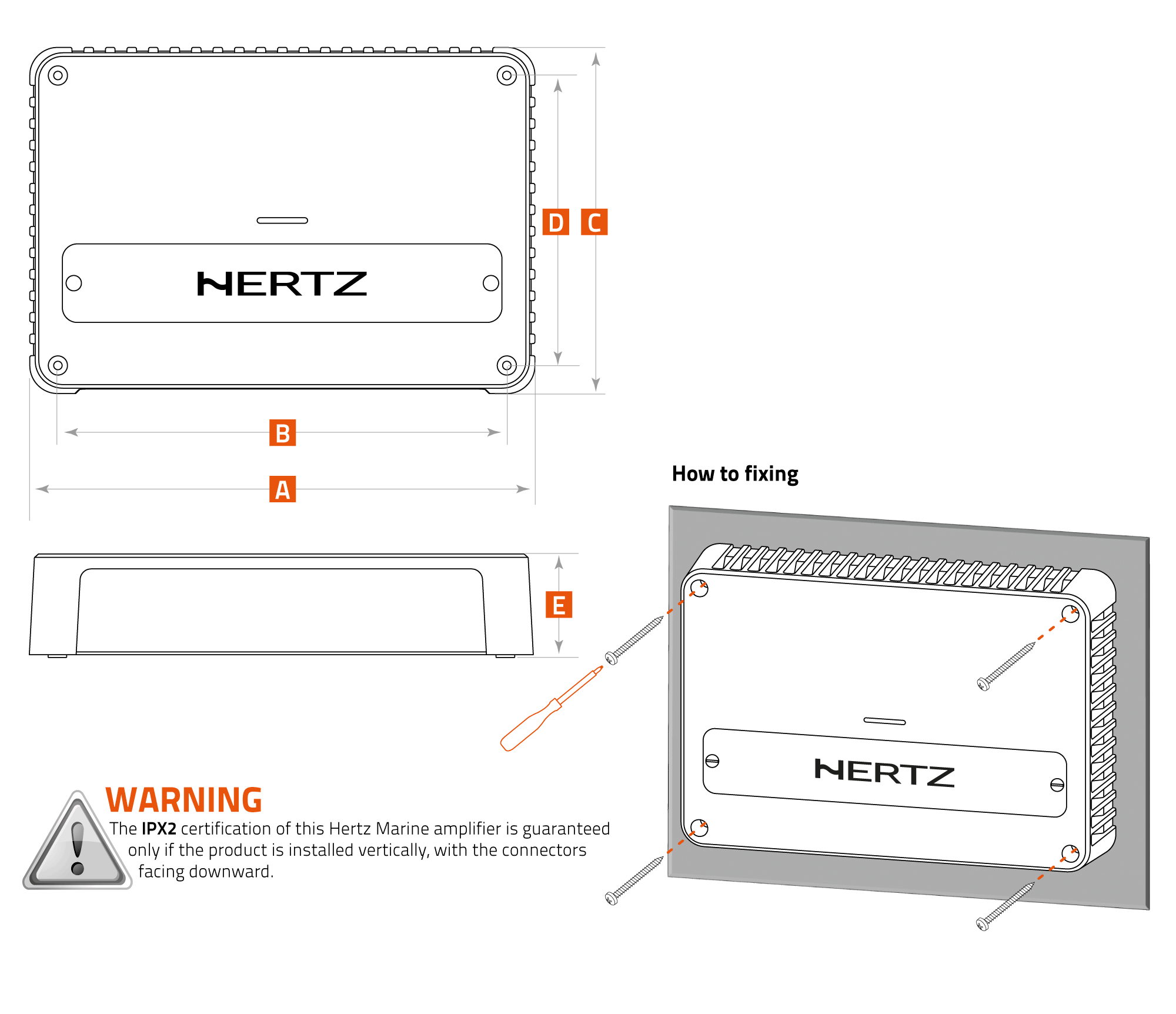

2. INSTALLATION AND SIZE

	A	B	C	D	E
V1  V1 24V	270	240	185	155	54	mm
	10.63	9.45	7.28	6.10	2.12	in.
V4	270	240	185	155	54	mm
	10.63	9.45	7.28	6.10	2.12	in.
V5	330	300	200	170	54	mm
	13	11.8	7.87	6.7	2.12	in.
V4C	205	175	155	125	48.5	mm
	8.07	6.89	6.10	4.92	1.91	in.
V5C  V5C 24V	270	240	185	155	54	mm
	10.63	6.89	6.10	4.92	2.12	in.
V6  V6 24V	330	300	200	170	54	mm
	13	11.8	7.87	6.7	2.12	in.

CONNECTIONS

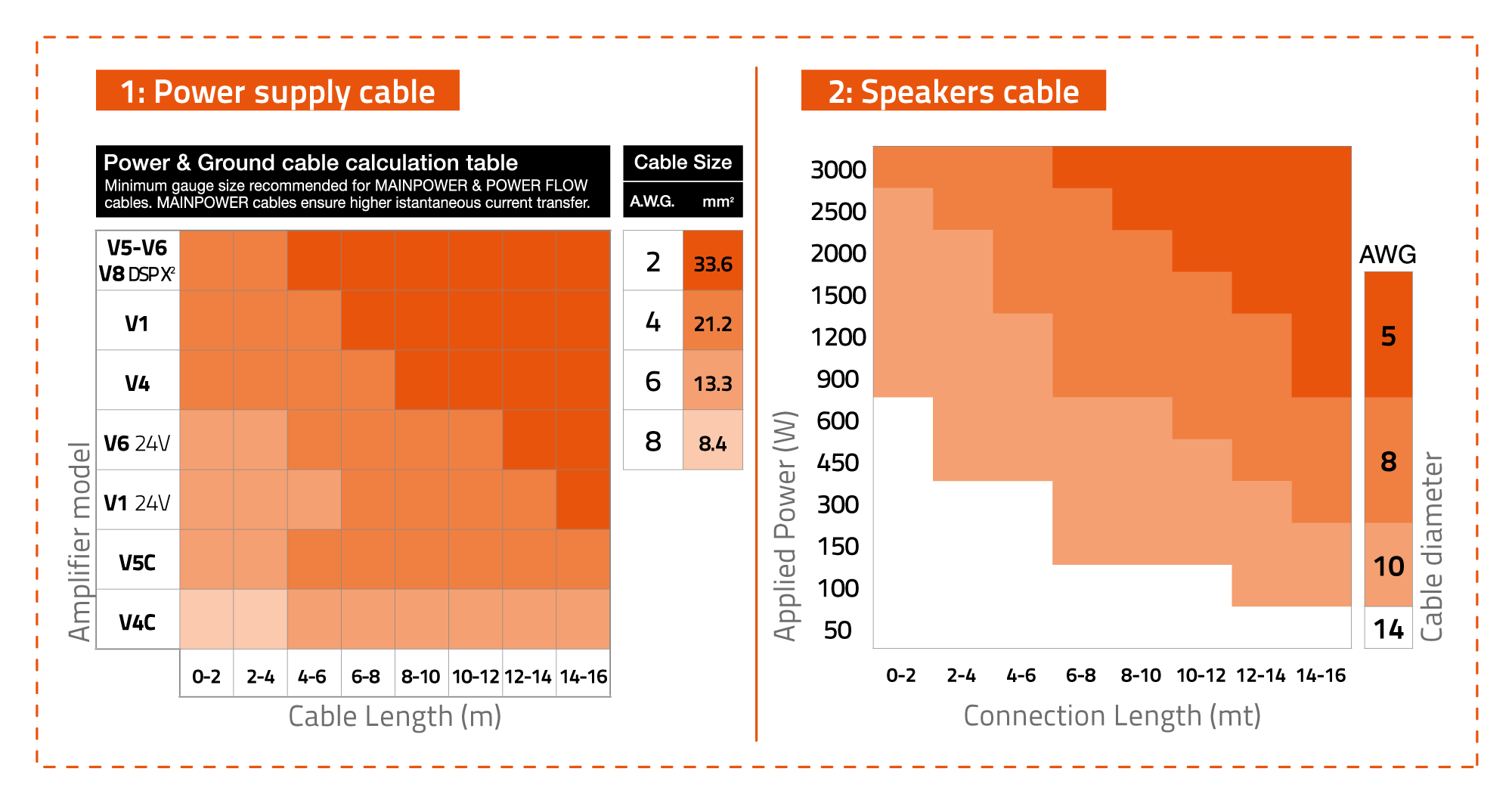

3. POWER SUPPLY AND PROTECTION

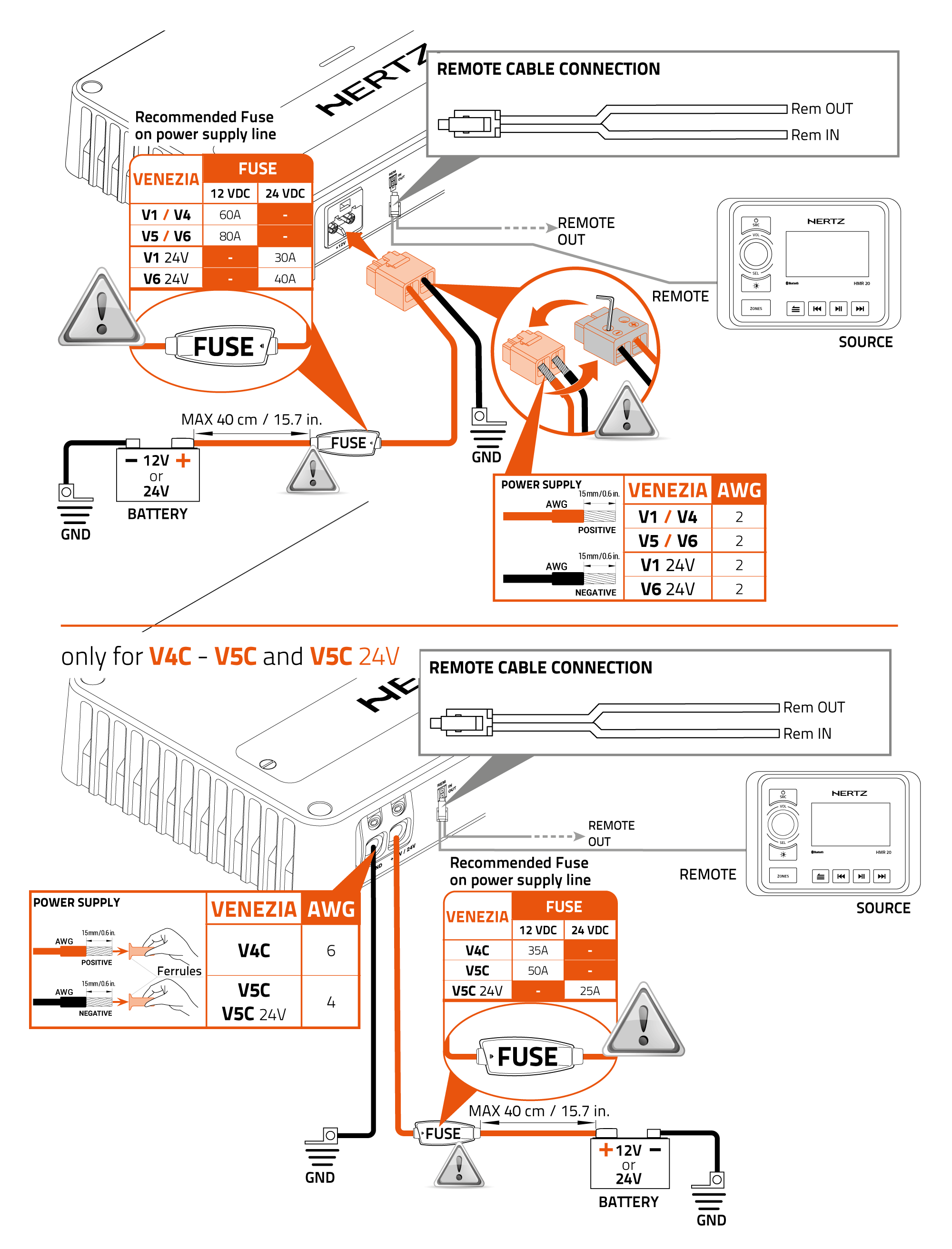

3.1 POWER SUPPLY AND REMOTE IN CONNECTION

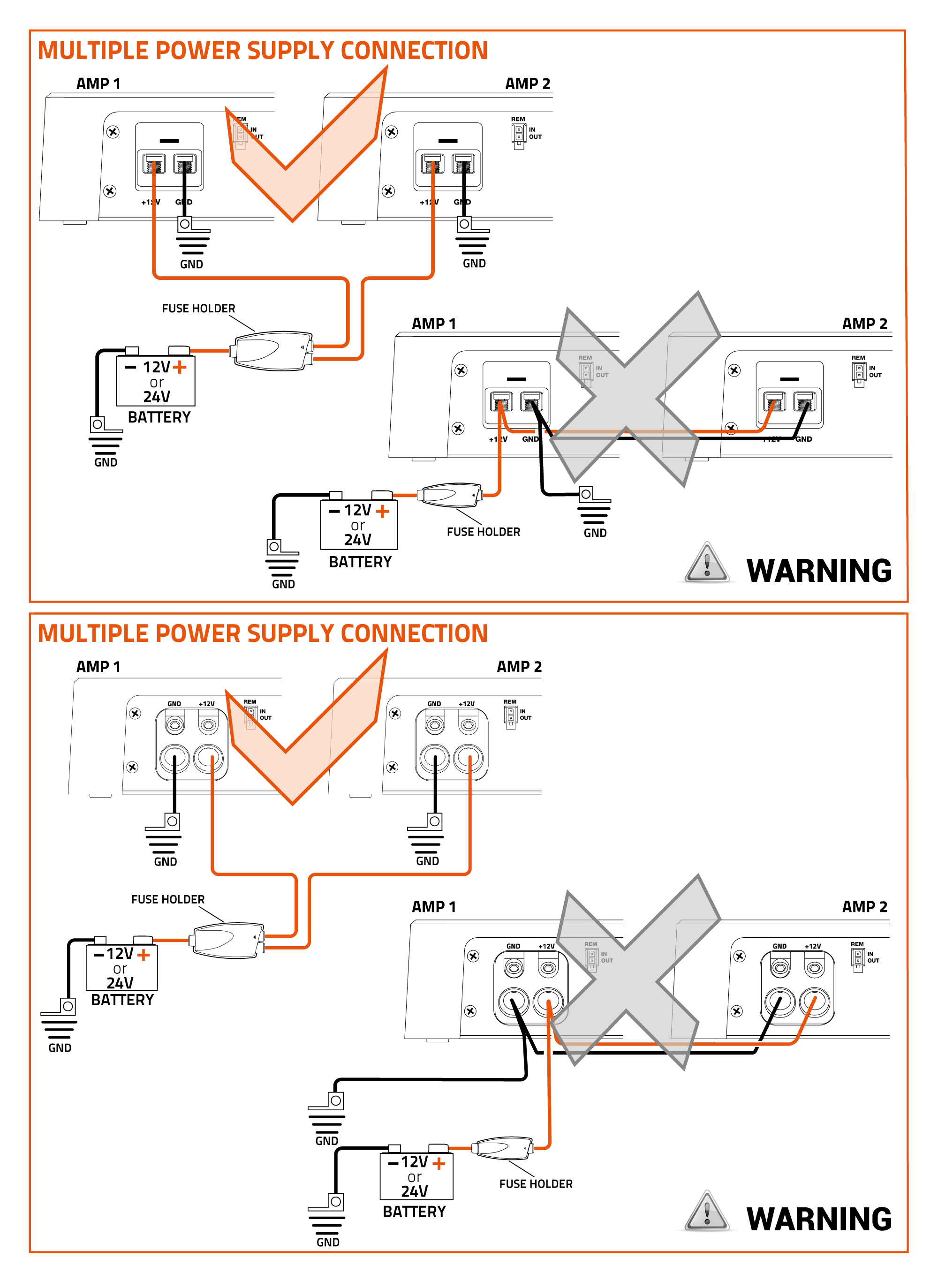

3.2 MULTIPLE POWER SUPPLY CONNECTION

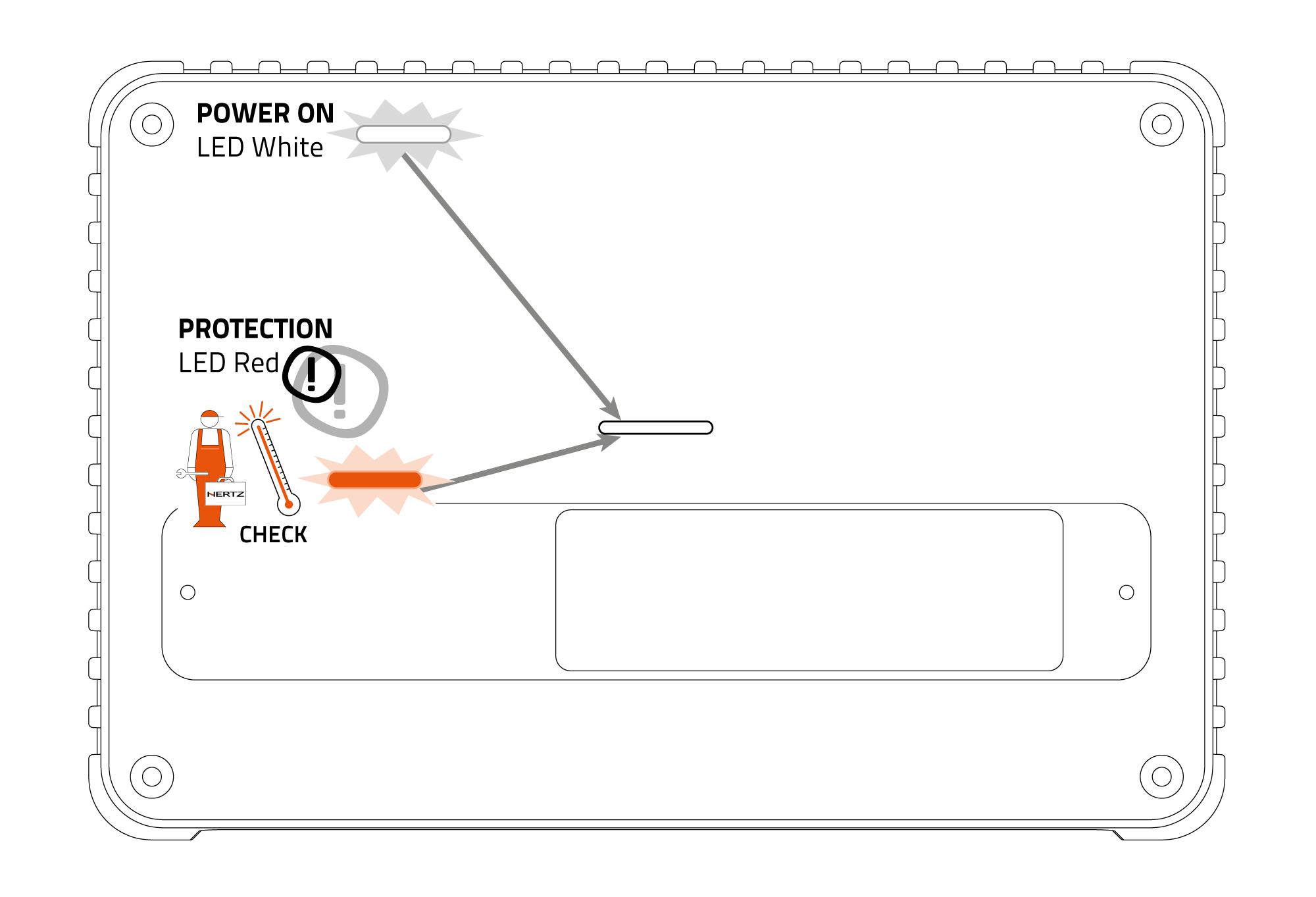

3.3 PROTECTION

4. INPUT / OUTPUT CONNECTION AND SUBWOOFER REMOTE VOLUME CONTROL

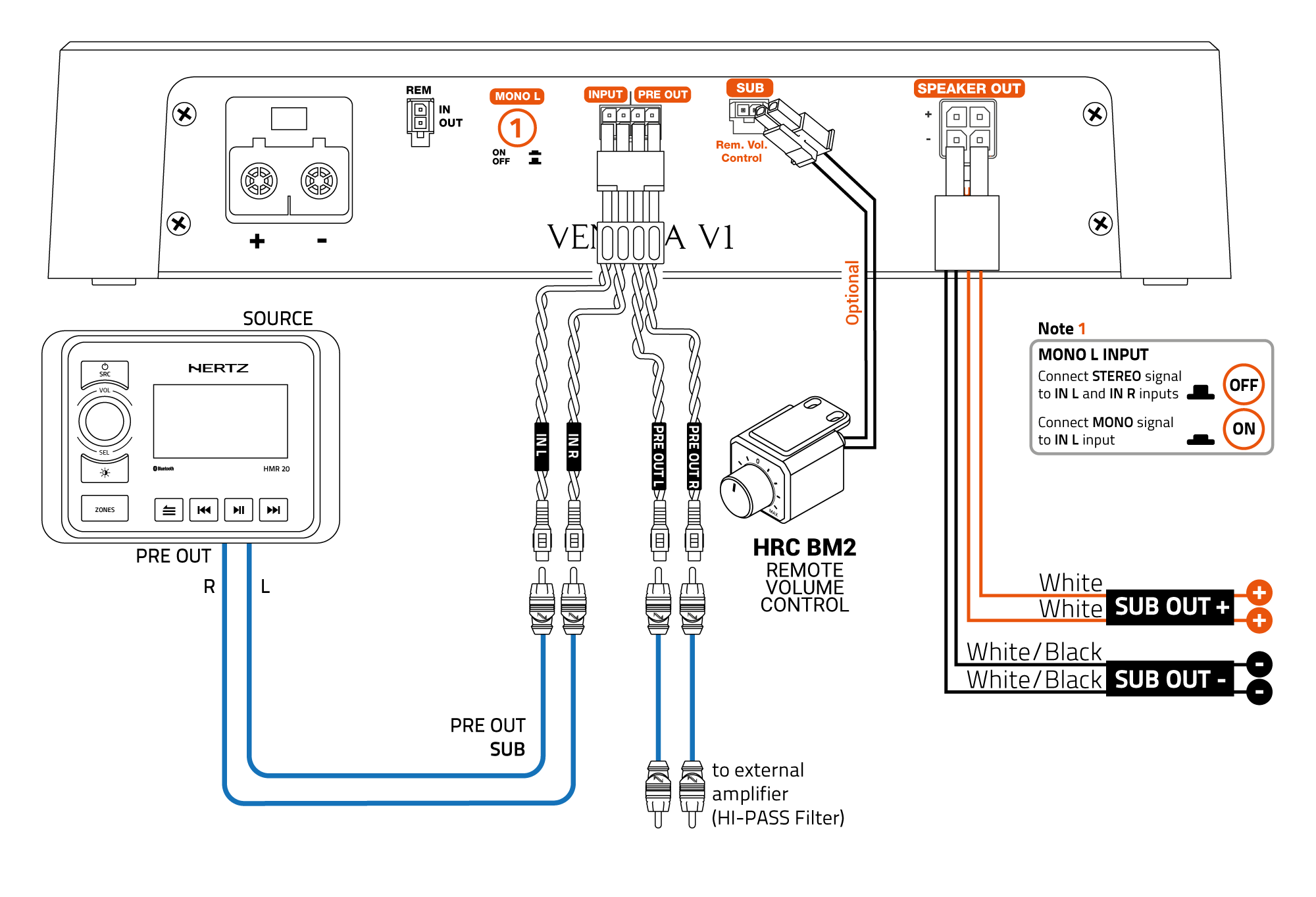

4.1 VENEZIA V1 / VENEZIA V1 24V

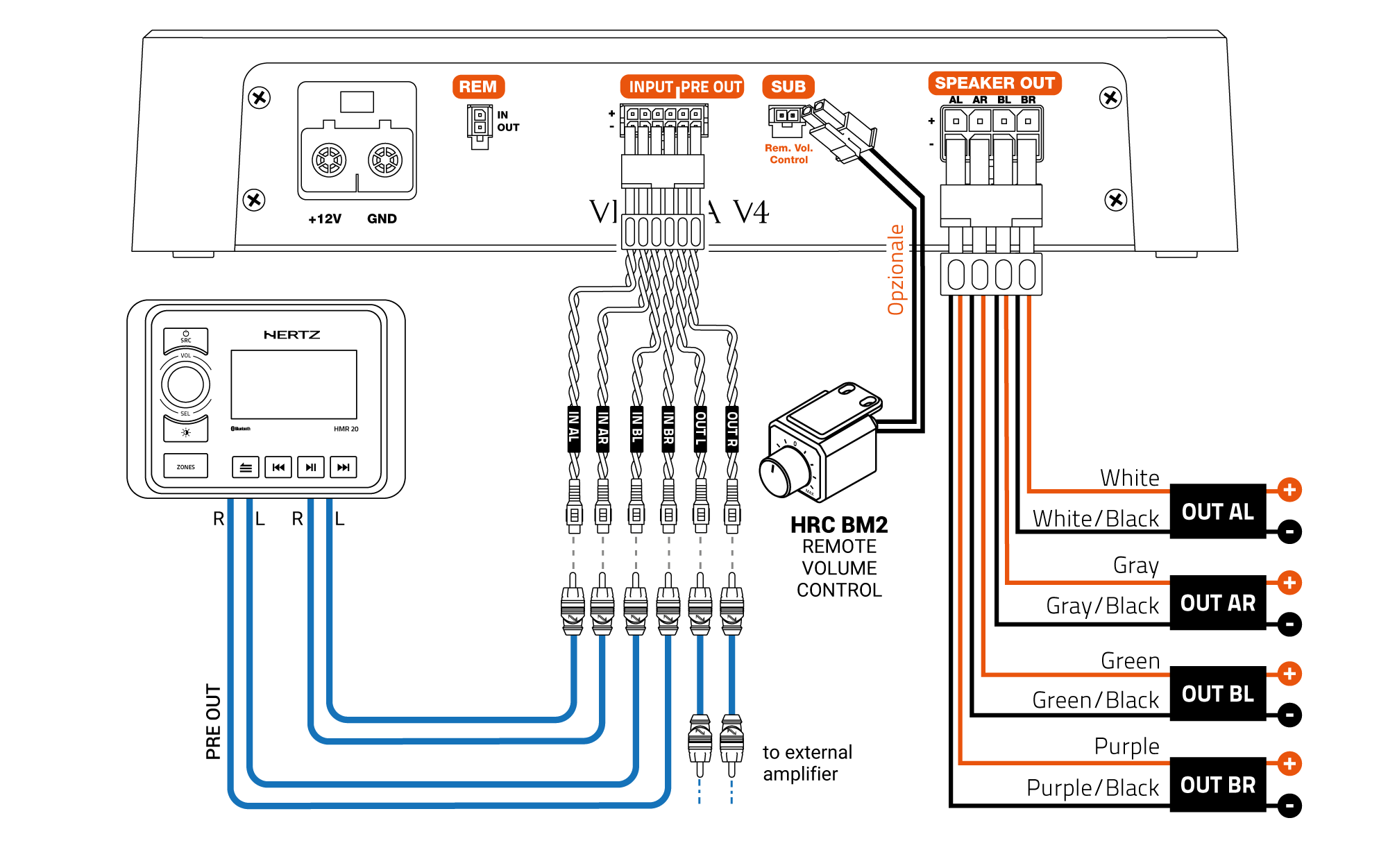

4.2 VENEZIA V4

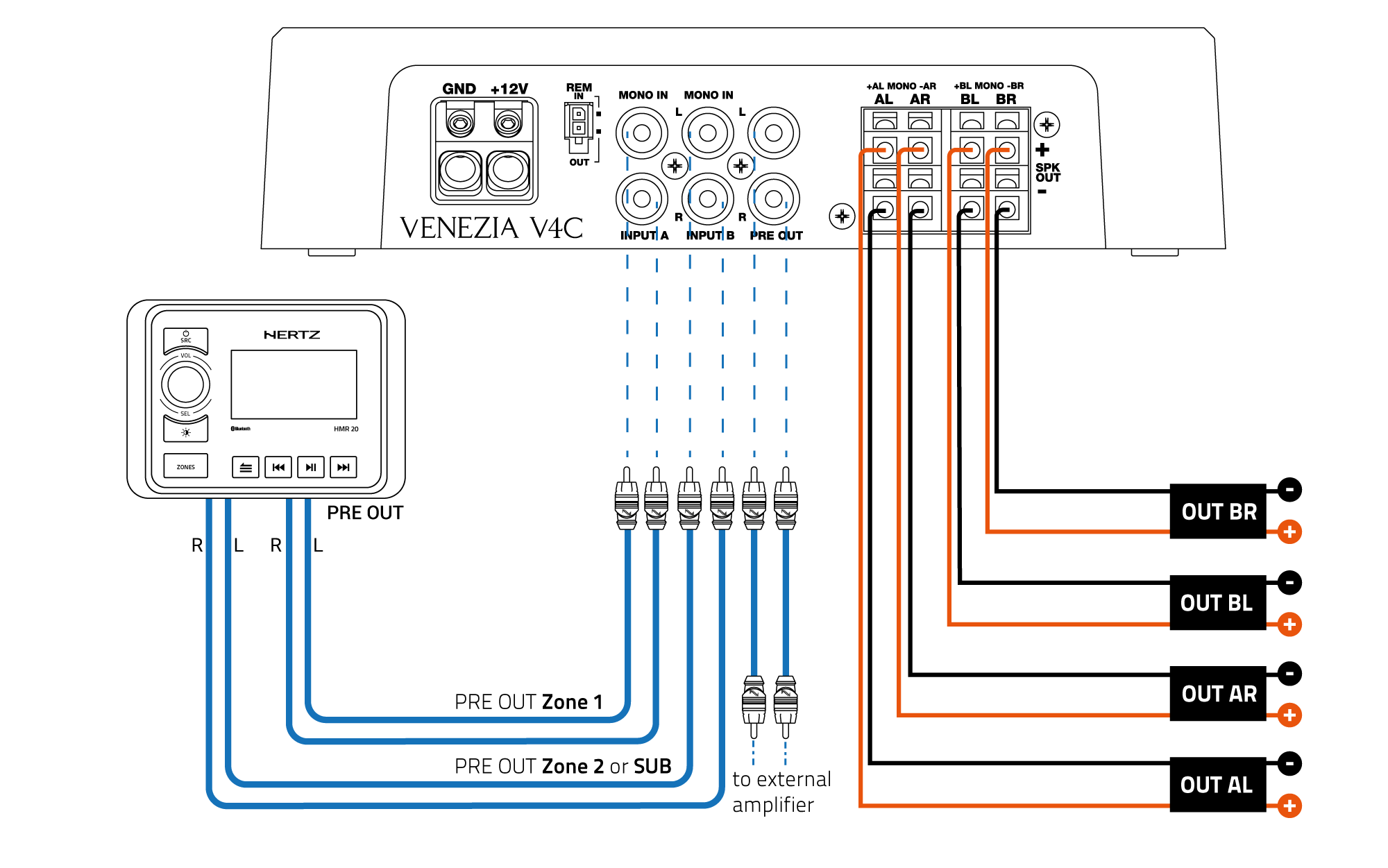

4.3 VENEZIA V4C

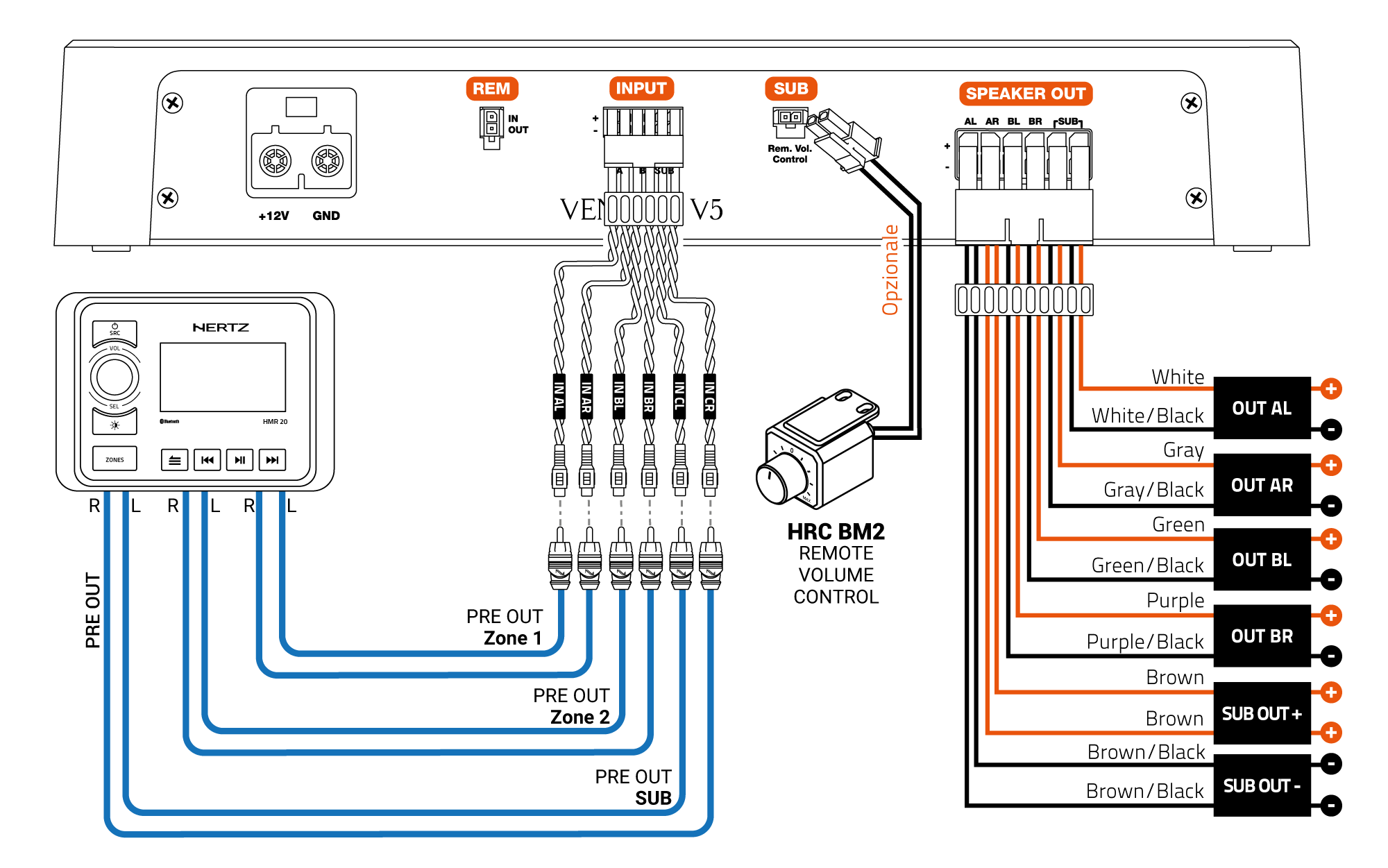

4.4 VENEZIA V5

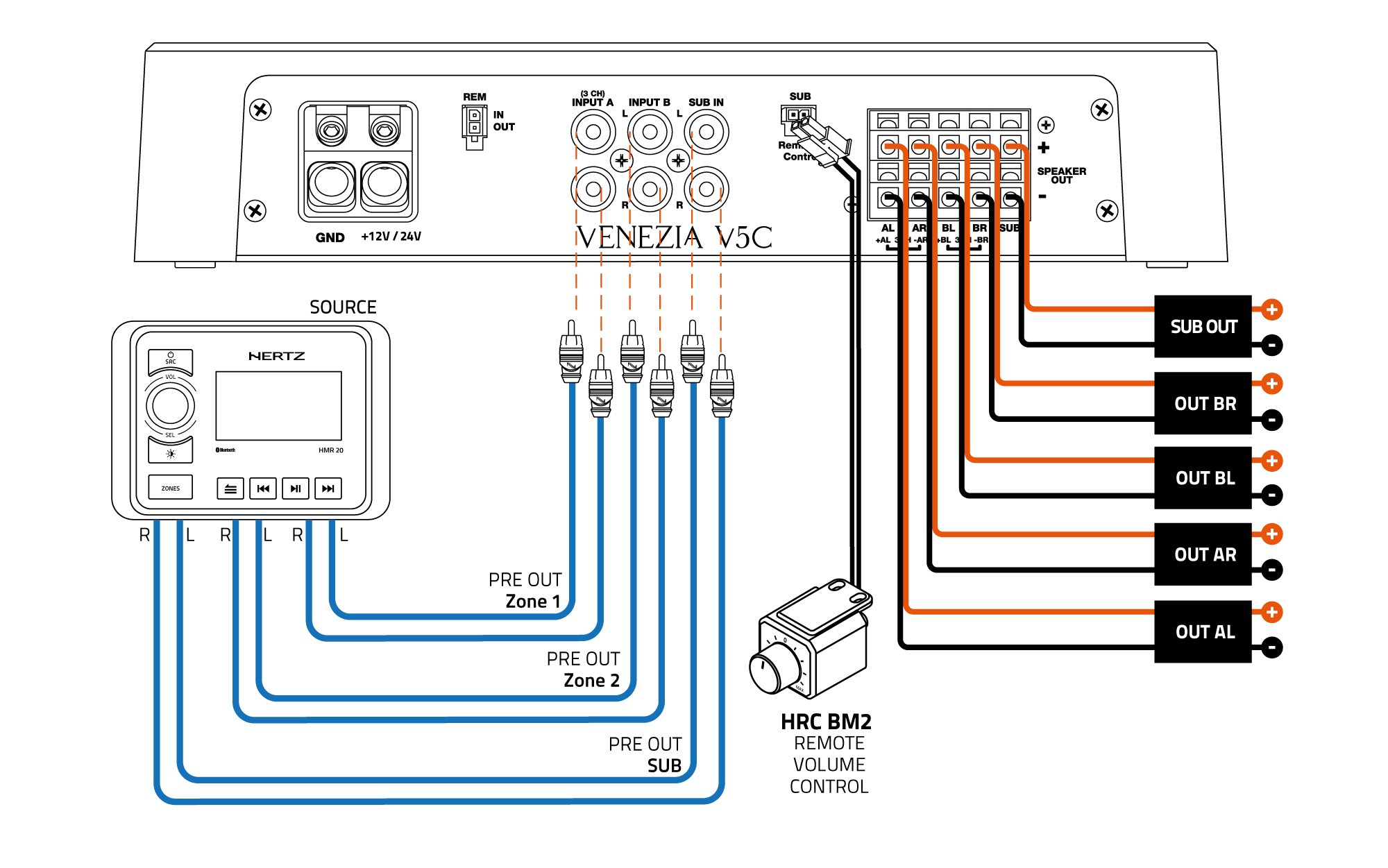

4.5 VENEZIA V5C / VENEZIA V5C 24V

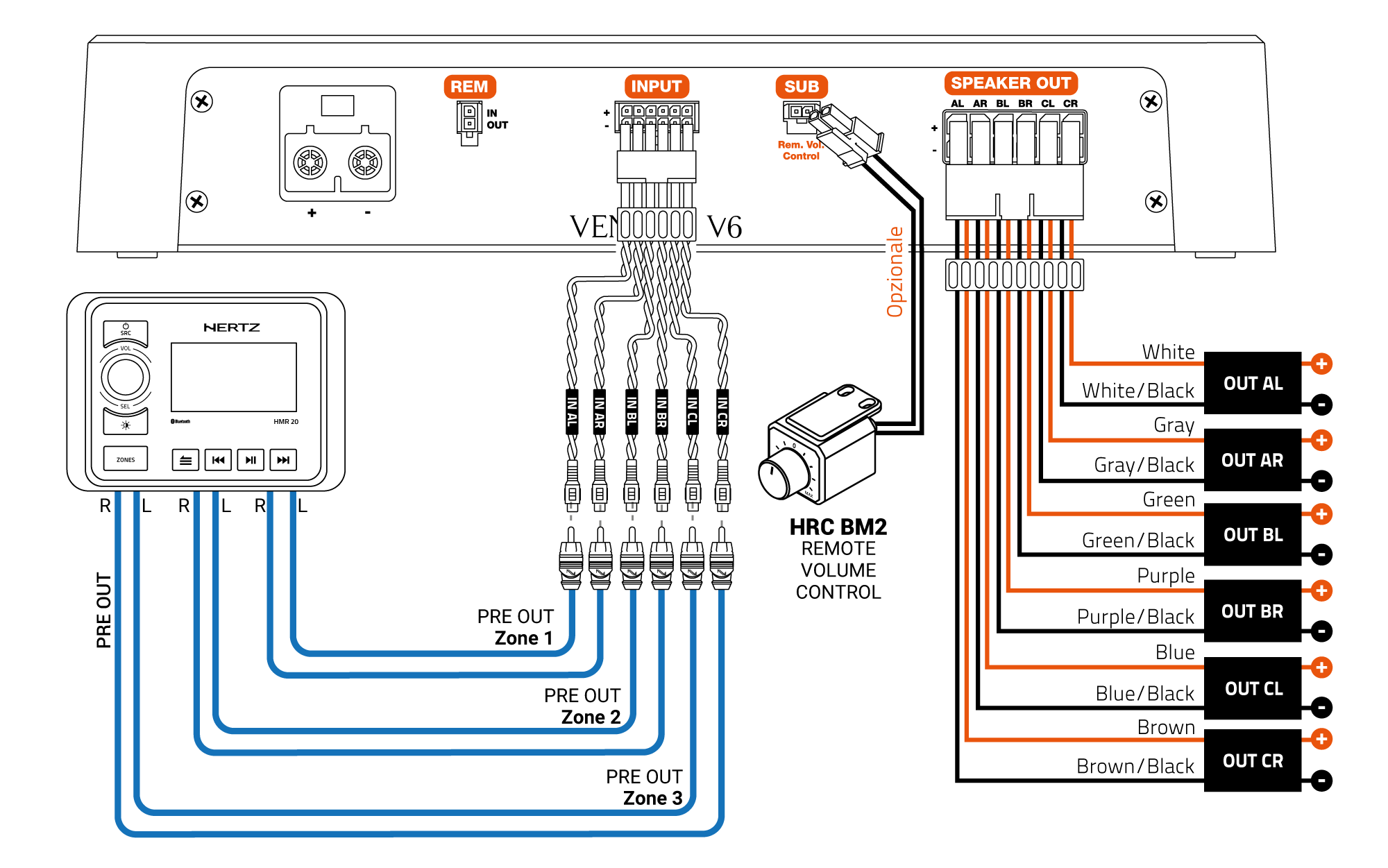

4.6 VENEZIA V6 / VENEZIA V624V

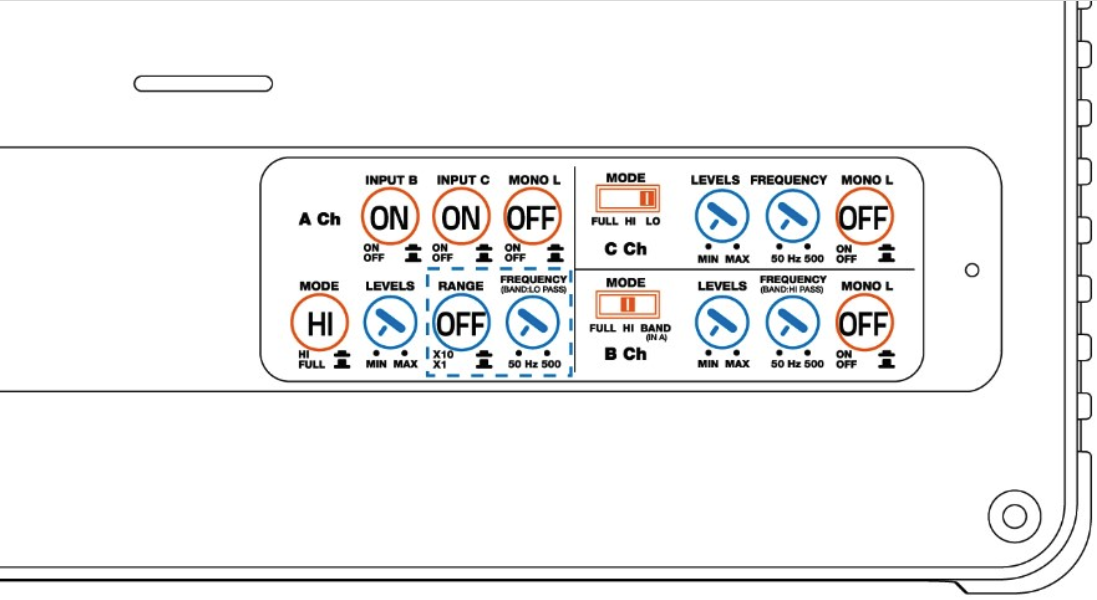

IMPORTANT: the HRC BM2 remote volume control adjusts the level on output channels SPEAKER OUT CL/CR. The level regulation is active only if in the control panel the FILTER MODE of C Ch is set to LO (see picture below).

5. CONTROLS

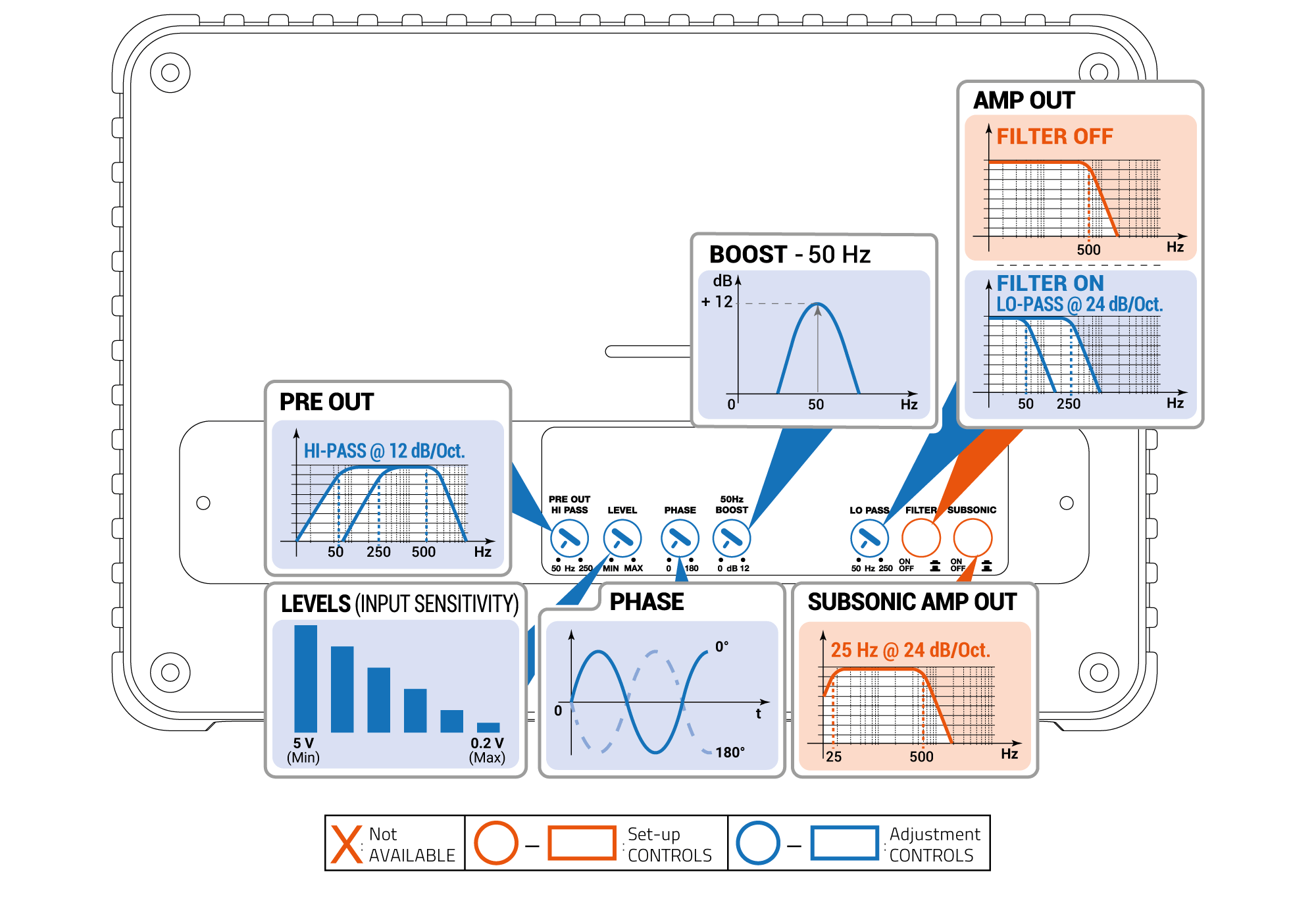

5.1 VENEZIA V1 / VENEZIA V1 24V

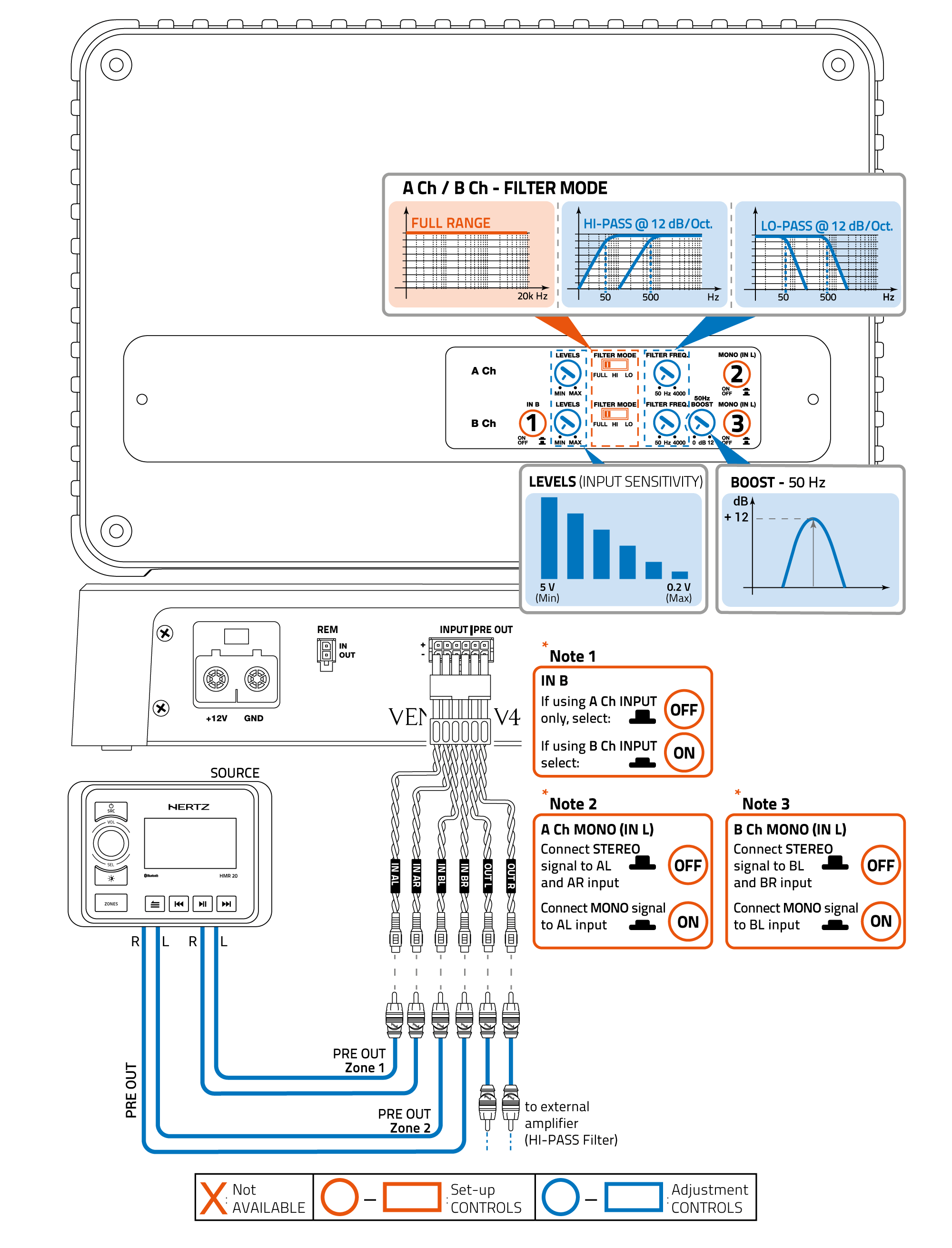

5.2 VENEZIA V4

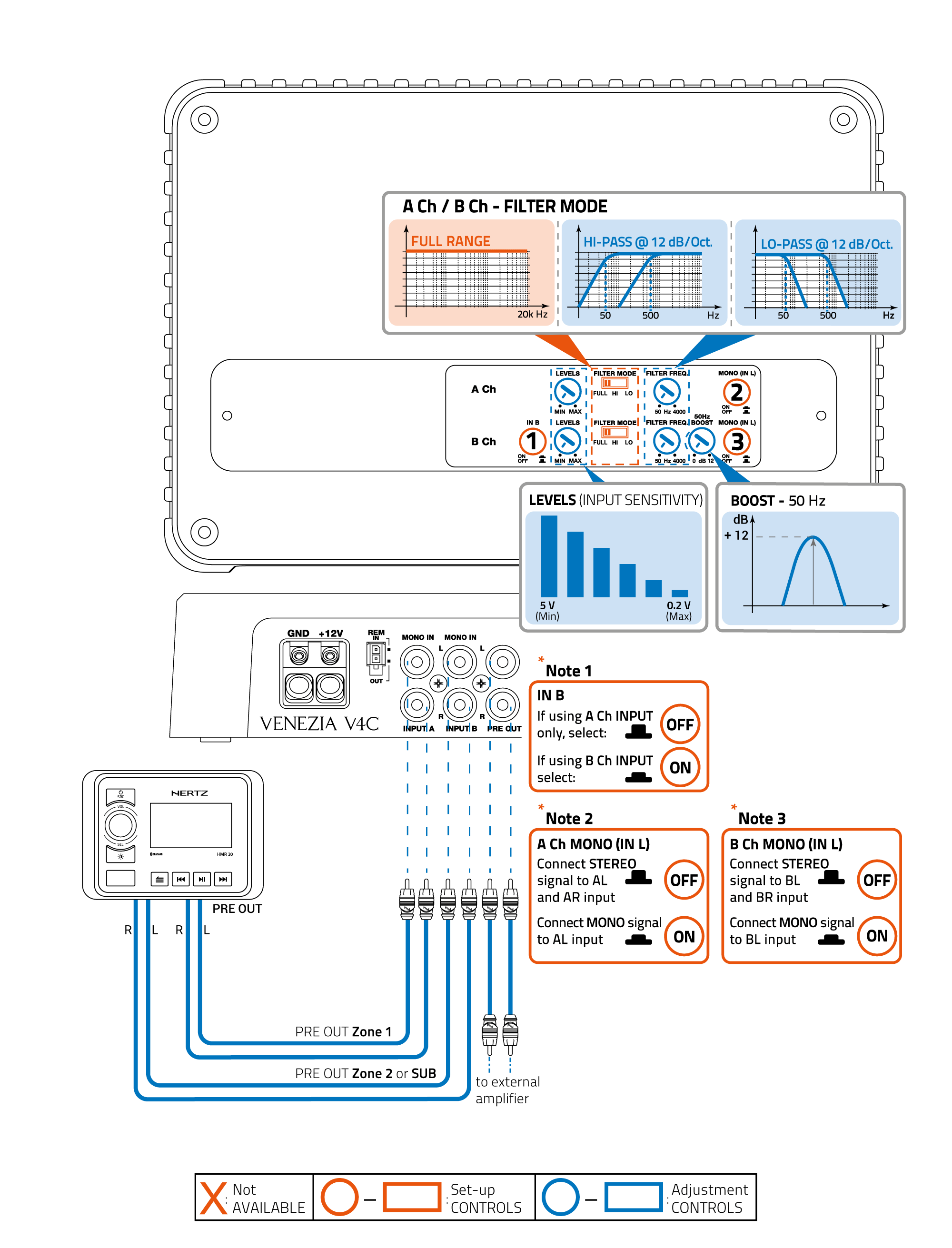

5.3 VENEZIA V4C

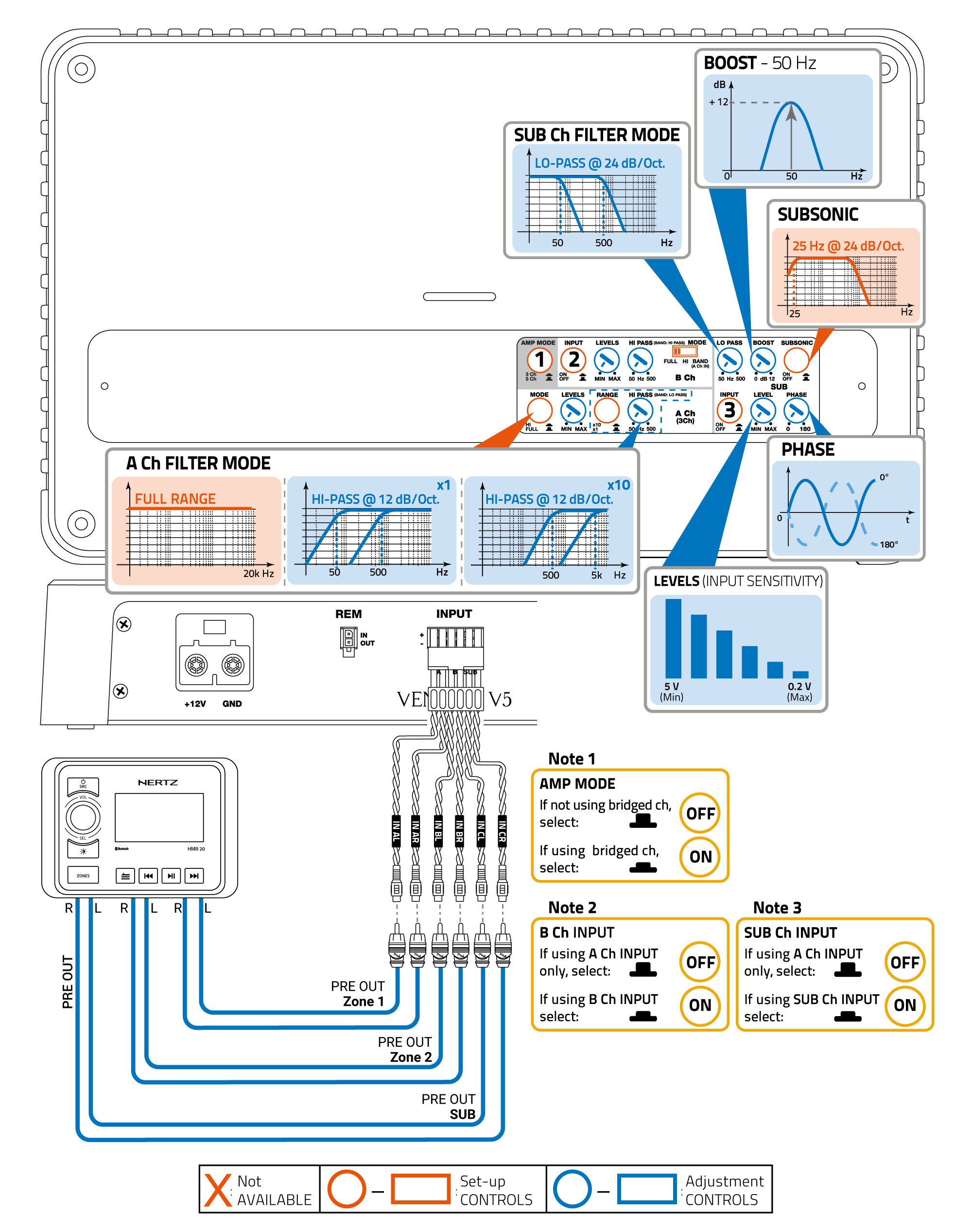

5.4 VENEZIA V5

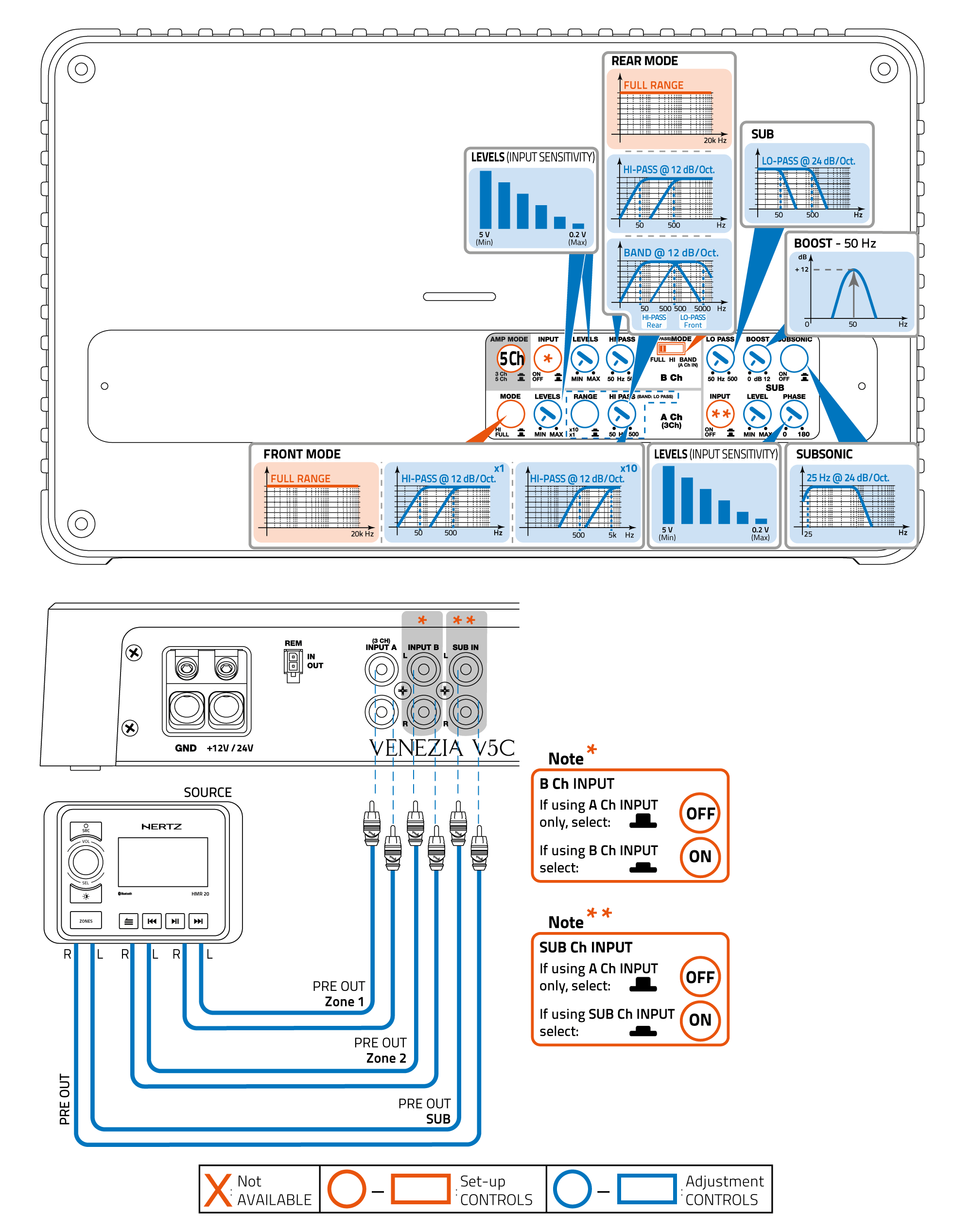

5.5 VENEZIA  V5C / VENEZIA  V5C 24V

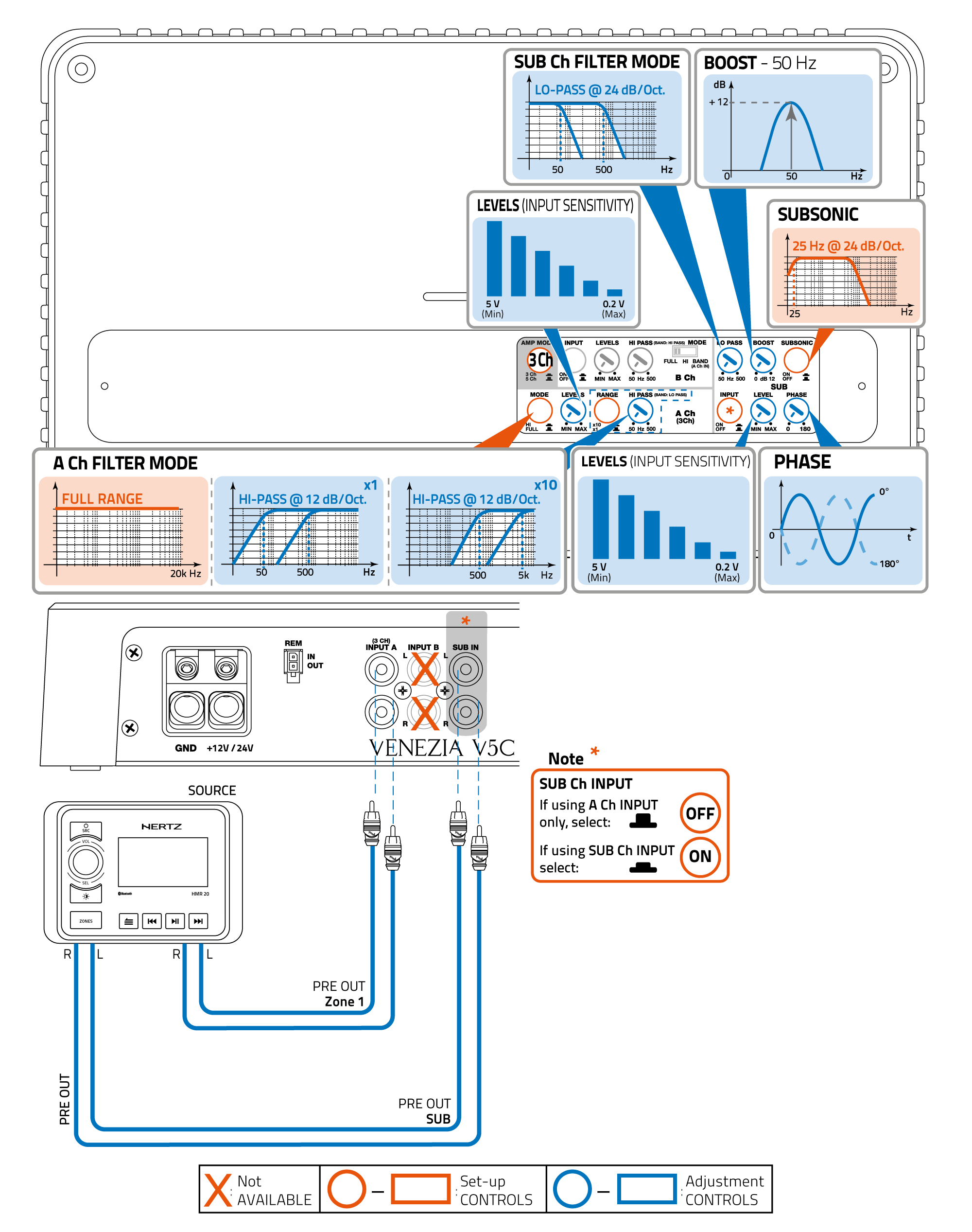

◼︎Modalita 3 ch

◼︎Modalita 5 ch

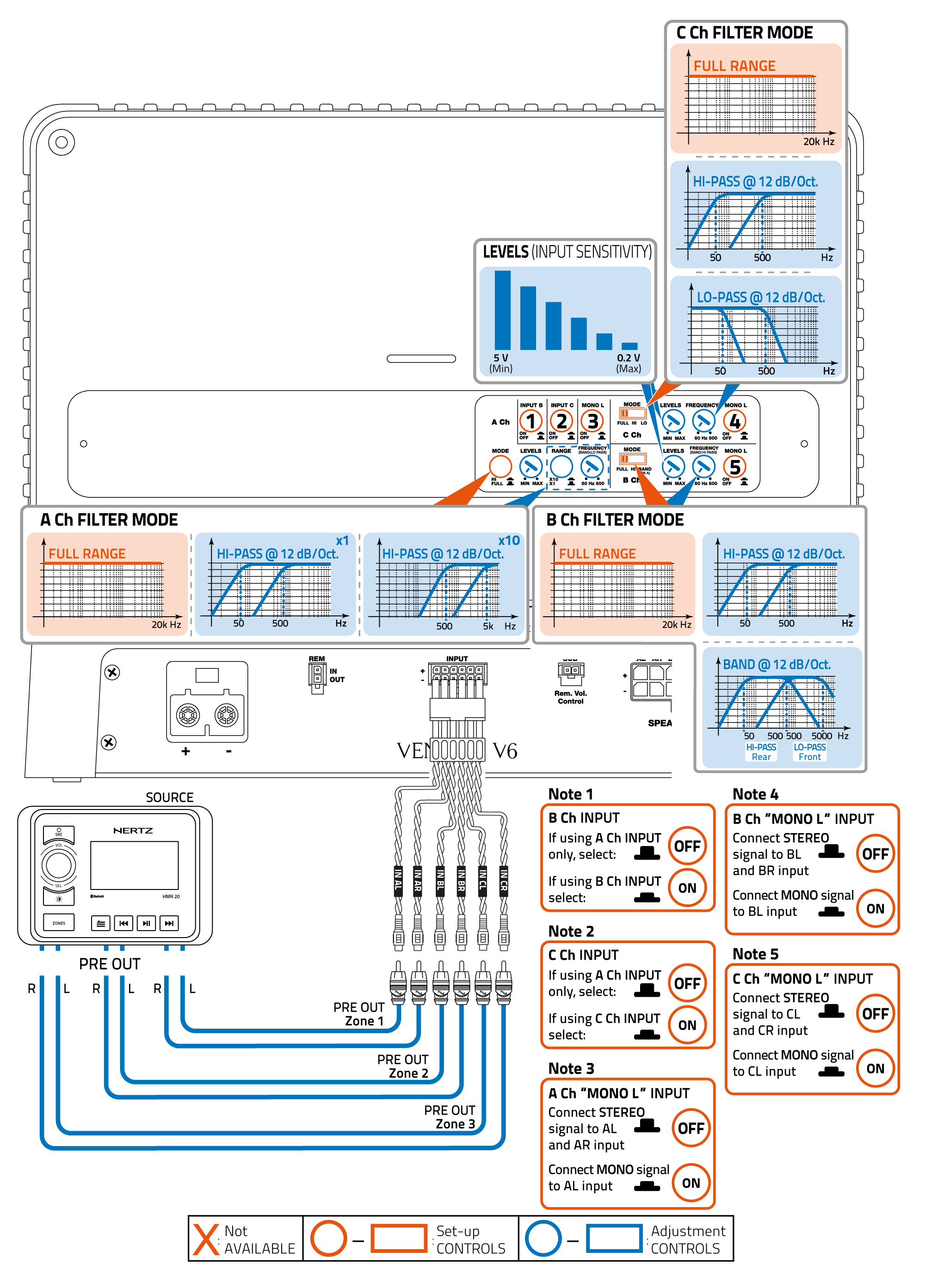

5.6 VENEZIA V6 / VENEZIA V6 24V

6. INSTALLATION EXAMPLES

6.1 VENEZIA V1 / VENEZIA V1 24V

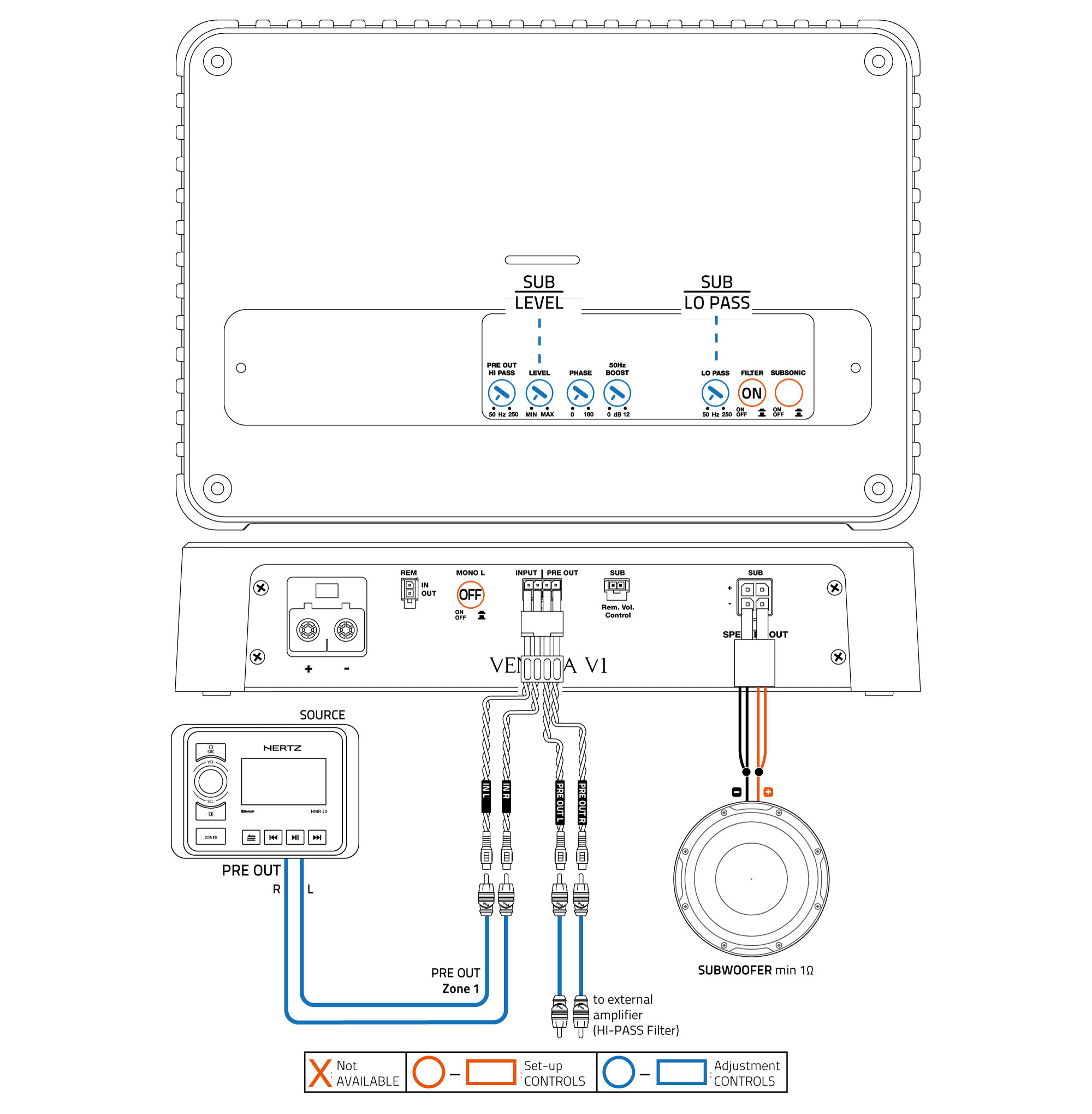

1. 1Ch OUT (2Ch IN): FILTERED SUBWOOFER

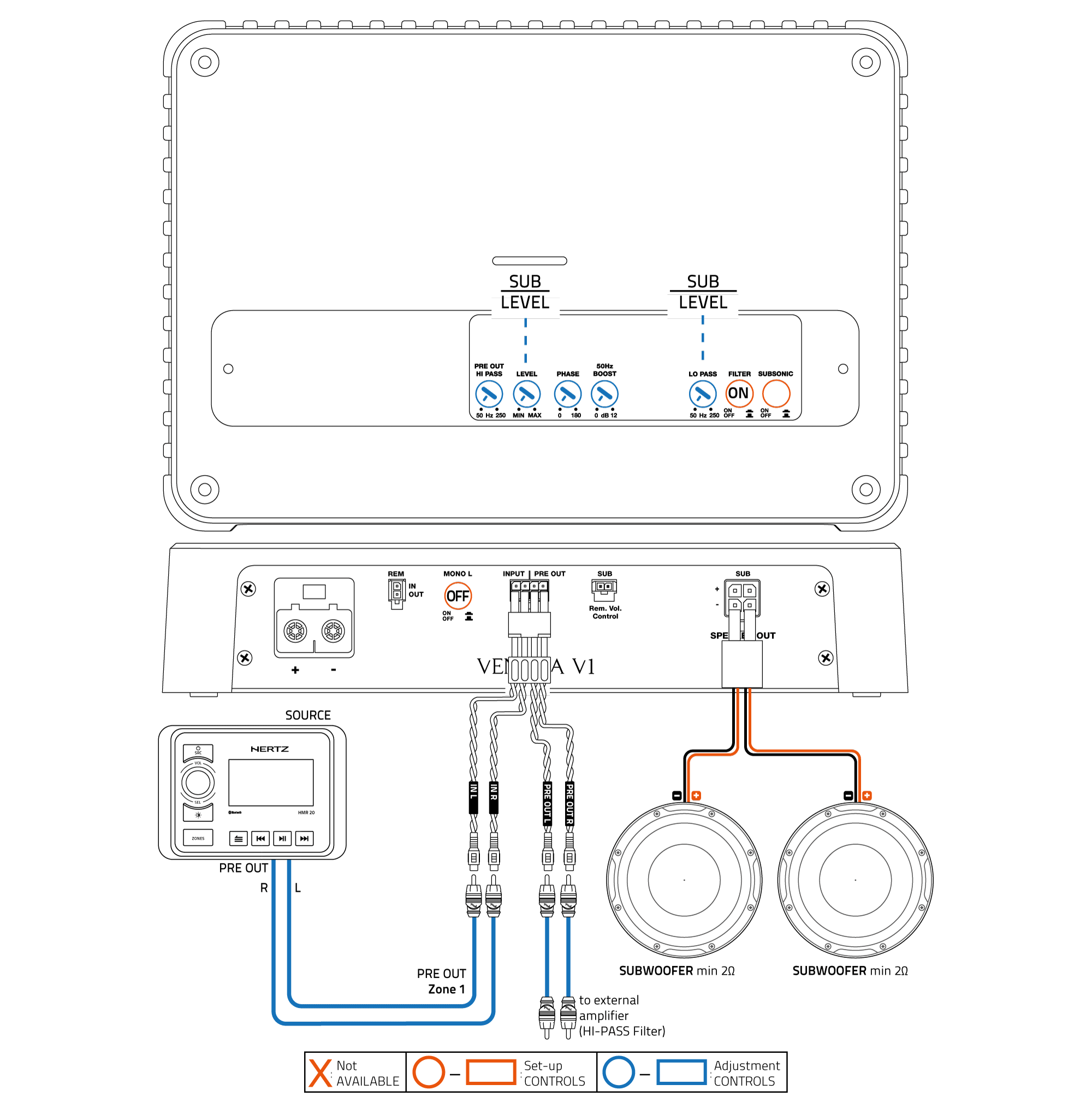

2. 1Ch OUT (2Ch IN): FILTERED 2 X 2Ω SUBWOOFER

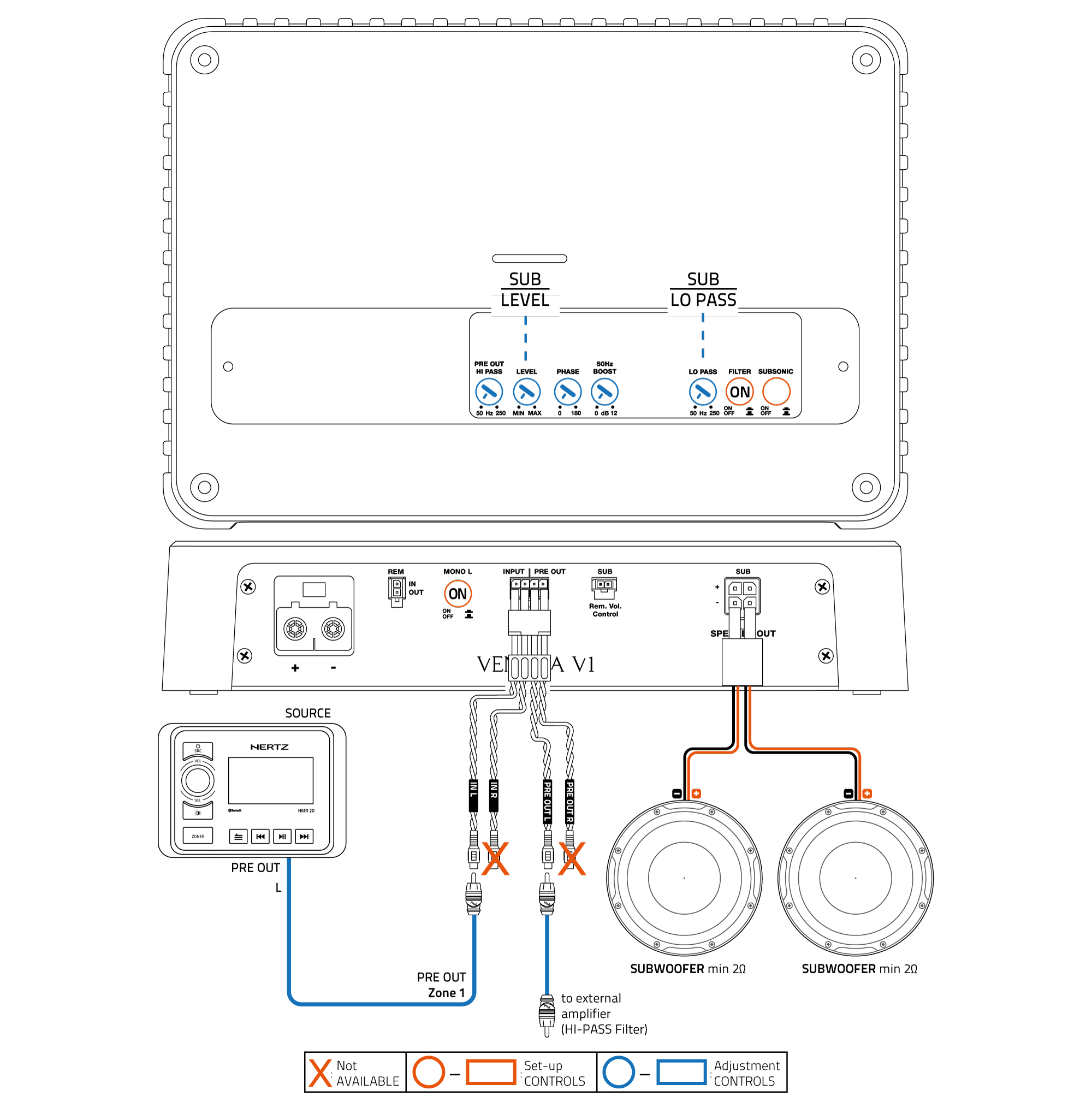

3. 1Ch OUT (1Ch IN): FILTERED 2 X 2Ω SUBWOOFER (MONO L IN)

6.2 VENEZIA V4

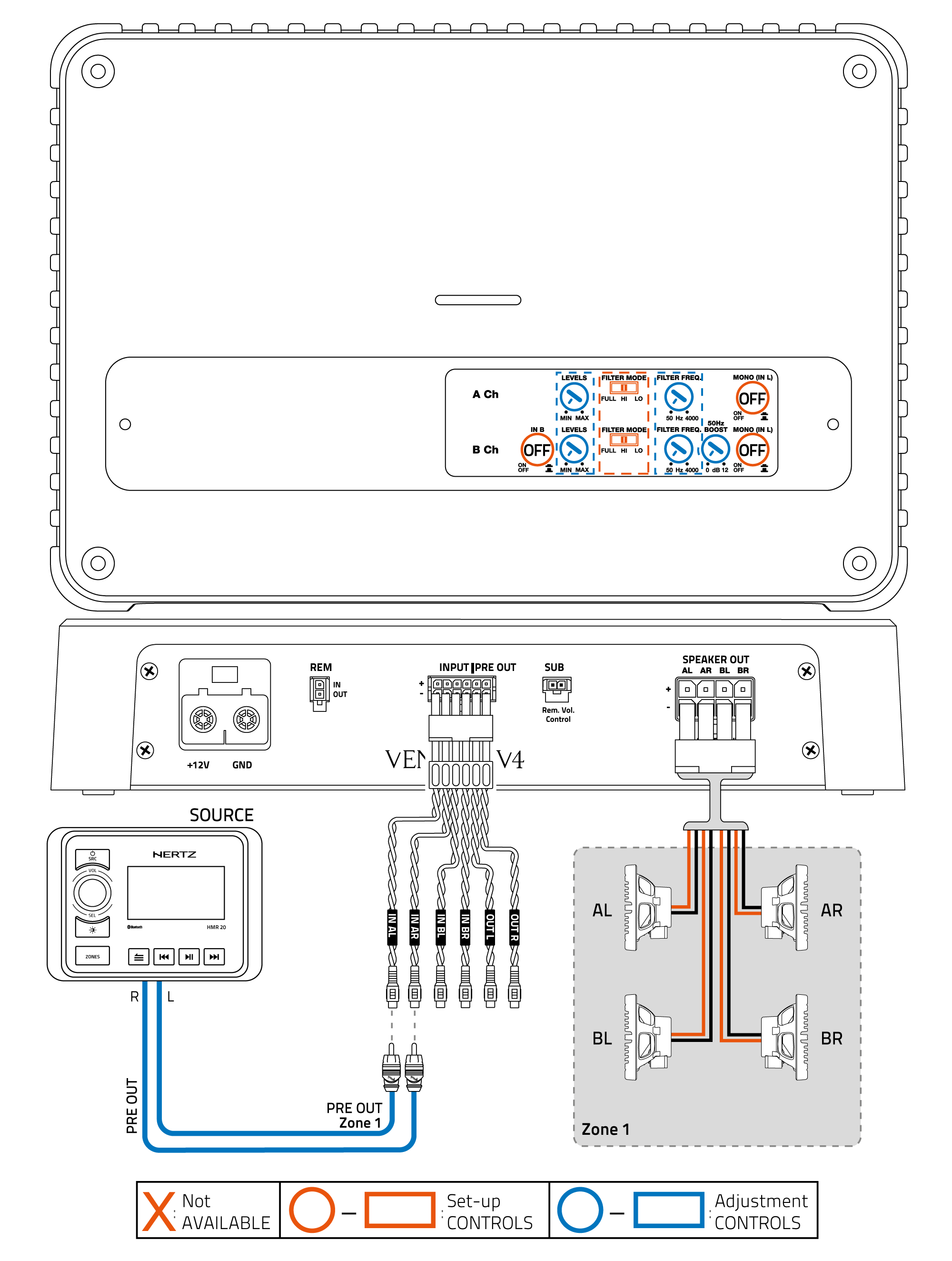

1. 4Ch OUT (2Ch IN): 4 COAXIALS

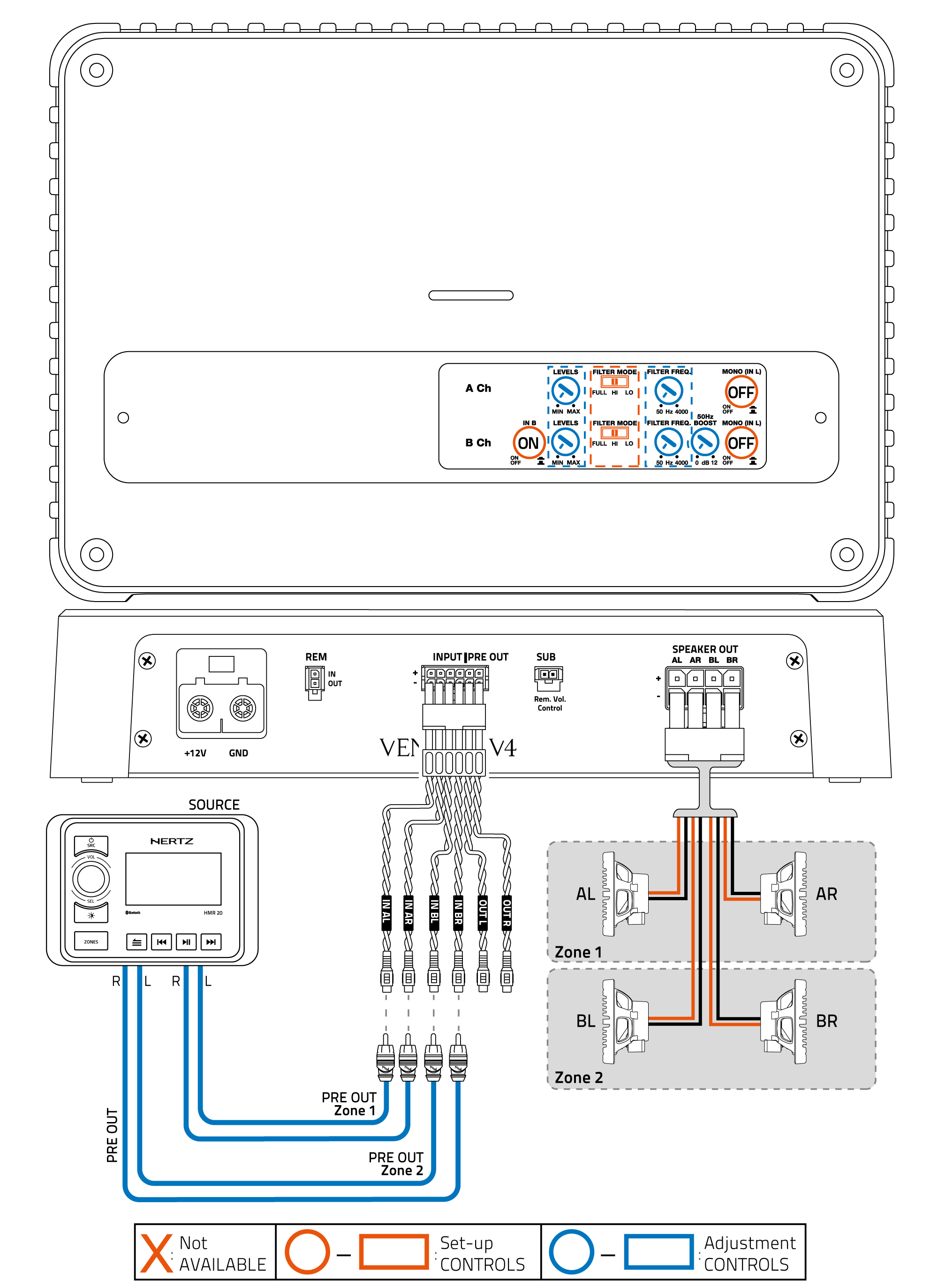

2. 4Ch OUT (4Ch IN): 4 COAXIALS

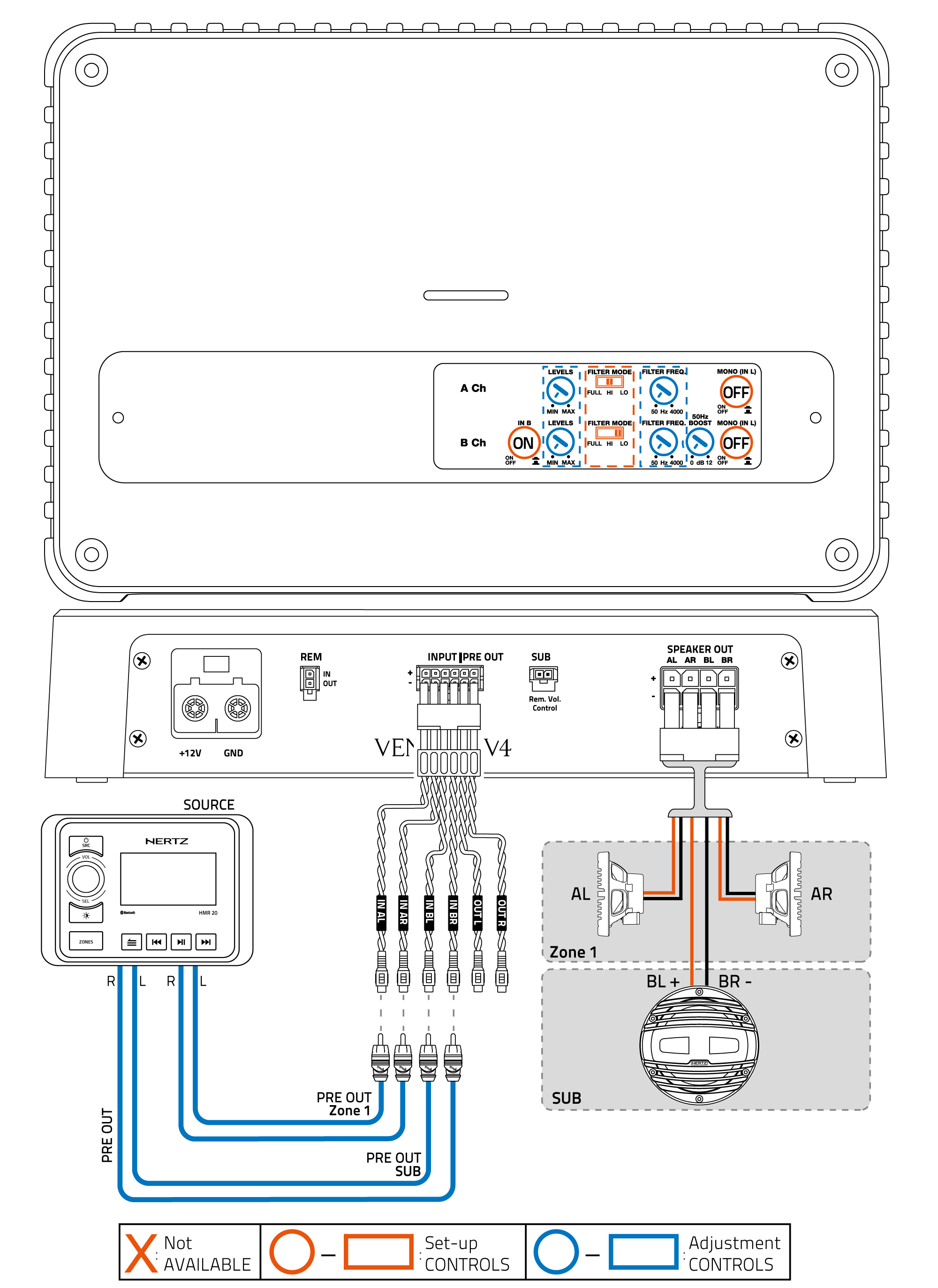

3. 3Ch OUT (4Ch IN): 2 COAXIALS + SUB (STEREO IN)

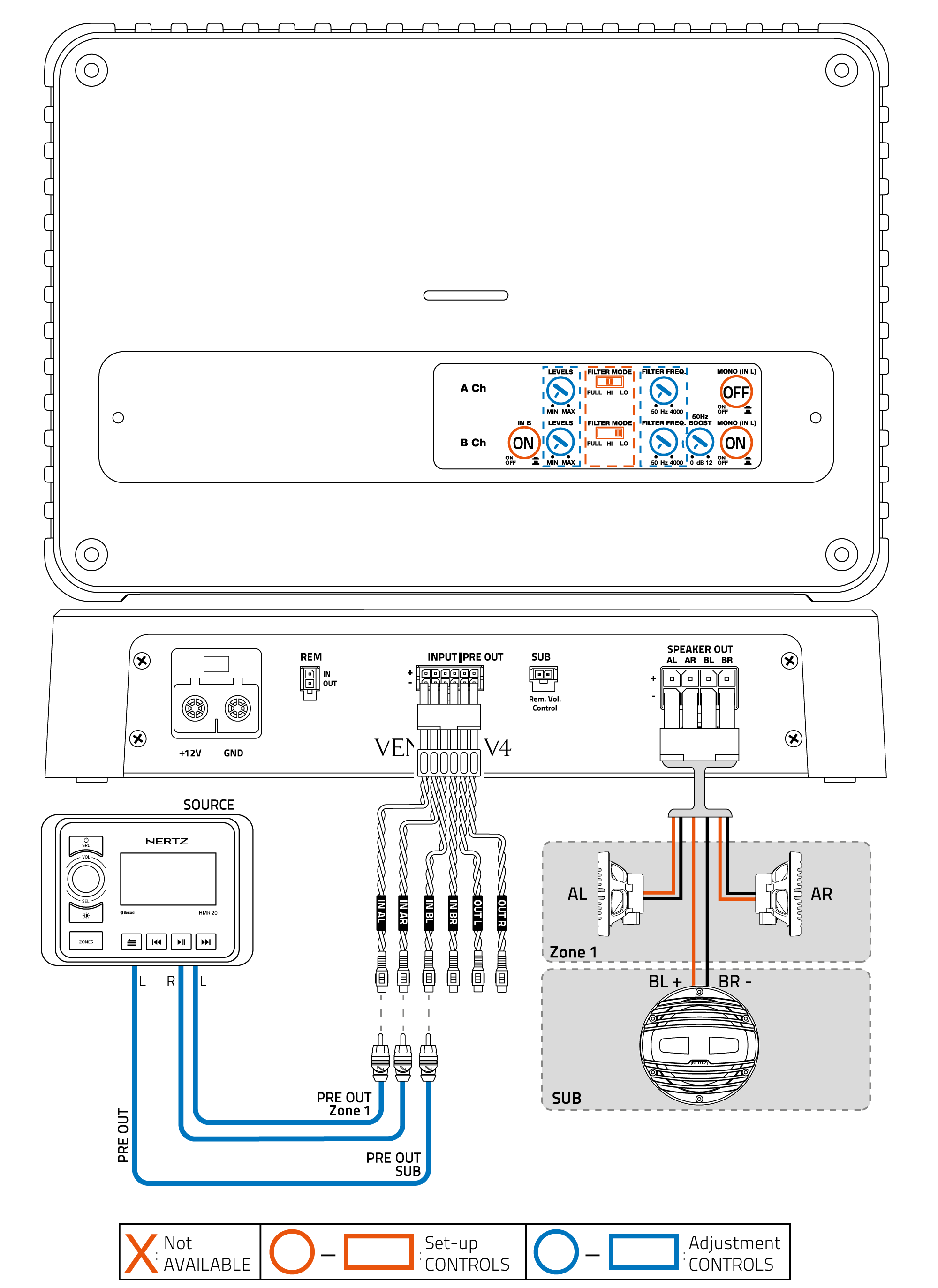

4. 3Ch OUT (3Ch IN): 2 COAXIALS + SUB (MONO L IN)

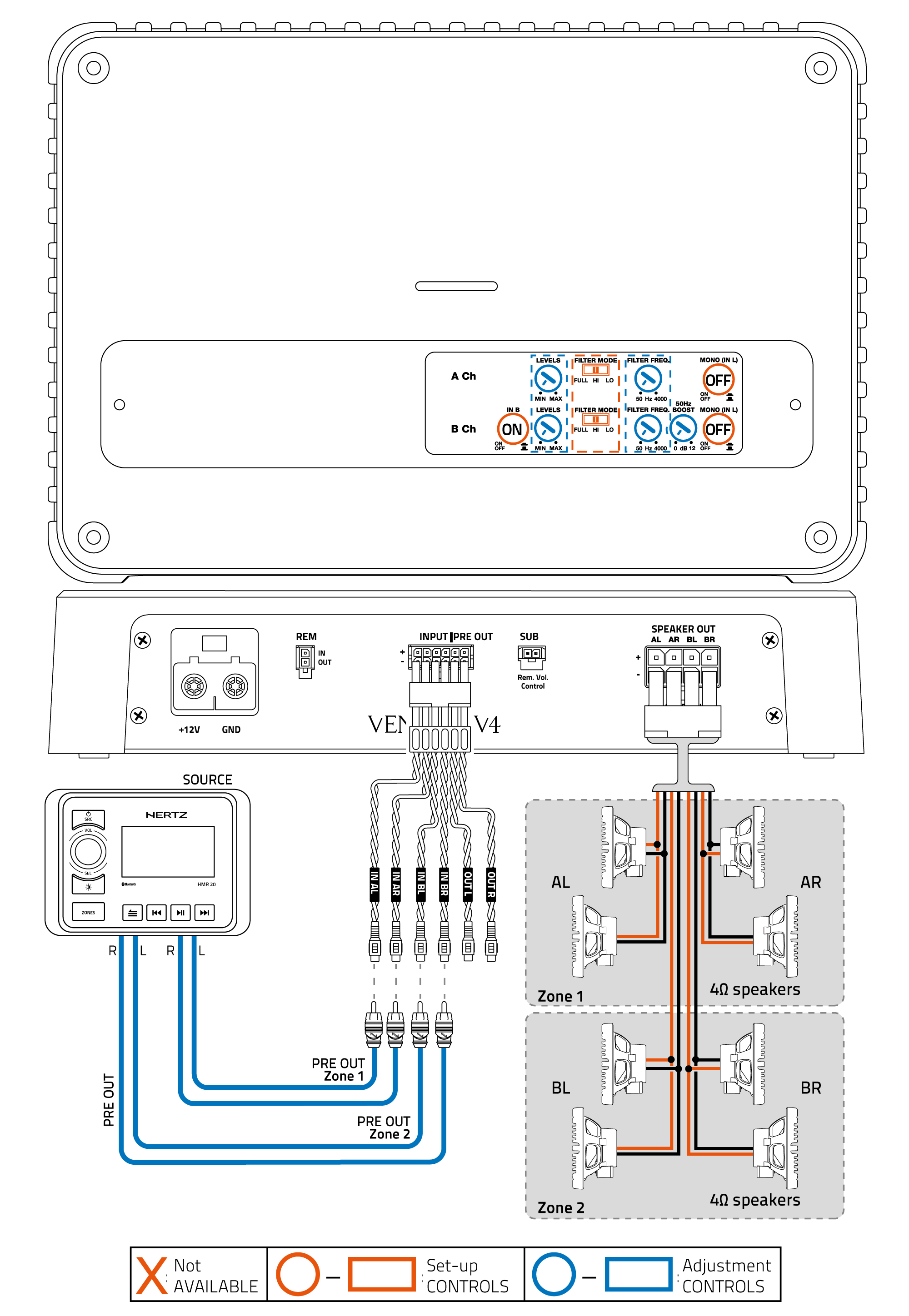

5. 4Ch OUT (4Ch IN): 8 COAXIALS

6.3 VENEZIA V4C

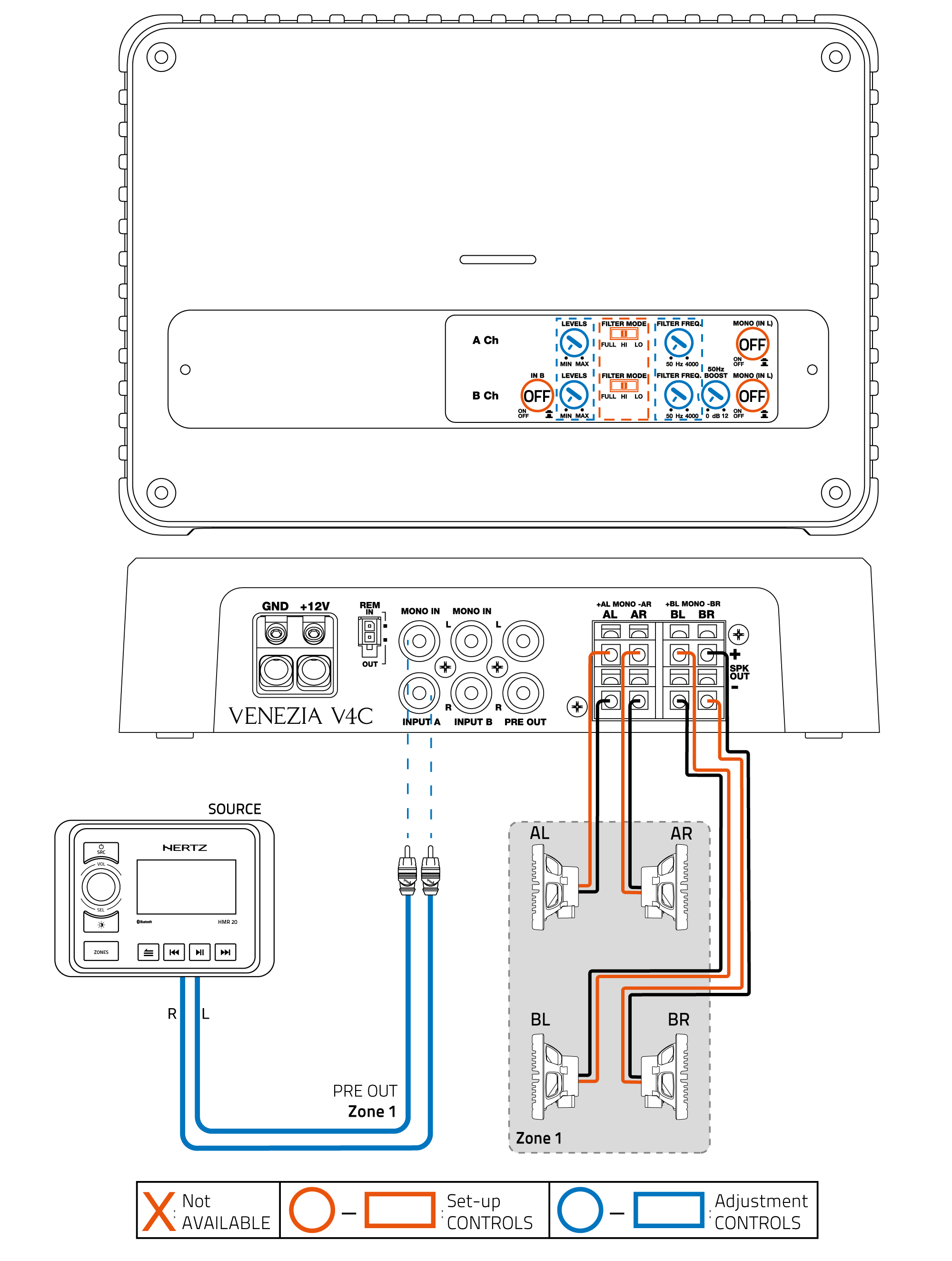

1. 4Ch OUT (2Ch IN): 4 COAXIALS

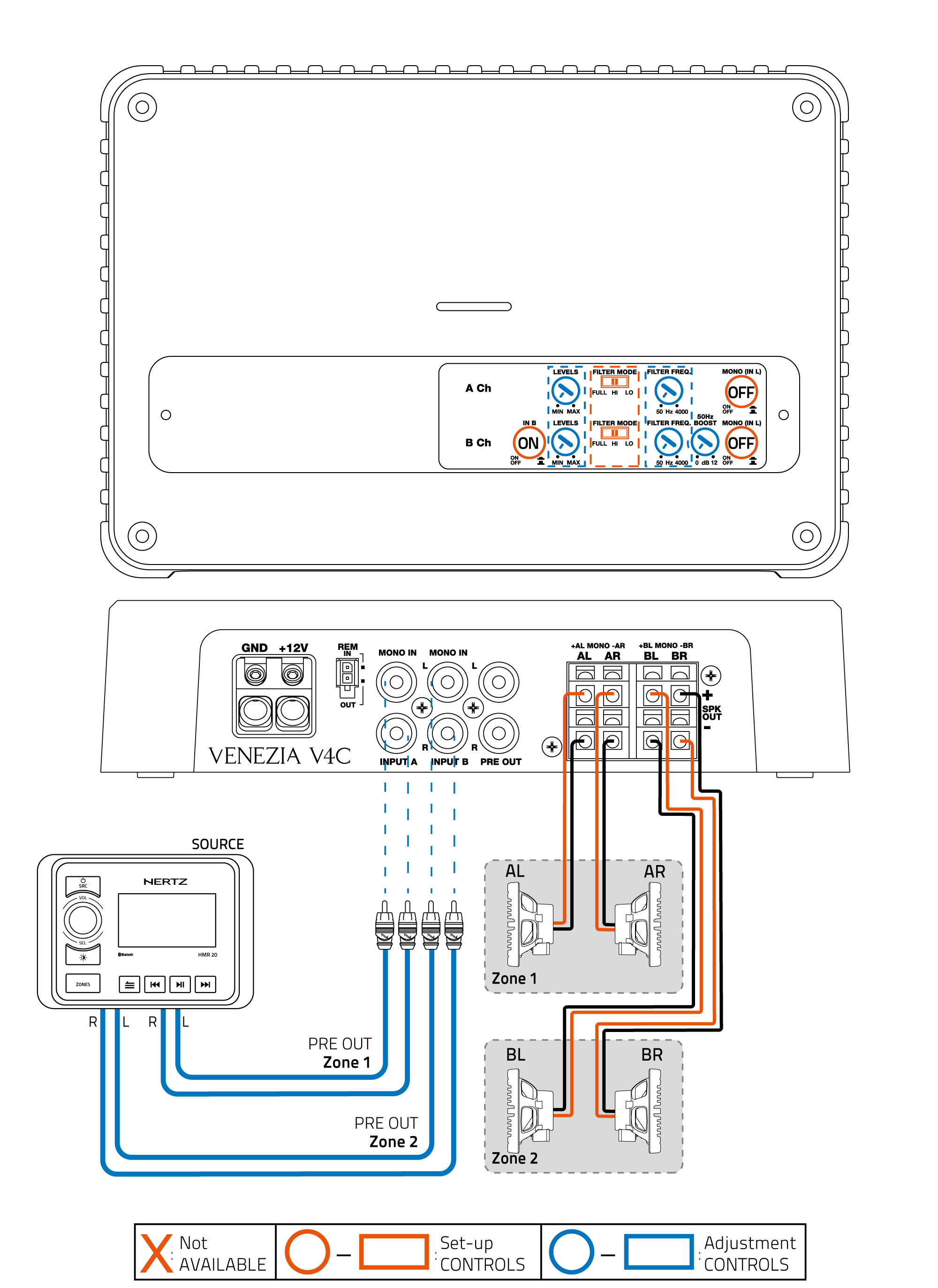

2. 4Ch OUT (4Ch IN): 4 COAXIALS

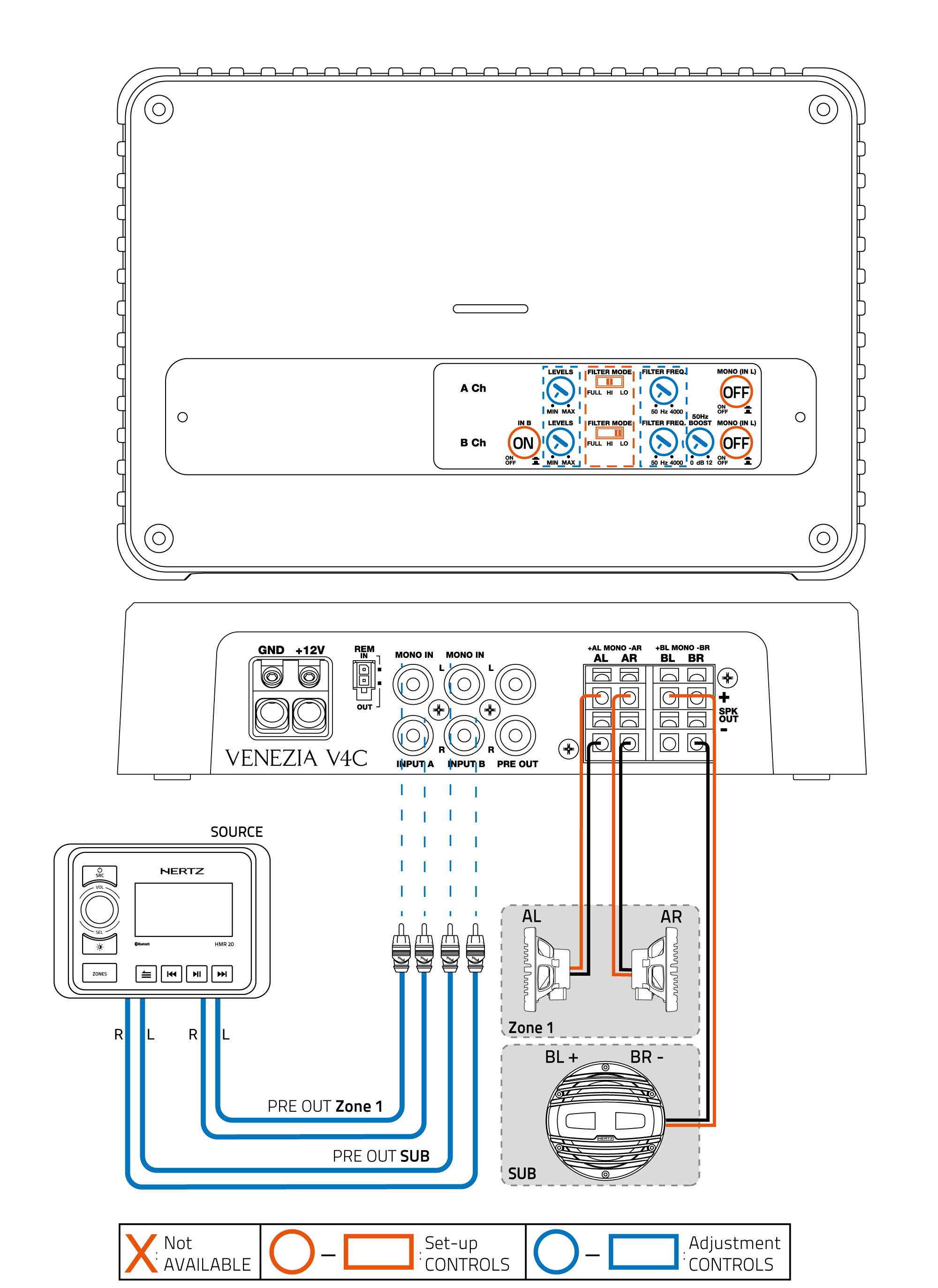

3. 3Ch OUT (4Ch IN): 2 COAXIALS + SUB (STEREO IN)

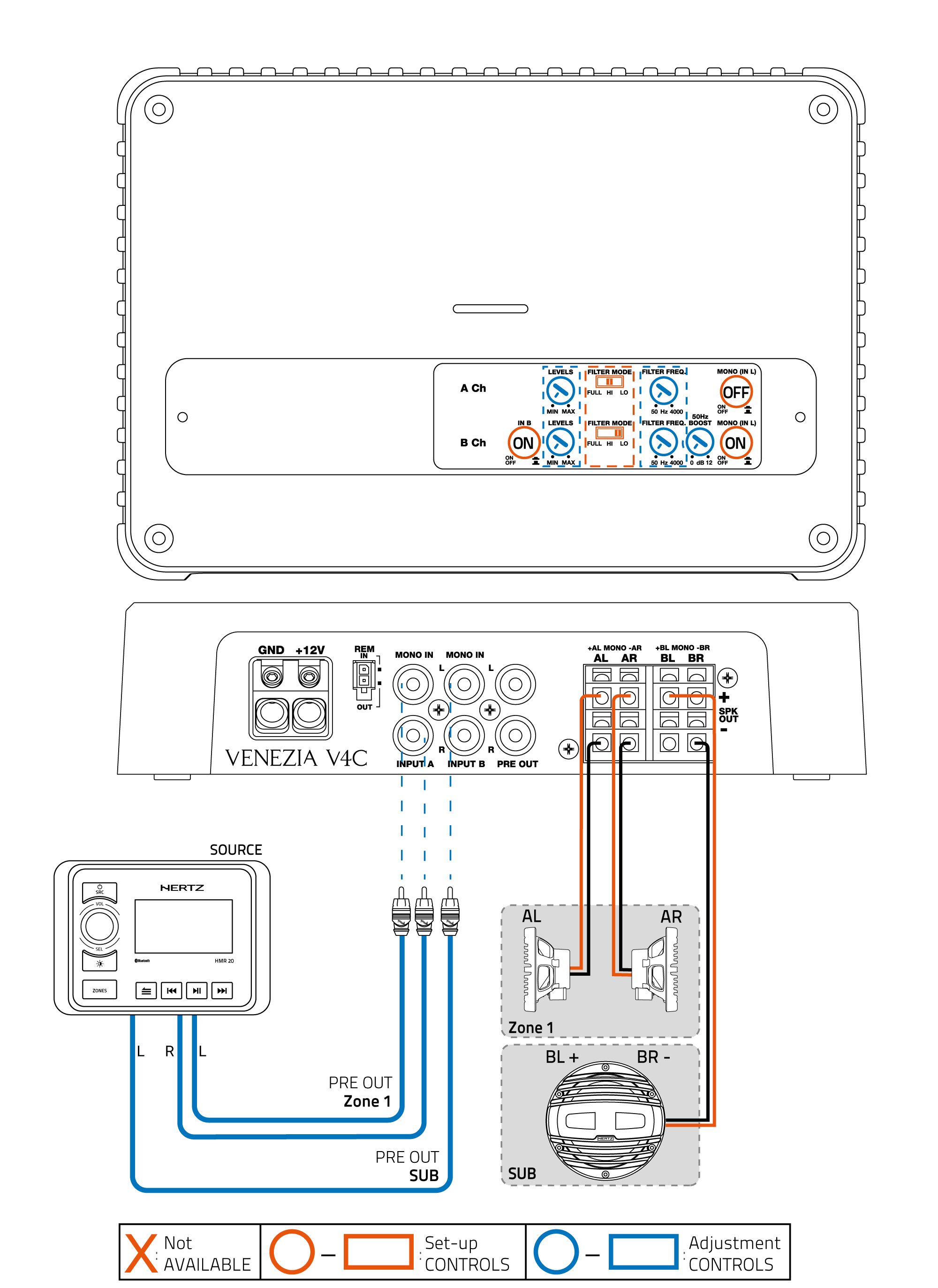

4. 3Ch OUT (3Ch IN): 2 COAXIALS + SUB (MONO L IN)

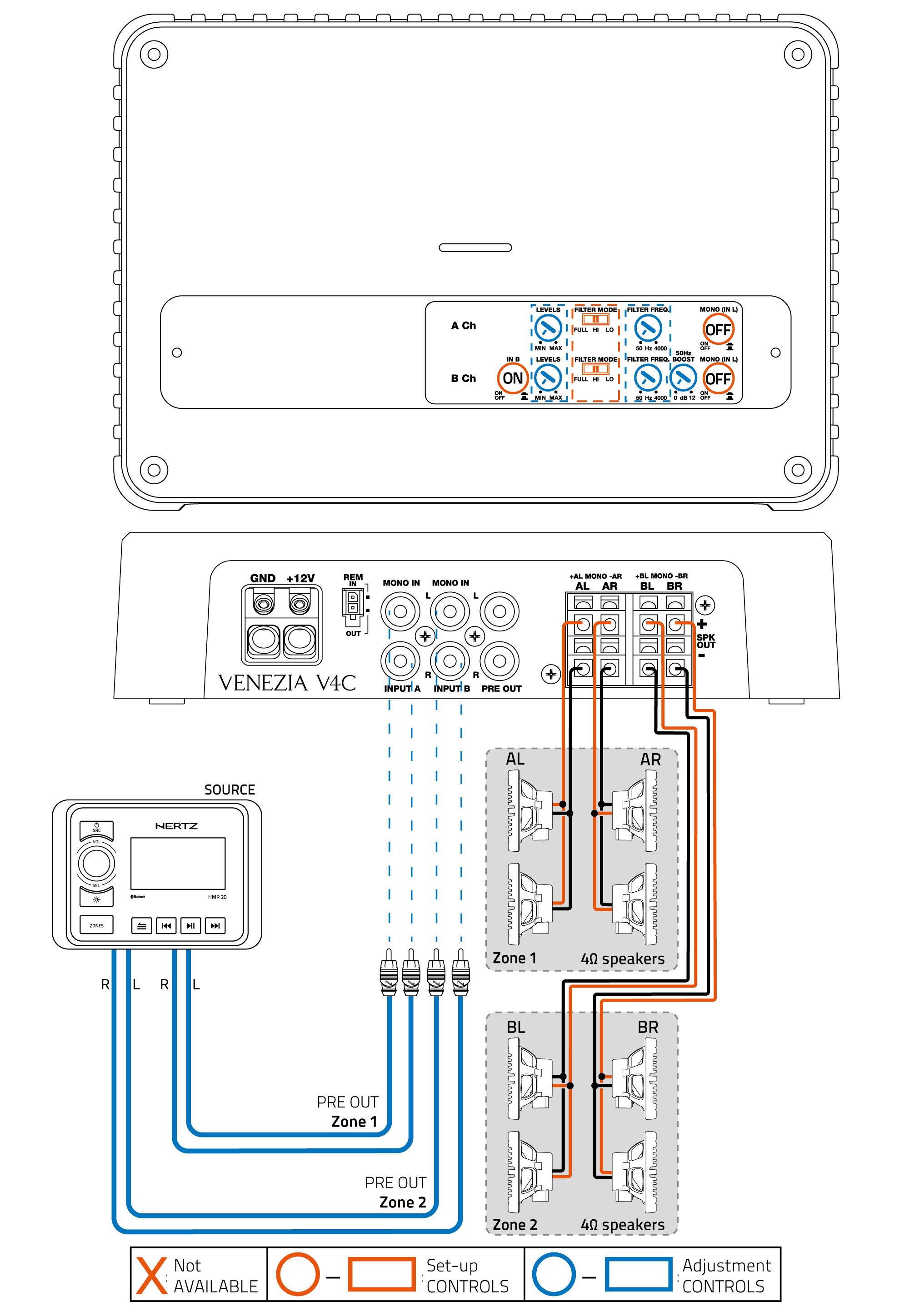

5. 4Ch OUT (4Ch IN): 8 COAXIALS

6.4 VENEZIA V5

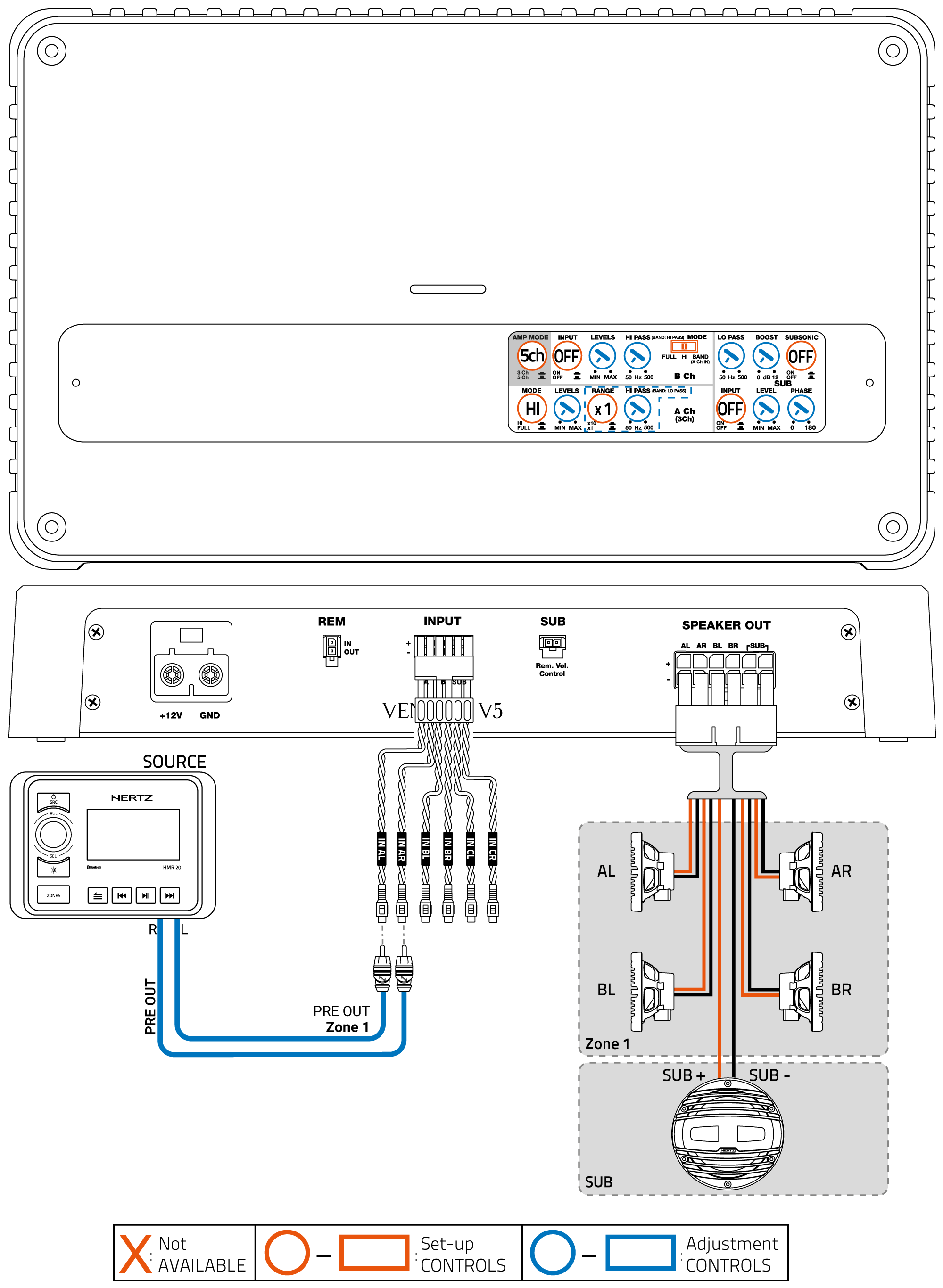

1. 5Ch OUT (2Ch IN): 4 COAXIALS + SUB

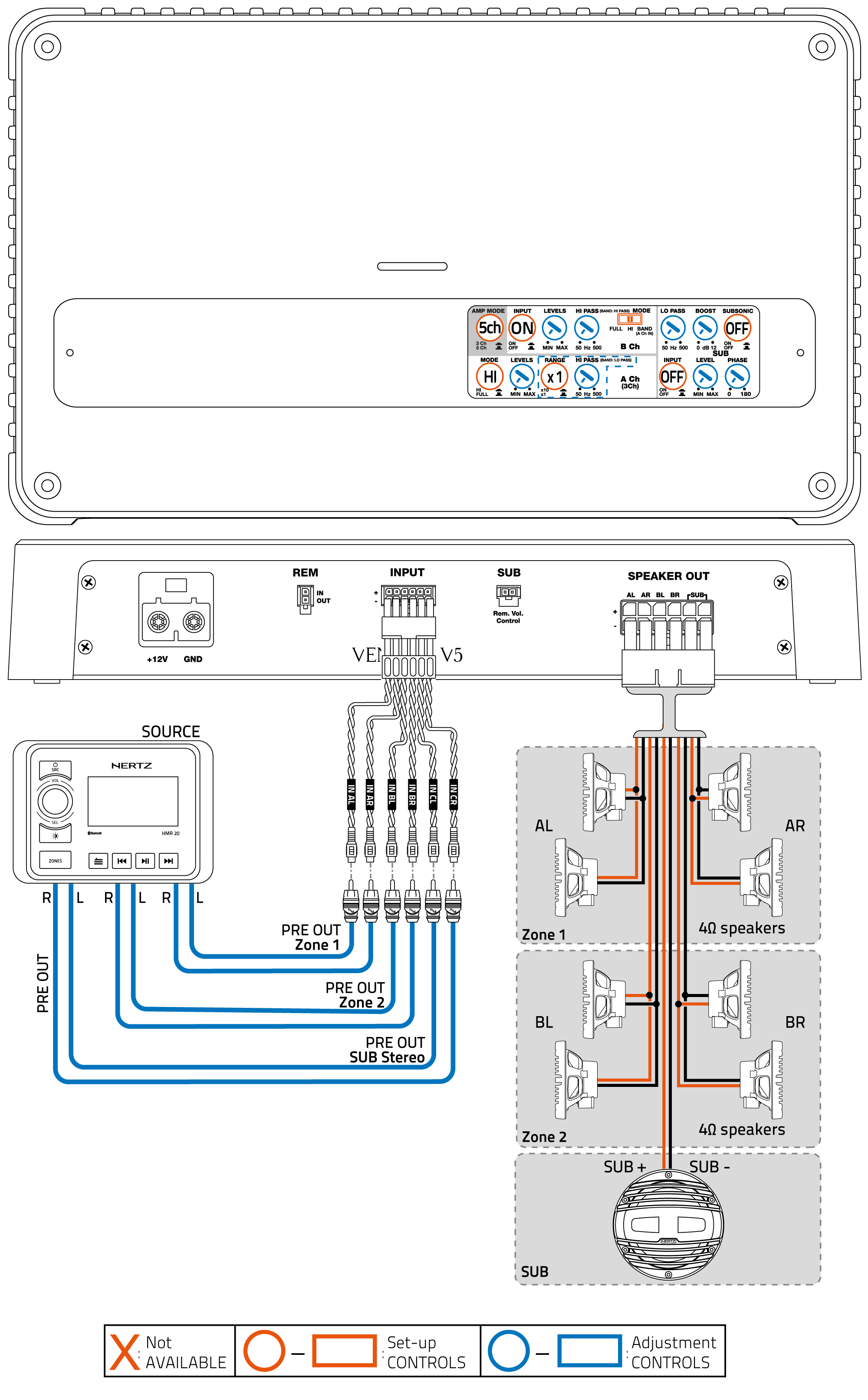

2. 5Ch OUT (6Ch IN): 8 COAXIALS + SUB

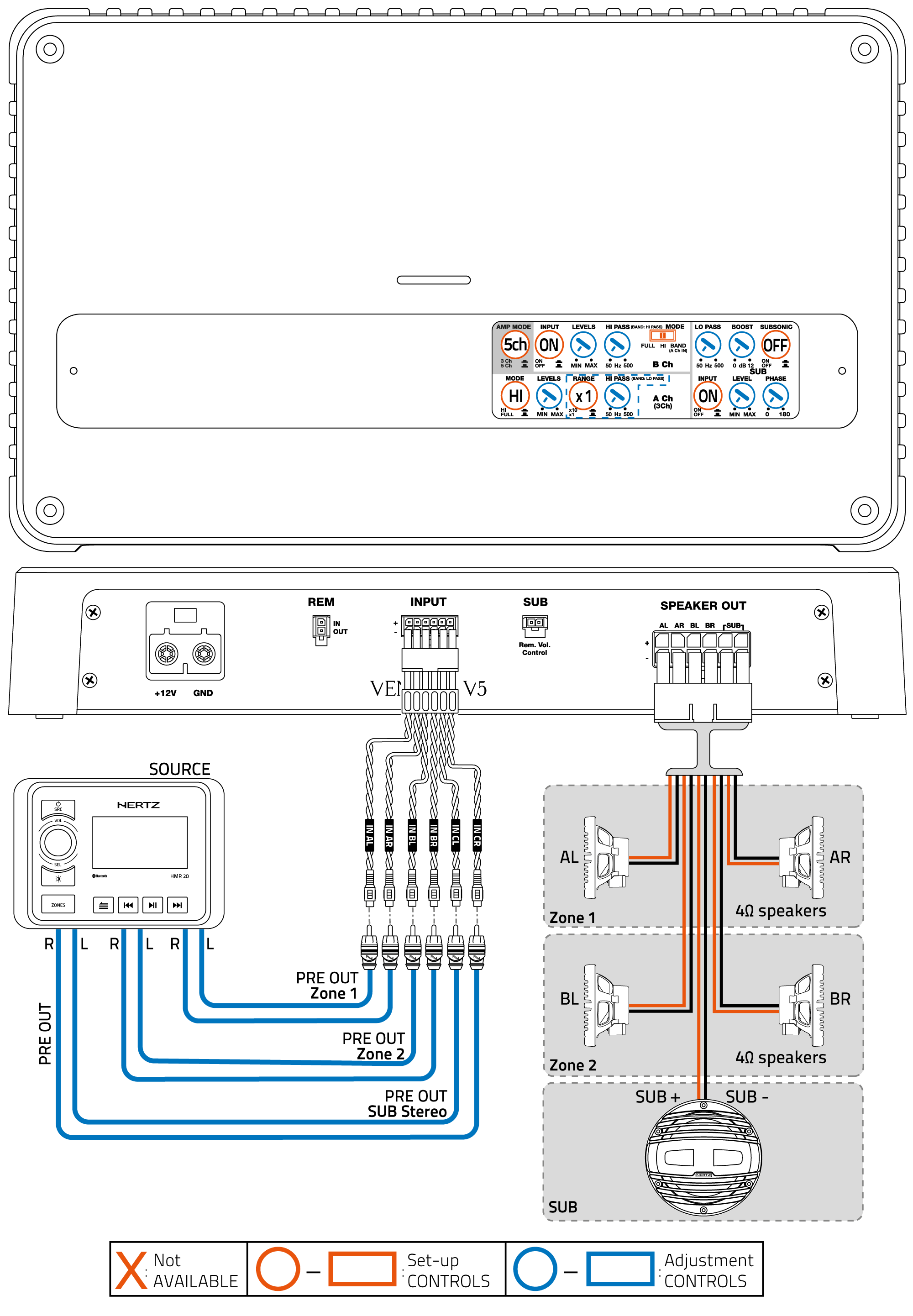

3. 5Ch OUT (6Ch IN): 4 COAXIALS + SUB

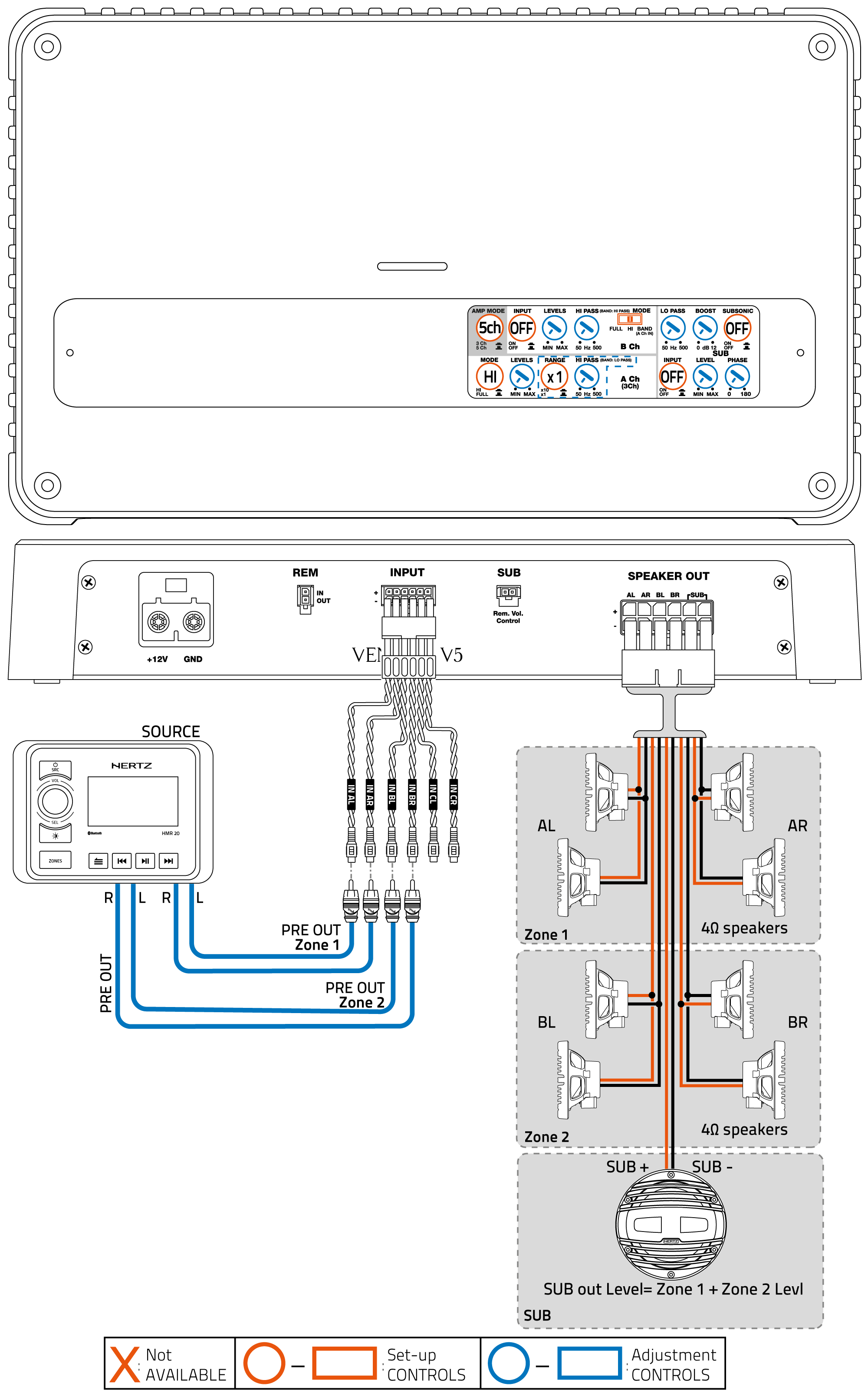

4. 5Ch OUT (4Ch IN): 8 COAXIALS + SUB

6.5 VENEZIA V5C / VENEZIA V5C 24V

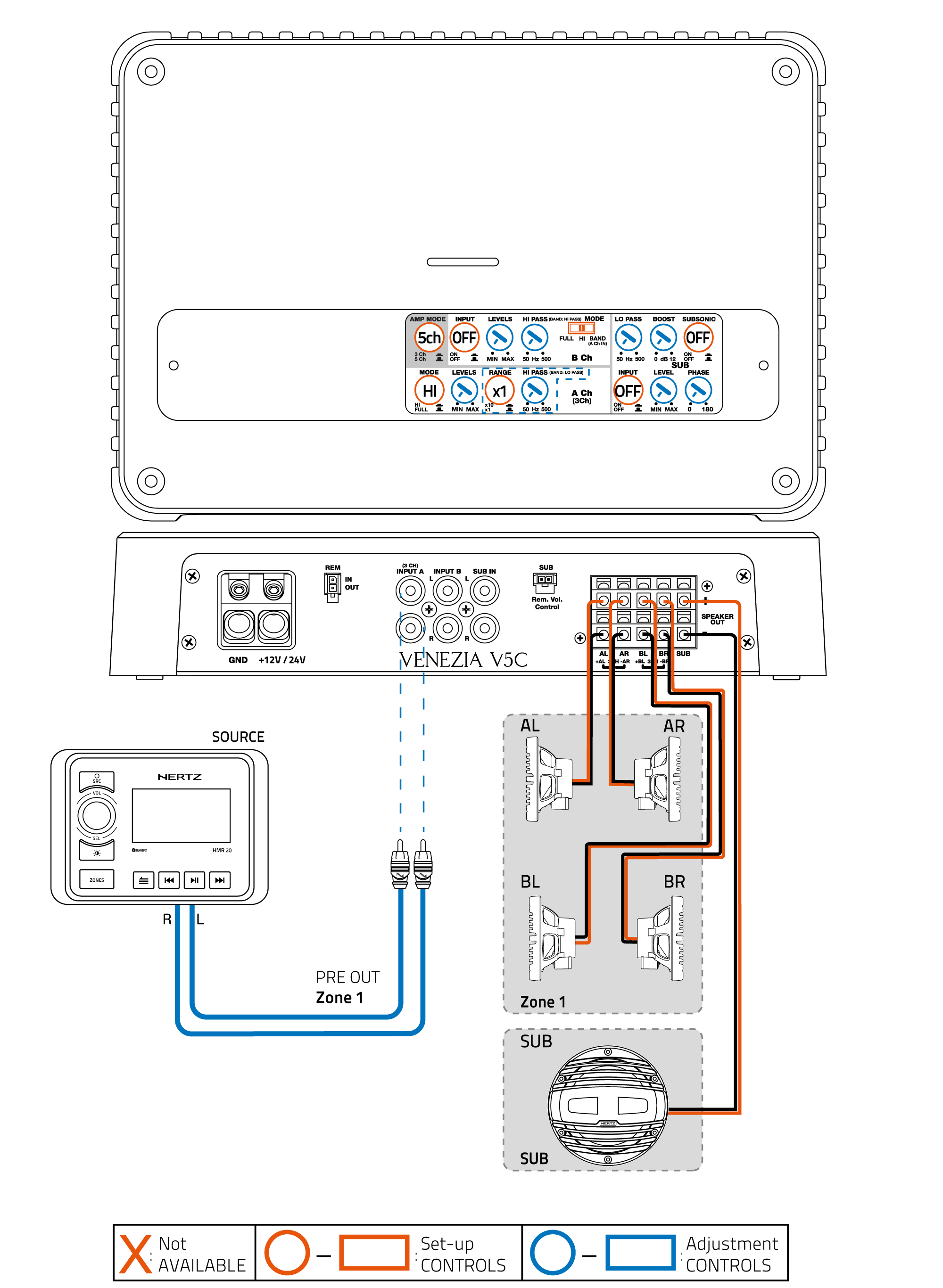

1. 5Ch OUT (2Ch IN): 4 COAXIALS + SUB

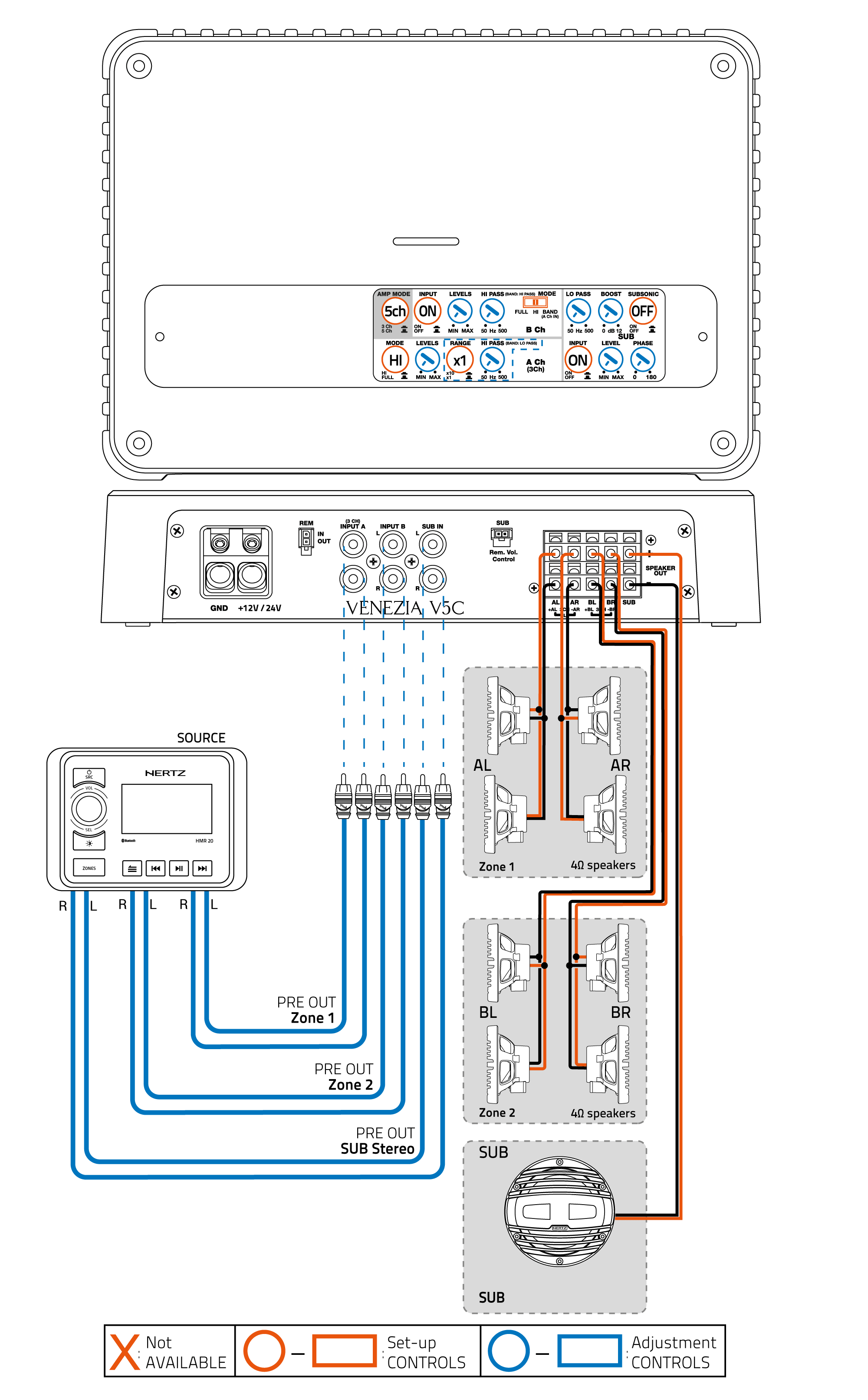

2. 5Ch OUT (6Ch IN): 8 COAXIALS + SUB

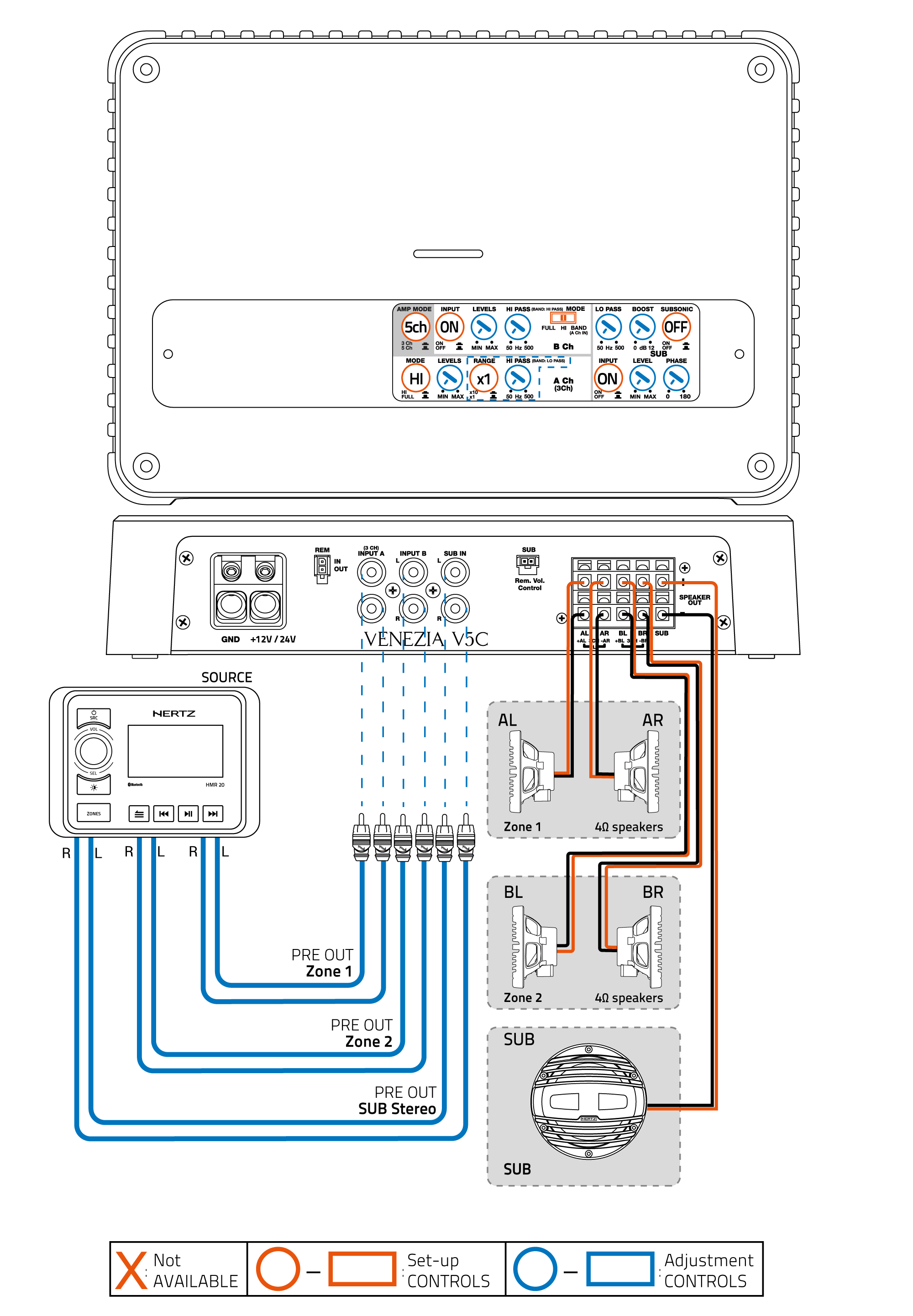

3. 5Ch OUT (6Ch IN): 4 COAXIALS + SUB

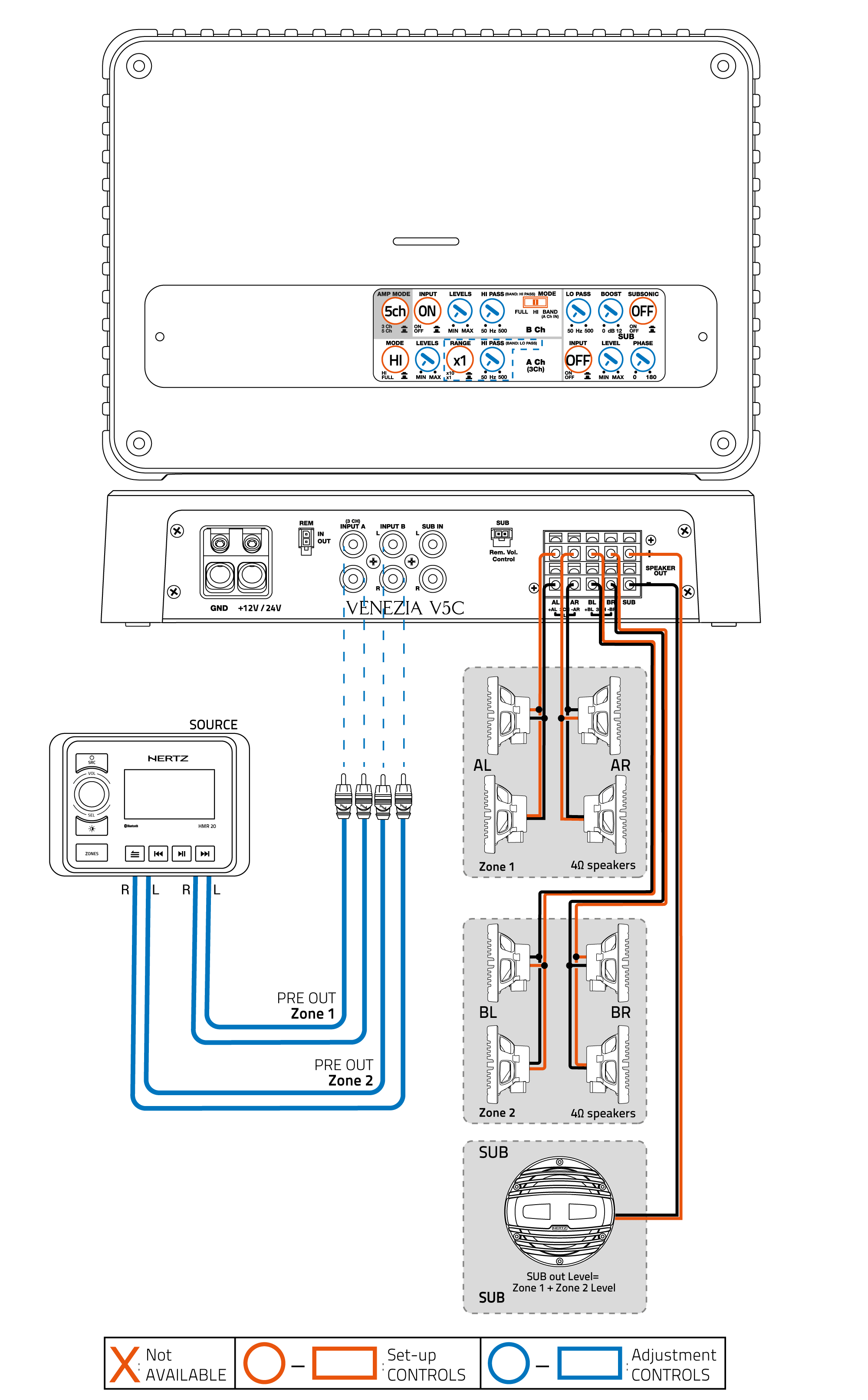

4. 5Ch OUT (4Ch IN): 8 COAXIALS + SUB

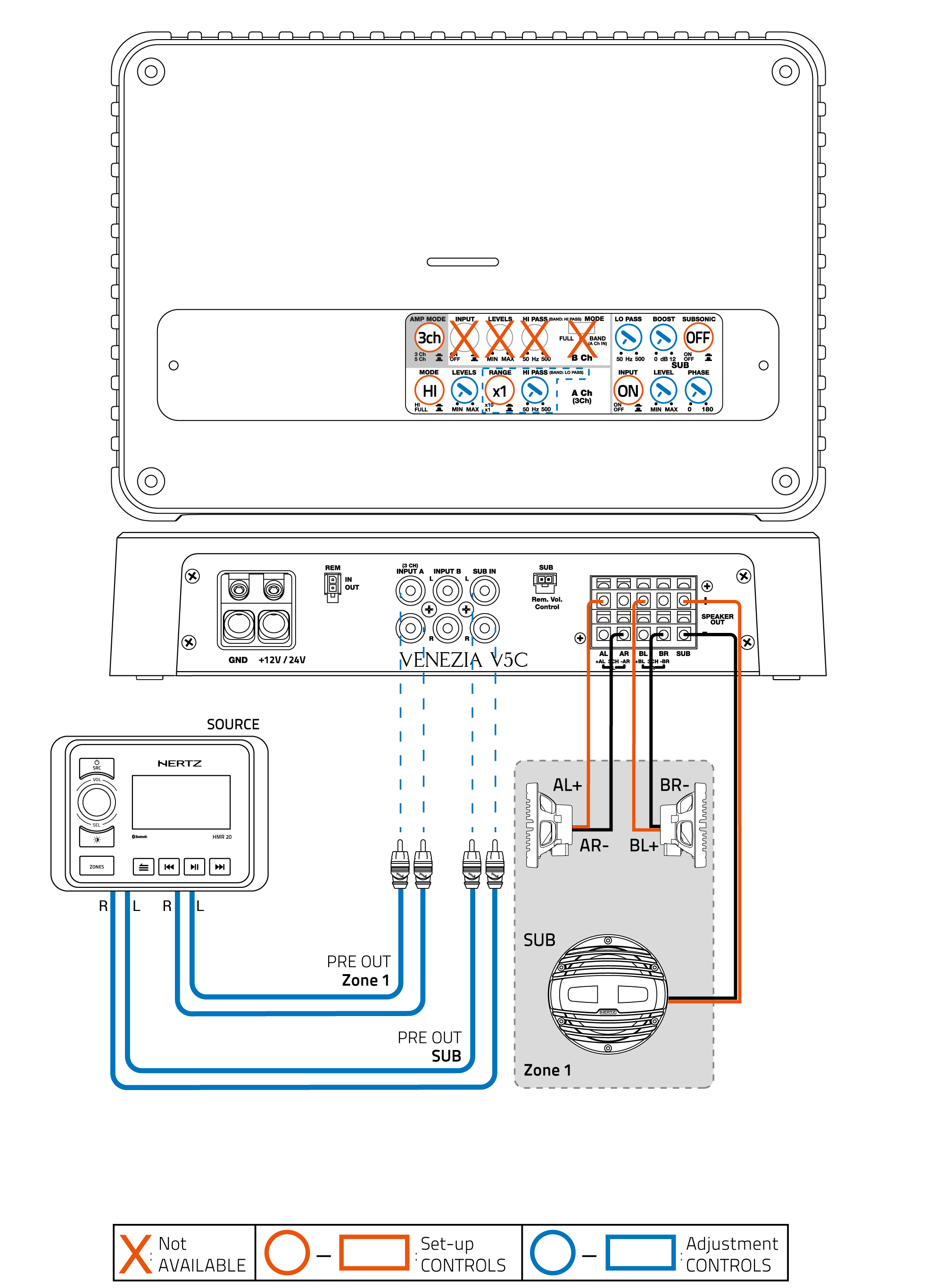

5. 3Ch OUT (4Ch IN): 2 COAXIALS + SUB

6.6 VENEZIA V6 / VENEZIA V6 24V

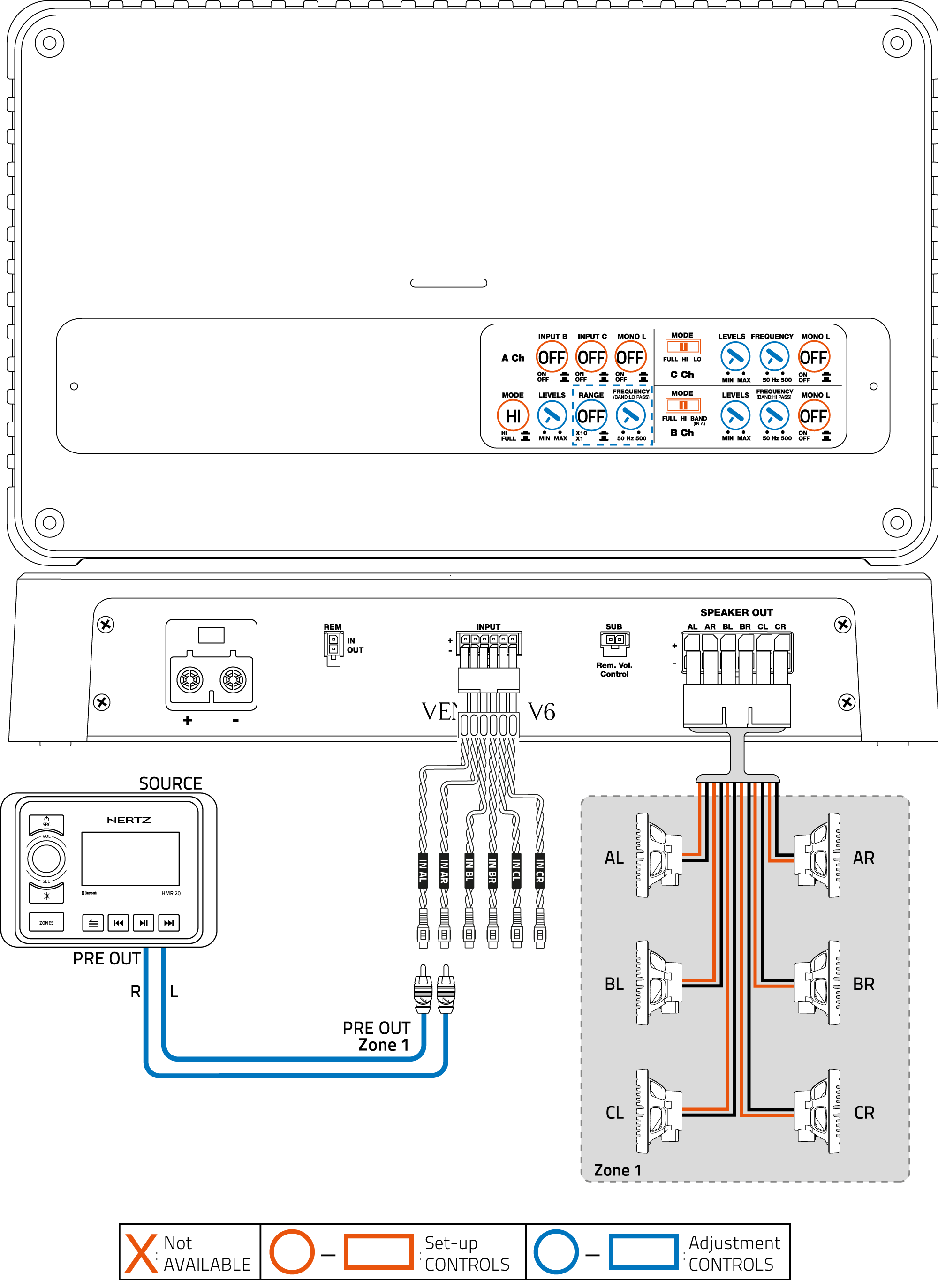

1. 6Ch OUT (2Ch IN): COAXIALS

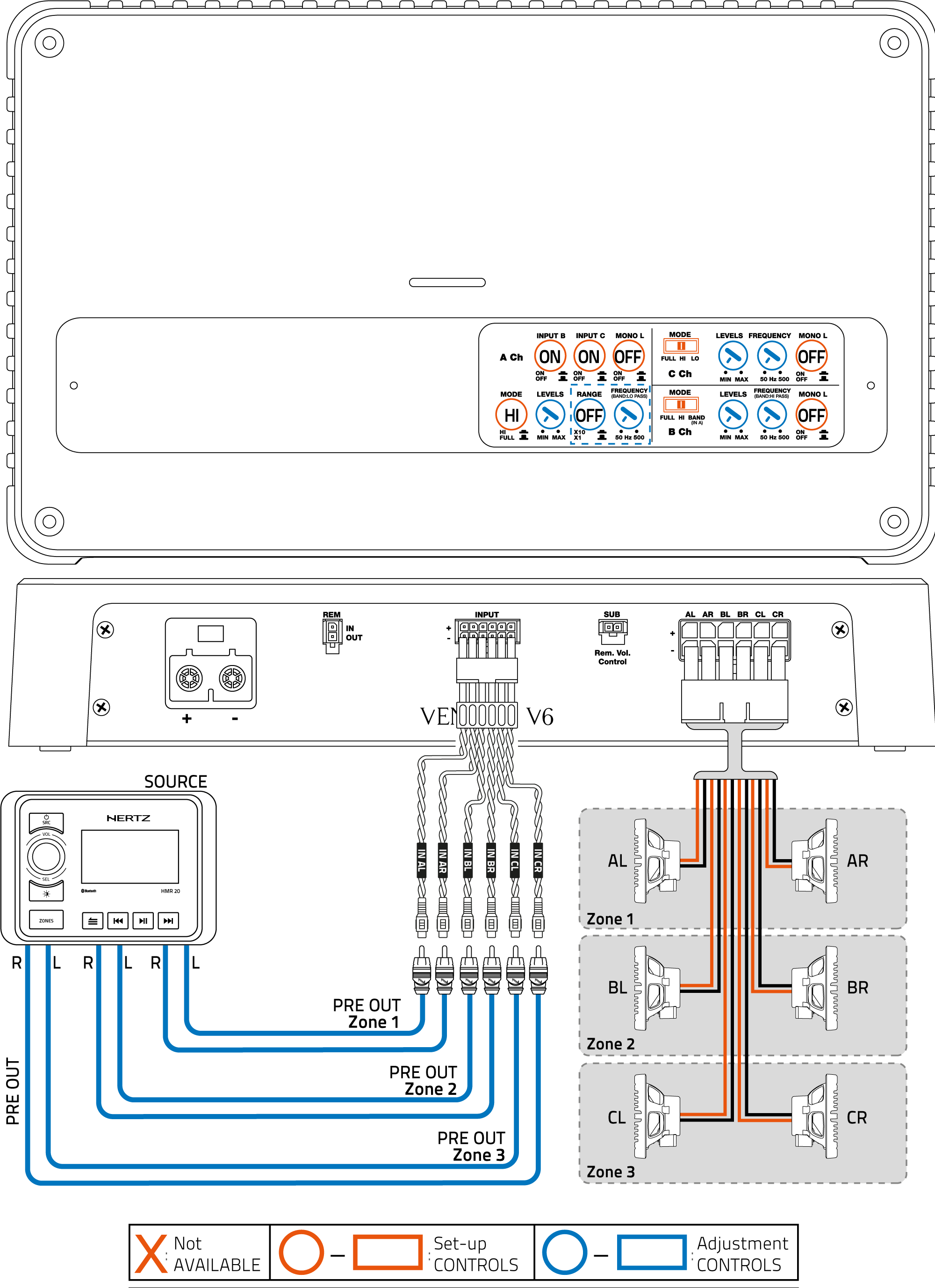

2. 6Ch OUT (6Ch IN): COAXIALS

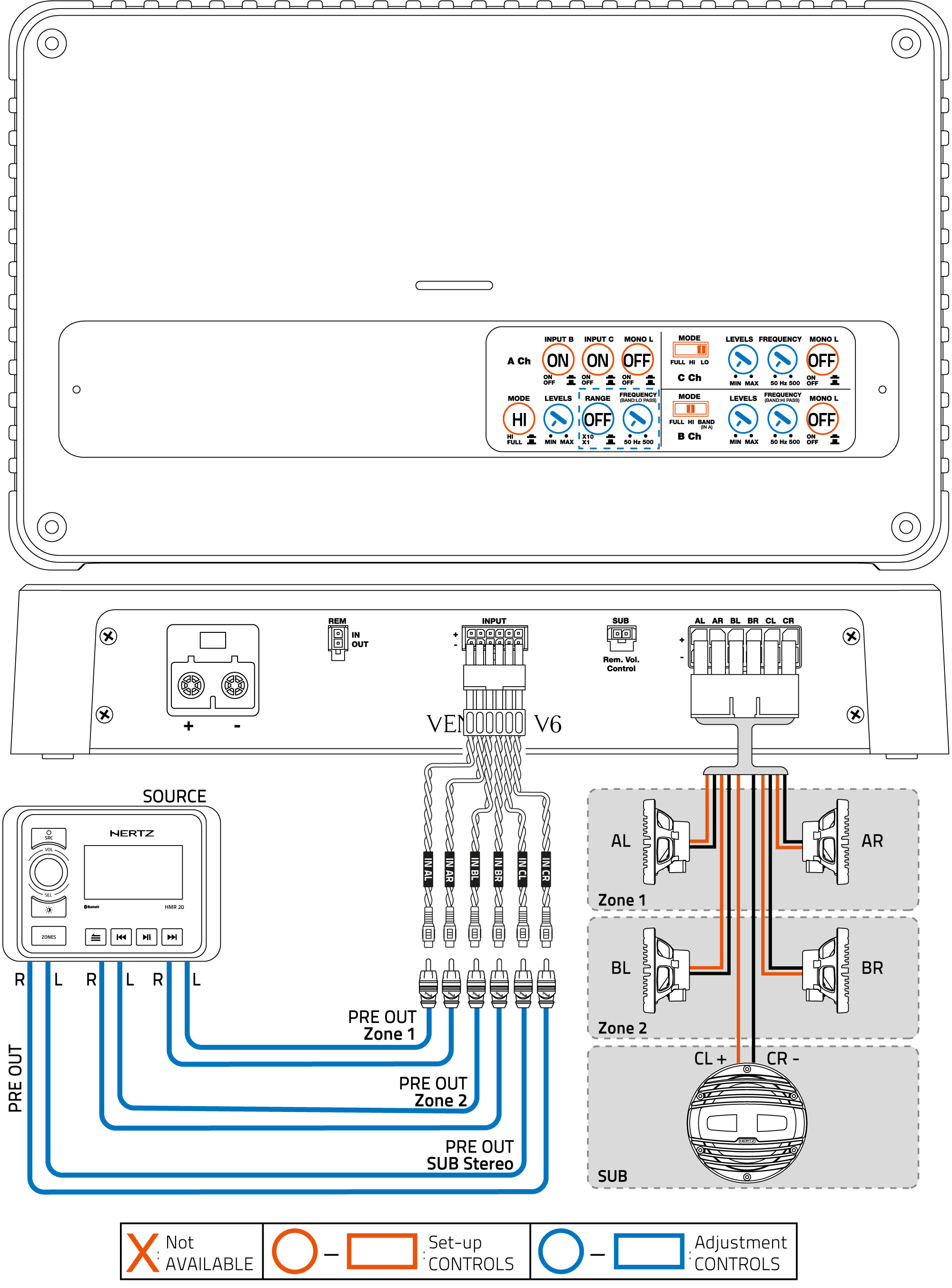

3. 5Ch OUT (6Ch IN): COAXIALS + SUB (Stereo IN)

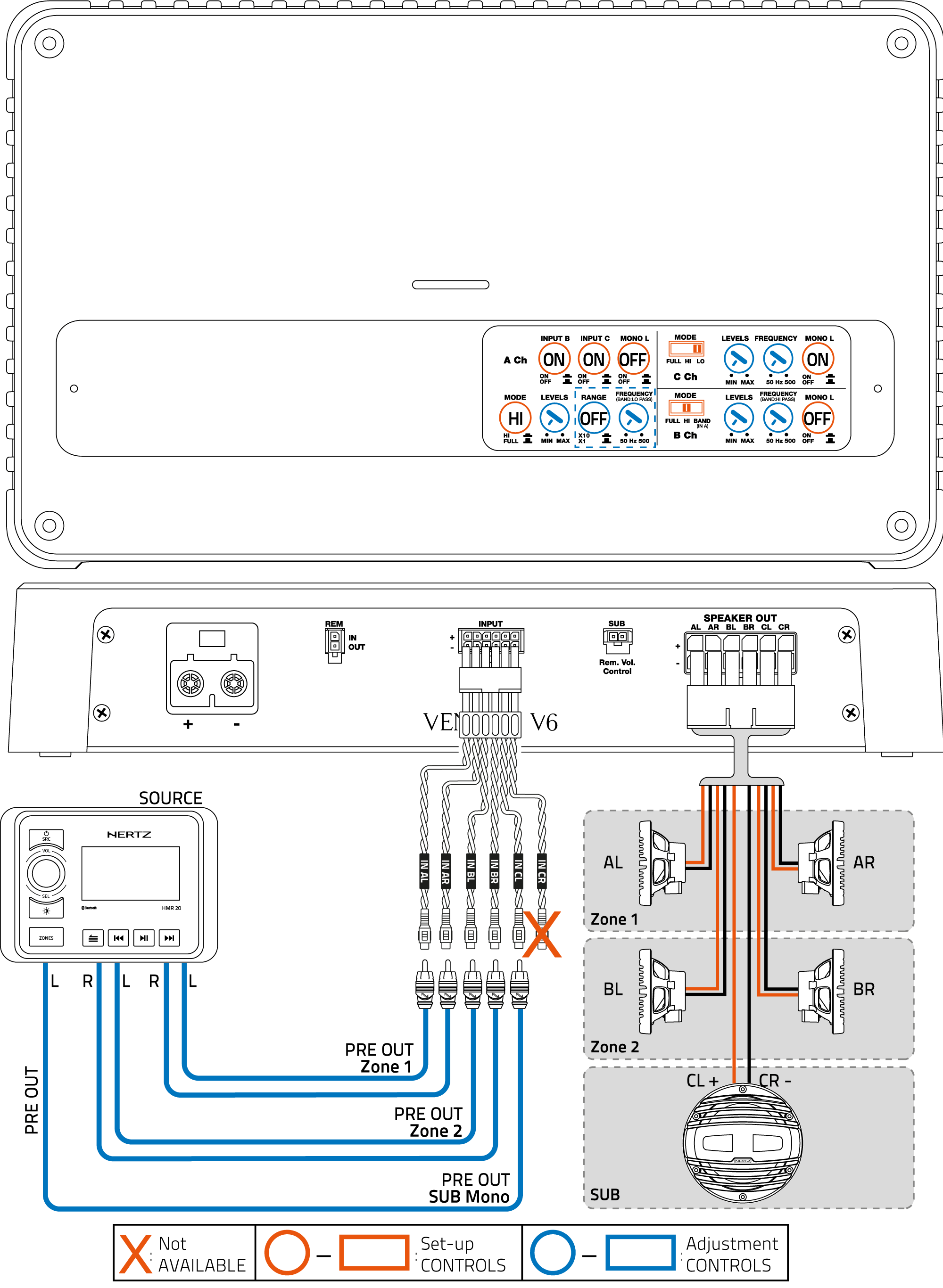

4. 5Ch OUT (5Ch IN): COAXIALS + SUB (Mono L IN)

7. BLOCK DIAGRAMS

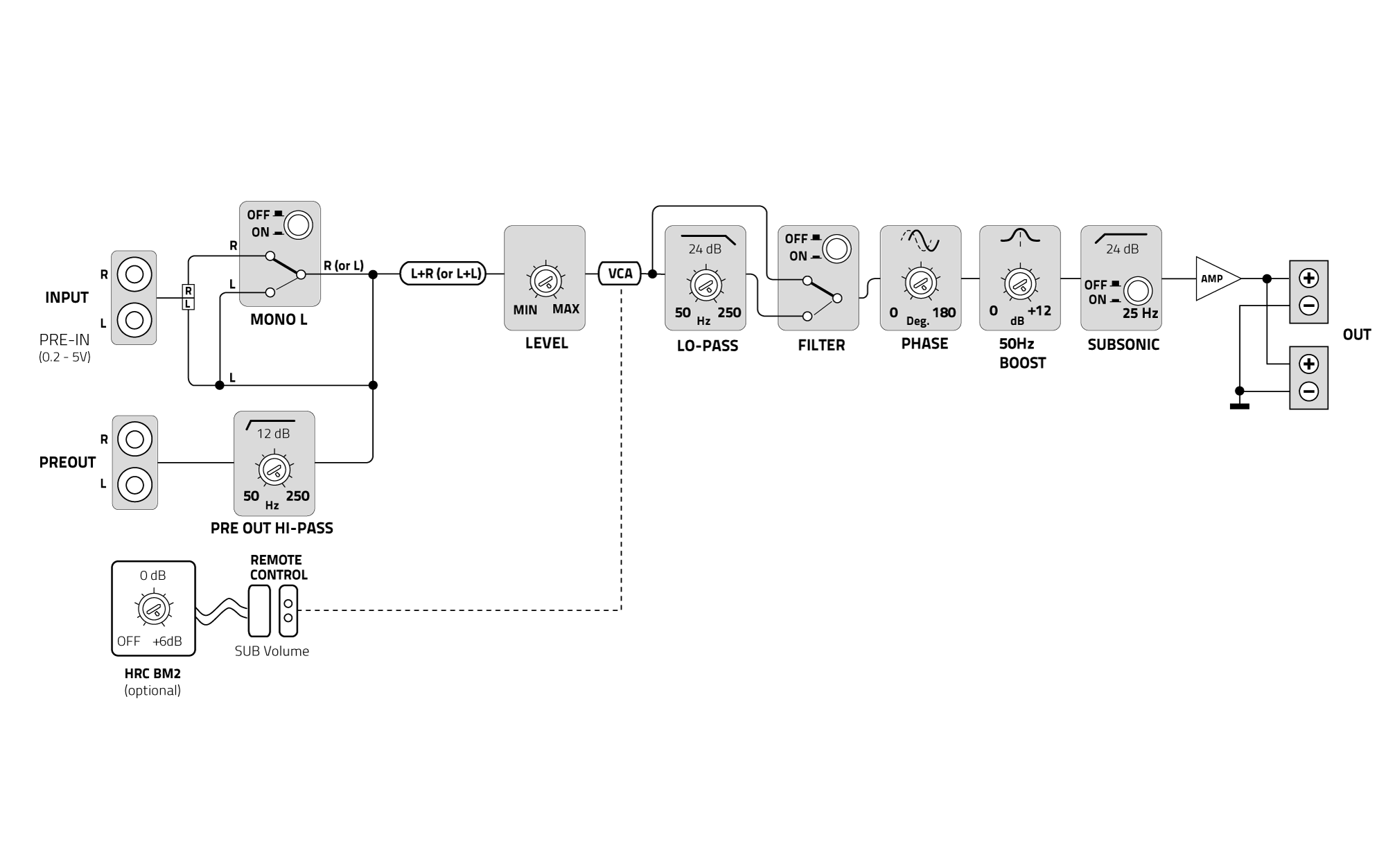

7.1 VENEZIA V1 / V1 24V

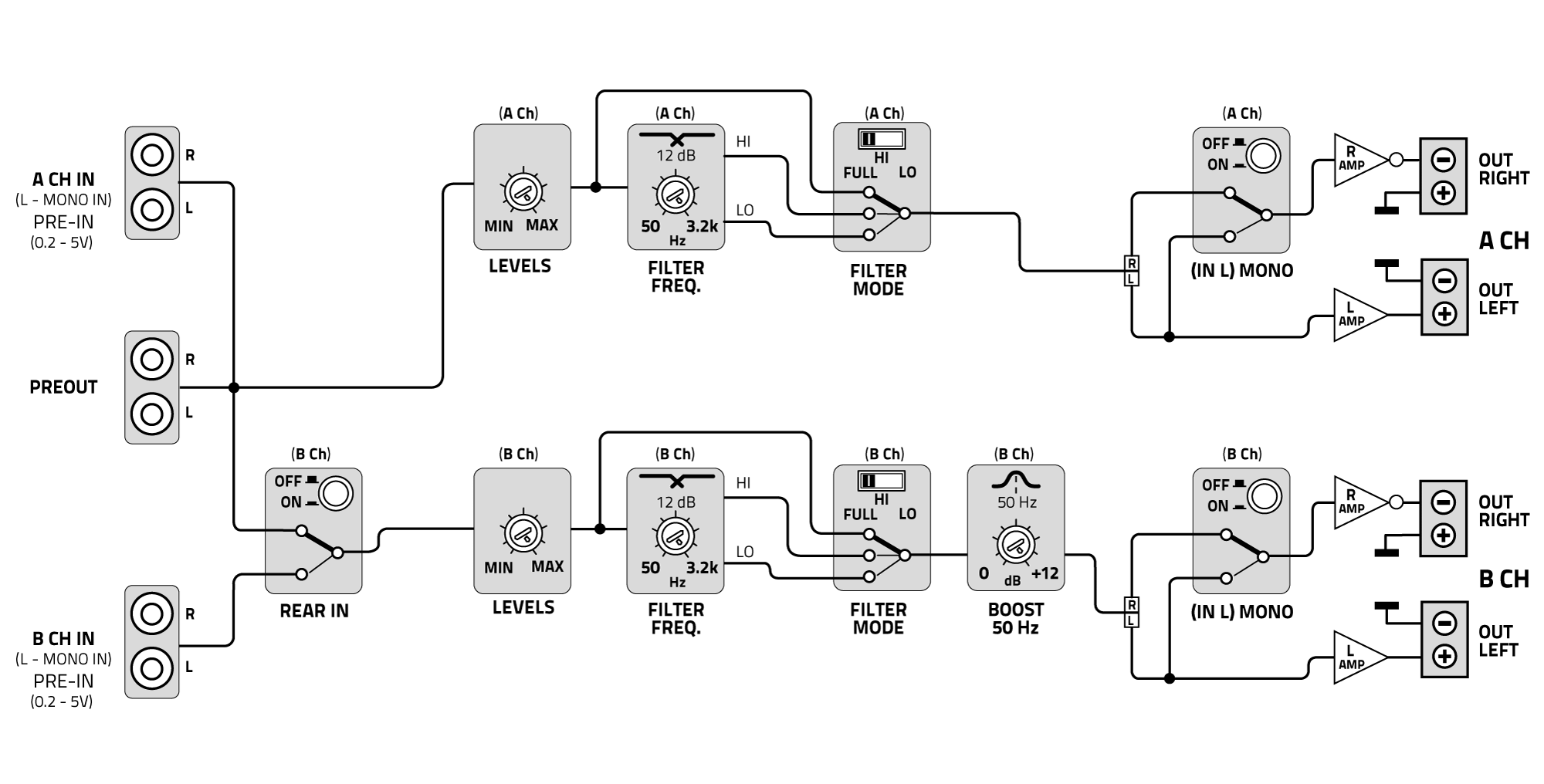

7.2 VENEZIA V4

7.3 VENEZIA V4C

7.4 VENEZIA V5

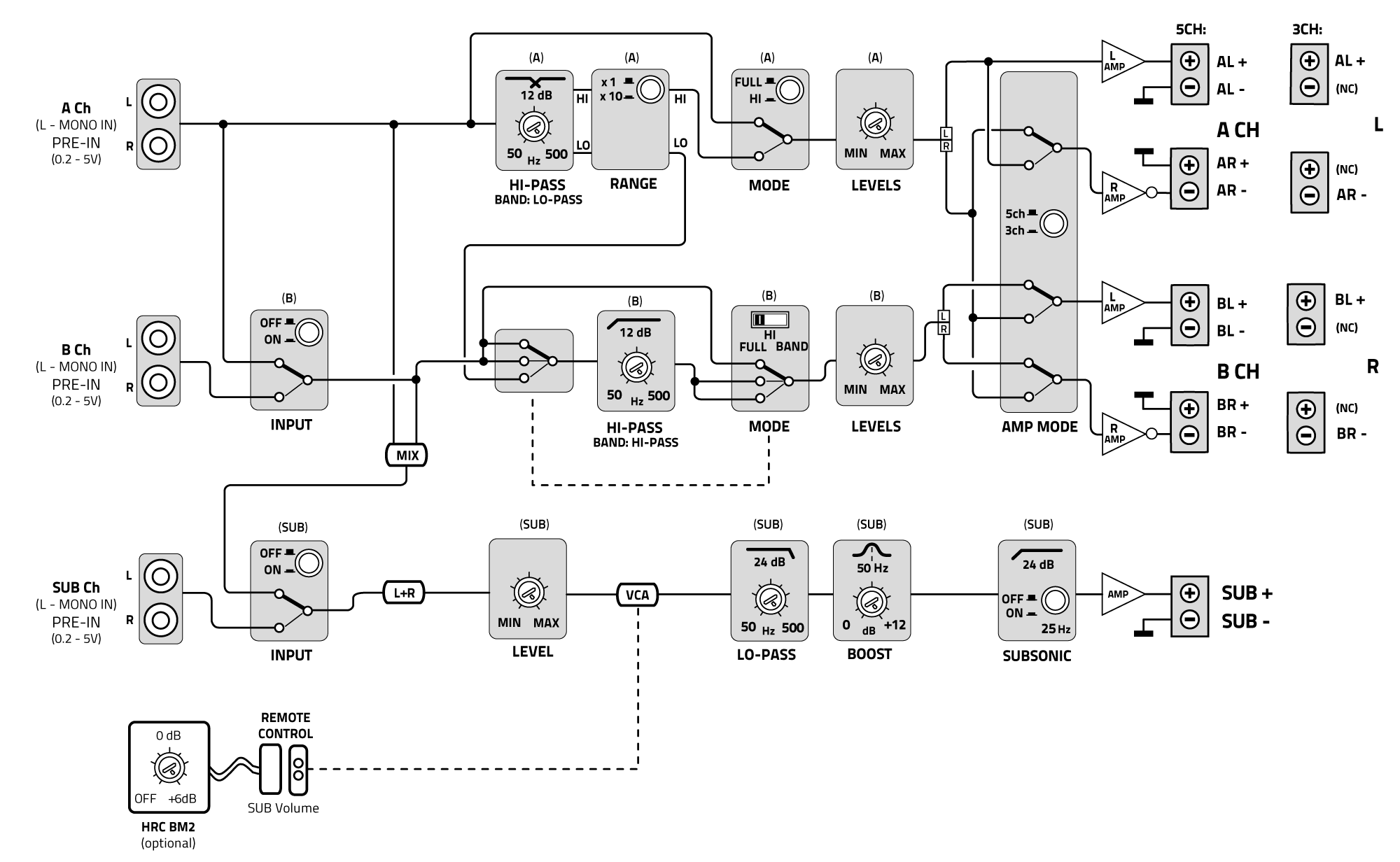

7.5 VENEZIA V5C / VENEZIA V5C 24V

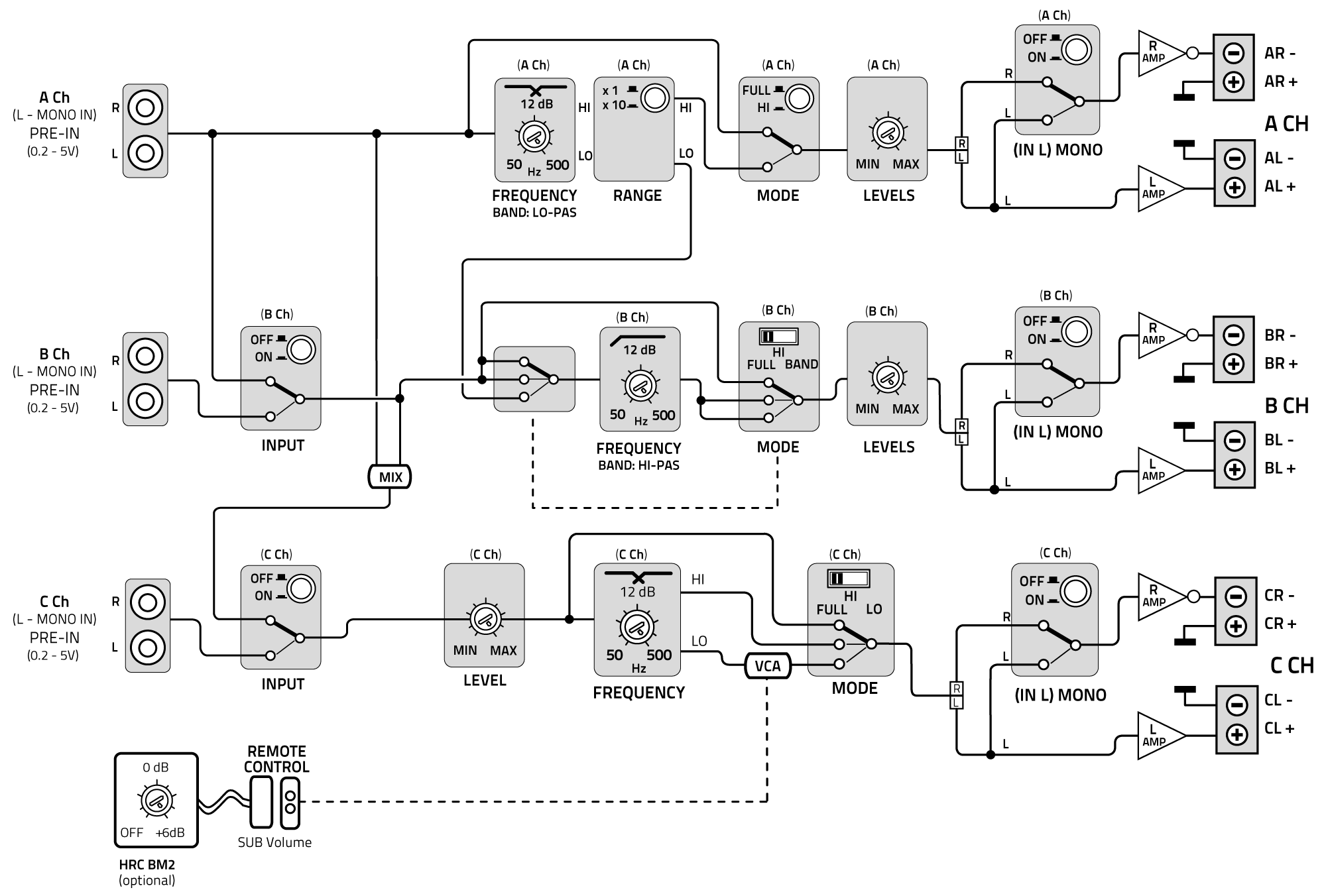

7.6 VENEZIA V6 / VENEZIA V6 24V
