6. INSTALLATION EXAMPLES

Leonardo Doffo

15 April 2024 13:25 Updated

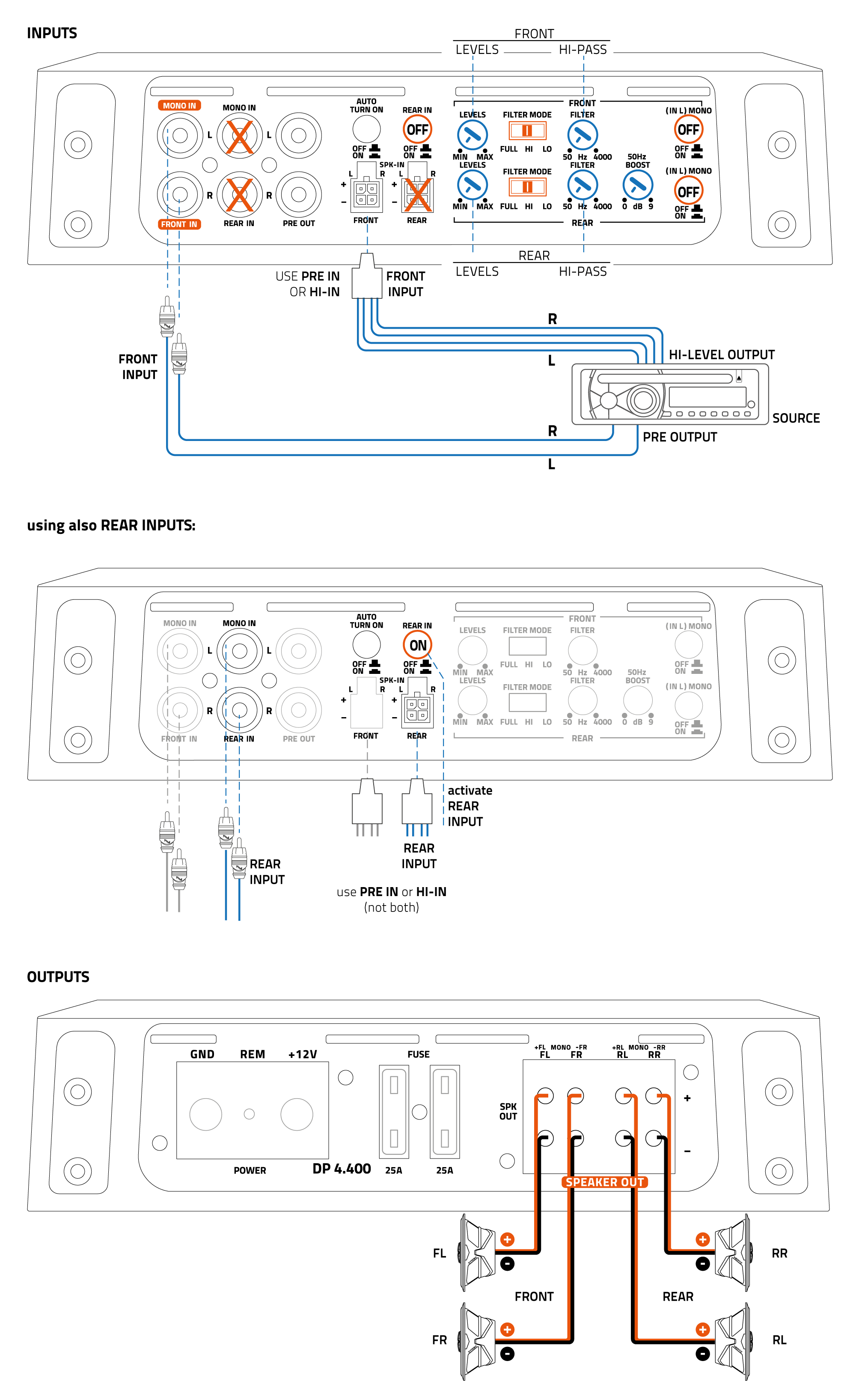

4Ch - FRONT + REAR - DP-4.400

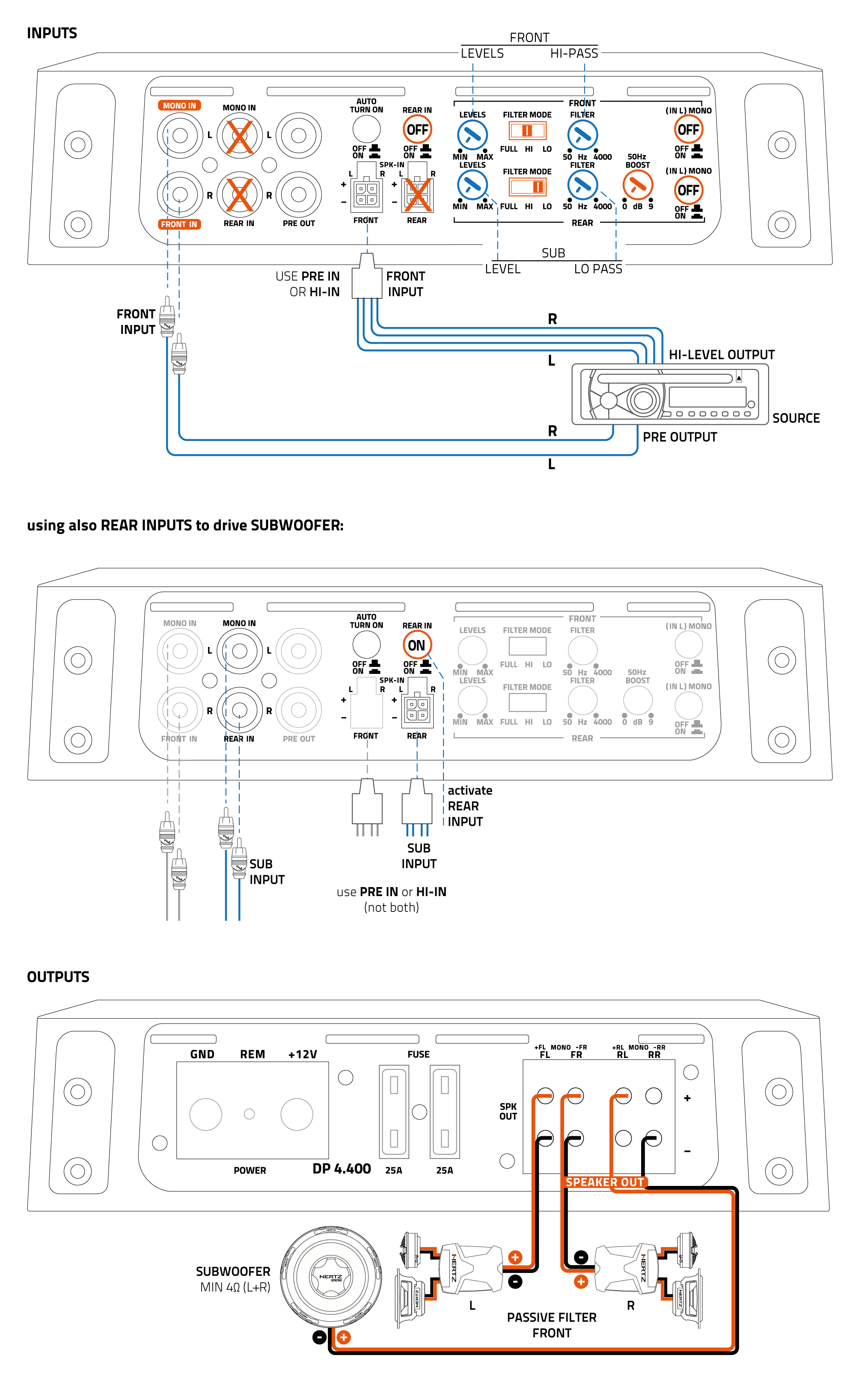

3Ch - FRONT + SUB - DP-4.400

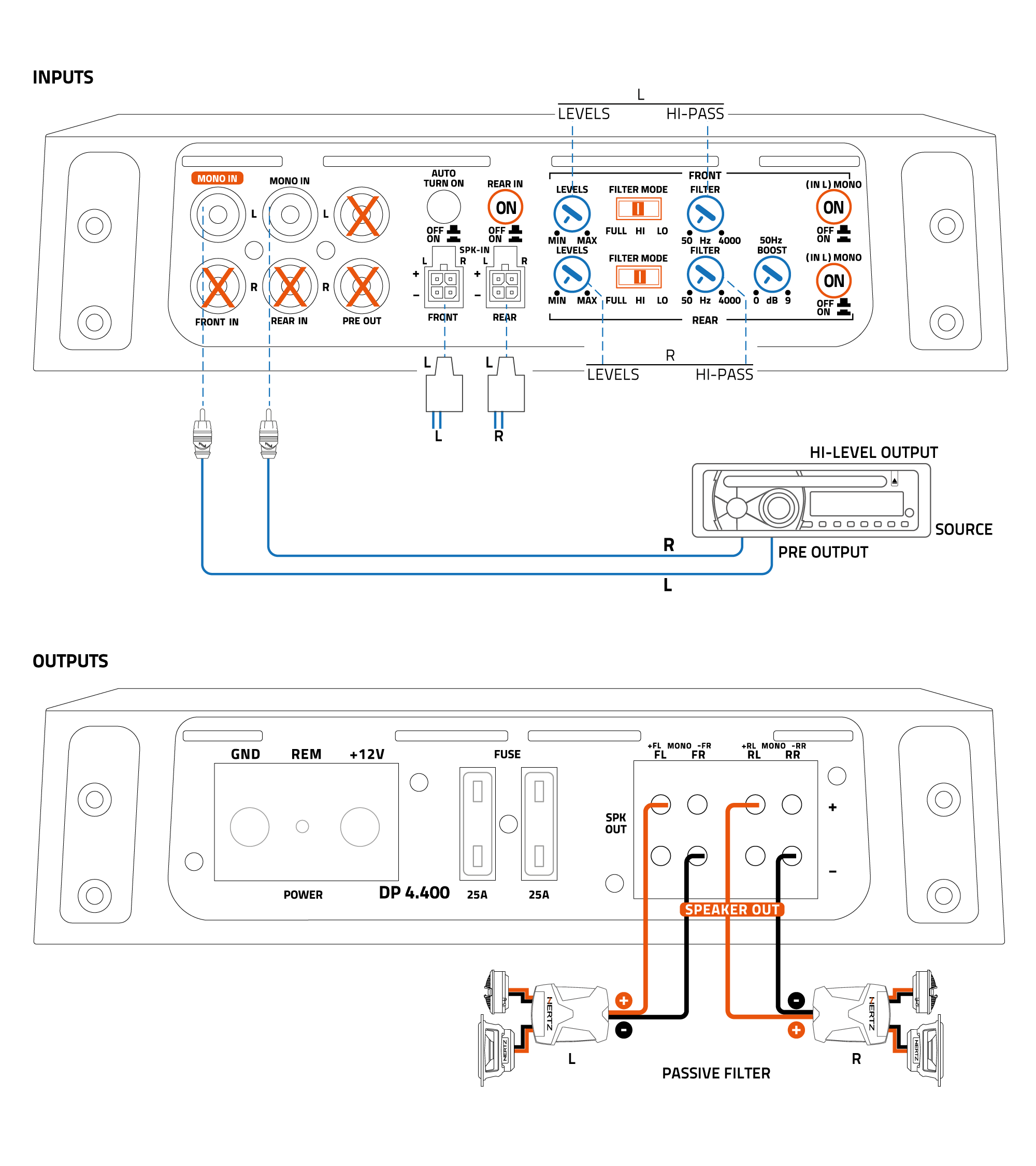

2Ch - LEFT / RIGHT - DP-4.400
