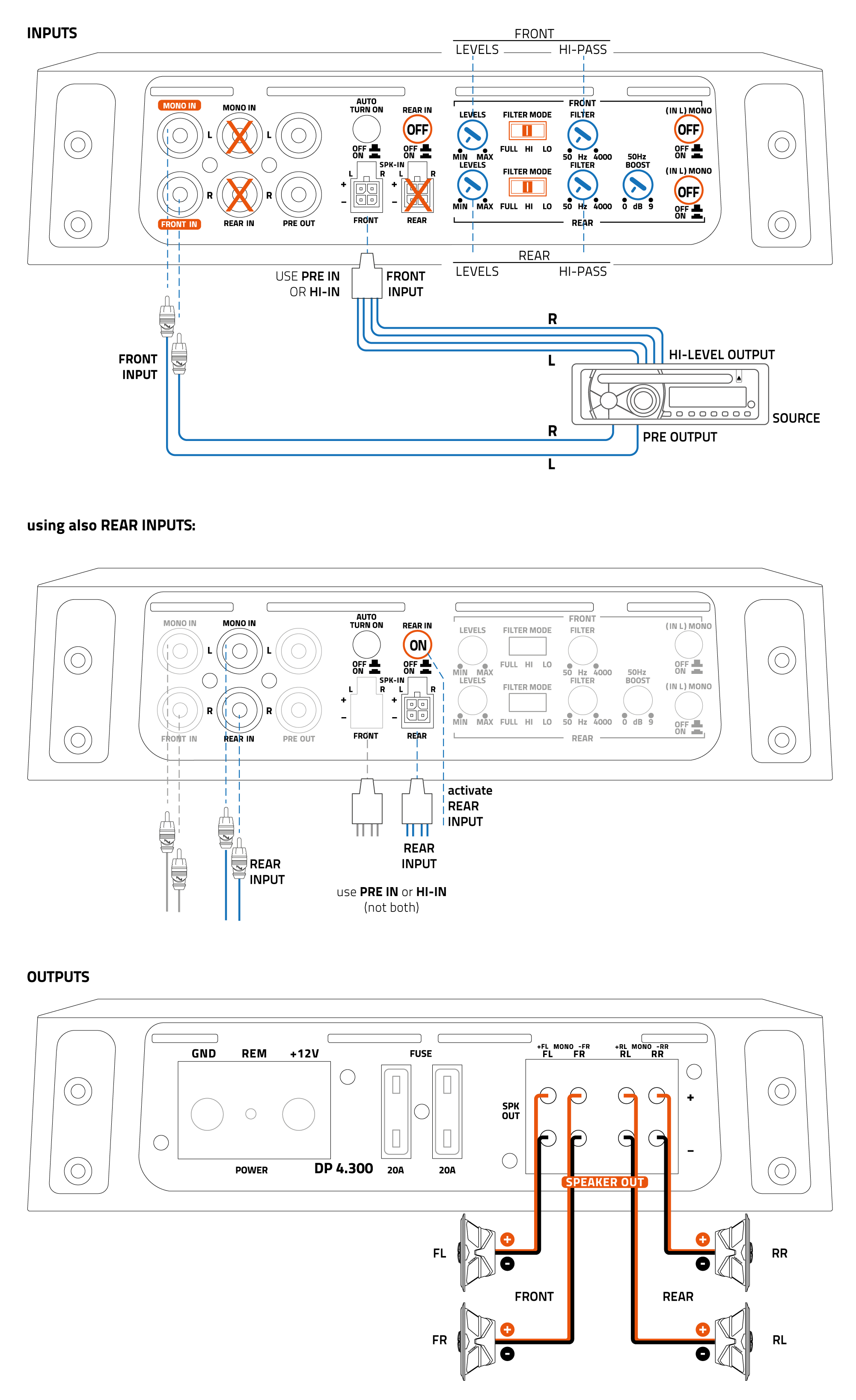

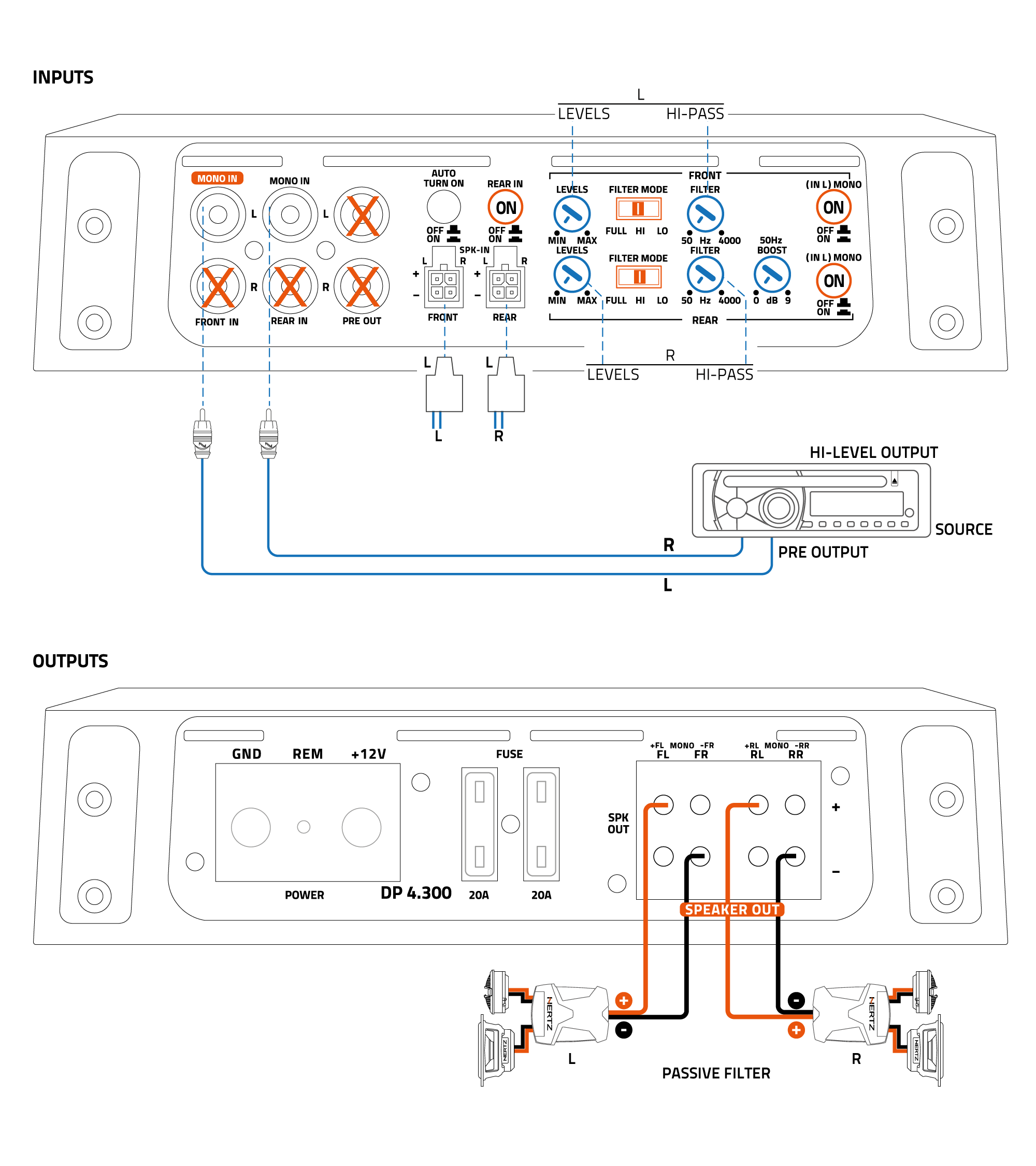

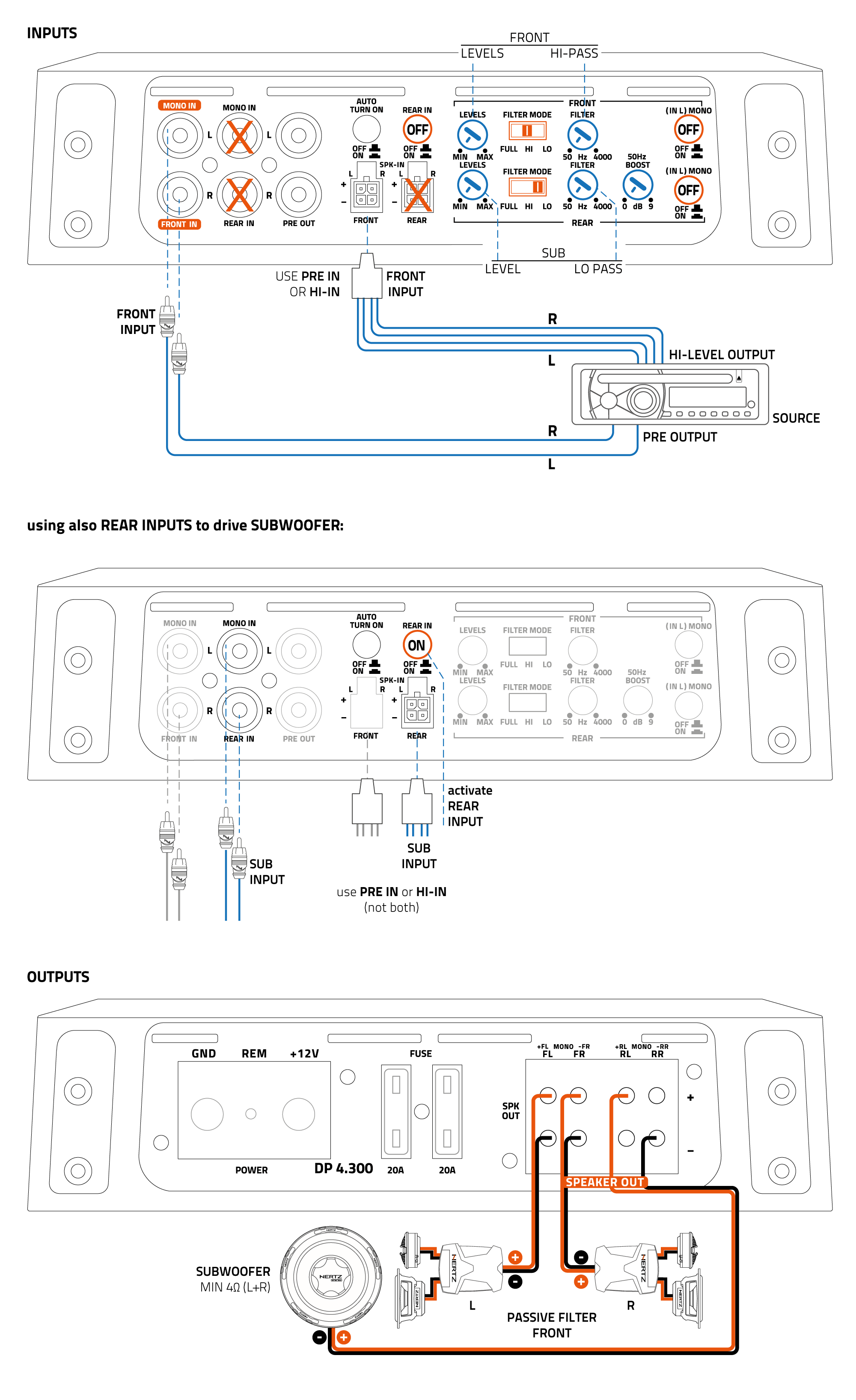

6. INSTALLATION EXAMPLES Leonardo Doffo 02 February 2024 09:47 Updated 4Ch - FRONT + REAR - DP-4.300 3Ch - FRONT + SUB - DP-4.300 2Ch - LEFT / RIGHT - DP-4.300 Related articles 7. BLOCK DIAGRAMS 4. INPUT / OUTPUT CONNECTION 2. INSTALLAZIONE E MISURE 1. PACKAGING CONTENT 5. CONTROLS
