6. INSTALLATION EXAMPLES

Leonardo Doffo

31 January 2024 16:56 Updated

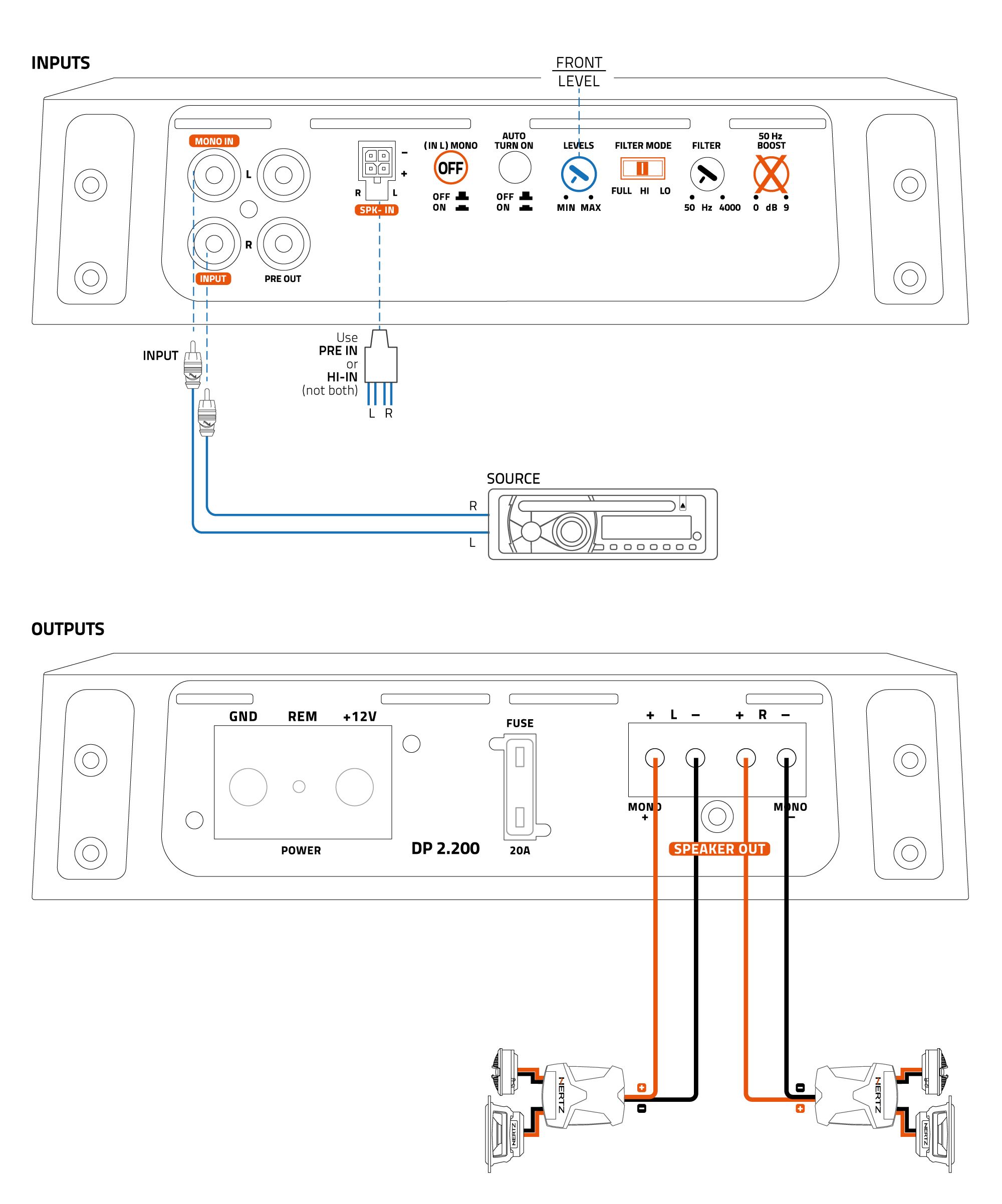

2Ch - FRONT L R - DP 2.200

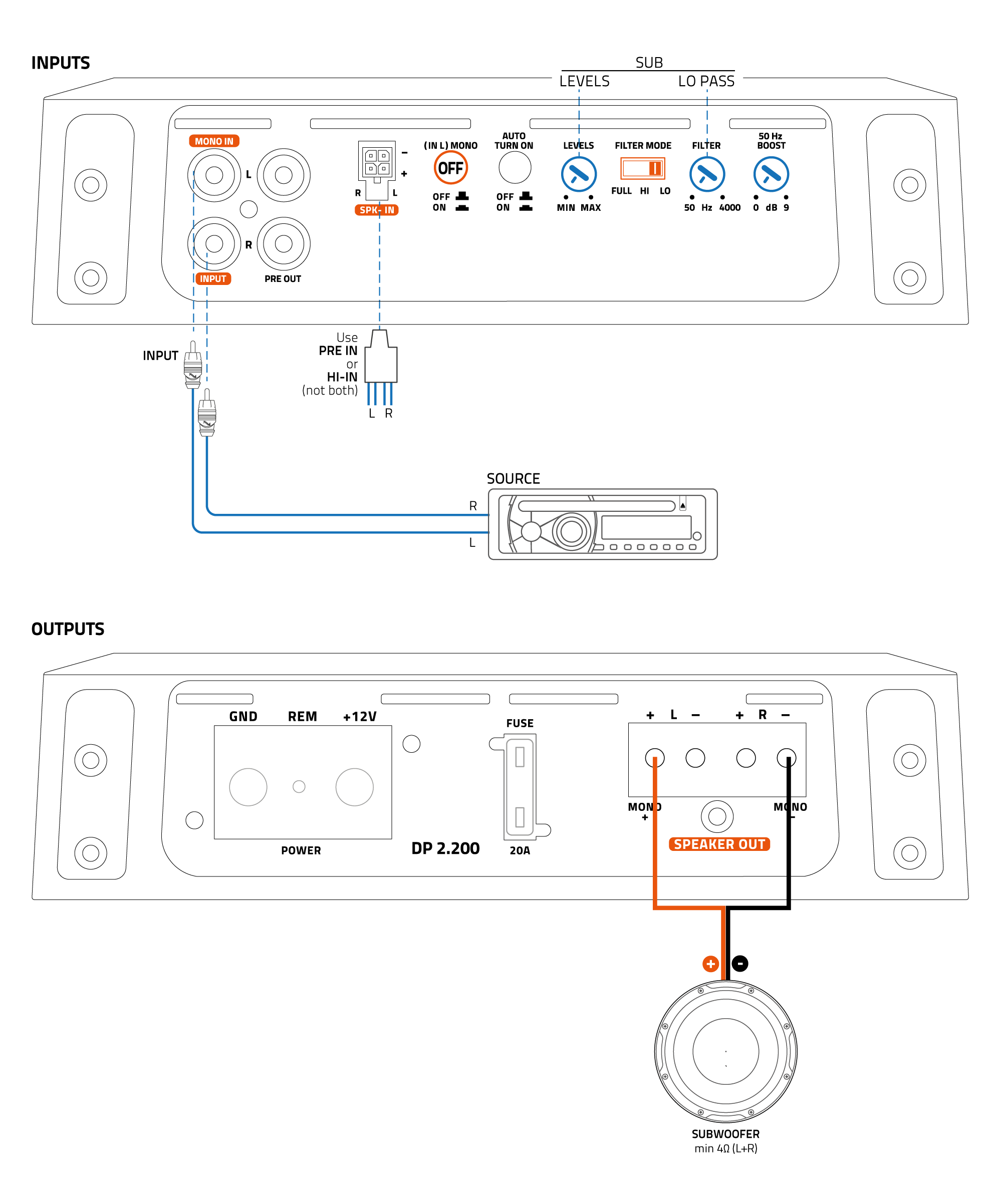

1Ch - SUBWOOFER-L+R - DP 2.200

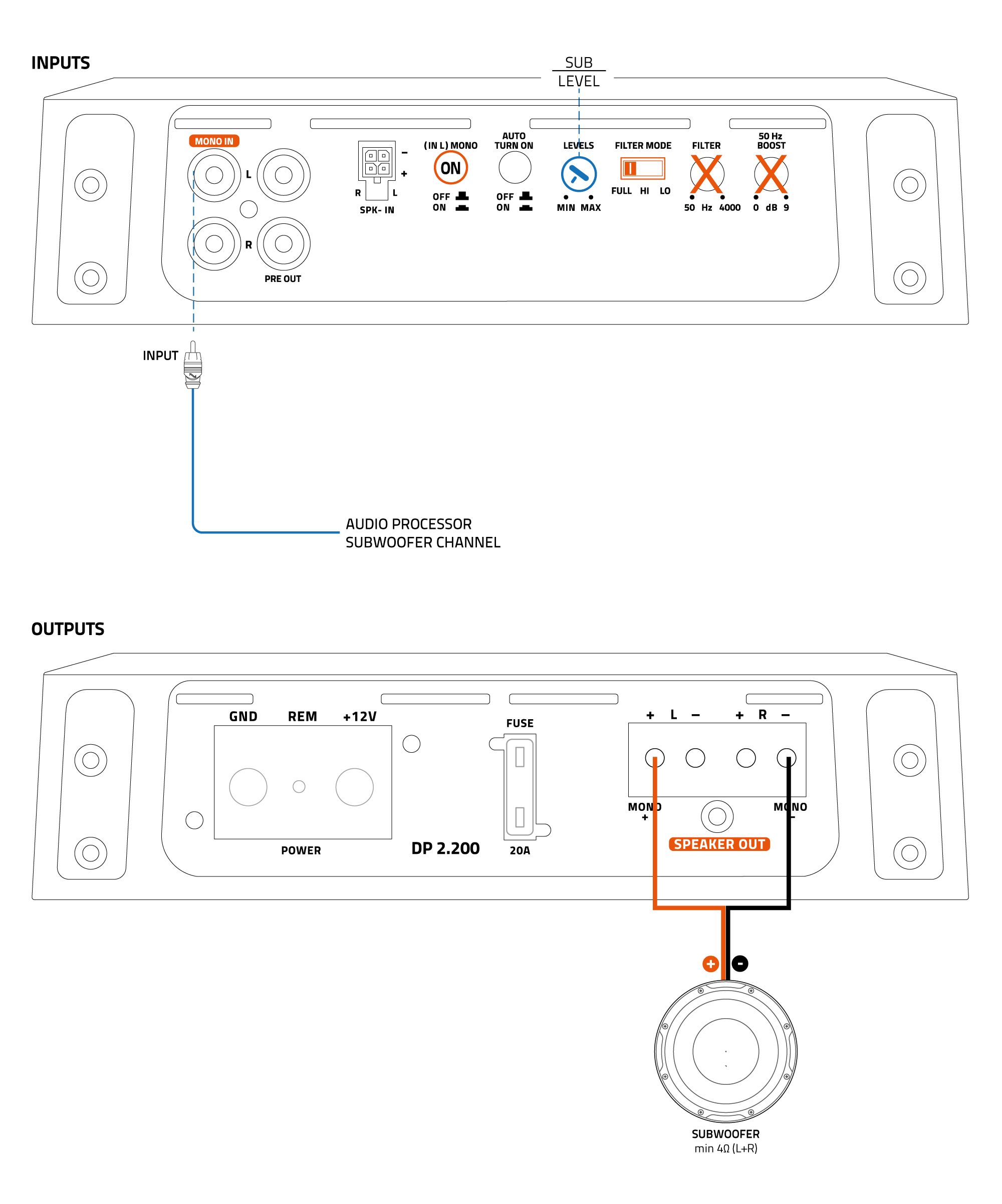

1Ch - SUBWOOFER MONO INPUT - DP 2.200
