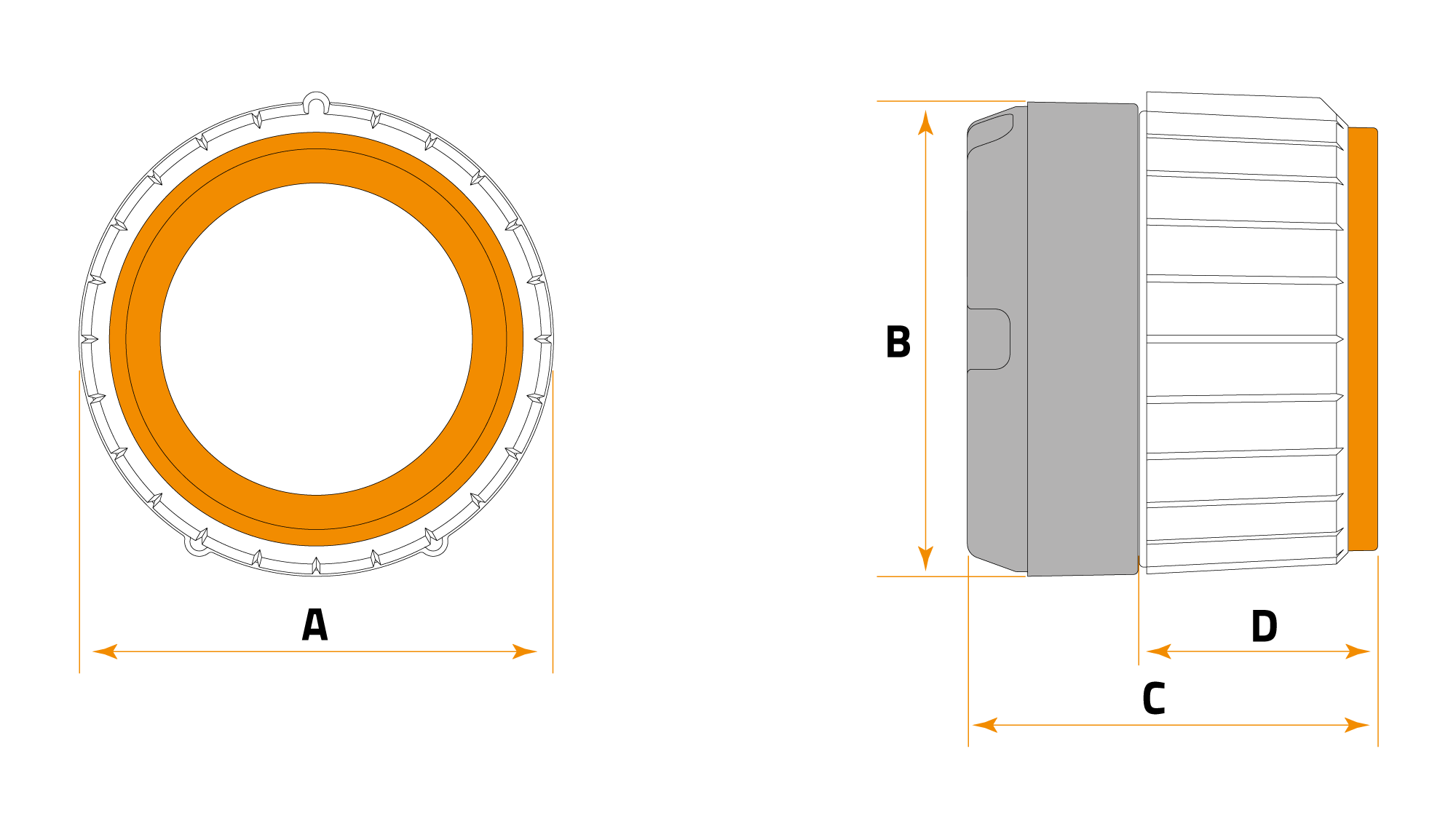

TOP-MOUNT

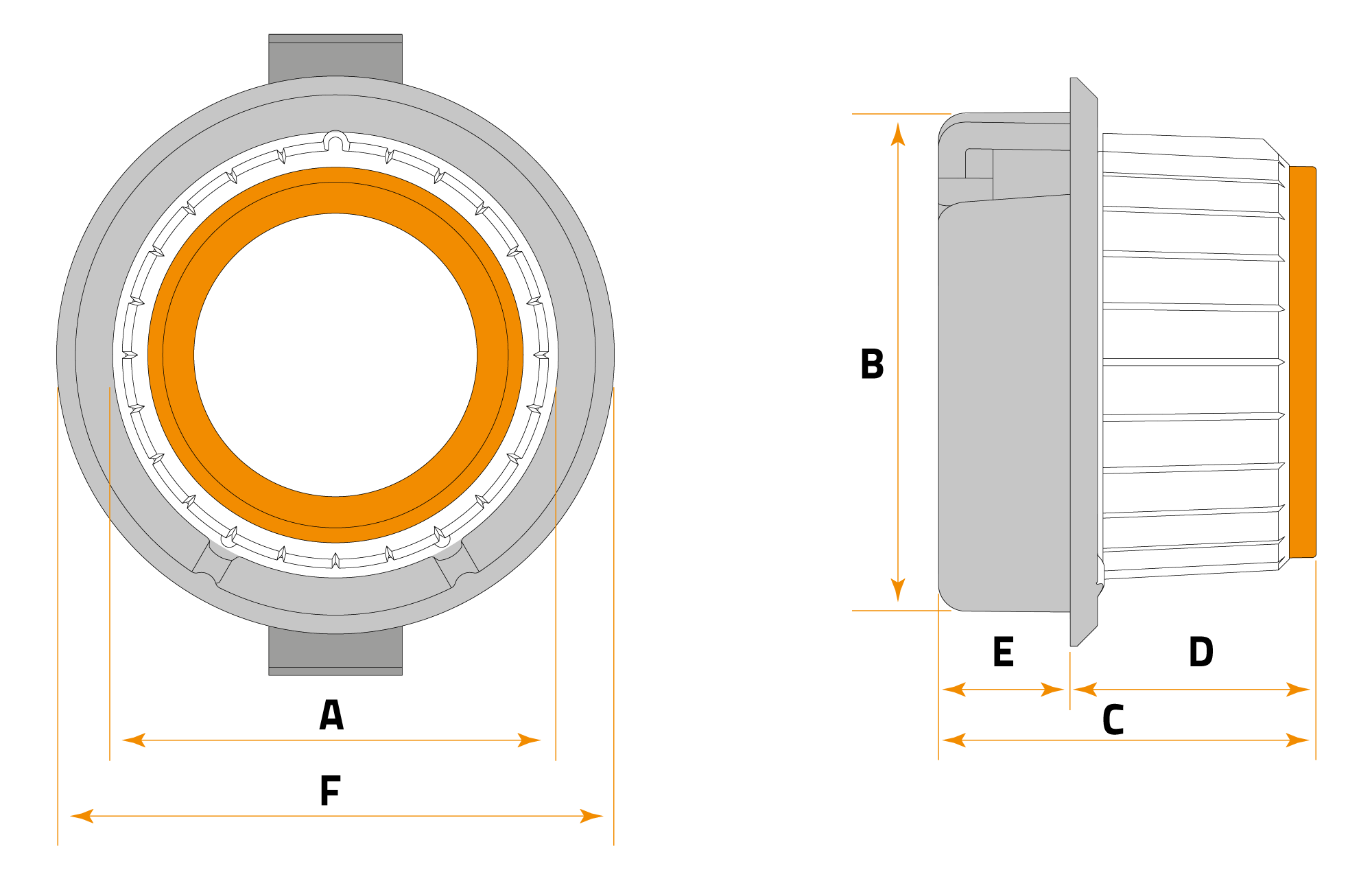

RECESSED MOUNT
| A | B | V | D | E | F | ||
|
HRC 02 |
32 | 32.3 | 27.9 | 16.3 | - | - | mm |
| 1.26 | 1.27 | 1.1 | 0.64 | - | - | in. | |
| HRC 02 RECESSED MOUNT |
32 | 36.8 | 27.8 | 18.1 | 9.7 | 41.8 | mm |
| 1.26 | 1.45 | 1.09 | 0.71 | 0.38 | 1.65 | in. |
2. DIMENSION
| A | B | V | D | E | F | ||
|
HRC 02 |
32 | 32.3 | 27.9 | 16.3 | - | - | mm |
| 1.26 | 1.27 | 1.1 | 0.64 | - | - | in. | |
| HRC 02 RECESSED MOUNT |
32 | 36.8 | 27.8 | 18.1 | 9.7 | 41.8 | mm |
| 1.26 | 1.45 | 1.09 | 0.71 | 0.38 | 1.65 | in. |
