8.1 BASIC OPERATION
|
WARNING: when the unit is turned on, starting and stopping the engine with its volume |
|
| raised to the maximum level may cause hearing damage. Make sure you adjust the volume in advance. | |
■ 8.1.1 Power On/Off
Note:
- Start the engine before using this unit.
- Be careful about using this unit for a long time without running the engine. If you drain the vessel battery, you may not be able to start the engine and this can reduce the service life of the battery.
1. Start the engine.
|
Engine ON position |
2. Press / SCR to turn the unit ON.
3. Press / SCR to access the SOURCE SELECTION menu.
4. Rotate KNOB to highlight the desired source, press to select.

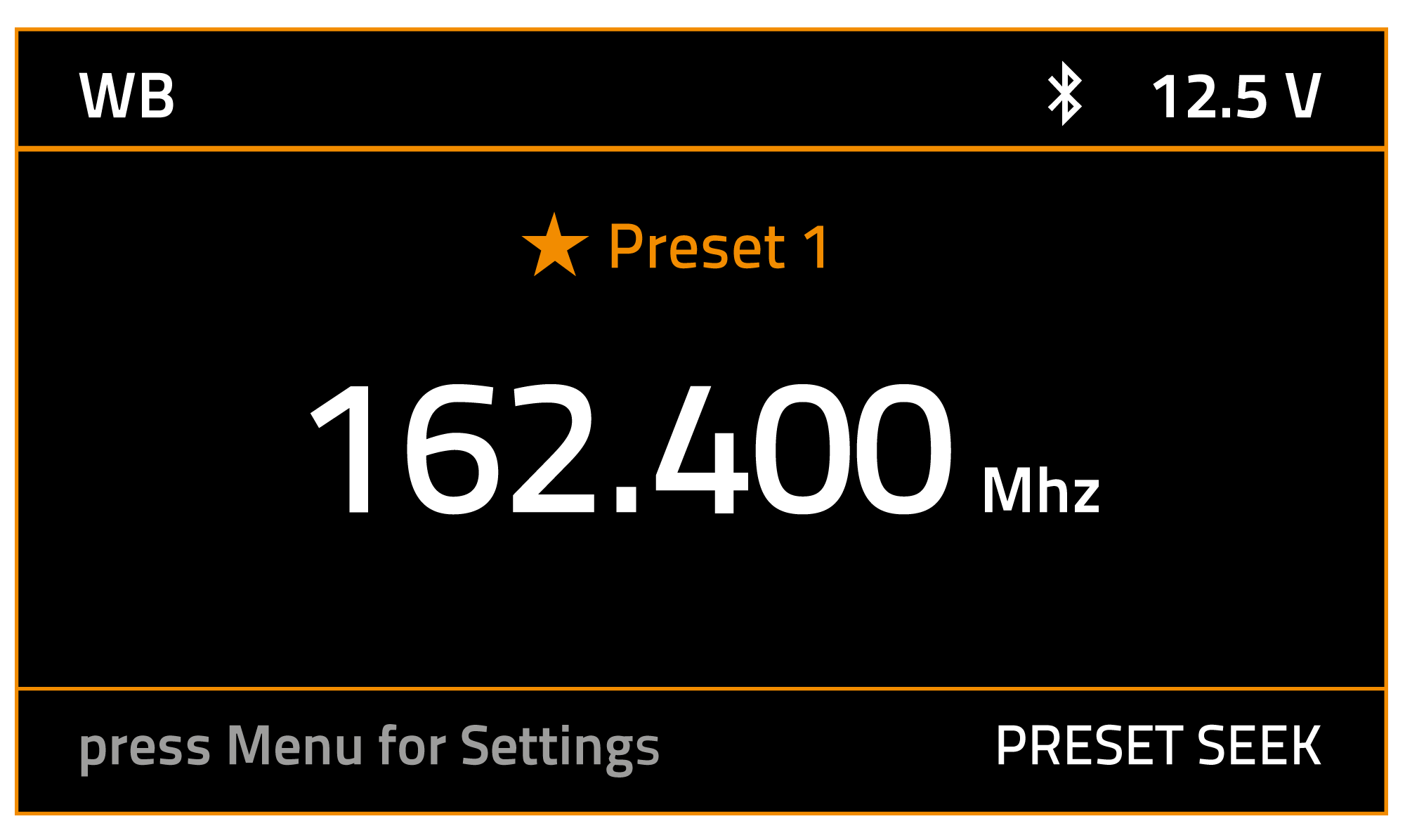

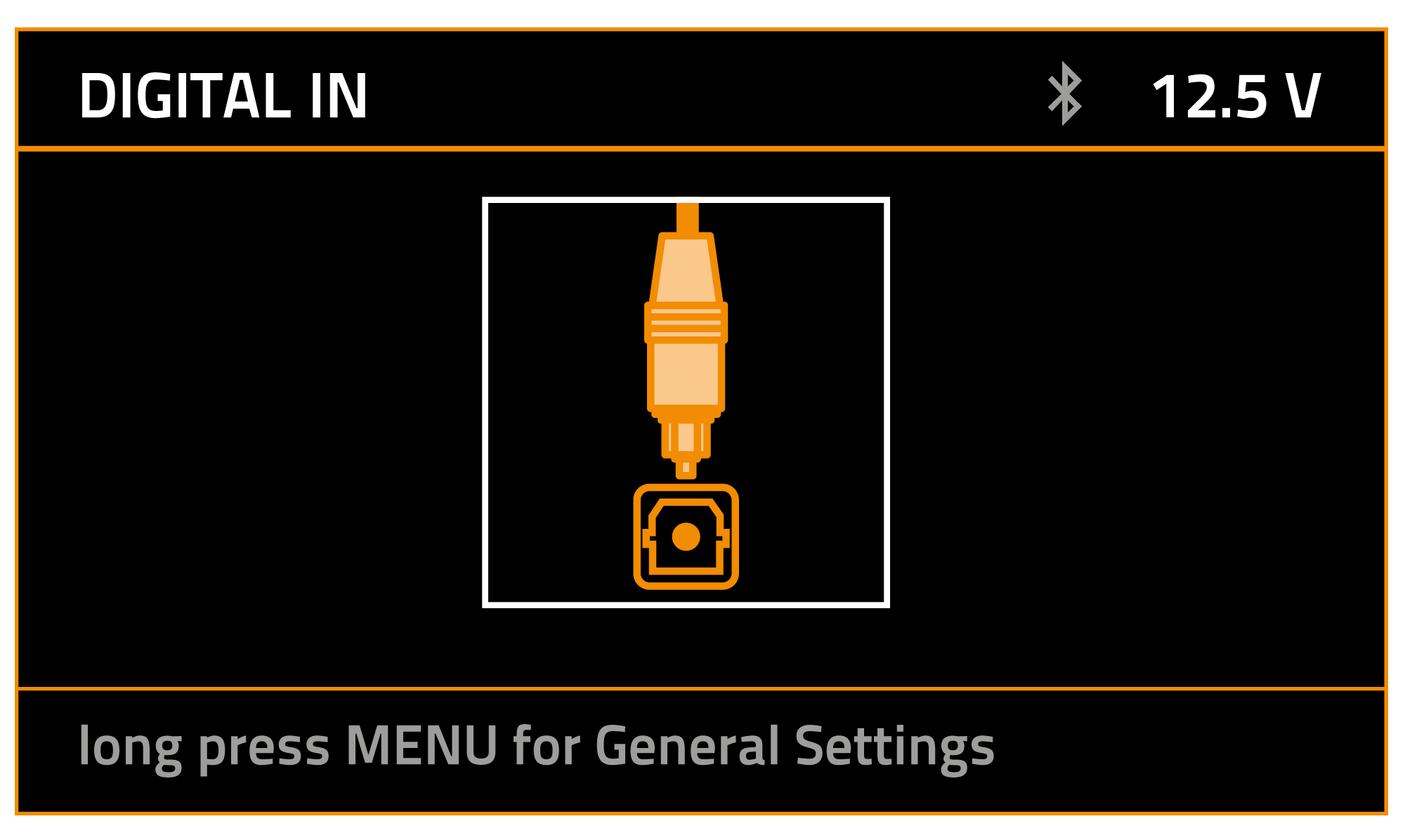

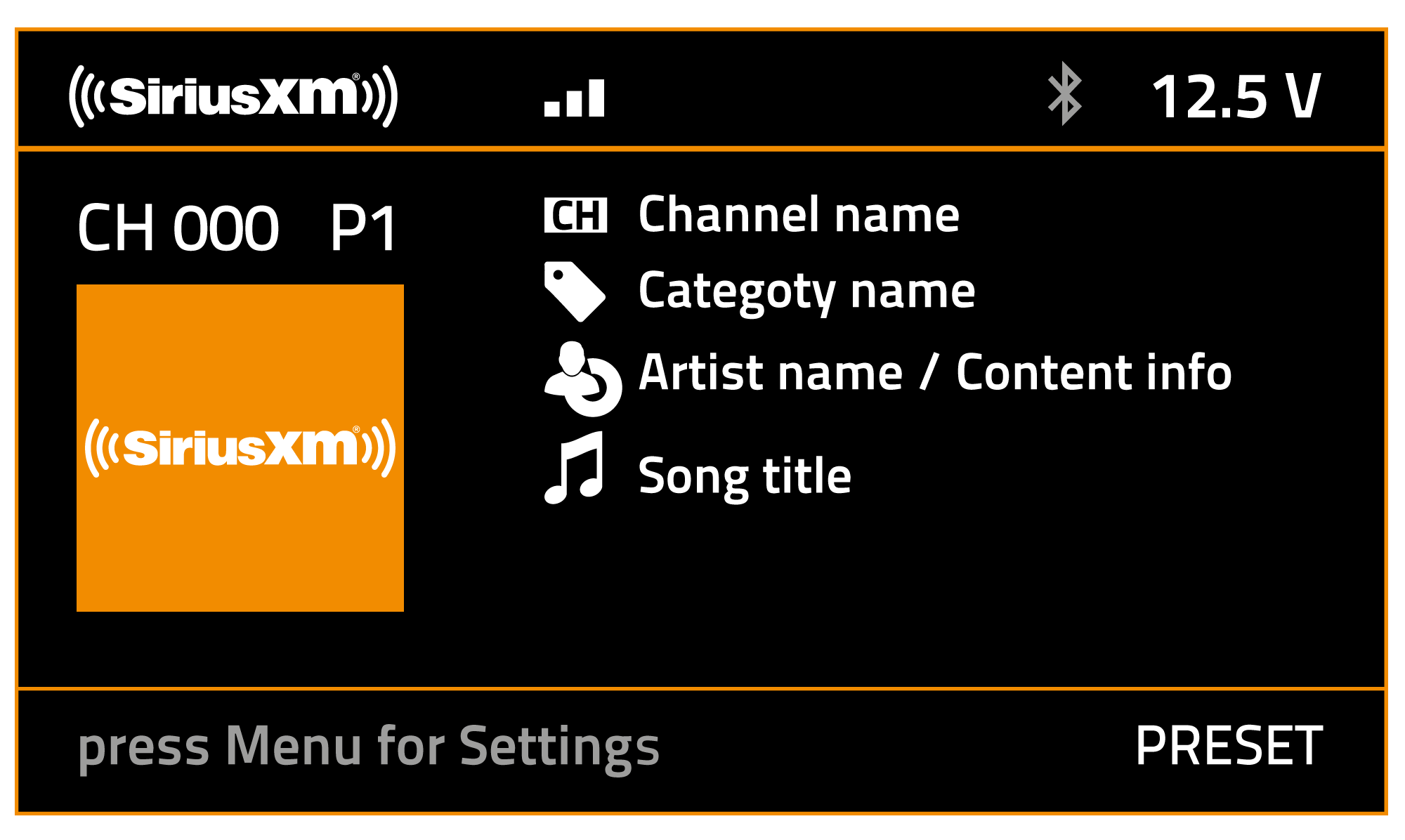

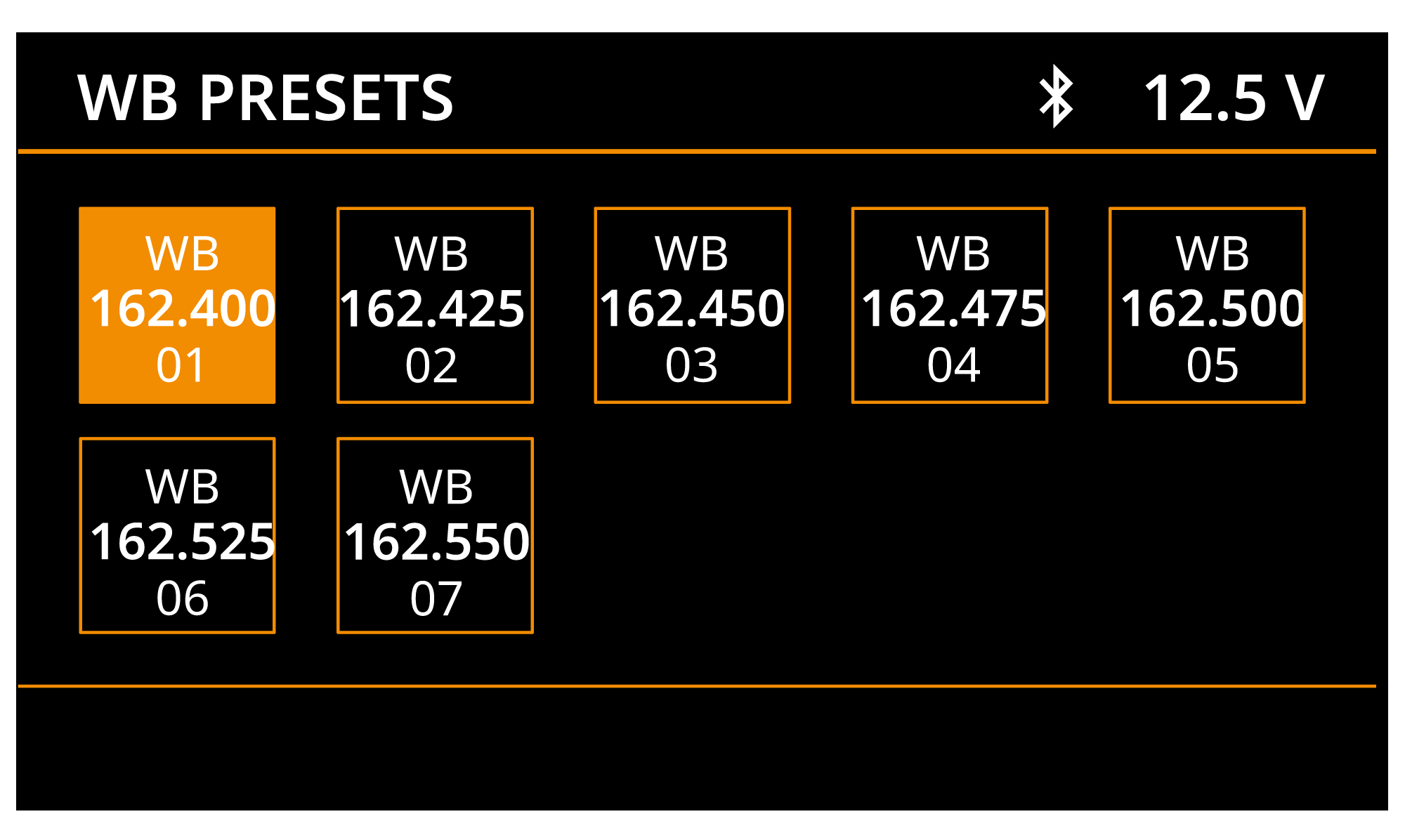

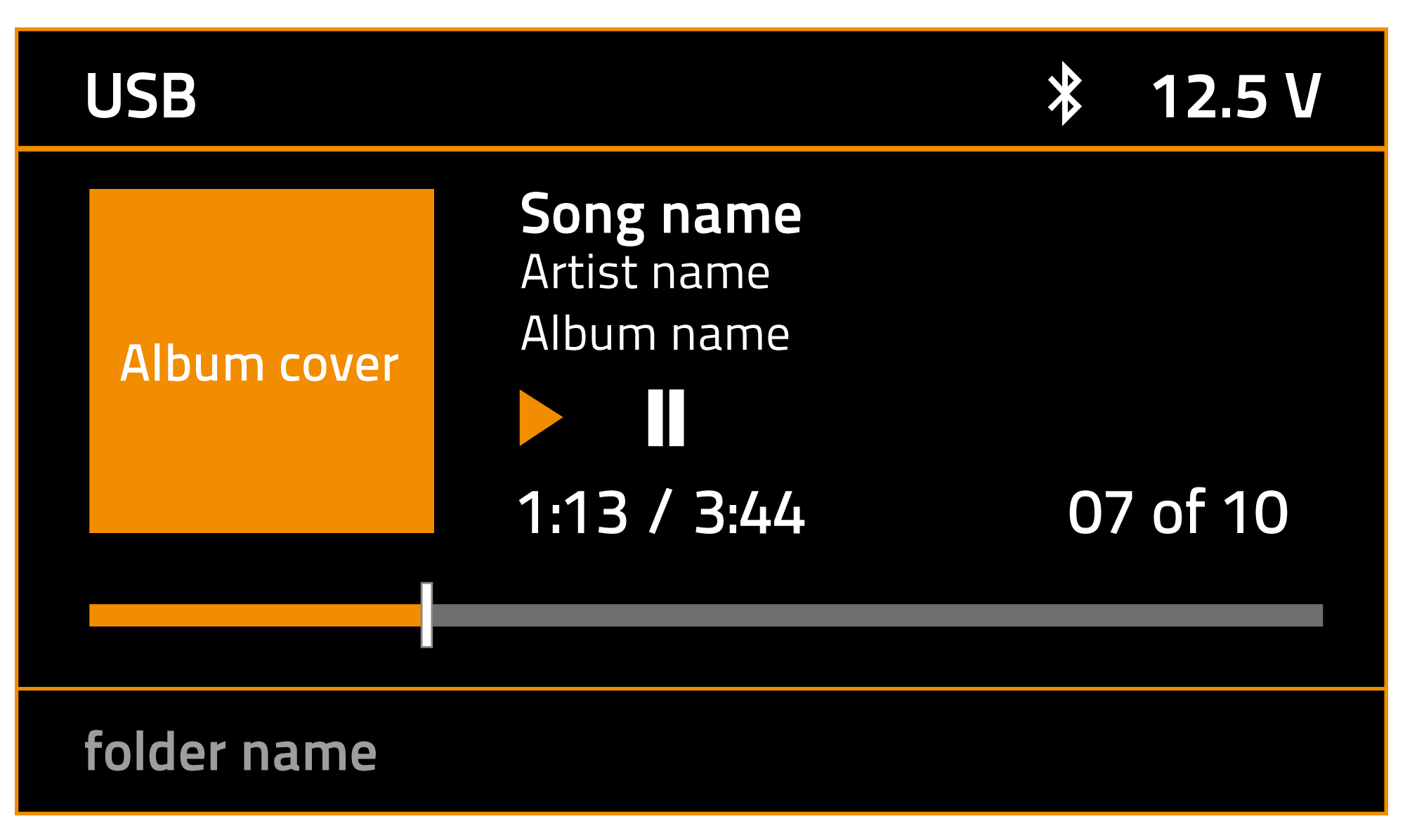

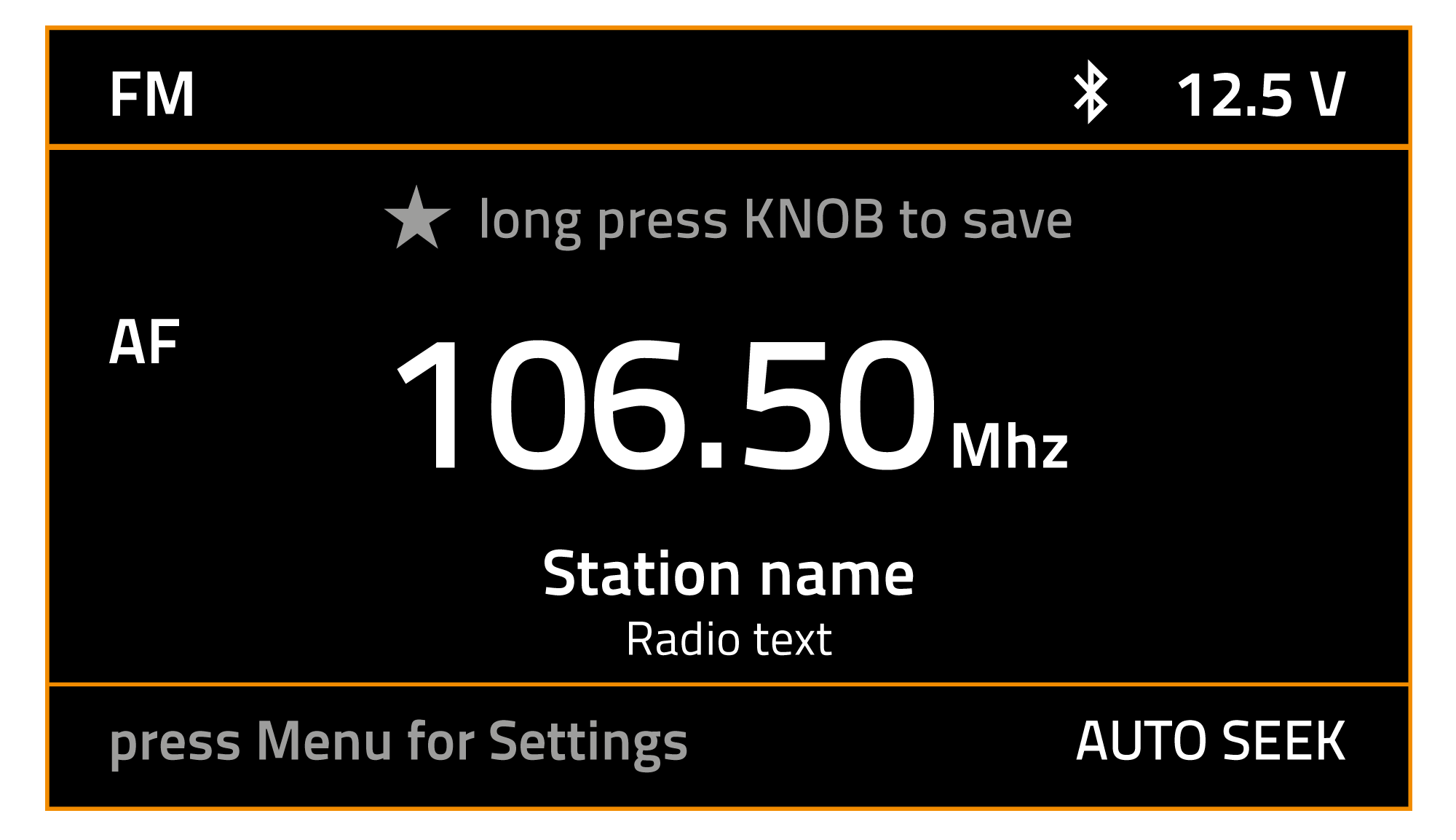

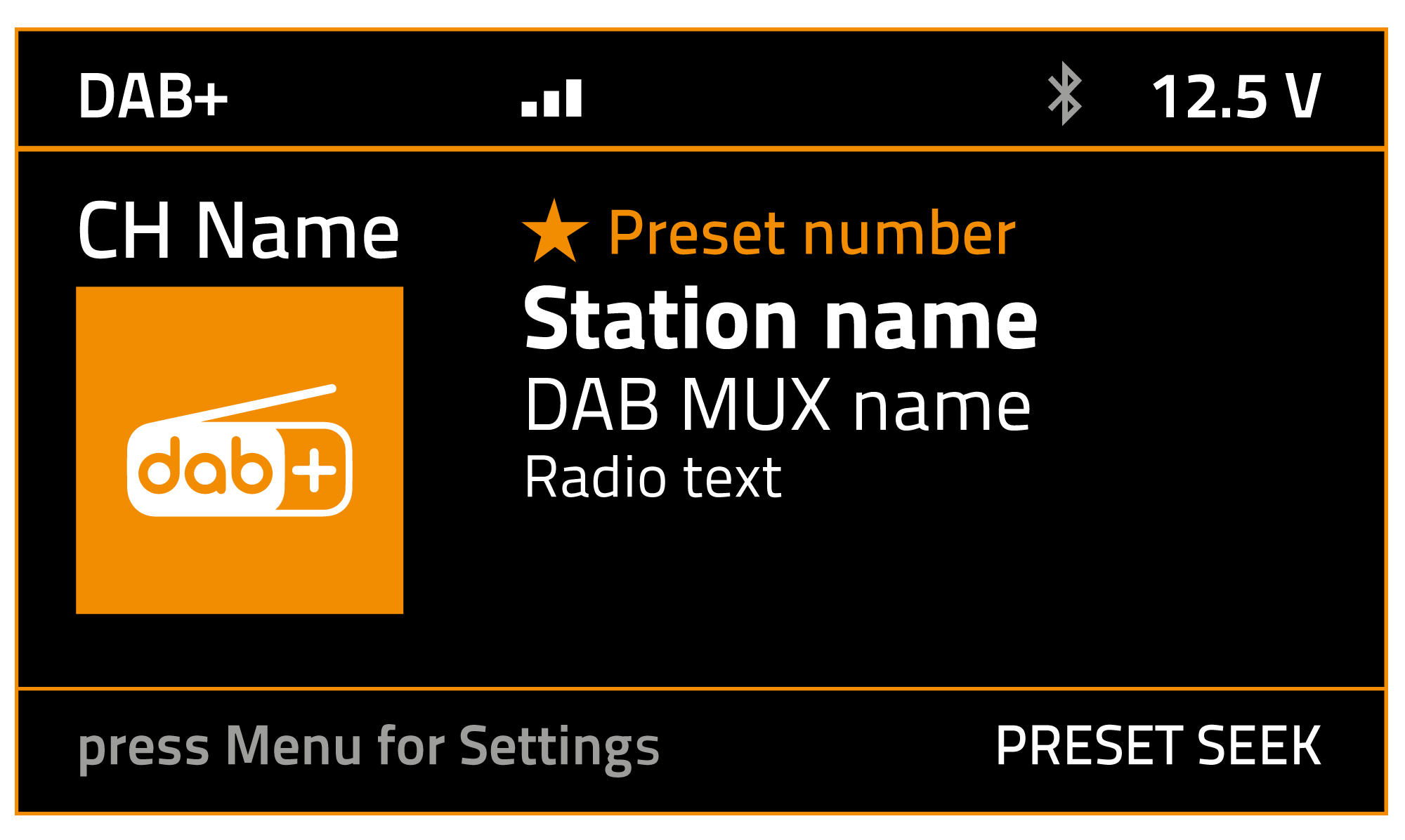

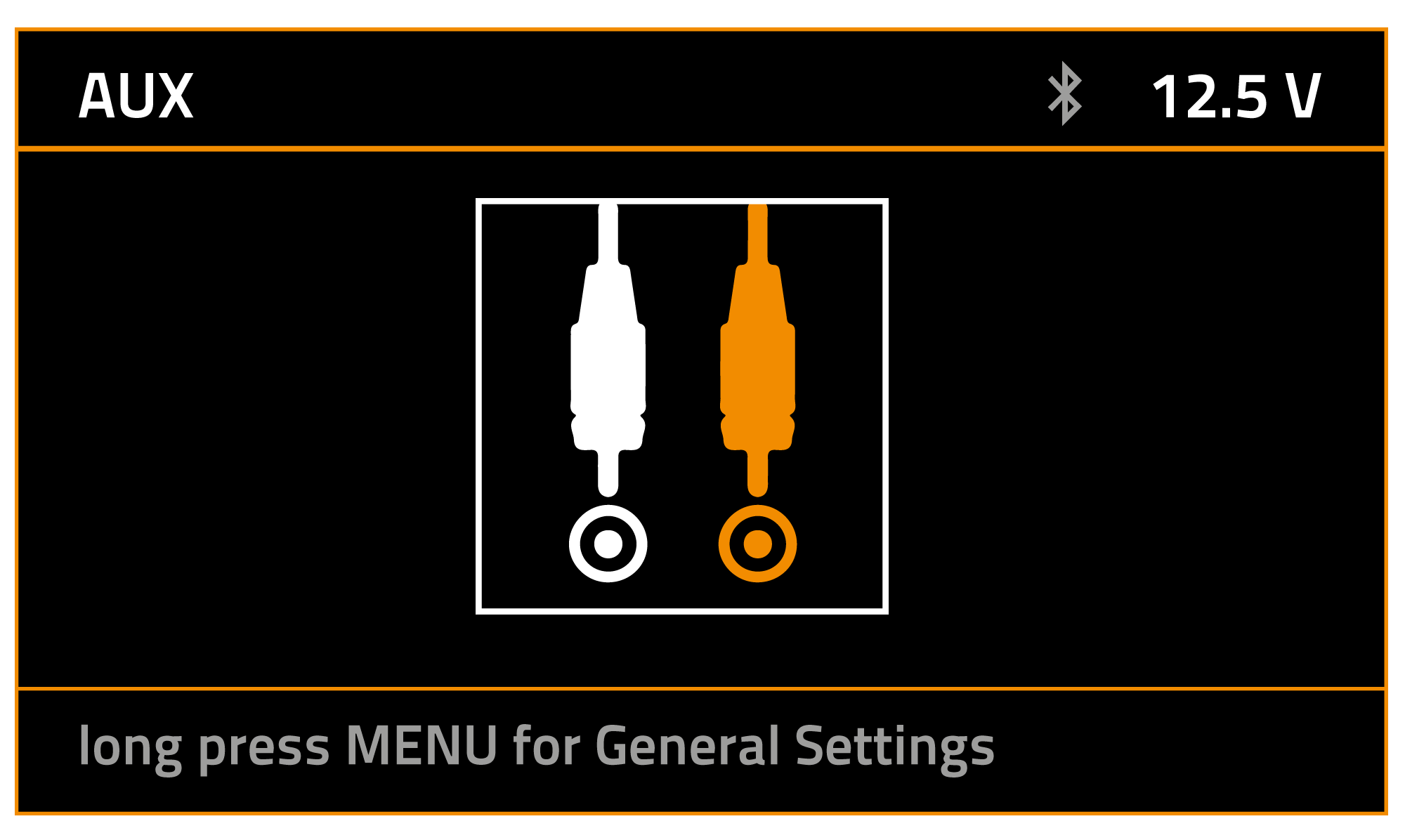

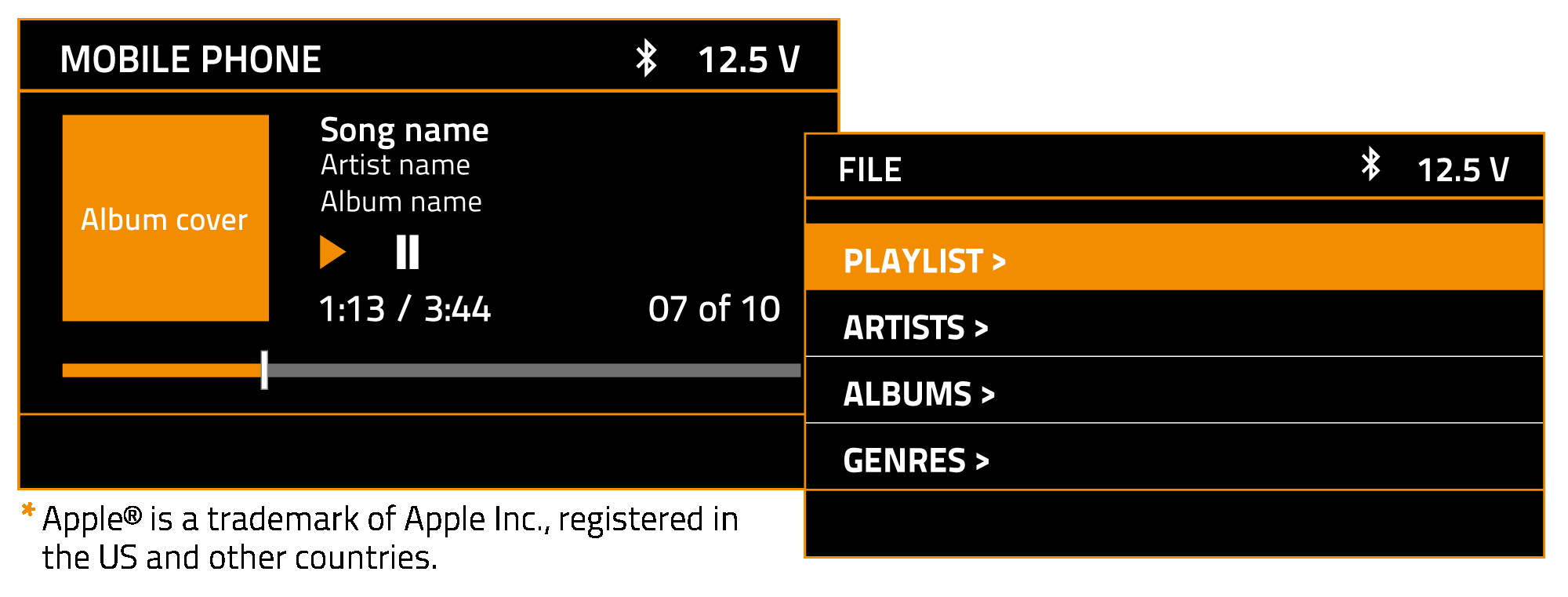

(FM>AM>WB>USB>BT>SXM-DAB>AUX>VIDEO IN>DIGITAL IN.

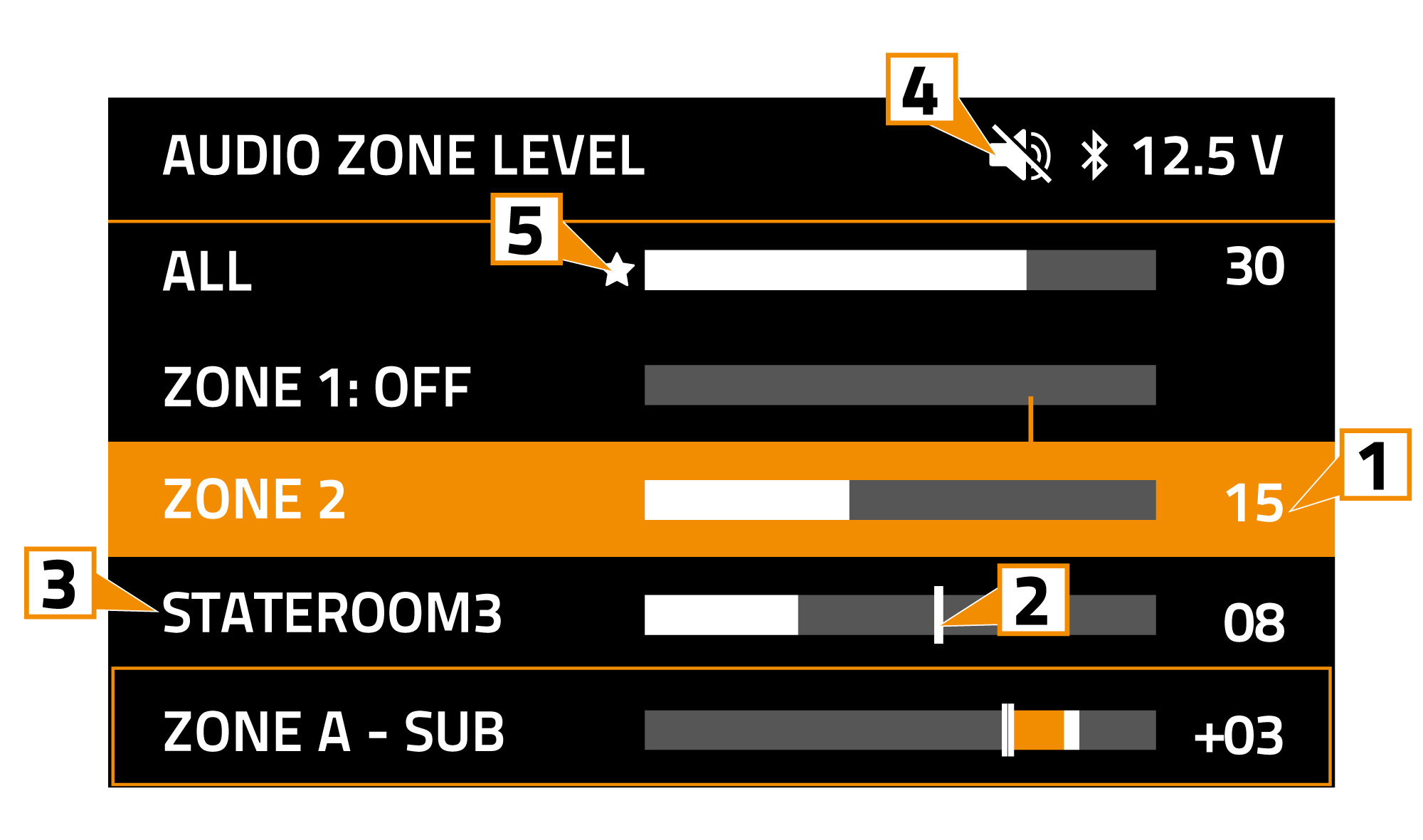

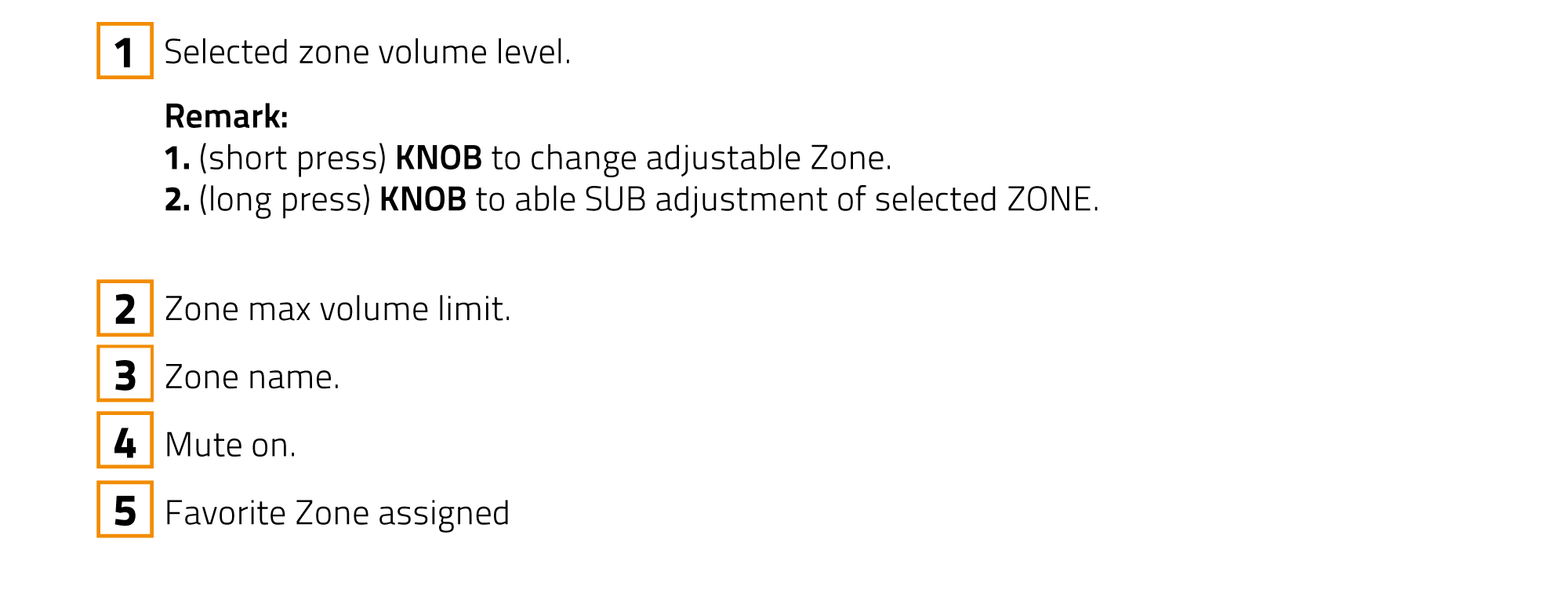

■ 8.1.2 Adjusting the volume
Rotate KNOB to increase or decrease the volume.
The adjustable range of volume is from 0 to 40.
- The volume of each Zone and Zone Sub relative level are adjustable separately in AUDIO ZONE LEVEL menu.
- Sub volume is adjustable relative level range is from -30 to +10
| WARNING: while boating, keep the volume at a level at which external sounds can still be heard. | |
|
Please be aware of the volume levels in residential, public areas and local volume level ordinances. |
|
8.2 SETTINGS
■ 8.2.1 System Setting Menu
- Long press to access the general settings menu.
- Rotate KNOB to highlight one of the available options, press to select.
BLUETOOTH DEVICE> DISPLAY> AUDIO> TUNER REGION>SOURCES> POWER MANAGEMENT> HMC U1 MANAGEMENT> SYSTEM).
- Press to go back to the previous screen menu.
- Long press to exit from general settings menu.
■ 8.2.2 Bluetooth Device
- Rotate KNOB to highlight one of the available options, press to select
(DEVICE NAME > SELECT DEVICE > REMOVE DEVICE).
DEVICE NAME (to create a desired name to display on connected Bluetooth device).
Use KNOB to enter a desired name for this device (max 10 characters).
SELECT DEVICE (to connect or disconnect a Bluetooth device from the list of paired device).
1. Rotate KNOB to select a Bluetooth device to connect or disconnect.
2. Press KNOB to connect or disconnect a Bluetooth device selected.
Remark: will appear next to the name of the connected Bluetooth device.
REMOVE DEVICE (to remove a Bluetooth device from the list of paired device)
1. Rotate KNOB to select the Bluetooth device to remove.
2. Press KNOB to remove the Bluetooth device selected.
■ 8.2.3 Display
- Rotate KNOB to highlight one available option, press to selector to enable or disable
this function.
(DIMMER > DIMMER BRIGHTNESS > TEXT SCROLLING).
DIMMER
Press KNOB to enable or disable
this function.
Remark: CAPRI H100 is equipped with a specific function that allows to enable/disable DIMMER function via an external command provided by the user, through the “DIMMER TRIGGER” wire (orange/white) on the back of the head unit.
When + 12Vdc voltage is applied to the “DIMMER TRIGGER” wire, the head unit enable dimmer function. When + 12Vdc voltage is removed from this control wire, the head unit disable dimmer function
DIMMER BRIGHTNESS
- Rotate KNOB to highlight one of the available options, press to select.
(DIMMER SCREEN>DIMMER BUTTONS)
SCREEN BRIGHTNESS
Press KNOB to switch between the options:
DIMMER ON: rotate KNOB to adjust the screen brightness level from 1 to 10 when dimmer is enabled.
DIMMER OFF: rotate KNOB to adjust the screen brightness level from 11 to 20 when dimmer is disabled.
BUTTONS BRIGHTNESS
Press KNOB to switch between the options:
DIMMER ON: rotate KNOB to adjust the buttons brightness level from 1 to 10 when dimmer is enabled.
DIMMER OFF:rotate KNOB to adjust the buttons brightness level from 11 to 20 when dimmer is disabled.
TEXT SCROLLING (to enable continuous text scrolling where available)
Press KNOB to enable or disable
this function.
■ 8.2.4 Audio
- RotateKNOB to highlight one available option, press to selector to enable or disable
this function.
(GENERAL AUDIO SETTINGS > ZONE AUDIO SETTINGS).
GENERAL AUDIO SETTINGS
- Rotate KNOB to highlight one available option, press to select or to enable disable a function.
(INTERNAL AMP ON > PHONE VOLUME SYNC > KEEP VOLUME RATIOS > BEEP).
INTERNAL AMP ON (to enable or disable speaker output amplifier stage)
Press KNOB to enable or disable
this function.
PHONE VOLUME SYNC (to synchronize the volume level on specific zone or all with the Bluetooth device connected)
Press KNOB and rotate to highlight one of the available options, press to select.
(ALL > ZONE 1 > ZONE 2 > ZONE 3 > ZONE 4).
KEEP VOLUME RATIOS (to maintain the volume difference between zones when you adjust the main volume to 00)
Press KNOB to enable or disable
this function..
BEEP
Press KNOB to enable or disable
this function.
ZONE AUDIO
- Rotate KNOB to highlight one available option, press to select.
(ZONE 1 > ZONE 2 > ZONE 3 > ZONE 4 > AUDIO ZONE GROUPS > ASSIGN FAVORITE ZONE)
ZONE 1 (ZONE 1 and DIGITAL COAXIAL settings).
- RotateKNOB to highlight one available option, press to selector to enable or disable
this function.
(ZONE RENAME > EQUALIZER > BALANCE > LOUDNESS > CROSSOVER (HPF) > SUBWOOFER > MAX VOLUME LIMIT > POWER ON VOLUME LIMIT > LEVEL CONTROL MODE)
ZONE RENAME (to create a desired name for this audio zone, to facilitate identification).
Use KNOB to enter a desired name for this audio zone (max 10 characters).
EQUALIZER (Equalizer Setting)
- Rotate KNOB to select one of the available options.
(FLAT > CLASSIC > JAZZ > POP > ELECTRONIC > HIP-HOP > ROCK > USER)
The “USER” equalization can be customizable by the user
- Rotate KNOB to select “USER” equalization.
- Press KNOB to select the desired frequency.
- Rotate KNOB to adjust the level (from +12 to -12) of the selected frequency
- Press the KNOB again to move to the next frequency.
BALANCE (to adjust the right and left output balance of this zone)
- Rotate KNOB to adjust the balance between the right and left audio output from R12 (full right) to L12 (full left)
LOUDNESS (to compensate for deficiencies in the low/high frequencies at low volume level)
- Press KNOB to enable or disable
this function.
CROSSOVER (HPF) (to set the high pass cutoff filter frequency for ZONE 1 L/R and DIGITAL COAXIAL).
- Rotate the KNOB to highlight the desirer value (60Hz > 80Hz > 100Hz > FULL), press to select.
SUBWOOFER (ZONE 1 SUB settings)
- Rotate KNOB to highlight one of the available options, press to select
(SUBW VOLUME LEVEL > SUBW CROSSOVER (LPF) > SUBW POLARITY)
SUBW VOLUME LEVEL
- Rotate KNOB to adjust the level from -30 to +10.
SUBW CROSSOVER (LPF) (to set SUB the low pass filter)
- Rotate KNOB to highlight one available option, press to select:
(FREQUENCY>SLOPE).
FREQUENCY (to set the SUB low pass cutoff filter frequency)
Rotate the KNOB to highlight the desired value (60Hz>80Hz>100Hz>FULL), press to select.
SLOPE (to set the SUB low pass filter slope)
Rotate the KNOB to highlight the desired value (-12dB/oct>-24dB/oct), press to select.
SUBW POLARITY (to set the SUB phase)
- Rotate the KNOB to highlight ( 0° or 180°), press to select.
MAX VOLUME LIMIT (to limit the maximum volume output of this zone).
- Rotate KNOB to adjust the desired Volume level limit from 0 to 40.
POWER ON VOLUME LIMIT (to limit the maximum volume level of this zone when the head unit is turned ON).
- Rotate KNOB to adjust the desired Volume level upon turn on from 0 a 40.
LEVEL CONTROL MODE
Rotate KNOB to highlight one of the available options, press to select:
- VARIABLE (default): the volume level of the signal output from this audio zone is variable and can be controlled via the volume mixer (AUDIO ZONE LEVEL).
- FIXED @4Vrms: the level of the output signal from this audio zone is fixed at 4Vrms. It will no longer be possible to change the volume level for this zone until the “Variable” mode is selected.
Remark: in this mode, the DIGITAL COAXIAL RCA output is set to 0dBFS
- FIXED @2Vrms: the level of the output signal from this audio zone is fixed at 2Vrms.
It will no longer be possible to change the volume level for this zone until the “Variable” mode is selected.
Remark: in this mode, the DIGITAL COAXIAL RCA output is set to -6dBFS
- FIXED @1Vrms: the level of the output signal from this audio zone is fixed at 1Vrms.
It will no longer be possible to change the volume level for this zone until the “Variable” mode is selected.
Remark: in this mode, the DIGITAL COAXIAL RCA output is set to -12dB
- OFF: this audio zone is off. This zone will no longer play any sound until “Variable” or “Fixed” mode is selected
ZONE 2 (ZONE 2 settings).
- RotateKNOB to highlight one available option, press to selector to enable or disable
this function.
(ZONE RENAME > EQUALIZER > BALANCE > LOUDNESS > CROSSOVER (HPF) > SUBWOOFER > MAX VOLUME LIMIT > POWER ON VOLUME LIMIT > LEVEL CONTROL MODE)
ZONE RENAME (to create a desired name for this audio zone, to facilitate identification).
Use KNOB to enter a desired name for this audio zone (max 10 characters).
EQUALIZER (Equalizer Setting)
- Rotate KNOB to select one of the available options.
(FLAT > CLASSIC > JAZZ > POP > ELECTRONIC > HIP-HOP > ROCK > USER)
The “USER” equalization can be customizable by the user
- Rotate KNOB to select “USER” equalization.
- Press KNOB to select the desired frequency.
- Rotate KNOB to adjust the level (from +12 to -12) of the selected frequency
- Press the KNOB again to move to the next frequency.
BALANCE (to adjust the right and left output balance of this zone)
- Rotate KNOB to adjust the balance between the right and left audio output from R12 (full right) to L12 (full left)
LOUDNESS (to compensate for deficiencies in the low/high frequencies at low volume level)
- Press KNOB to enable or disable
this function.
CROSSOVER (HPF) (to set the high pass cutoff filter frequency for ZONE 2 L/R).
- Rotate the KNOB to highlight the desirer value (60Hz > 80Hz > 100Hz > FULL), press to select.
SUBWOOFER (ZONE 2 SUB settings)
- Rotate KNOB to highlight one of the available options, press to select
(SUBW VOLUME LEVEL > SUBW CROSSOVER (LPF) > SUBW POLARITY)
SUBW VOLUME LEVEL
- Rotate KNOB to adjust the level from -30 to +10.
SUBW CROSSOVER (LPF) (to set SUB the low pass filter)
- Rotate KNOB to highlight one available option, press to select: (FREQUENCY>SLOPE).
FREQUENCY (to set the SUB low pass cutoff filter frequency)
Rotate the KNOB to highlight the desired value (60Hz>80Hz>100Hz>FULL), press to select.
SLOPE (to set the SUB low pass filter slope)
Rotate the KNOB to highlight the desired value (-12dB/oct>-24dB/oct), press to select.
SUBW POLARITY (to set the SUB phase)
- Rotate the KNOB to highlight ( 0° or 180°), press to select.
MAX VOLUME LIMIT (to limit the maximum volume output of this zone).
- Rotate KNOB to adjust the desired Volume level limit from 0 to 40.
POWER ON VOLUME LIMIT (to limit the maximum volume level of this zone when the head unit is turned ON).
- Rotate KNOB to adjust the desired Volume level upon turn on from 0 a 40.
LEVEL CONTROL MODE
Rotate KNOB to highlight one of the available options, press to select:
- VARIABLE (default): the volume level of the signal output from this audio zone is variable and can be controlled via the volume mixer (AUDIO ZONE LEVEL).
- FIXED @4Vrms: the level of the output signal from this audio zone is fixed at 4Vrms. It will no longer be possible to change the volume level for this zone until the “Variable” mode is selected.
- FIXED @2Vrms: the level of the output signal from this audio zone is fixed at 2Vrms.
It will no longer be possible to change the volume level for this zone until the “Variable” mode is selected.
- FIXED @1Vrms: the level of the output signal from this audio zone is fixed at 1Vrms.
It will no longer be possible to change the volume level for this zone until the “Variable” mode is selected.
- OFF: this audio zone is off. This zone will no longer play any sound until “Variable” or “Fixed” mode is selected
ZONE 3 (ZONE 3 settings).
- RotateKNOB to highlight one available option, press to selector to enable or disable
this function.
(ZONE RENAME > EQUALIZER > BALANCE > LOUDNESS > CROSSOVER (HPF) > SUBWOOFER > MAX VOLUME LIMIT > POWER ON VOLUME LIMIT > LEVEL CONTROL MODE)
ZONE RENAME (to create a desired name for this audio zone, to facilitate identification).
Use KNOB to enter a desired name for this audio zone (max 10 characters).
EQUALIZER (Equalizer Setting)
- Rotate KNOB to select one of the available options.
(FLAT > CLASSIC > JAZZ > POP > ELECTRONIC > HIP-HOP > ROCK > USER)
The “USER” equalization can be customizable by the user
- Rotate KNOB to select “USER” equalization.
- Press KNOB to select the desired frequency.
- Rotate KNOB to adjust the level (from +12 to -12) of the selected frequency
- Press the KNOB again to move to the next frequency.
BALANCE (to adjust the right and left output balance of this zone)
- Rotate KNOB to adjust the balance between the right and left audio output from R12 (full right) to L12 (full left)
LOUDNESS (to compensate for deficiencies in the low/high frequencies at low volume level)
- Press KNOB to enable or disable
this function.
CROSSOVER (HPF) (to set the high pass cutoff filter frequency for ZONE 3 L/R).
- Rotate the KNOB to highlight the desirer value (60Hz > 80Hz > 100Hz > FULL), press to select.
SUBWOOFER (ZONE 3 SUB settings)
- Rotate KNOB to highlight one of the available options, press to select
(SUBW VOLUME LEVEL > SUBW CROSSOVER (LPF) > SUBW POLARITY)
SUBW VOLUME LEVEL
- Rotate KNOB to adjust the level from -30 to +10.
SUBW CROSSOVER (LPF) (to set SUB the low pass filter)
- Rotate KNOB to highlight one available option, press to select:
(FREQUENCY>SLOPE).
FREQUENCY (to set the SUB low pass cutoff filter frequency)
Rotate the KNOB to highlight the desired value (60Hz>80Hz>100Hz>FULL), press to select.
SLOPE (to set the SUB low pass filter slope)
Rotate the KNOB to highlight the desired value (-12dB/oct>-24dB/oct), press to select.
SUBW POLARITY (to set the SUB phase)
- Rotate the KNOB to highlight ( 0° or 180°), press to select.
MAX VOLUME LIMIT (to limit the maximum volume output of this zone).
- Rotate KNOB to adjust the desired Volume level limit from 0 to 40.
POWER ON VOLUME LIMIT (to limit the maximum volume level of this zone when the head unit is turned ON).
- Rotate KNOB to adjust the desired Volume level upon turn on from 0 a 40.
LEVEL CONTROL MODE
Rotate KNOB to highlight one of the available options, press to select:
- VARIABLE (default): the volume level of the signal output from this audio zone is variable and can be controlled via the volume mixer (AUDIO ZONE LEVEL).
- FIXED @4Vrms: the level of the output signal from this audio zone is fixed at 4Vrms. It will no longer be possible to change the volume level for this zone until the “Variable” mode is selected.
- FIXED @2Vrms: the level of the output signal from this audio zone is fixed at 2Vrms.
It will no longer be possible to change the volume level for this zone until the “Variable” mode is selected.
- FIXED @1Vrms: the level of the output signal from this audio zone is fixed at 1Vrms.
It will no longer be possible to change the volume level for this zone until the “Variable” mode is selected.
- OFF: this audio zone is off. This zone will no longer play any sound until “Variable” or “Fixed” mode is selected
ZONE 4 (ZONE 4 and SPEAKER OUT settings).
- RotateKNOB to highlight one available option, press to selector to enable or disable
this function.
(ZONE RENAME > EQUALIZER > BALANCE > LOUDNESS > CROSSOVER (HPF) > SUBWOOFER > MAX VOLUME LIMIT > POWER ON VOLUME LIMIT > LEVEL CONTROL MODE)
ZONE RENAME (to create a desired name for this audio zone, to facilitate identification).
Use KNOB to enter a desired name for this audio zone (max 10 characters).
EQUALIZER (Equalizer Setting)
- Rotate KNOB to select one of the available options.
(FLAT > CLASSIC > JAZZ > POP > ELECTRONIC > HIP-HOP > ROCK > USER)
The “USER” equalization can be customizable by the user
- Rotate KNOB to select “USER” equalization.
- Press KNOB to select the desired frequency.
- Rotate KNOB to adjust the level (from +12 to -12) of the selected frequency
- Press the KNOB again to move to the next frequency.
BALANCE/FADER (to adjust the right and left output balance of this zone and speaker out fader)
Press KNOB to switch between the options:
BALANCE: Rotate KNOB to adjust the balance between the right and left audio output from R12 (full right) to L12 (full left)
FADER: Rotate KNOB to adjust the level from F12 (full front) to R12 (full rear).
LOUDNESS (to compensate for deficiencies in the low/high frequencies at low volume level)
- Press KNOB to enable or disable
this function.
CROSSOVER (HPF) (to set the high pass cutoff filter frequency for ZONE 4 L/R and SPEAKER OUT).
- Rotate the KNOB to highlight the desirer value (60Hz > 80Hz > 100Hz > FULL), press to select.
SUBWOOFER (ZONE 4 SUB settings)
- Rotate KNOB to highlight one of the available options, press to select
(SUBW VOLUME LEVEL > SUBW CROSSOVER (LPF) > SUBW POLARITY)
SUBW VOLUME LEVEL
- Rotate KNOB to adjust the level from -30 to +10.
SUBW CROSSOVER (LPF) (to set SUB the low pass filter)
- Rotate KNOB to highlight one available option, press to select: (FREQUENCY>SLOPE).
FREQUENCY (to set the SUB low pass cutoff filter frequency)
Rotate the KNOB to highlight the desired value (60Hz>80Hz>100Hz>FULL), press to select.
SLOPE (to set the SUB low pass filter slope)
Rotate the KNOB to highlight the desired value (-12dB/oct>-24dB/oct), press to select.
SUBW POLARITY (to set the SUB phase)
- Rotate the KNOB to highlight ( 0° or 180°), press to select.
MAX VOLUME LIMIT (to limit the maximum volume output of this zone).
- Rotate KNOB to adjust the desired Volume level limit from 0 to 40.
POWER ON VOLUME LIMIT (to limit the maximum volume level of this zone when the head unit is turned ON).
- Rotate KNOB to adjust the desired Volume level upon turn on from 0 a 40.
LEVEL CONTROL MODE
Rotate KNOB to highlight one of the available options, press to select:
- VARIABLE (default): the volume level of the signal output from this audio zone is variable and can be controlled via the volume mixer (AUDIO ZONE LEVEL).
- FIXED @4Vrms: the level of the output signal from this audio zone is fixed at 4Vrms. It will no longer be possible to change the volume level for this zone until the “Variable” mode is selected.
Remark: in this mode, SPEAKER OUT is disabled.
- FIXED @2Vrms: the level of the output signal from this audio zone is fixed at 2Vrms.
It will no longer be possible to change the volume level for this zone until the “Variable” mode is selected.
Remark: in this mode, SPEAKER OUT is disabled.
- FIXED @1Vrms: the level of the output signal from this audio zone is fixed at 1Vrms.
It will no longer be possible to change the volume level for this zone until the “Variable” mode is selected.
Remark: in this mode, SPEAKER OUT is disabled.
- OFF: this audio zone is off. This zone will no longer play any sound until “Variable” or “Fixed” mode is selected.
ZONE AUDIO GROUPS (to create up to two groups composed of multiple zones, so as to adjust their volume at the same time)
- Rotate KNOB to highlight one of the available options, press to select.
(GROUPS A > GROUPS B)
GROUPS A
- Rotate KNOB to highlight one of the available options, press to select.
(GROUP RENAME > GROUP SETUP)
GROUPS RENAME (to create the desired name of a group of audio zones, to facilitate identification)
- Use KNOB to enter a desired name for this audio zone group (max 10 characters).
GROUPS SETUP (to select the zones that composed this group)
- Rotate KNOB to highlight the available zones, press to add or remove the desired zones at this group.
(ZONE 1 > ZONE 2 > ZONE 3 > ZONE 4)
GROUPS B
- Rotate KNOB to highlight one of the available options, press to select.
(GROUP RENAME > GROUP SETUP)
GROUPS RENAME (to create the desired name of a group of audio zones, to facilitate identification)
- Use KNOB to enter a desired name for this audio zone group (max 10 characters).
GROUPS SETUP (to select the zones that composed this group)
- Rotate KNOB to highlight the available zones, press to add or remove the desired zones at this group.
(ZONE 1 > ZONE 2 > ZONE 3 > ZONE 4)
ASSIGN FAVORITE ZONE (to set the zone or zones group that you adjust the volume level when you rotate the KNOB, default is set to ALL).
- Rotate KNOB to highlight one of the available options, press to select.
(ALL > ZONE 1 > ZONE 2 > ZONE 3 > ZONE 4 > GROUP A > GROUP B ).
■ 8.2.5 Tuner Region
- Rotate KNOB to highlight one of the available radio region, press to select.
(USA>EUROPE >JAPAN>AUSTRALASIA)
■ 8.2.6 Sources (to enables or disables the sources, to create a desired name displayed for AUX,VIDEO IN,DIGITAL IN).
Remark: The disabled sources will not appear on the SOURCE SELECTION screen.
- Rotate KNOB to highlight one of the available options, press to enable or disable
this source.
(FM > AM > WB > USB > BLUETOOTH > DAB > SIRIUSXM > AUX > VIDEO IN > DIGITAL IN)
- Rotate KNOB to highlight one of the available options press to select.
(AUX SOURCE NAME > VIDEO IN SOURCE NAME > DIGITAL IN SOURCE NAME).
AUX SOURCE NAME (to create a desired name of this source, to facilitate identification)
- Use KNOB to enter a desired name for this source (max 10 characters).
VIDEO IN SOURCE NAME (to create a desired name of this source, to facilitate identification).
- Use KNOB to enter a desired name for this source (max 10 characters).
DIGITAL IN SOURCE NAME (to create a desired name of this source, to facilitate identification).
- Use KNOB to enter a desired name for this source (max 10 characters).
■ 8.2.7 Power Management
- Rotate KNOB to highlight one of the available options, press to enable or disable
this function.
(LOW BATTERY ALERT > SCREEN OFF > RC SCREEN OFF*)
LOW BATTERY ALERT (Notifies of low battery voltage condition).
- Press KNOB to enableor disable
this function.
Remark: this notification alerts you when the 12 VDC supply voltage drops below 10 volts. If enabled, the device will enter safe mode and disable the audio output. A warning will also be displayed on the screen with instructions to shut down the device until normal operating voltage is restored. In the contrary if the power supply voltage drops below 9 volts, the unit will automatically turn off.
SCREEN OFF (to disables the LCD backlight after two minutes of inactivity).
- Press KNOB to enableor disable
this function.
RC SCREEN OFF* (to disables the CAPRI HD1 remote control LCD backlight after two minutes of inactivity).
- Press KNOB to enableor disable
this function.
* this function is selectable only on CAPRI HD1 remote control.
■ 8.2.8 HMC U1 Management
- Rotate KNOB to highlight one of the available options press to select
(REMOTE 1 SETTING > REMOTE 2 SETTING)
REMOTE 1 SETTING (to set the zone or zones group to adjust the volume level when using the HMC U1 remote control connected to the REMOTE 1 Input port, the default setting is ALL)
- Rotate KNOB to highlight one of the available options, press to select.
(ALL > ZONE 1 > ZONE 2 > ZONE 3 > ZONE 4 > GROUP A > GROUP B)
REMOTE 2 SETTING (to set the zone or zones group to adjust the volume level when using the HMC U1 remote control connected to the REMOTE 2 Input port, the default setting is ALL).
- Rotate KNOB to highlight one of the available options, press to select.
(ALL > ZONE 1 > ZONE 2 > ZONE 3 > ZONE 4 > GROUP A > GROUP B)
■ 8.2.9 System
- Rotate KNOB to highlight one of the available options, press to select
(SYSTEM INFO > CAPRI H100 UPDATE > CAPRI HD1 UPDATE* > FACTORY DEFAULT)
SYSTEM INFO (to show the software version information)
CAPRI H100 UPDATE
- Select after connecting the USB flash drive containing the update files,then highlight [YES] and press (see chap.8.13).
CAPRI HD1 UPDATE
- Select after connecting the USB flash drive containing the update files, then select highlight [YES] and press (see chap.8.13).
*this function is selectable only when CAPRI HD1 remote control is connected
FACTORY DEFAULT
- Rotate KNOB to select [YES] then press to restore all settings to the factory default values.
8.3 TUNER OPERATION (AM/FM)
■ 8.3.1 Select tuner as Playing Source.
1. Press / SCR to access the SOURCE SELECTION menu.
2. Rotate KNOB to highlight (AM>FM) as desired tuner mode, press to select.
■ 8.3.2 Settings menu (AM/FM)
- Press to access the settings menu. (AM/FM).
- Press KNOB to highlight one available option, press to select, or to enableor disable
this function.
(PRESETS LIST > AUTO STORE > LOCAL > RDS/RBDS* >AF).
*USA region.
- Press to go back to the previous screen or exit the menu.
PRESETS LIST
- Rotate KNOB to select the desired preset then press to select.
Remark: you can also long press KNOB or press to quickly access in PRESETS LIST.
AUTO STORE (to automatically store in the memory the stations with sufficient signal strength)
- Press KNOB to automatically find the available stations and store them into presets.
Remark: the new stations replaces any stations already stored.
LOCAL (to tune only the FM stations with the strongest signal)
- Press KNOB to enableor disable
this function.
RDS/RBDS (FM Radio Data System)
- Press VOL/SEL to enableor disable
this function.
AF (FM Alternative Frequencies)
- Press VOL/SEL to enableor disable
this function.
■ 8.3.3 Preset Stations tuning mode
- Press repeatedly to switch the tuning modes to PRESET SEEK
- Press to move to the previous preset.
- Press to move to the next preset.
■ 8.3.4 Auto Seek Tuning mode
- Press repeatedly to switch the tuning modes to AUTO SEEK
- Long press to tune the previous strongest station.
- Long press to tune the next strongest station.
■ 8.3.5 Manual Tune (AM/FM)
- Press repeatedly to switch the tuning modes to MANUAL SEEK
- Press or
to manually tune to the desired frequency.
Remark: you can press and hold or
to quickly advance through the frequencies.

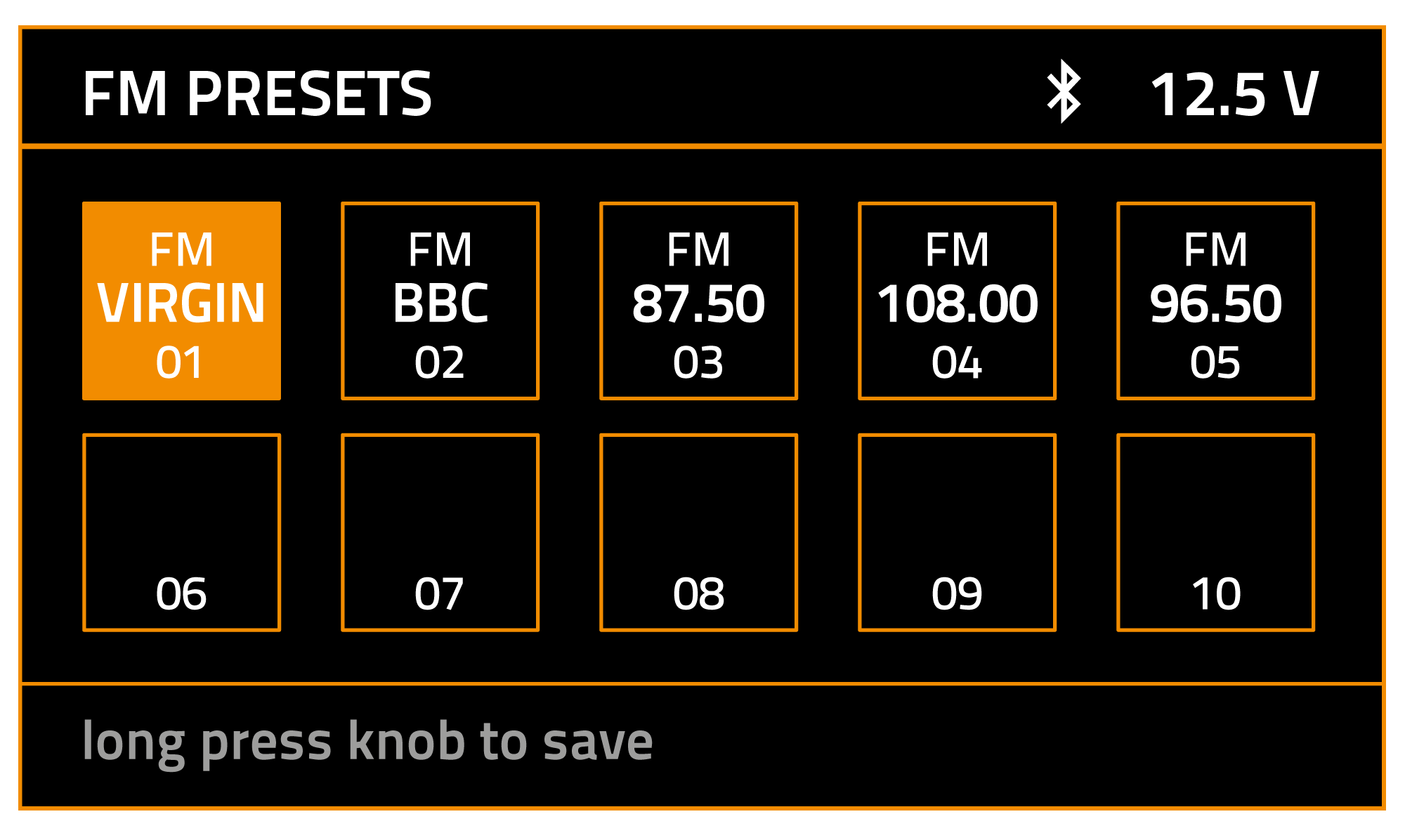

■ 8.3.6 Save a preset (You can save up to 18 of your favorite stations when in FM, or up to 12 when in AM, as presets for a quick access).
1. Tune the desired station / frequency.
2. Long press KNOB or press to access the PRESETS LIST.
3. Rotate KNOB to select the desired preset number.
4. Long press KNOB to store it.
■ 8.3.7 Select a preset from PRESETS LIST
1. Long press KNOB or press to access the PRESETS LIST.
2. Rotate KNOB to highlight the desired preset, press to select.
8.4 WEATHER BAND TUNER OPERATION
■ 8.4.1 Select WB tuner as Playing Source.
1. Press / SCR per accedere al menù SOURCE SELECTION.
2. Rotate KNOB to highlight (WB) as desired tuner mode, press to select .
■ 8.4.2 Station Tuning
- Press to move to the previous preset.
- Press to move to the next preset.
■ 8.4.3 Select a preset from PRESETS LIST
(You can select from 7 system preset stations)
1. Press to access the PRESETS LIST.
2. Rotate KNOB to highlight the desired preset, press to select.
8.5 USB MODE OPERATION (available only when a USB device is connected)
■ 8.5.1 Select USB as Playing Source.
1. Press / SCR to access the SOURCE SELECTION.
2. Rotate KNOB to highlight USB as source, press to select.
■ 8.5.2 Connecting a USB device
- Insert a USB device into the USB port (please check the technical specification for compatibility details)(see cap. 10).
- To remove the USB device, you should select another source or turn off the power, in order to avoid damaging the USB device.
■ 8.5.3 Select a Track
- Press to move to the next track/song.
- Press to go back to the previous track/song.
■ 8.5.4 Fast Forward/Fast Rewind
- Press and hold to fast forward through the track/song.
- Press and hold to fast rewind through the track/song.
- Press to return to playback.
■ 8.5.5 Play / Pausa
- Press the to pause the track/song that is currently playing,
lights up.
- Press the to resume playing the track/song that has been paused,
lights up.
■ 8.5.6 USB Settings Menu
1. Press to enter the USB settings menu.
2. Rotate KNOB to highlight the desired option, press to select or to change function.
(BROWSER>REPEAT>SHUFFLE).
3. Press to go back to previous screen or exit from the menu.
BROWSER (to view and select the tracks contained in the USB)
Use KNOB to browse the USB device content.
- Rotate KNOB to highlight the desired song or folder.
- Press KNOB to play the song or access the folder.
- Press to exit from the current folder.
- Press to exit the USB browsing (if you are in the USB root).
Remark: you can also press to access in BROWSER.
Remark:the system exits from the USB browsing after a few seconds if no button is pressed.
REPEAT
Press KNOB to switch the REPEAT options:
(REPEAT ALL > ONE > FOLDER):
REPEAT ALL: to repeat playback of the tracks contained in the USB device. The logo is displayed on the screen.
REPEAT ONE: to repeat playback of the current track. The logo is displayed on the screen.
REPEAT FOLDER: to repeat playback of the tracks contained in the current folder.
The logo is displayed on the screen
SHUFFLE
Press KNOB to switch the SHUFFLE options:
(OFF > ALL > FOLDER)
SHUFFLE OFF: this function is disabled.
SHUFFLE ALL: to randomly play the tracks contained in the device.
SHUFFLE FOLDER: to randomly play the tracks contained in the current folder.
When enabled the logo is displayed on the screen.
8.6 MUSIC PLAYBACK ON AN APPLE DEVICE
1. Connect a compatible Apple smartphone or media player to the head unit via USB.
2. You can use the music application on the *Apple® device or the head unit controls to browse the music library and to select, play, pause and skip tracks.
■ 8.6.1 Select the desired song
The songs contained in the * Apple® device are grouped as it happens in the device itself, through playlists, such as: “Playlists”, “Artists”, “Albums”, “Genres”, “Songs”, “Composers” and “Audiobooks”.
- Press to view the contents of the Apple® device.
- Rotate KNOB to highlight the desired playlist. Press KNOB to confirm selection.
- Rotate KNOB to highlight the desired track. Press KNOB to play the track.
- Press to go back.
Remark: the system exits USB navigation after a few seconds if no button is pressed.
■ 8.6.2 Settings Menu
1. Press to enter the USB settings menu.
2. Rotate KNOB to highlight the desired option, press to select press to select or to change function.
(BROWSER > REPEAT > SHUFFLE).
3. Press to go back to previous screen or exit from the menu.
BROWSER
The songs contained in the *Apple® device are grouped as it happens in the device itself, through playlists, such as: “Playlists”, “Artists”, “Albums”, “Genres”, “Songs”, ”Popcasts” , “Composers”, ”Radios” and “Audiobooks”
- Use KNOB and to browse the *Apple® device content.
- Rotate KNOB to highlight the desired playlist, press to confirm selection.
- Press KNOB to play the song or access the folder.
- Rotate KNOB to highlight the desired track.
- Press KNOB to play the track.
- Press to go back.
Remark: you can also press to access in BROWSER.
Remark:the system exits from the *Apple® device browsing after a few seconds if no button is pressed.
REPEAT
Press KNOB to switch the REPEAT options:
(REPEAT OFF> ALL>ONE):
REPEAT OFF: this function is disabled.
REPEAT ALL: to repeat playback of the tracks contained in the USB device. The logo is displayed on the screen.
REPEAT ONE: to repeat playback of the current track. The logo is displayed on the screen.
SHUFFLE
Press KNOB to switch the SHUFFLE options:
(OFF>ALL>)
SHUFFLE OFF: this function is disabled.
SHUFFLE ALL: to randomly play the tracks contained in the folder, album, or playlist.
When enabled the logo is displayed on the screen.
8.7 BLUETOOTH OPERATION
■ 8.7.1 Select Bluetooth as Playing Source.
1. Press / SCR to access the SOURCE SELECTION.
2. Rotate KNOB to highlight BT, press to select.
■ 8.7.2 Pair Bluetooth Device.
Enable Bluetooth in your streaming device and scan for nearby devices, select CAPRI H100 from your list of available devices to connect.
■ 8.7.3 Managements Bluetooth Device
- Long press to access the system settings menu.
- Rotate KNOB to highlight BLUETOOTH DEVICE, press to select. (see sec. 8.2.2)
■ 8.7.4 Settings Menu
1. Press to enter the BT settings menu.
2. Rotate KNOB to highlight the desired option, press to select press to select or to change function.
(BROWSER>REPEAT>SHUFFLE).
3. Press to go back to previous screen or exit from the menu.
BROWSER (Apple® device only)
The songs contained in the *Apple® device are grouped as it happens in the device itself, through playlists, such as: “Playlists”, “Artists”, “Albums”, “Genres”, “Songs, ”Popcasts”, “Composers”, ”Radios” and “Audiobooks”
- Use KNOB and to browse the *Apple® device content.
- Rotate KNOB to highlight the desired playlist, press to confirm selection.
- Press KNOB to play the song or access the folder.
- Rotate KNOB to highlight the desired track.
- Press KNOB to play the track.
- Press to go back.
Remark: you can also press to access in BROWSER.
Remark: the system exits from the *Apple® device browsing after a few seconds if no button is pressed.
REPEAT (Apple® device only)
Press KNOB to switch the REPEAT options:
(OFF > ALL > ONE):
REPEAT OFF: this function is disabled.
REPEAT ALL: to repeat playback of the tracks contained in the USB device. The logo is displayed on the screen.
REPEAT ONE: to repeat playback of the current track. The is displayed on the screen.
SHUFFLE (Apple® device only)
Press KNOB to switch the SHUFFLE options:
(OFF > ALL)
SHUFFLE OFF: this function is disabled.
SHUFFLE ALL: to randomly play the tracks contained in the folder, album, or playlist.
When enabled the logo is displayed on the screen.
|
WARNING: please avoid operating your mobile phone while audio streaming, as this may |
|
| cause noise or stuttering on the song playback. Audio streaming may or may not resume after telephone interruption as this depends on the mobile phone used. | |
■ 8.7.5 Play / Pausa
- Press to pause the track/song that is currently playing. The icon
is displayed on the screen.
- Press to resume playing the track that has been paused.
is displayed on the screen.
■ 8.7.6 Select a Track
- Press to move on to the previous track/song.
- Press to go back to the next track/song.
Remark: playing order will depend on Bluetooth audio player. When is pressed some A2DP devices will restart the current track depending on the duration of the playback. Some Bluetooth audio players may not allow play/pause synchronization with this unit. Please make sure both the device and the main unit are in the same play/pause status in BT Music mode.
8.8 DAB+ OPERATION (CAPRI HMB DAB+ optional)
■ 8.8.1 Select DAB+ as Playing Source.
1. Press / SCR to access the SOURCE SELECTION.
2. Rotate KNOB to highlight as desired tuner mode, press to select.
Remark: The DAB+ source is available only if you select EUROPE/JAPAN/AUSTRALASIA as tuner region (see sec. 8.2.5)
■ 8.8.2 DAB+ Settings menu.
1. Press to enter the DAB+ settings menu.
2. Rotate KNOB to highlight the desired option, press to select or to enableor disable
this function.
(BROWSE STATIONS>PRESETS LIST >SCAN STATIONS>ZOOM DLS>ANT.POWER>RESET).
3. Press to go back to previous screen or exit from the menu.
BROWSE STATIONS (contains the list of DAB+ station found after scanning)
- Rotate KNOB to highlight a desired station, press to select.
Remark: you can also long press to access in BROWSE STATION.
PRESETS LIST
- Rotate KNOB to highlight the desired preset, press to select.
Remark: you can also press to access in PRESET LIST.
SCAN STATIONS (to perfom a full scan of the available DAB+ stations)
- Press KNOB to to start scanning.
ZOOM DLS (to zoom in on information and content)
Remark: Press to disable this function.
ANT POWER (to supply “12Vdc Phantom” to the connected DAB+ antenna).
- Press KNOB to enableor disable
this function.
RESET
- Rotate KNOB to select [YES], then press to restore all DAB+ settings to the factory default values.
Remarks: At the end of the reset, a scanning for available DAB+ stations will be performed automatically.
■ 8.8.3 SAVE A PRESET (You can save up to 18 of your favorite stations when in FM, or up to 12 when in AM, as presets for a quick access).
1. Tune the desired station / frequency.
2. Long press KNOB or press to access the PRESETS LIST .
3. Rotate KNOB to select the desired preset number.
4. Long press KNOB to store it.
■ 8.8.4 SELECT A PRESET FROM PRESETS LIST.
1. Long press KNOB or press to access the PRESETS LIST .
2. Rotate KNOB to select the desired preset number.
8.9 SiriusXM®
SiriusXM is where moments happen. The widest, deepest variety of music, ad-free. More games, more sports, more coverage than anywhere. The most extensive entertainment, complete news coverage and every kind of comedy. Listen in your car, on your phone, online and at home. A SiriusXM Connect Tuner and subscription are required. For more information, visit www.siriusxm.com.
■ 8.9.1 SiriusXM as Playing Source.
1. Press / SCR to access the SOURCE SELECTION.
2. Rotate KNOB to highlight SXM press to select.
Remark: The SiriusXM source is available only if you select USA as region (see sec. 8.2.5)
■ 8.9.2 SiriusXM ACTIVATION PROCESS.
1. Activating your SiriusXM Subscription
After installing your SiriusXM Connect Tuner and antenna, power on your CAPRI H100 and select SiriusXM mode. You should be able to hear the SiriusXM preview channel on Channel 1. If you cannot hear the preview channel, please check the installation instructions to make sure your SiriusXM. Connect tuner is properly installed.
After you can hear the preview channel, tune to Channel 0 to find the Radio ID of your tuner.
In addition, the Radio ID is located on the bottom of the SiriusXM Connect Tuner and its packaging. You will need this number to activate your subscription. Write the number down for reference.
Note: the SiriusXM Radio ID does not include the letters I, O, S or F.
In the USA, you can activate online or by calling SiriusXM Listener care:
a: Visit www.siriusxm.com/activate now.
b: Call SiriusXM Listener Care at 1-866-635-2349.
For Canadian Subscriptions, please contact:
c: Visit www.siriusxm.ca/activate.
d: Call SiriusXM Customer Care at 1-888-539-7474.
As part of the activation process, the SiriusXM satellites will send an activation message to your tuner. When your radio detects that the tuner has received the activation message, your radio will display:
SUBSCRIPTION UPDATED.
Once subscribed, you can tune to channels in your subscription plan. Note, the activation process usually takes 10 to 15 minutes, but may take up to an hour. Your radio will need to be
powered on and receiving the SiriusXM signal to receive the activation message.
2. IDENTIFYING THE SiriusXM Connect Tuner RADIO ID NUMBER
The SiriusXM Radio ID is required for activation and can be found by tuning to Channel 0 as well as by looking on the label found on the SiriusXM Connect Tuner and its packaging. The Radio ID does not include the letters I, O, S or F.
■ 8.9.3 SiriusXM INTERFACES.
| CH xx |
CHANNEL NUMBER |
| P1 |
PRESET NUMBER |
|
LOCKED CHANNEL ICON |
|
|
CHANNEL NAME |
|
|
CATEGORY NAME |
|
|
ARTIST NAME / CONTENT INFO |
|
|
SONG TITLE |
|
|
ALBUM ART |
1. TUNING MODE (Preset/Category/Manual)
Preset Tuning Mode
- Press repeatedly to switch the tuning modes to PRESET
- Press to move to the previous preset.
- Press to move to the next preset.
Category Tuning Mode
- Press repeatedly to switch the tuning modes to CATEGORY
- Press to move the previous channel in the current category.
- Press to move the next channel in the current category.
Manual Tune
- Press repeatedly to switch the tuning modes to MANUAL.
- Press to move the previous channel.
- Press to move the next channel.
Remark: you can press and hold or
to quickly advance through the channels.
2. REPLAY MODE
You can use Replay Mode to control playback of a SiriusXM broadcast
- Press and holdto enable REPLAY MODE (currently tuning mode changes to REPLAY MODE, and a progress bar appears.
- Press to pause or resume the playback.
- Press to move backward in increments.
- Press to move forward in increments.
Remark: you can press and hold or
to rewind or fast forward the track.
Remark: If you fast forward or skip forward to the end of the progress bar, the unit exits Replay Mode automatically.
- Press and holdto exit REPLAY MODE (tuning mode switches back to previous mode, and the progress ba disappears).
Remark: you can also exit from REPLAY MODE:
- Press to access SiriusXM Settings.
- Rotate KNOB scrolling to highlighting NOW PLAYNG.
- Press KNOB to return to NOW PLAYNG
3. DIRECT TUNING
Selecting a channel using the Direct Tuning feature.
1. From the primary SiriusXM Interface, long press KNOB
2. Enter the 3-digit Channel Number in the pop-up window by turning the KNOB to scroll to the first digit.
3. Press KNOB to confirm the first digit, proceeding to the second digit.
4. Rotate KNOB, scrolling to the second digit.
5. Press KNOB to confirm the second digit, proceeding to the third digit.
6. Rotate KNOB, scrolling to the third digit.
7. Press KNOB to confirm the third digit and tune the entered channel.
■ 8.9.4 SiriusXM SETTINGS
To access SiriusXM settings, press the MENU button to view the list of settings options.
Turn the KNOB, scrolling to highlight the desired setting, then press the KNOB to view the available options for the setting.
1. NOW PLAYNG (Only available for REPLAY MODE) To exit from REPLAY MODE).
You can use Replay Mode to control playback of a SiriusXM broadcast
- Press to access SiriusXM Settings.
- Rotate KNOB scrolling to highlighting NOW PLAYNG.
- Press the KNOB to return in NOW PLAYNG.
2. PRESETS LIST
To browse stored presets:
- Press to access SiriusXM Settings.
- Rotate KNOB scrolling to highlighting PRESETS LIST.
- Press KNOB to access the preset list.
- Rotate KNOB to scroll the preset list & highlight the desired preset channel.
- Press KNOB to tune the desired channel.
Remark: you can also pres to access in PRESET LIST.
3. MANAGE PRESETS
To save a preset:
- Press to access SiriusXM Settings.
- Rotate KNOB scrolling to and highlight MANAGE PRESETS.
- Press KNOB to access the MANAGE PRESETS.
- Rotate KNOB scrolling to and highlight ADD PRESETS.
- Press KNOB to access the ADD PRESETS.
- Rotate KNOB to scroll the preset list and highlight the desired preset location (1-18).
- Press KNOB to confirm and save the channel in the desired preset location.
Remark: Saving a new channel in a preset location will replace a previously saved channel.
4. BROWSE BY CHANNEL
Select BROWSE BY CHANNEL to view all available channels:
- Press to access SiriusXM Settings.
- Rotate KNOB scrolling to & highlighting BROWSE BY CHANNEL.
- Press KNOB to access the BROWSE BY CHANNEL.
- Rotate KNOB to scroll the channel list & highlight the desired channel.
- Press KNOB to tune the desired channel.
Remark: by pressing you can show the list by CHANNEL NAME /ARTIST/SONG/INFO/CATEGORY.
5. BROWSE BY CATEGORY
Select BROWSE BY CATEGORY to browse all the available category. By selecting one category you can see the list of channels available in that category:
- Press to access SiriusXM Settings.
- Rotate KNOB scrolling to & highlighting BROWSE BY CATEGORY.
- Press KNOB to access the category list.
- Rotate KNOB to scroll the category list & highlight the desired content category.
- Press KNOB to view the channels broadcast content relative to the category.
- Rotate KNOB to scroll the channel list & highlight the desired channel.
- Press KNOB to tune the desired channel.
Remark: by pressing you can show the list by CHANNEL NAME /ARTIST/SONG/INFO.
Visit www.siriusxm.com for more information about the SiriusXM Connect Tuner Channel lineup.
6. PARENTAL CONTROL
The Parental Control feature allows you to limit access to SiriusXM channels with mature content. When LOCK MATURE CHANNEL is enabled, the Parental Control feature requires you to enter a passcode to tune to the locked channels. Information on setting up the passcode and locking channels can be found below.
LOCK MATURE CHANNEL
- Press to access SiriusXM Settings.
- Rotate KNOB scrolling to and highlight PARENTAL CONTROL.
- Press KNOB to access the PARENTAL CONTROL.
- Rotate KNOB scrolling to and highlight LOCK MATURE CHANNEL.
- Press KNOB to access the ability to activateor deactivate
the Parental Control feature.
How to Lock (restrict) or Unlock (unrestricted) the Parental Control Mature Channels.
The default Lock Code is: 1111
- Enter the 4-digit default Lock Code in the pop-up window by turning the KNOB to scroll to the first digit.
- Press the KNOB to confirm the first digit, and proceed to the second digit.
- Rotate the KNOB, and scroll to the second digit.
- Press the KNOB to confirm the second digit, and proceed to the third digit.
- Rotate the KNOB, and scroll to the third digit.
- Press the KNOB to confirm the third digit, and proceed to the fourth digit.
- Rotate the KNOB, and scroll to the fourth digit.
- Press the KNOB to confirm the fourth digit.
- Press the KNOB, to either or
, selecting
or
to unlock Parental Control Mature Channels.
EDIT LOCK CODE
Select EDIT LOCK CODE to change the default or current Parental Control Lock code.
- Press to access SiriusXM Settings.
- Rotate KNOB, scrolling to and highlight PARENTAL CONTROL.
- Press KNOB to access the PARENTAL CONTROL.
- Rotate KNOB, scrolling to and highlight MANAGE LOCK CODE.
- Press the KNOB to access the ability to change the default or current Parental Control Lock code.
- Entering a new Parental Control Lock code:
- The default Lock Code is: 111
- Enter the 4-digit default or current Lock Code in the pop-up window by turning the KNOB to scroll to the first digit.
- Press KNOB to confirm the first digit, and proceed to the second digit.
- Rotate KNOB and scroll to the second digit.
- Press KNOB to confirm the second digit, and proceed to the third digit.
- Rotate KNOB and scroll to the third digit.
- Press KNOB to confirm the third digit, and proceed to the fourth digit.
- Rotate KNOB and scroll to the fourth digit.
- Press KNOB to confirm the fourth digit.
- Enter the new 4-digit Lock Code in the pop-up window by following steps 1-8 above.
7. MY ACCOUNT
Select MY ACCOUNT to view your SiriusXM account status and Radio ID:
- Press to access SiriusXM Settings.
- Rotate KNOB scrolling to and highlightMY ACCOUNT.
- Press KNOB to access the MY ACCOUNT.
8. SXM FACTORY DEFAULT
Select SiriusXM FACTORY DEFAULT to reset all SiriusXM Connect Tuner setting to default. Defaulted settings include Presets, Parental Lockout Code, Locked Channels, etc.
- Press to access SiriusXM Settings.
- Rotate KNOB scrolling to and highlight SXM FACTORY DEFAULT.
- Press KNOB to access the ability to reset all SiriusXM settings to factory default.
- Rotate KNOB to highlight YES.
- Press KNOB to perform a factory.
8.10 AUX MODE
■ 8.10.1 Select AUX as Playing Source
The AUX input is provided to allow playback of sounds and music from external devices.
1. Press / SCR to access the SOURCE SELECTION.
2. Rotate KNOB to highlight AUX press to select.
Remark: is possible create a desired name of this source, to facilitate identification (see sec. 8.2.6.).
8.11 VIDEO IN MODE
The CAMERA input ,allows you to view images from an external camera (optional).
1. Press / SCR to access the SOURCE SELECTION.
2. Rotate KNOB to highlight VIDEO IN press to select.
Remark: is possible create a desired name of this source, to facilitate identification (see sec. 8.2.6.).
■ 8.11.1 Automatic switching to VIDEO IN mode
CAPRI H100 is equipped with a specific function that allows you to activate/deactivate the VIDEO IN mode via an external command provided by the user through the “CAMERA TRIGGER” wire (light green/white) on the back of the head unit.
When + 12Vdc voltage is applied to the “CAMERA TRIGGER” wire, the head unit switches to VIDEO IN mode.
When + 12Vdc voltage is removed from the above control wire, the head unit return to the previously played source.
8.12 DIGITAL IN MODE OPERATION
■ 8.12.1 Select DIGITAL IN as Playing Source
The S/PDIF optical input in this system , is provided to allow playback of sounds and music from external device with an optical audio output connected to this unit using an optical audio cable.
1. Press / SCR to access the SOURCE SELECTION.
2. Rotate KNOB to highlight DIGITAL IN press to select.
Remark: this system supports PCM audio up to 24bit/96kHz.
Remark: is possible create a desired name of this source, to facilitate identification (see sec. 8.2.6.).
8.13 SOFTWARE UPDATE
You can update the device software using a USB flash drive, You need a blank USB flash drive that has a capacity in between 256MB and 64GB. Ensure the USB Flash Drive is formatted to FAT32.
|
WARNING: before start the USB update please take care of the following indications: |
|
|
1. Please check that the power supply voltage is over 12VDC and make sure that it stays over this level for the whole procedure time. |
|
- Please download the update file from the CAPRI H100 product page on www.hertz-audio.com website.
- Please extract the content of the .zip file to the root of your USB flash drive.
- Turn on CAPRI H100.
- Connect the USB flash drive.
- Long press to access the system settings menu.
- Rotate KNOB to highlight SYSTEM, press to select.
- Rotate KNOB to highlight CAPRI H100 UPDATE, press to select.
- Upgrade advise will appear on screen, select [YES] and press to start the upgrade.
Remark: The unit may restart a few times while updating the software.
- When the upgrade procedure is complete the unit switch of permanently.
- Please remove the USB flash drive.
- Turn on CAPRI H100 to check the current system SW version (see sec. 8.2.9).
